| Parameter Name | Specification Value / Details | |
|---|---|---|

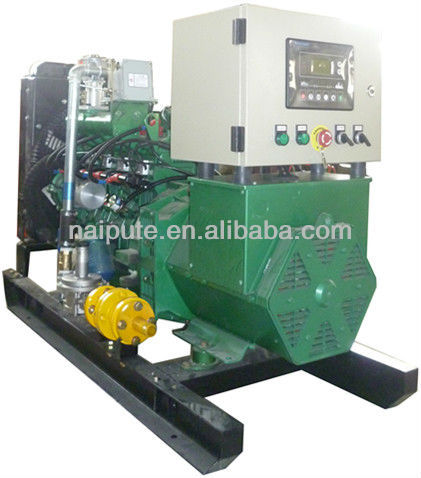

| Generating set general Model | 10GFT | |
| Structure | integral | |
| Exciting method | AVR Brushless | |
| Rated Power (kVA/kW) | 12.5/10 | |
| Rated Current (A) | 18 | |
| Rated Voltage (V) | 400/230 | |
| Rated Frequency (Hz) | 50 | |
| Rated Power Factor | 0.8 LAG | |
| Overall dimension (L x W x H)(mm) | 1320X600X900 | |
| Net weight (kg) | 500 | |
| Gas Engine | Model | NQ15D1.3 |
| Type | In line 4stroke, electric control ignition, pre-mixed stoichiometry burn | |
| Cylinder number | 3 | |
| Bore x Stroke (mm) | 80x90 | |
| Total displacement (L) | 1.5 | |
| Rated Power (kW) | 13 | |
| Rated Speed (r/min) | 1500 | |
| Fuel type | Biogas | |
| Control panel | NPT Brand 10KZY | LCD display |
| Circuit Breaker type | ATS SKT1-20 | |
| Control Module | Smartgen HGM6320 | |
| Operation language | English | |
| Alternator | Model | XN164C |
| Brand | MBH (Germany brand) | |
| Shaft | Single bearing | |
| Rated Power (kW) | 10.8 | |
| Rating (kVA) | 13.5 | |
| Enclosure protection | IP23 | |
| Efficiency (%) | 80 | |
