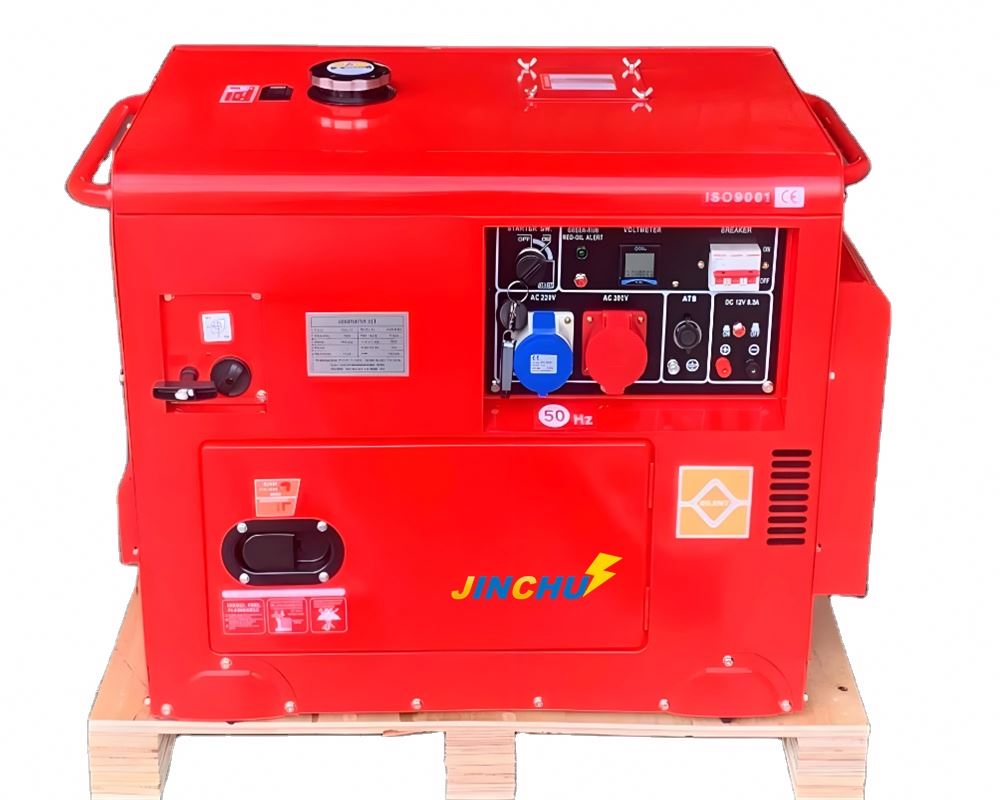

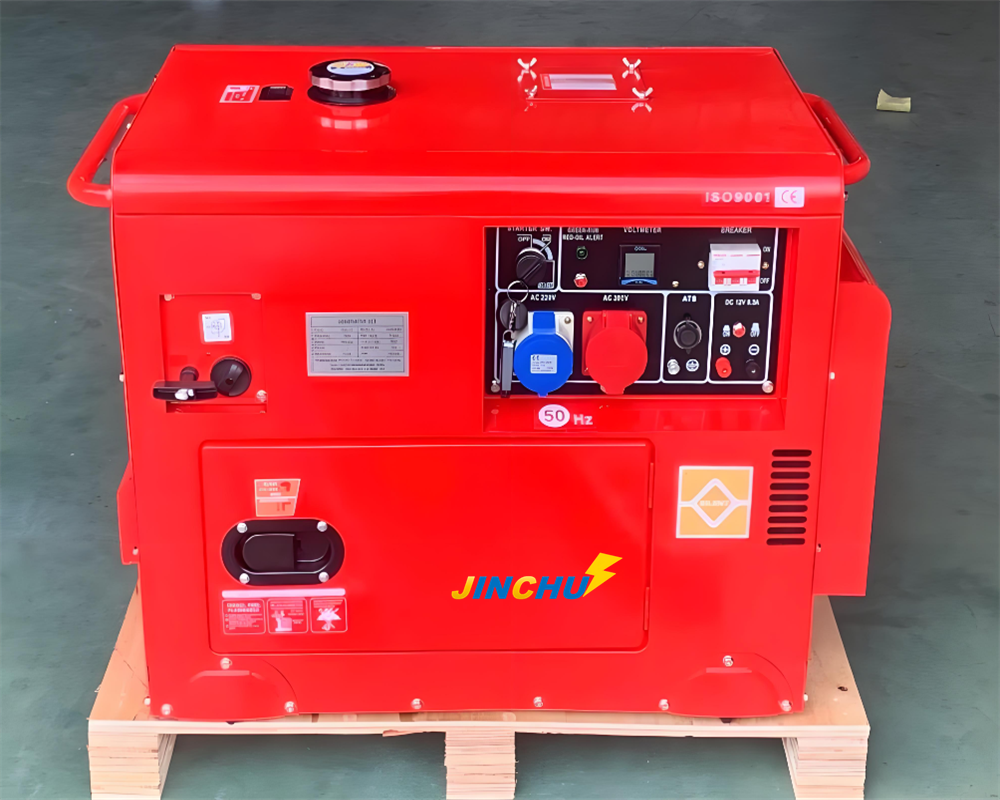

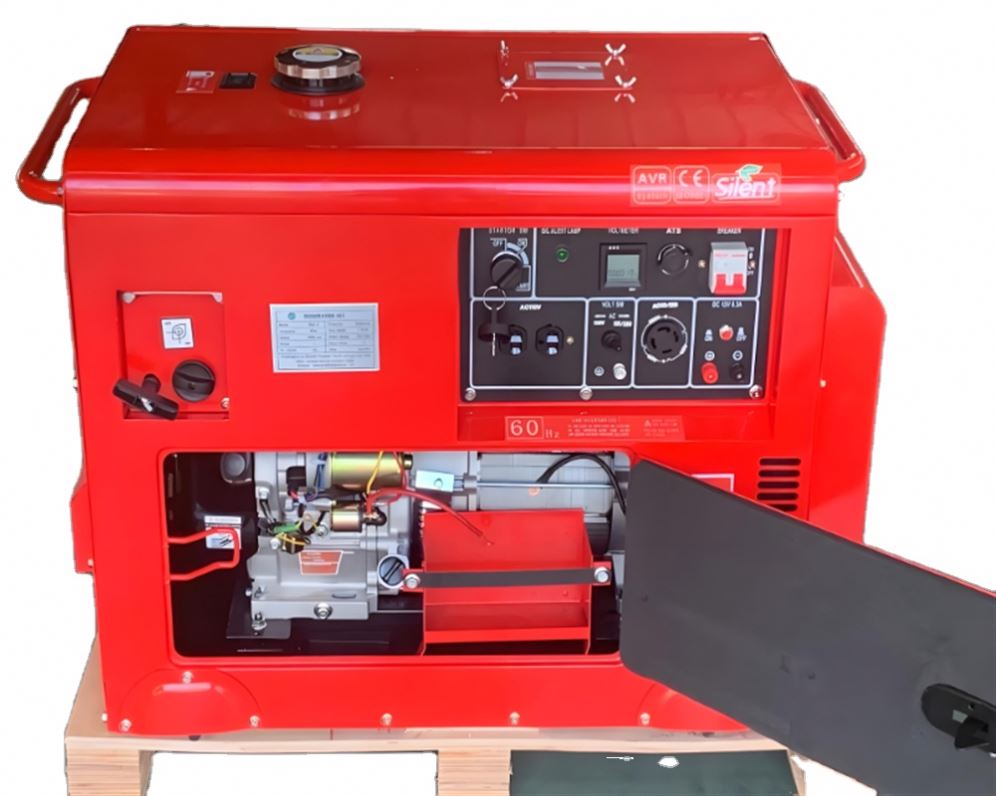

| Genset Model no. | JC5-G |
| Rated power | 4.5KW |
| Max power | 5KW |
| Speed (rpm) | 1500/3000rpm & 1800rpm |
| Rated Frequency (HZ) | 50HZ/60HZ |
| Phase | single phase/3phase |
| Voltage (V) | 110V & 240V & 380V |
| Power factor | 1/0.8 |

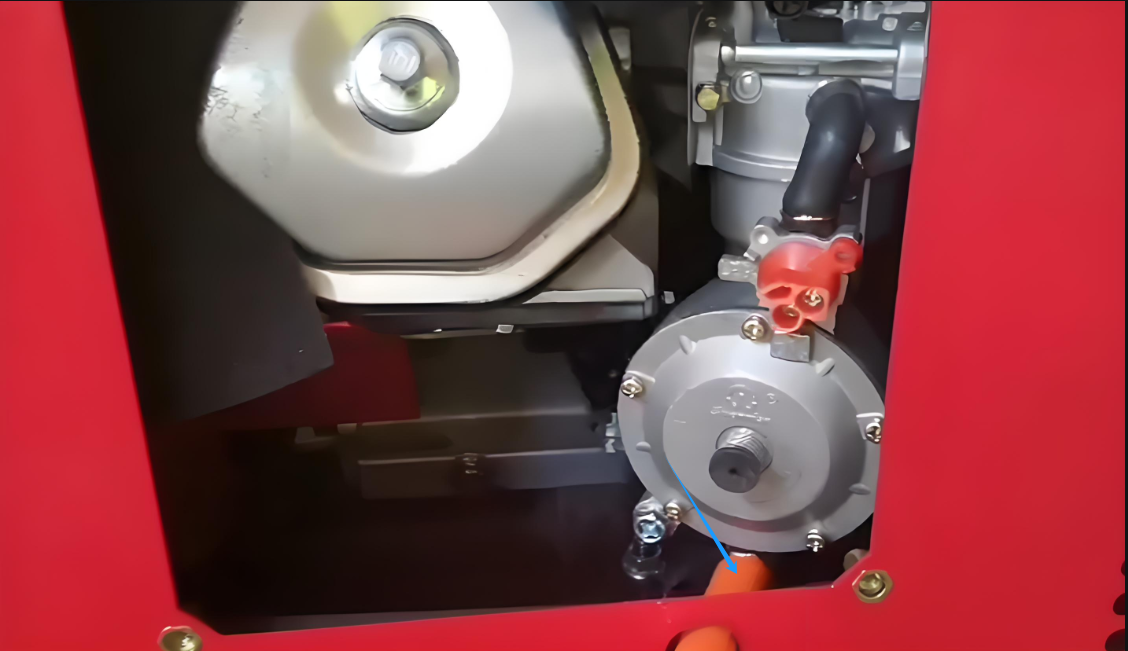

| Fuel Type | Gasoline & Biogas |
| Rated current (A) | 23A |
| Fuel consumption (L/H) 100% load | 1.3 |
| Lubrication capacity (L) | 0.65 |
| Lubrication oil | CD grade or higher (SAE10W/30, SAE15W/40) |
| Water cooling (Engine) | 1 Cylinder air cooling |
| Noise level | 58db-68db |
| Dimension (L×W×H) (mm) | 930*570*775 |
| Net Weight (kg) | 135 |
| Bore × Stroke (mm) | 70X79 |
| Combustion system | Direct injection |
| Displacement | 399ML |
