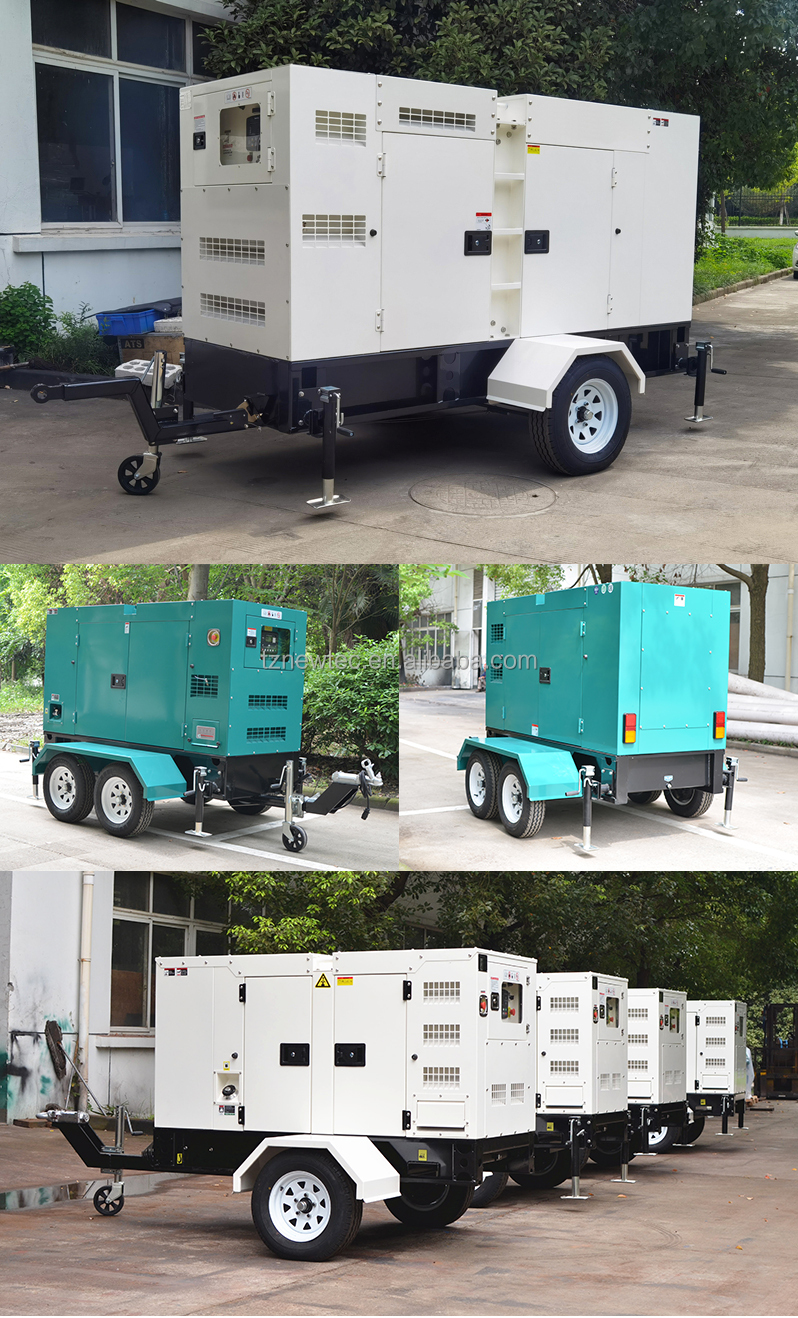

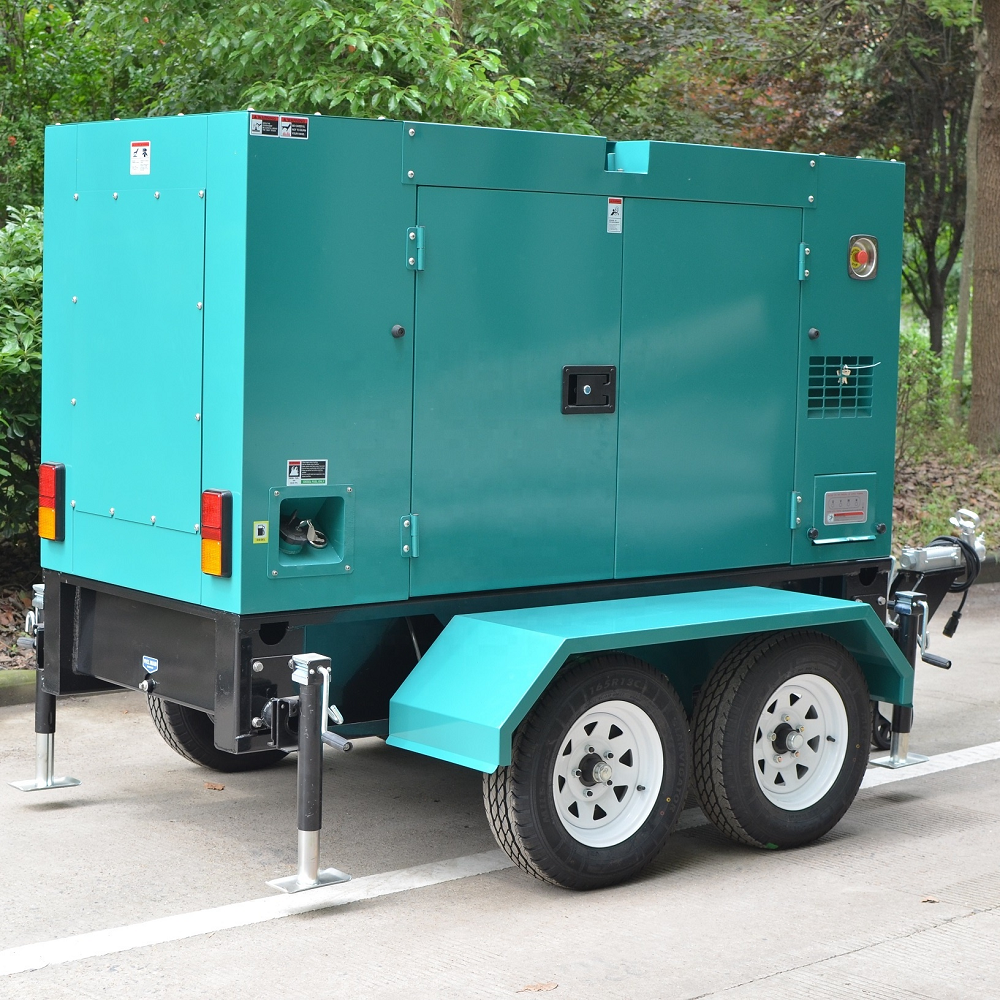

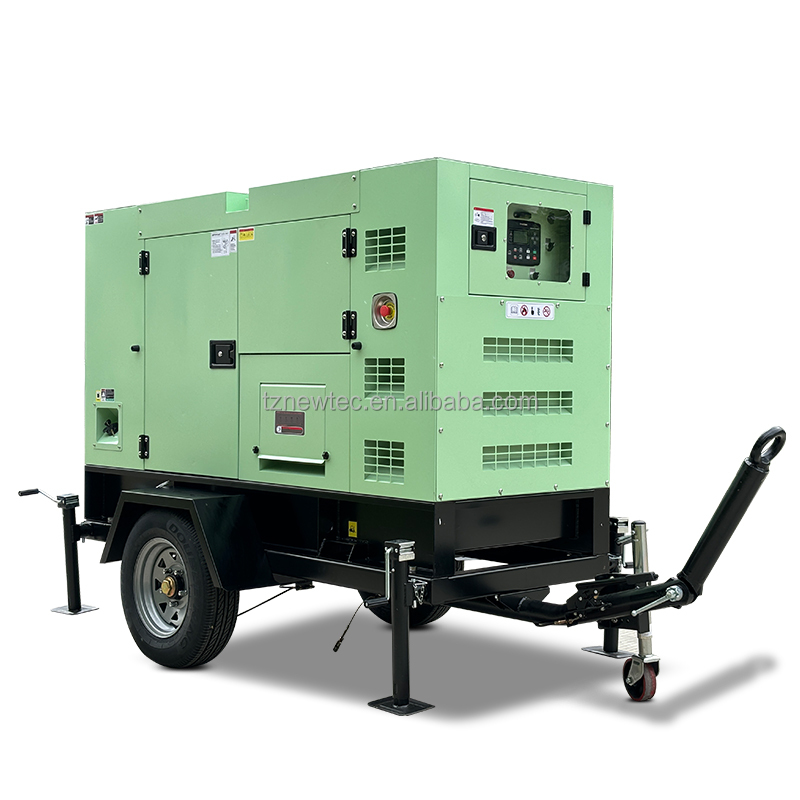

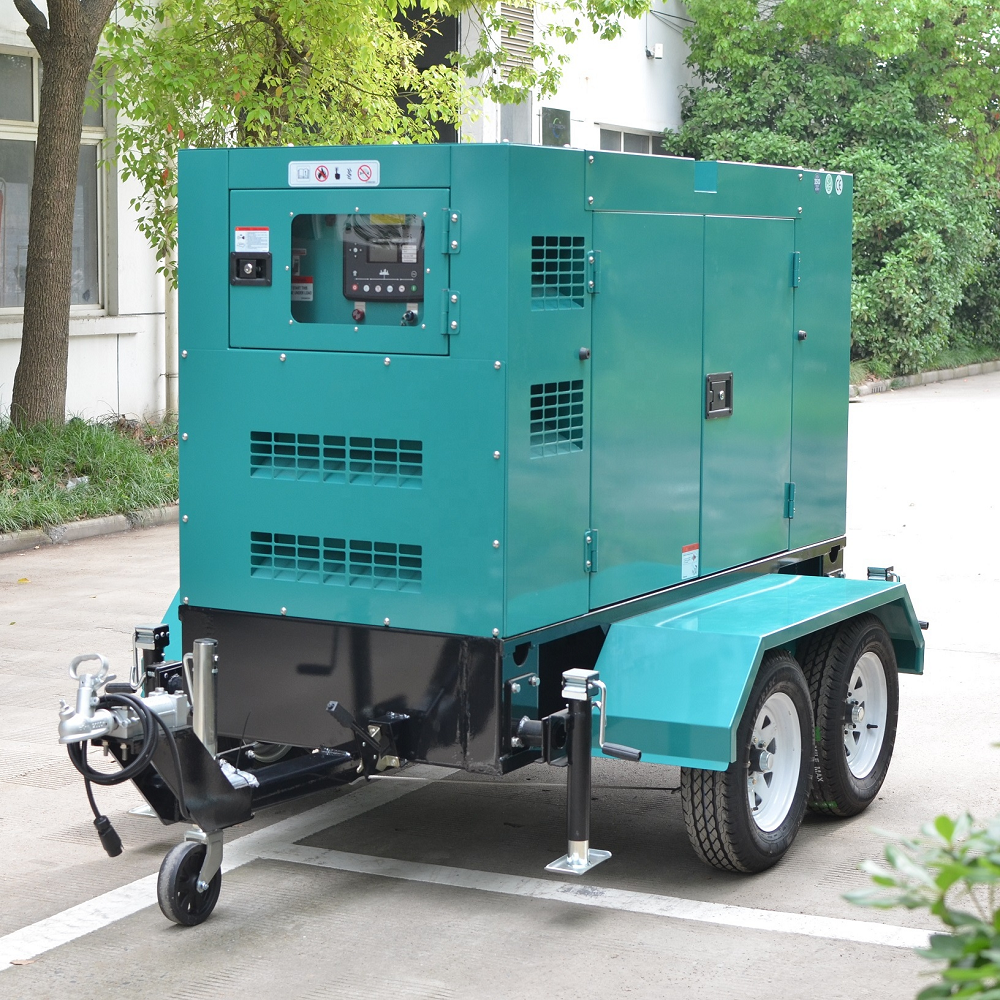

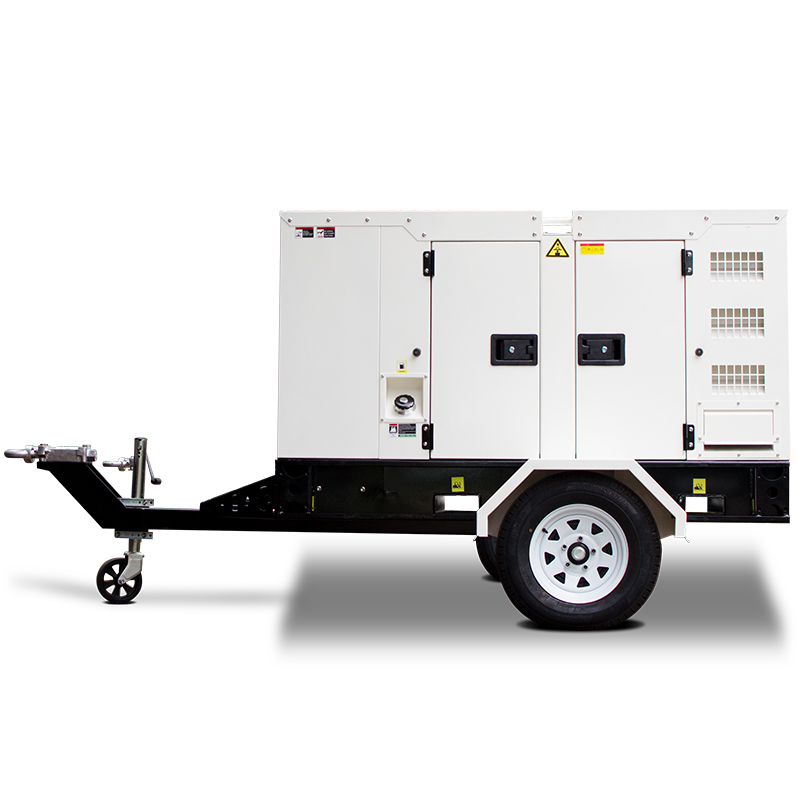

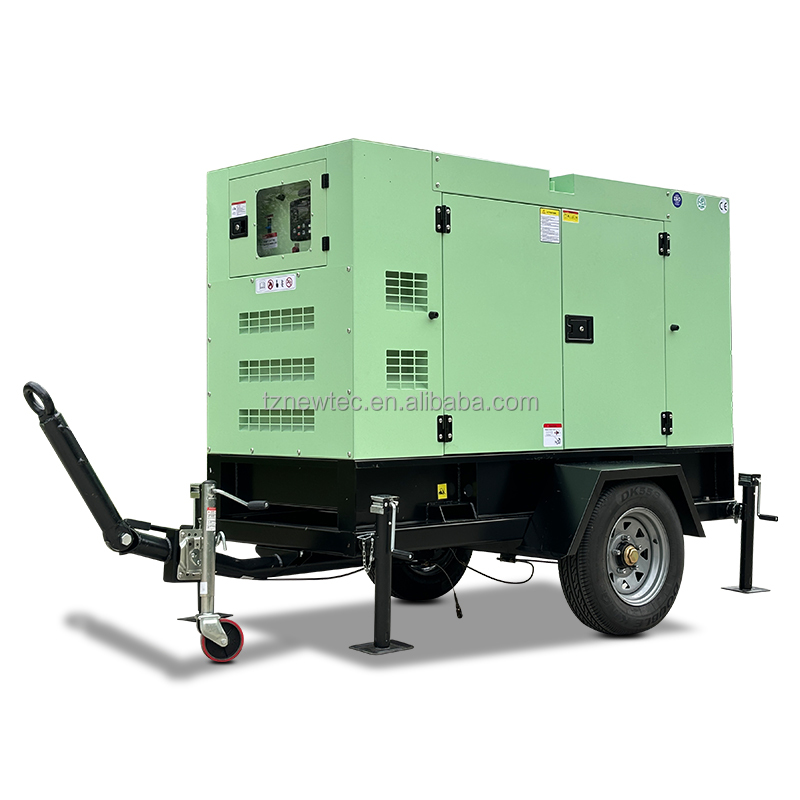

| Trailer Type 50kva diesel Generator Set with Cummins Engine 4BT3.9-G2 50 Kva 40KW Generator with Trailer | |
|---|---|
| Engine Data | |
| Model | CUMMINS ENGINE 4BT3.9-G2 |
| Type | 4 Cylinder in line, 4 cycle |
| Displacement | 3.9L |
| Aspiration | Turbocharged |
| Bore*Stroke | 102*120mm |
| Governor Type | Electronic |
| Starting Voltage | 24V |
| Compression Ratio | 18:1 |
| Fuel Consumption Prime 100% | 7.05L/h |
| Generator Data | |
| Model | Brushless Alternator |
| Optional | Stamford, Leroysomer, MeccAlte, Marathon |
| Excited Type | Brushless, Self-Excited |
| Power Factor | 0.8 |
| Voltage Adjust range | >5% |
| Voltage Regulation | <±1% |
| Insulation Class | H |
| Protection Class | IP23 |

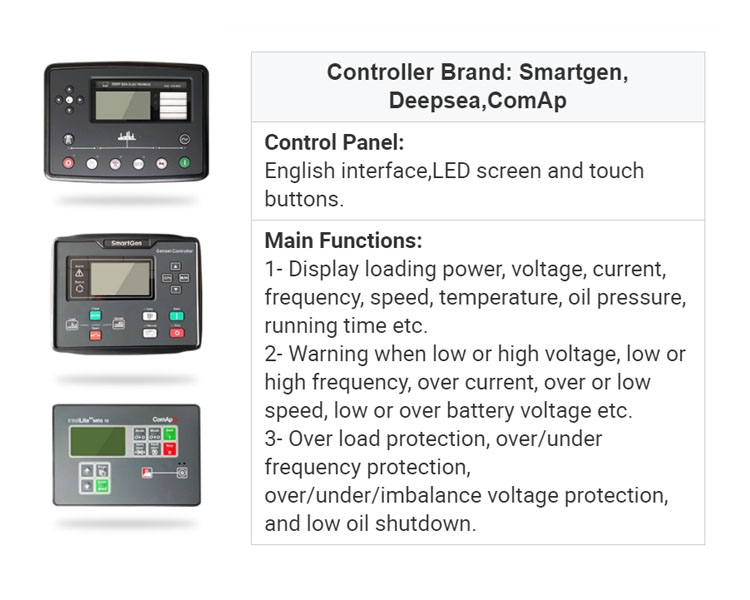

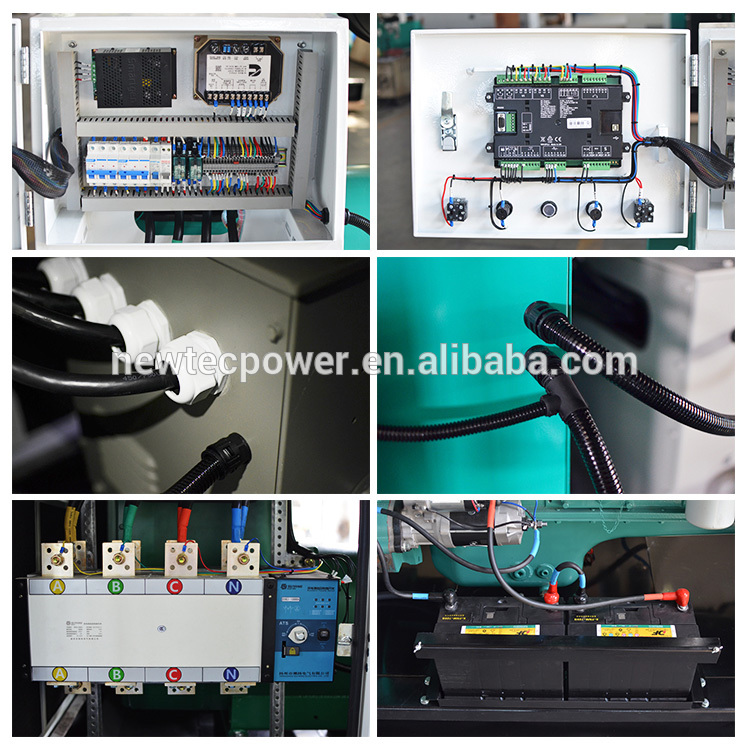

| Control Panel | |
| Model | Smartgen, Comap or Deepsea |
| Protection | High/Low Voltage, High/Low Temperature, High/Low Frequency, Low fuel, Low Oil, Low coolant |

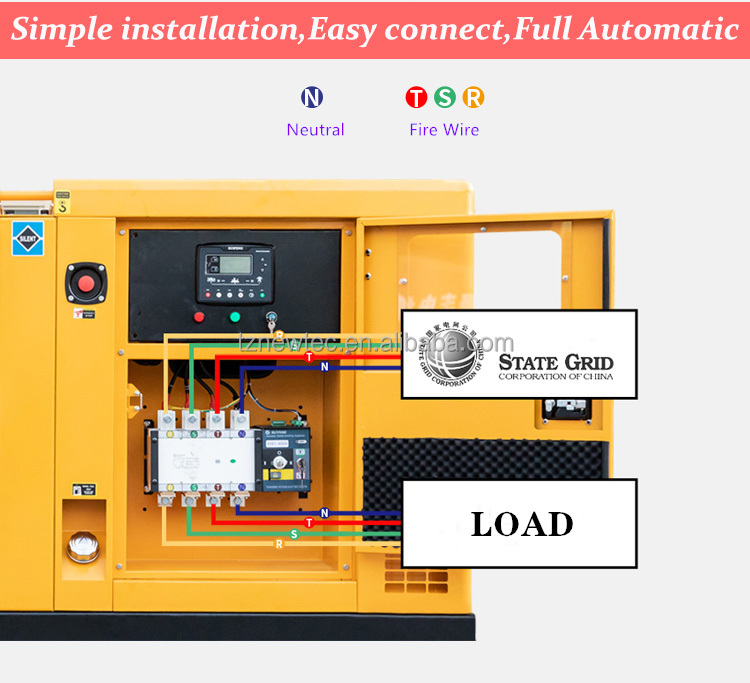

| Function | AMF, Synchronizing, GSM, ATS |
| Support | RS232, RS485, USB |
