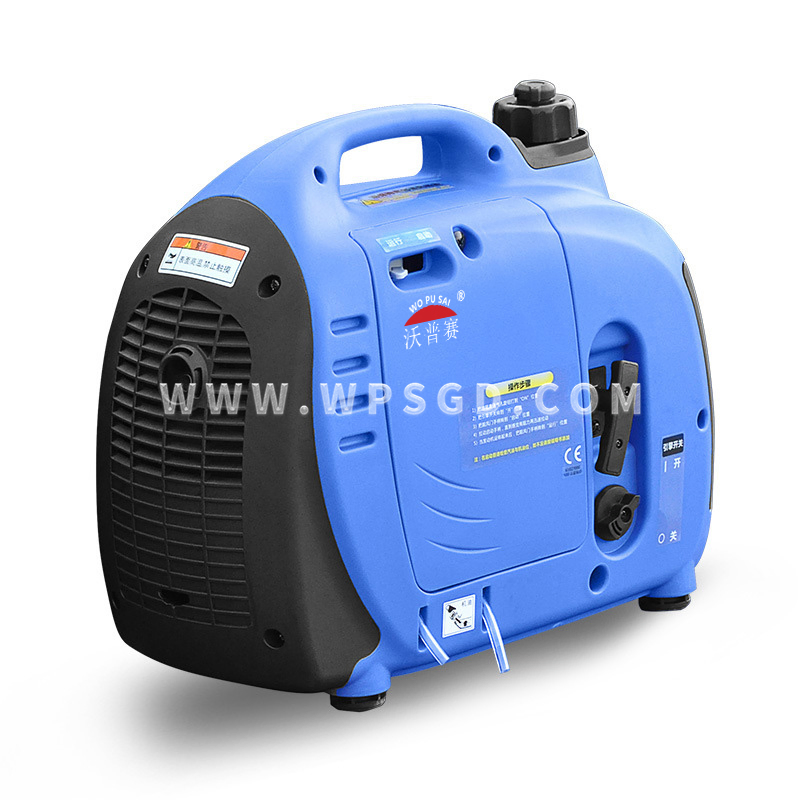

Digital Frequency Conversion Ultra-Quiet 1-2kw Gasoline Generator Set, Car Portable Outdoor Use

1 / 5

Digital Frequency Conversion Ultra-Quiet 1-2kw Gasoline Generator Set, Car Portable Outdoor Use

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Info

Model NO.

DGE900I

Output Type

AC Single Phase/DC

Starting

Hand Start

Phase

Single-Phase

Power

＜5kW

Standard

Rated Frequency

50Hz

Rated Speed

4500rpm

Rated Voltage

230V

DC Voltage

12V

Power Factor

Fuel Type

93# Petrol

Fuel Capacity

2.1L 3.8L

Duration

Oil Alarm

Yes

Output Indication

Yes

Overload Alarm

Yes

Transport Package

Packed According to Order

Specification

Various specifications

Origin

China Guangdong

Production Capacity

50000pieces/Year

Packaging & Delivery

Package Size

48.00cm * 28.00cm * 43.00cm

Package Gross Weight

15.000kg

Product Description

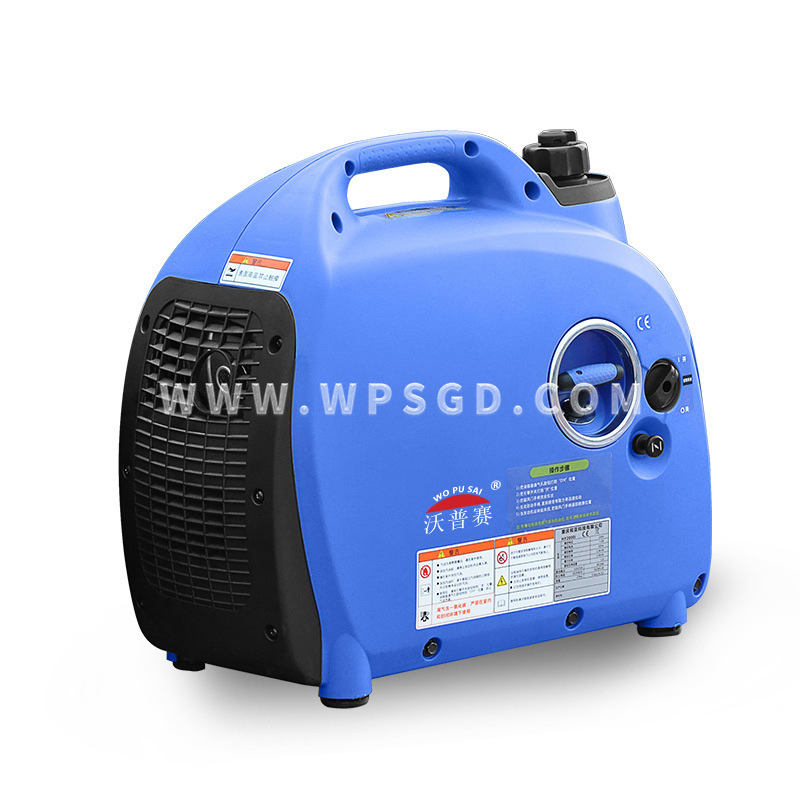

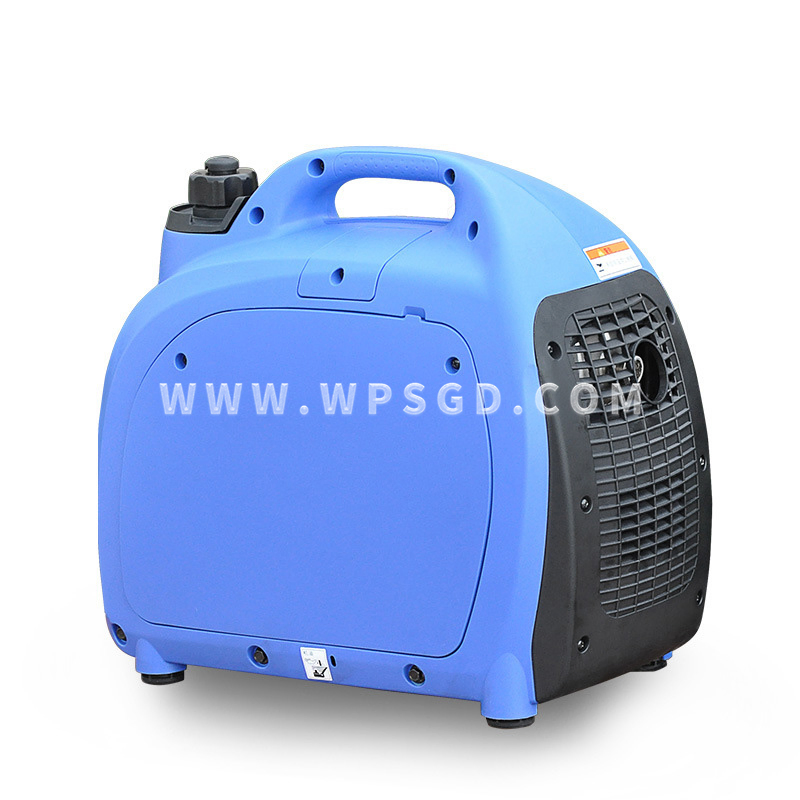

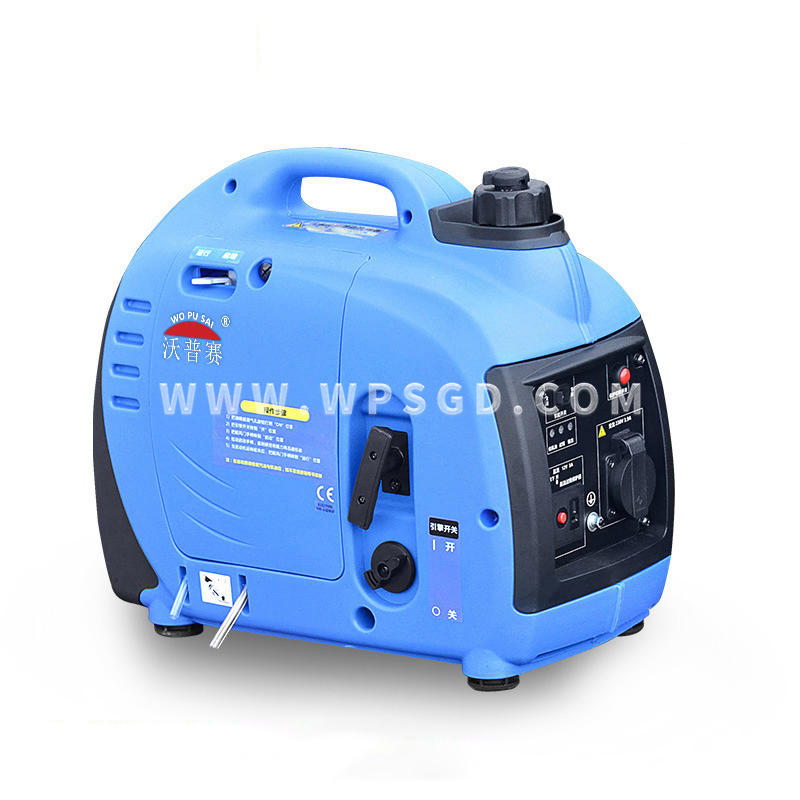

Digital frequency conversion ultra-quiet 1-2kw Gasoline generator set
Car portable outdoor use.

1KW/2KW PORTABLE GASOLINE INVERTER GENERATOR

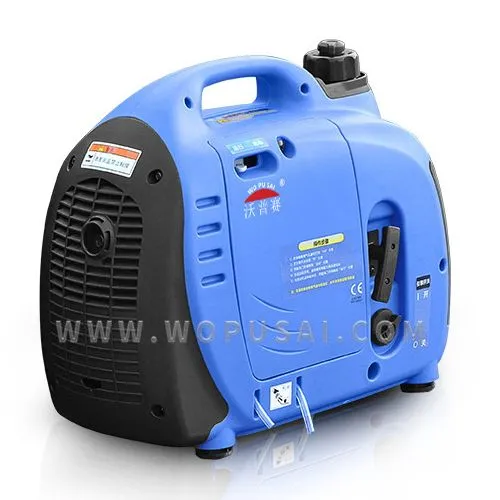

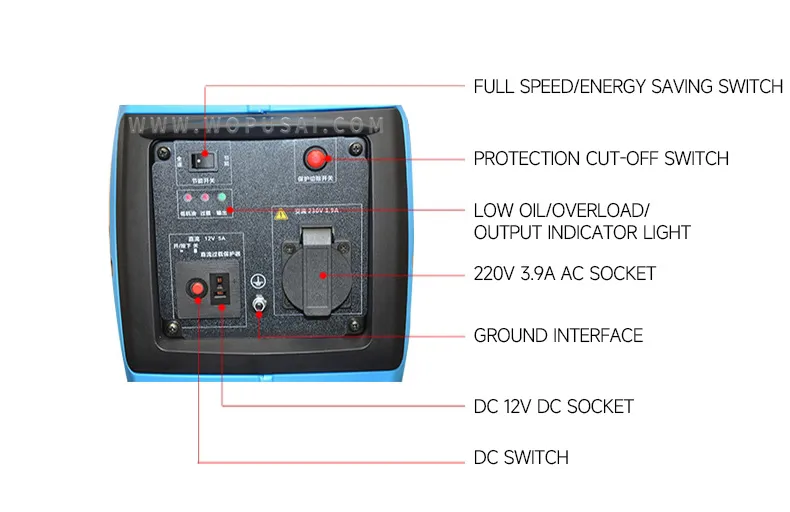

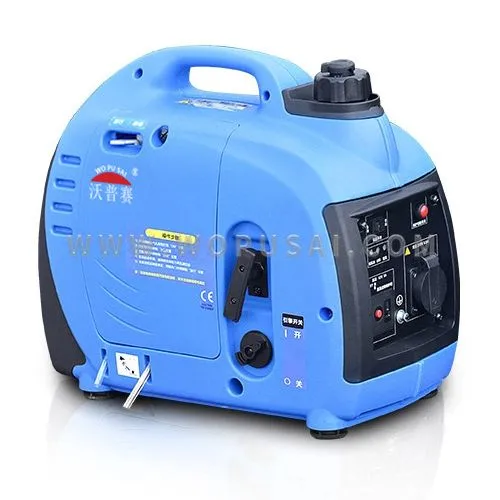

Inverter Generator Details Control Panel

Product Parameters

Digital inverter petrol generator set parameters
Unit Model	DGE900I	DEG1600I
Rated Power	0.9KW	1.6KW
Maximum power	1KW	2KW
Rated frequency	50Hz
Rated speed	4500rpm
Rated voltage	230V
DC voltage	12V
Power factor	1
Waveform distortion rate	≤5%
Engine Model	D144F	D147F
Engine Horsepower	1.8HP	3.2HP
Engine Type	Single-cylinder four-stroke air-cooled petrol engine
Engine displacement	50cc	100cc
Cylinder Bore	43mm	48mm
Stroke	36mm	43mm
Fuel Type	93# Petrol
Fuel Capacity	2.1L	3.8L
Oil Capacity	0.38L	0.5L
Duration	4h	4h
Ignition System	C.D.I
Starting method	Hand pull. Backlash start.
Noise level	≤58dB	≤60dB
Parallel use	Two/multiple units in parallel
Oil Alarm	Yes
Output indication	Yes
Overload alarm	Yes
Packaging	Cardboard box

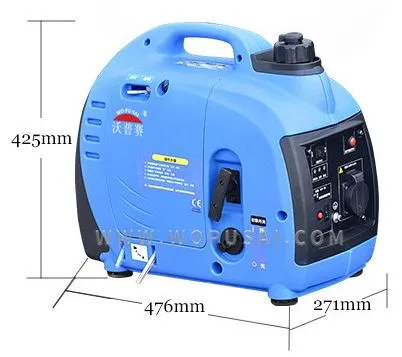

Dimension	476271425mm
Weight	15KG	22KG

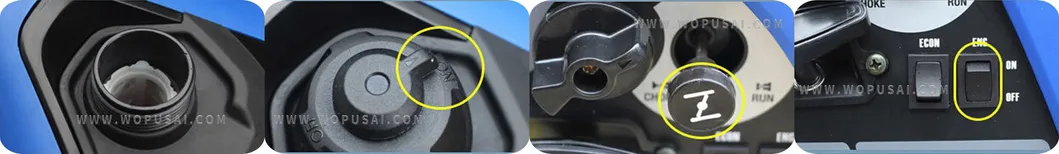

Product Details

Gasoline filling port

Open the fuel tank and fill it with 93# gasoline or 97# unleaded gasoline. Since the fuel tank has a standard capacity, it is recommended not to fill it too full in actual use.

Fuel tank cap switch button

Tighten the fuel tank cap and turn the venting rotary button to the "ON" position.

Gasoline filling port (Alt)

Open the fuel tank and fill it with 93# gasoline or 97# unleaded gasoline. Since the fuel tank has a standard capacity, it is recommended not to fill it too full in actual use.

Gasoline filling port (Backup)

Open the fuel tank and fill it with 93# gasoline or 97# unleaded gasoline. Since the fuel tank has a standard capacity, it is recommended not to fill it too full in actual use.

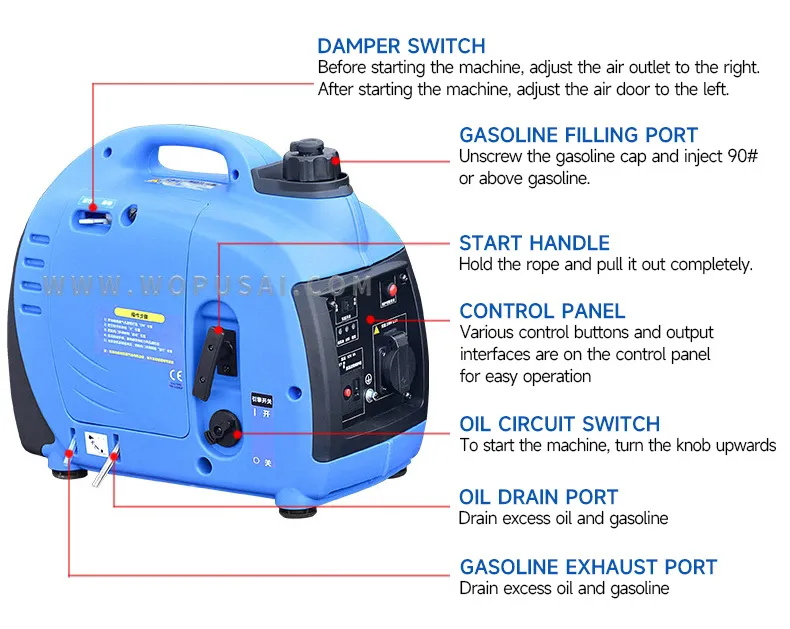

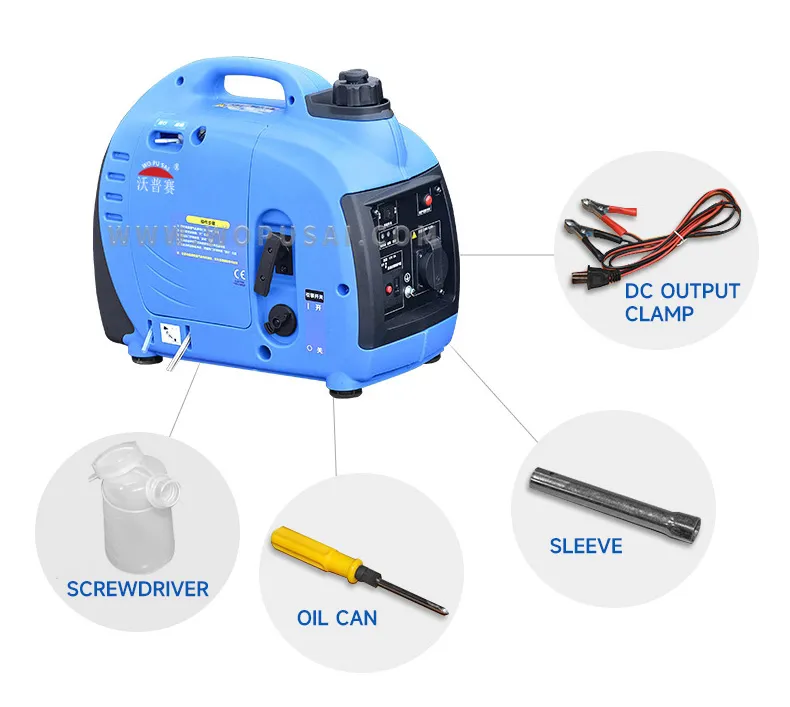

Product Standard Configuration

Product Features

Product Advantages

01 Powerful, Safe and Reliable

High-quality 144F and 149F series of small four-stroke petrol engines are used for power. They have strong power and excellent performance. The performance, reliability and safety of the core power of digital inverter generator sets are fully guaranteed.

02 Patented Design, Excellent Craftsmanship

The digital variable frequency generator set has a novel and beautiful appearance design, a unique and reasonable internal process structure, and also has relevant patents for appearance design and internal structure. The patented air duct makes the air intake and exhaust smoother, with less noise and mechanical vibration.

03 High Quality, Stable

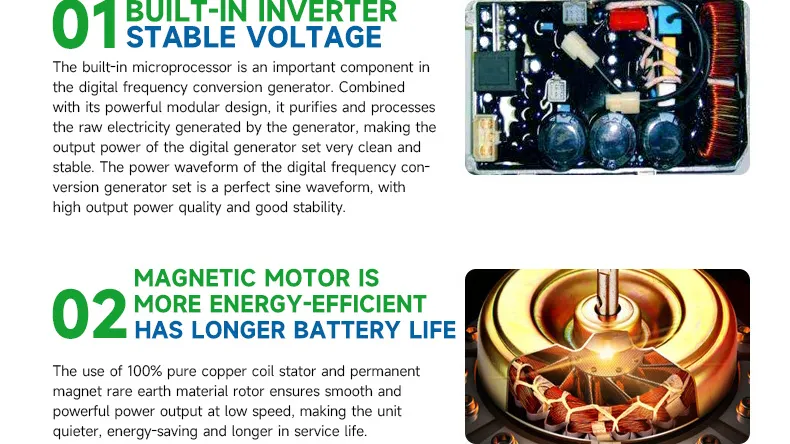

The key component of the digital variable frequency generator is its built-in microprocessor (inverter). With a powerful modular design, it processes and purifies the raw power generated by the generator, making the power output clean and stable. The power waveform is a perfect sine waveform, suitable for equipment sensitive to voltage and current fluctuations.

04 Green and Environmentally Friendly

Features a unique double-layer noise reduction structure, making the operation quieter and more comfortable. The running noise is 3-9 decibels lower than traditional generator sets. Emissions meet the EPA 2012 Phase II standards, making it ideal for urban areas, camping, or backup power.

05 Intelligent Safety & Throttle Control

Equipped with automatic safety protection devices (overload, low oil pressure, etc.). The unique intelligent throttle automatically adjusts the speed according to load changes, reducing fuel consumption by 20%-40% compared to ordinary units and extending service life.

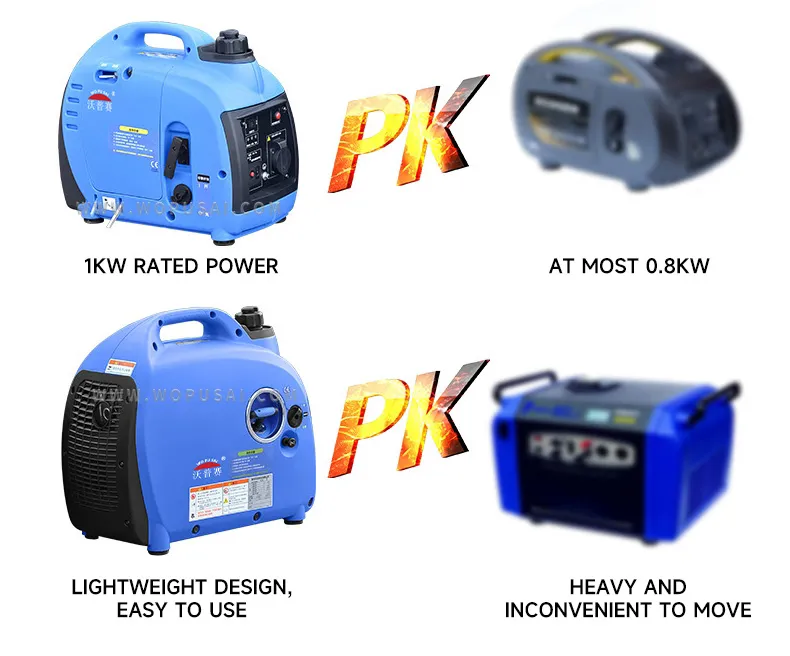

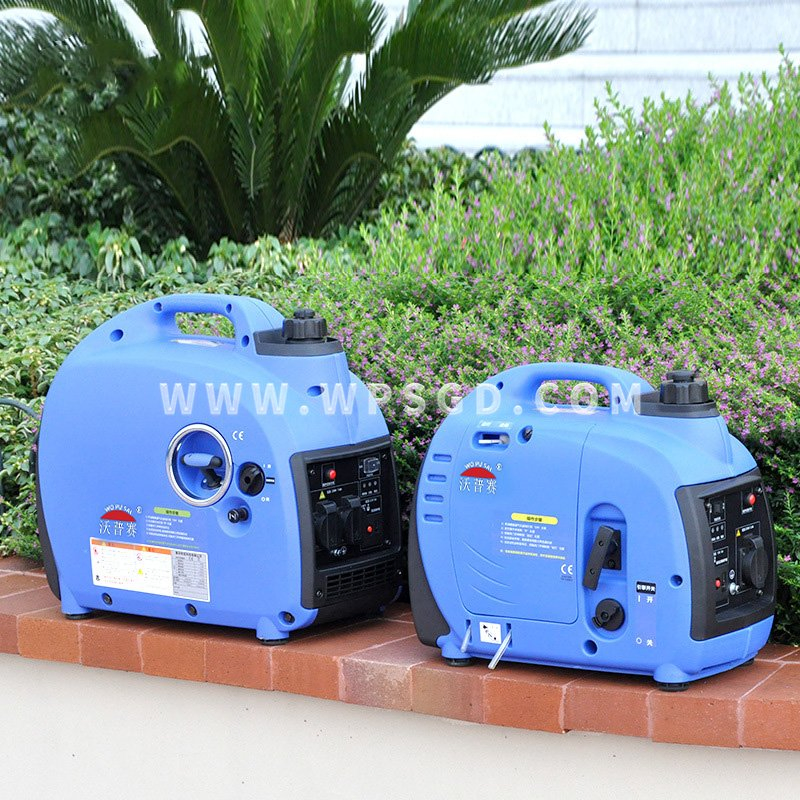

Product Comparison & Application Scene

Key Advantages of Our Generator Sets

Product Configuration Advantage

We commit to delivering the highest specifications relative to cost, ensuring premium configurations at highly competitive rates.

Service Commitment

Comprehensive support and maintenance during the warranty period, ensuring direct responses to any issues without delay.

Professional Team

Backed by technical consultants and senior specialists with over 20 years of hands-on experience in the power industry.

Price & Value

Direct assembly and production structures mean reduced procurement costs, passing on the economic benefits to users.

Technical Innovation

Independent research focuses on environment-friendly systems, heat dissipation, dust removal integration, and silence technologies.

Frequently Asked Questions (FAQ)

1. What are the main advantages of these generator sets?

These generator sets offer excellent fuel economy, high thermal efficiency, and a flat fuel consumption curve during load changes. They are highly reliable with a low failure rate due to the absence of ignition systems, boast wide applications, have low harmful emissions, and offer superior fire safety.

2. What key characteristics define these generator systems?

They feature multiple levels of stand-alone capacity, highly compact supporting equipment with flexible installation, high thermal efficiency (30% to 46%), rapid emergency startup (reaching full load in under a minute), ease of maintenance with minimal personnel requirement, and low overall construction costs.

3. How does the frequency of the generator set affect performance?

Electrical frequency refers to the AC frequency, typically 50Hz or 60Hz. Stable frequency operation signals system health. Abnormal frequencies necessitate immediate shutdown and professional inspection to address potential mechanical or circuit issues.

4. What is the excitation method used in these generators?

The excitation system supplies the excitation current to the synchronous generator. It consists of an excitation power unit and an excitation regulator, incorporating DC exciters, brushless exciters, or AC exciters based on modern technology integration.

5. What benefits does the four-stroke engine system provide?

Four-stroke engines offer distinct divisions of labor in their cycle, yielding high combustion efficiency, reduced emissions, smooth operation with minimal noise, and high adaptability to variable loads.

6. Can the generator sets be customized for specific industries?

Yes. Custom solutions match specific environments, such as mining or construction. These include tailored power ratings, explosion-proof enhancements for hazardous atmospheres, robust dust-proofing, and specialized cooling setups.
