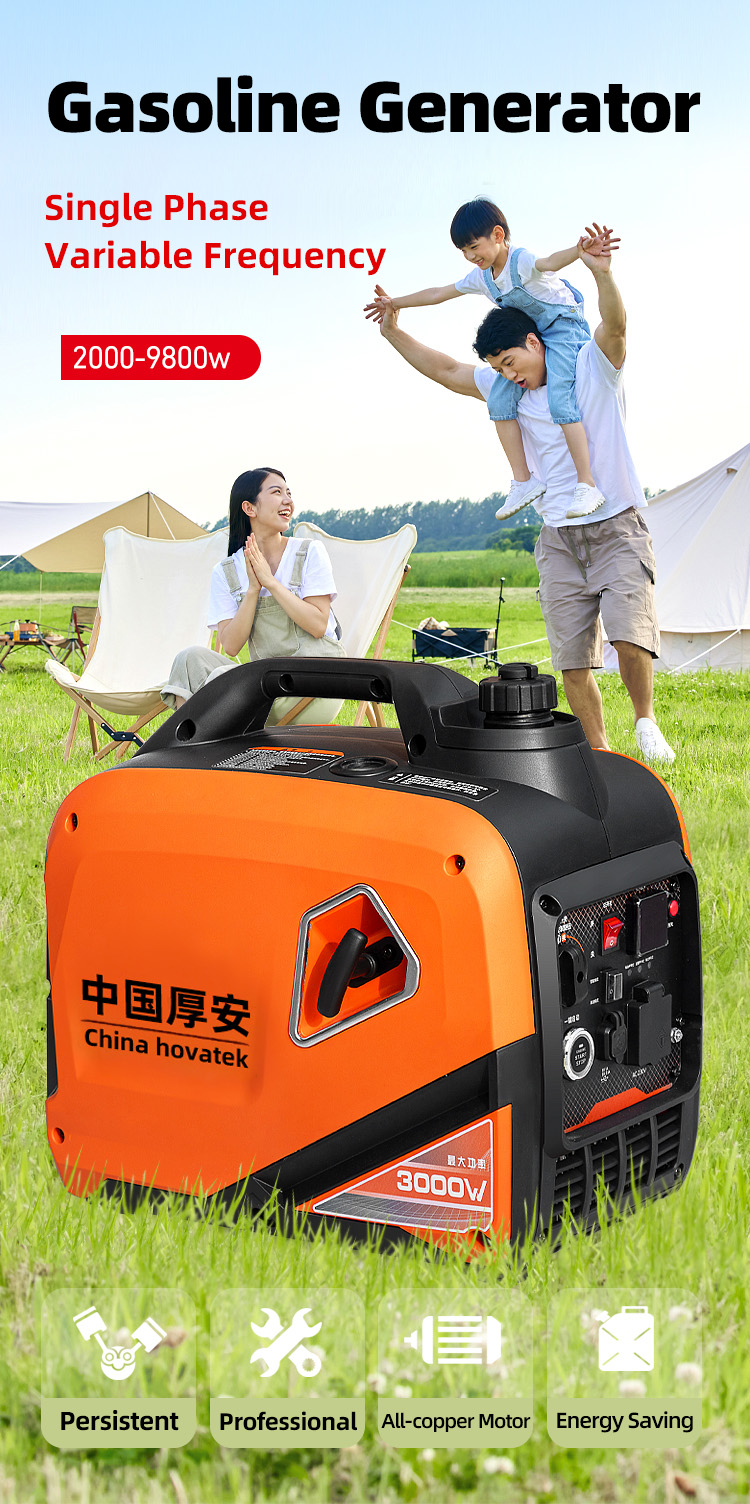

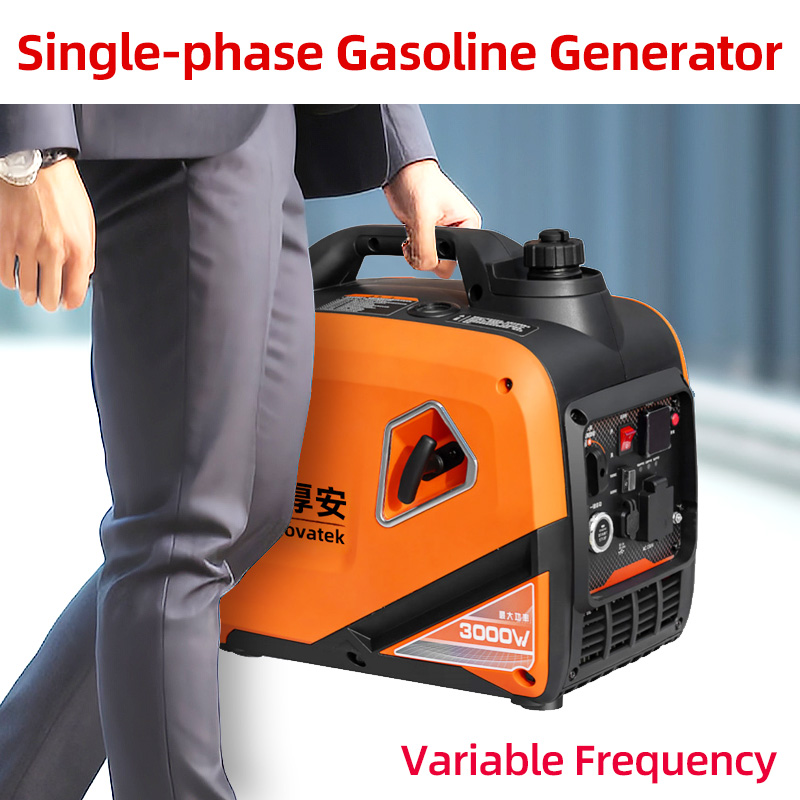

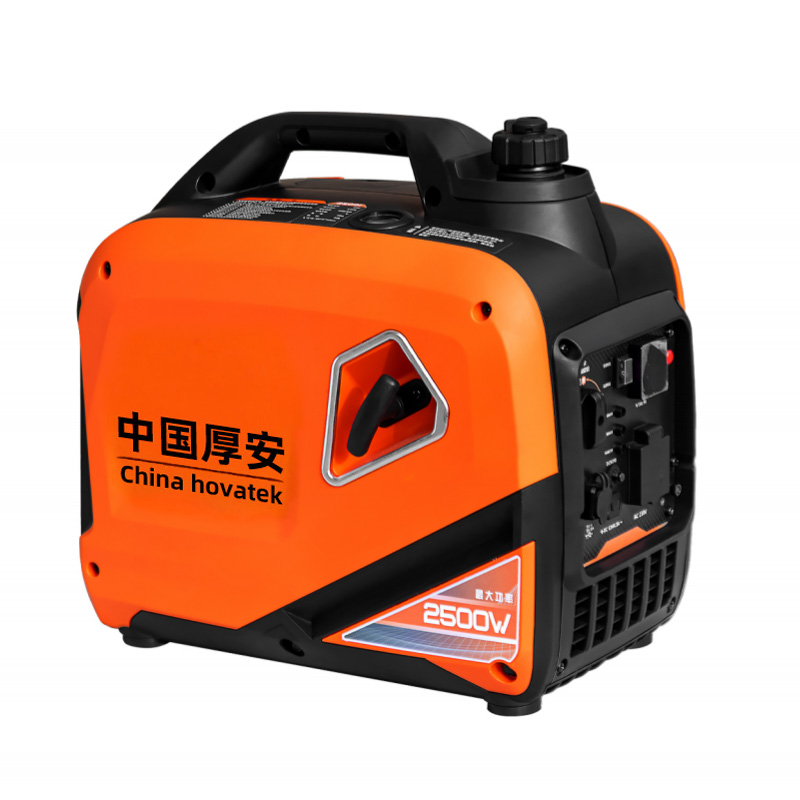

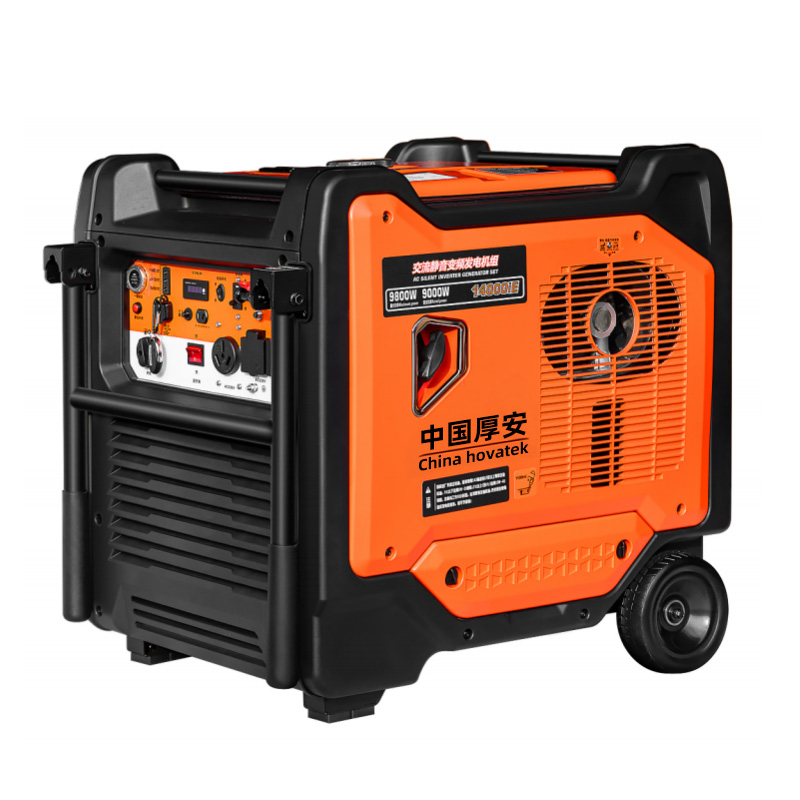

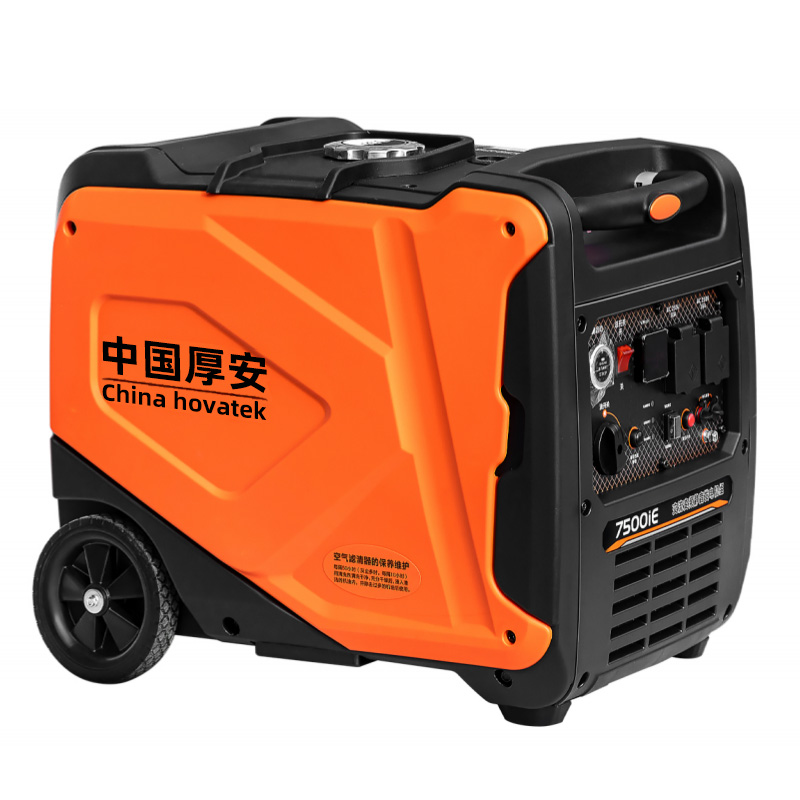

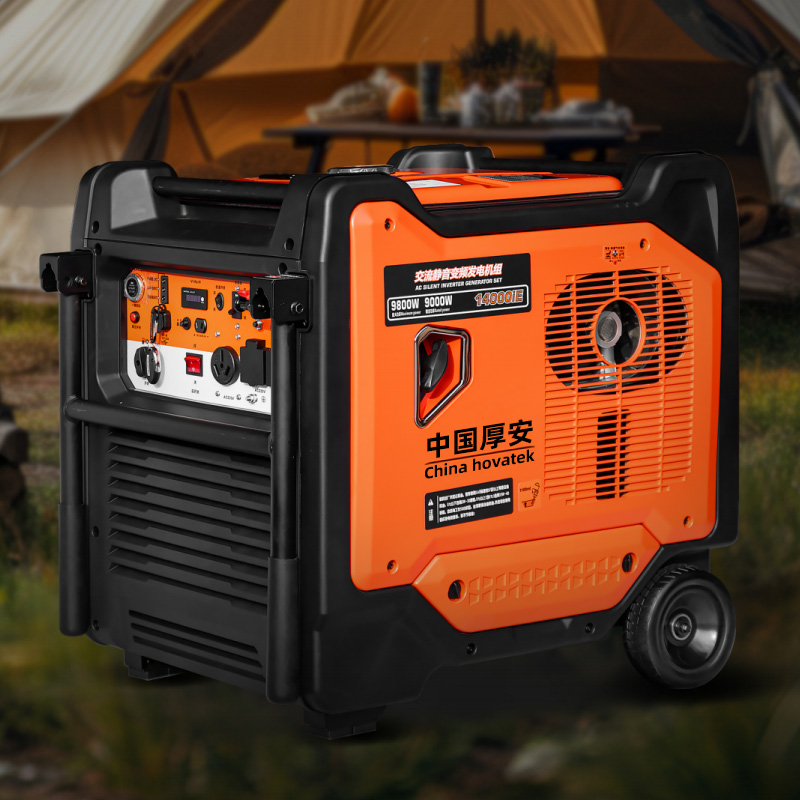

Hovatek Single-phase Variable Frequency 220V Gasoline Generator Set Series for Home and Small Industrial Use

Product Description

Products Description
Product Type Single-phase variable frequency gasoline generator set series
External Packing Carton
Packaging Dimensions 498 mm (L) * 307 mm (W) * 460 mm (H)
Weight 20000g
Engine Type 4-Stroke, Air-Cooled Gasoline Engine
Starting System Recoil Start
Rated Voltage 220 V
Continuous Running Time 10 hours
Displacement 80 cc, 98 cc
Efficiency 80%
Frequency 50 Hz
Output Type AC Single Phase
Customization Options Fuel box capacity, rated current, rated voltage, displacement, rated power
COO (Country of Origin) CN
Technical Specifications

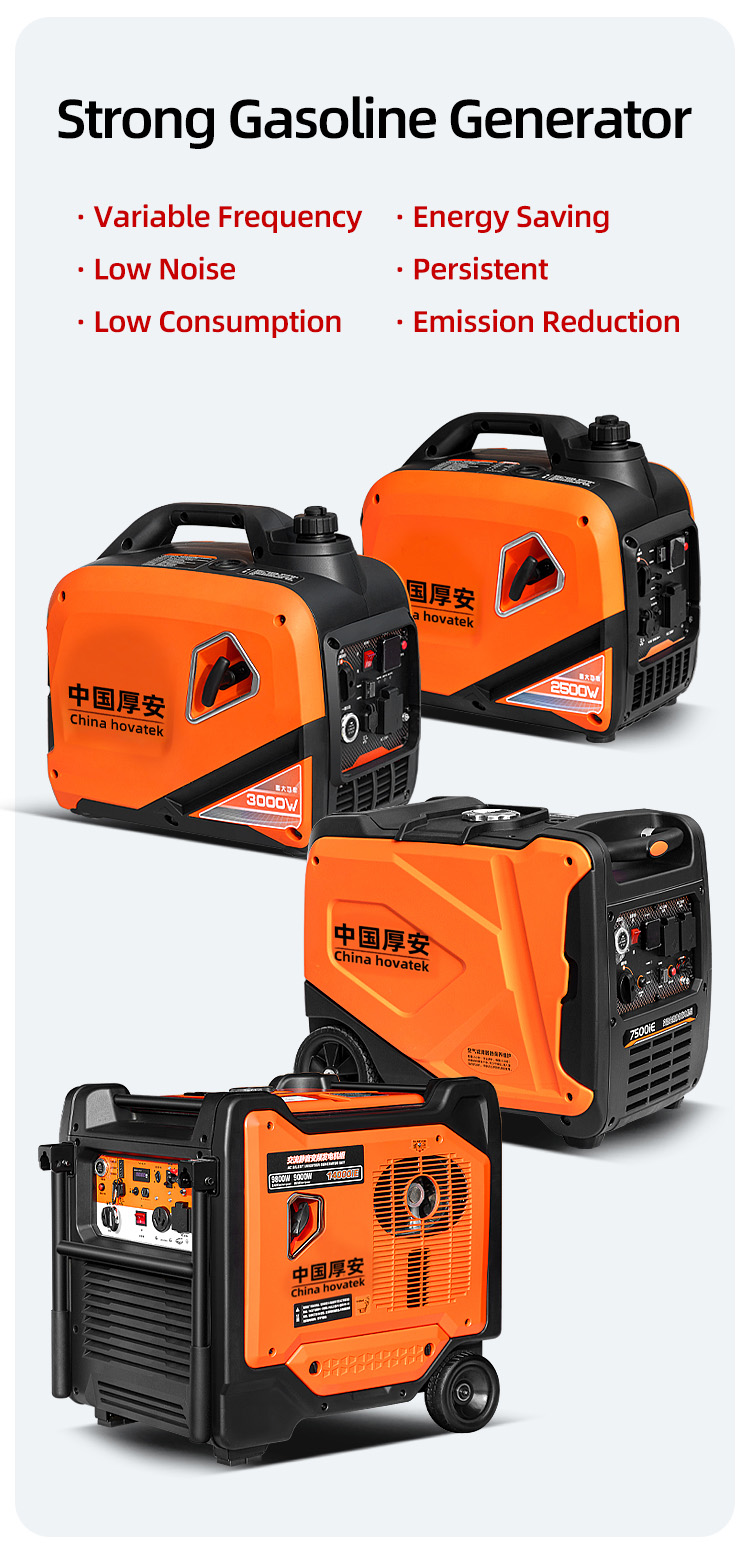

PRODUCT MODEL CCGF2500i CCGF3500i CCGF3500iE CCGF7500iE CCGF14000iE
Frequency 50Hz
Rated Voltage 220V
Number Of Phases Single phase
Rated Output 1.8kW 2.0kW 2.8kW 5.0kW 9.0kW
Max. Output 2.0kW 2.2kW 3.0kW 5.5kW 9.8kW
Power Factor 1
Over Current Protector Yes
Engine Model CC148F CC152F CC165F CC172Fi CC194FD
Engine Displacement 79.7ml 98ml 149ml 223ml 485ml
Engine Speed 5100rpm 5200rpm 5600rpm 4300rpm 3600rpm
Engine Type Single-cylinder four-stroke air-cooled gasoline engine
Fuel Type unleaded petrol

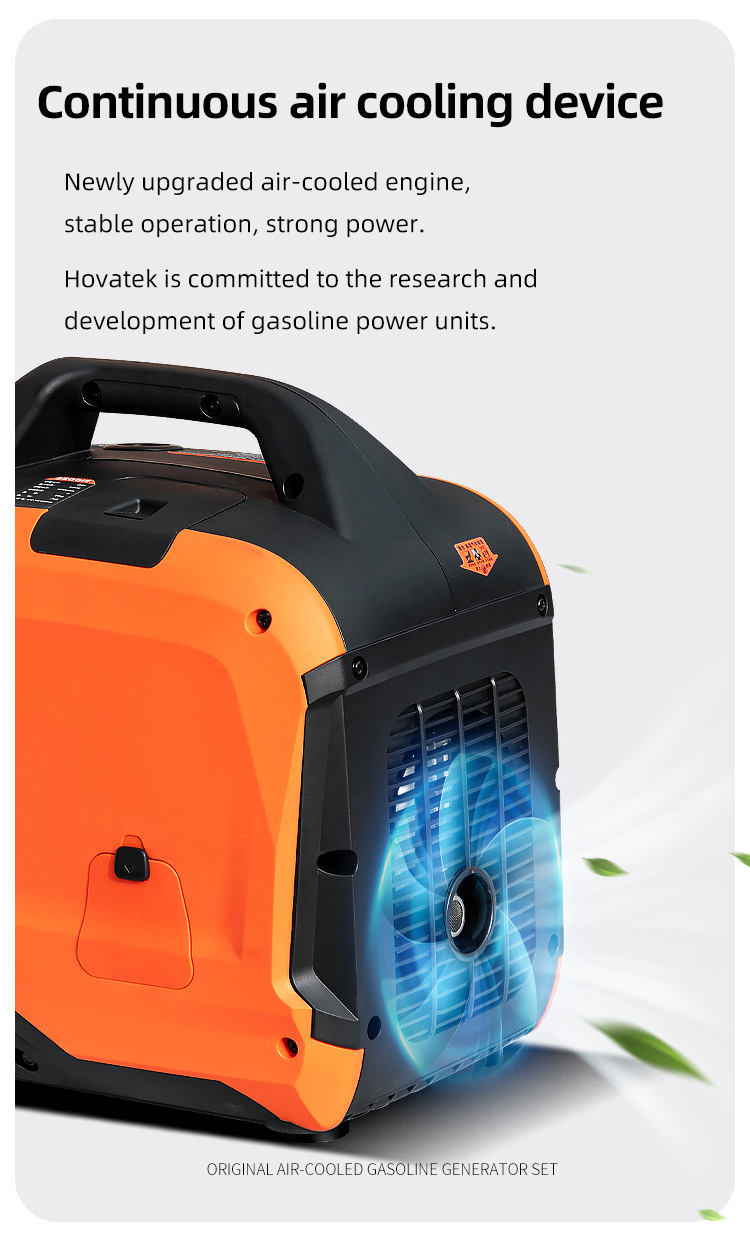

Cooling Method Air cooling
Fuel Tank Capacity 5.6L 5.6L 5.6L 10L 32L
Oil Capacity 0.35L 0.35L 0.35L 0.6L 1.1L
Continuous Running Time 10hour
Starting System Hand start Hand start Hand start
Electric start
Remote Start
Electric start
Remote Start
Electric start
Remote Start
Dimension 498*307*460mm 498*307*460mm 535*365*525mm 582*426*495mm 810*580*760mm
Dry Weight 20kg 21kg 30kg 45kg 120kg
Product Gallery
Product Features
This series of dual-cylinder synchronous drive hydraulic power stations and electronic control systems are high-performance power units designed for applications requiring high-precision, high-stability synchronized motion. The system utilizes advanced synchronization control technologies (such as servo/proportional valve control or synchronized split motors) to ensure high synchronization accuracy between two or more hydraulic cylinders under high-speed and heavy-load conditions, effectively preventing equipment problems such as seizure, unbalanced loading, and wear caused by asynchrony. It is widely used in large presses, lifting platforms, injection molding machines, metallurgical equipment, test benches, and various specialized machinery.
Technical Diagram
System Structure

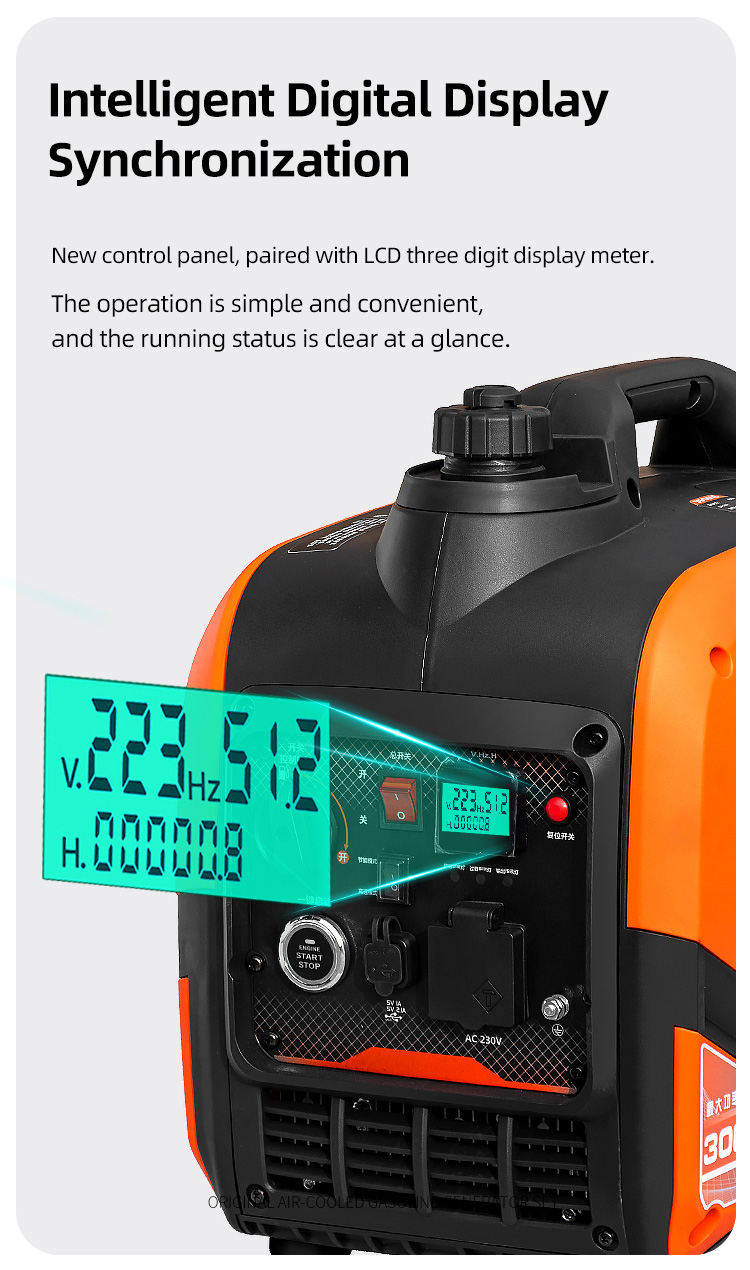

Control Panel details
Internal components wiring
Module details
Additional components layout
Frequently Asked Questions
Q What type of engine is equipped in these variable frequency generator sets?
These generator sets feature an advanced 4-stroke, air-cooled single-cylinder gasoline engine, engineered for highly efficient and clean power delivery.
Q How long can the gasoline generator run continuously?
The generator units are designed to run continuously for up to 10 hours on a full tank, providing stable and uninterrupted operations under rated load conditions.
Q What customization options do you offer for these generator sets?
We offer comprehensive custom options, including fuel box capacity, rated current, rated voltage, displacement, and rated power to suit your specific operational requirements.
Q What starting systems are available for different models?
Depending on the model, starting systems range from Recoil Start (hand start) to Electric Start and Remote Start mechanisms, offering versatile and convenient operating methods.
Q Are these generator sets equipped with safety protections?
Yes, all models in this series come with an integrated over-current protector as standard, ensuring safe operation and protecting your electrical equipment from power surges.
