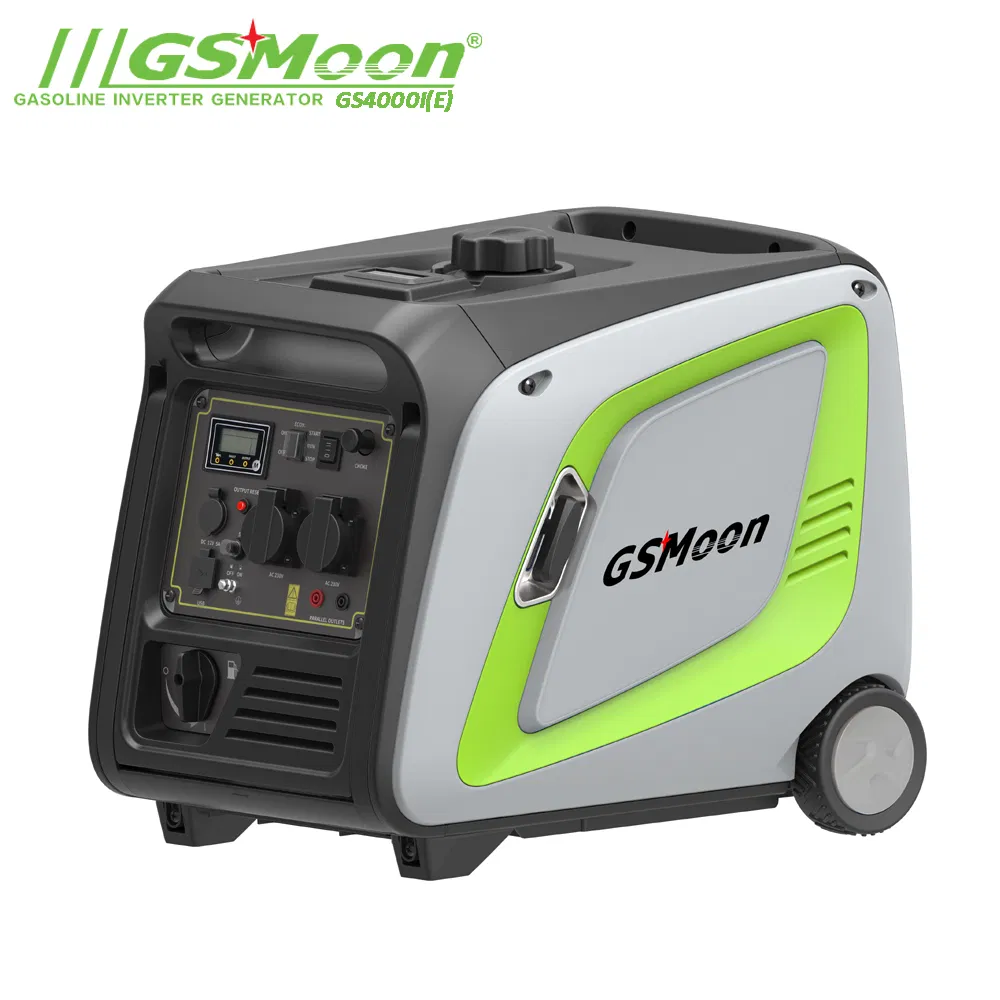

Mini Portable Gasoline Generator 5000W Gasoline Power Generator Set

1 / 2

Mini Portable Gasoline Generator 5000W Gasoline Power Generator Set

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Info.

Model NO.

GS5500I(E)

Output Type

AC Single Phase

Starting

Hand Start

Phase

Single-Phase

Power

5-10kW

Standard

Certificates

CE/GS/EPA/RoHS/Euro5/Ec/EMC/BSCI/ISO9001

Engine Type

Forced Air-Cooled, 4-Stroke, Ohv

Max AC Output

5.2kw

Rated AC Output

4.8kw

Rated AC Voltage

100, 110, 120, 220, 230, 240V

Displacement

223cc

Fuel Tank Capacity

8.8L

Continuous Operating Hours

3.5h@100% Load

Lublicator Oil Capacity

0.70L

Starting System

Recoil/Recoil + Electric Start

Operating Noise Level(7m )

58dB

Overall Dimension Lxwxh

665X465X535mm

G.W./N.W.

42/38.5kg,45/41.5kg

20gp/40gp/40hq

168/344/344

Packing

Brown Carton/Colored Carton/Pallets

Transport Package

Carton/Pallet

Specification

610x 415x495MM

Origin

China(Mainland)

HS Code

8502200000

Production Capacity

300000PCS/Year

Packaging & Delivery

Package Size

66.50cm * 46.50cm * 53.50cm

Package Gross Weight

45.000kg

Product Description

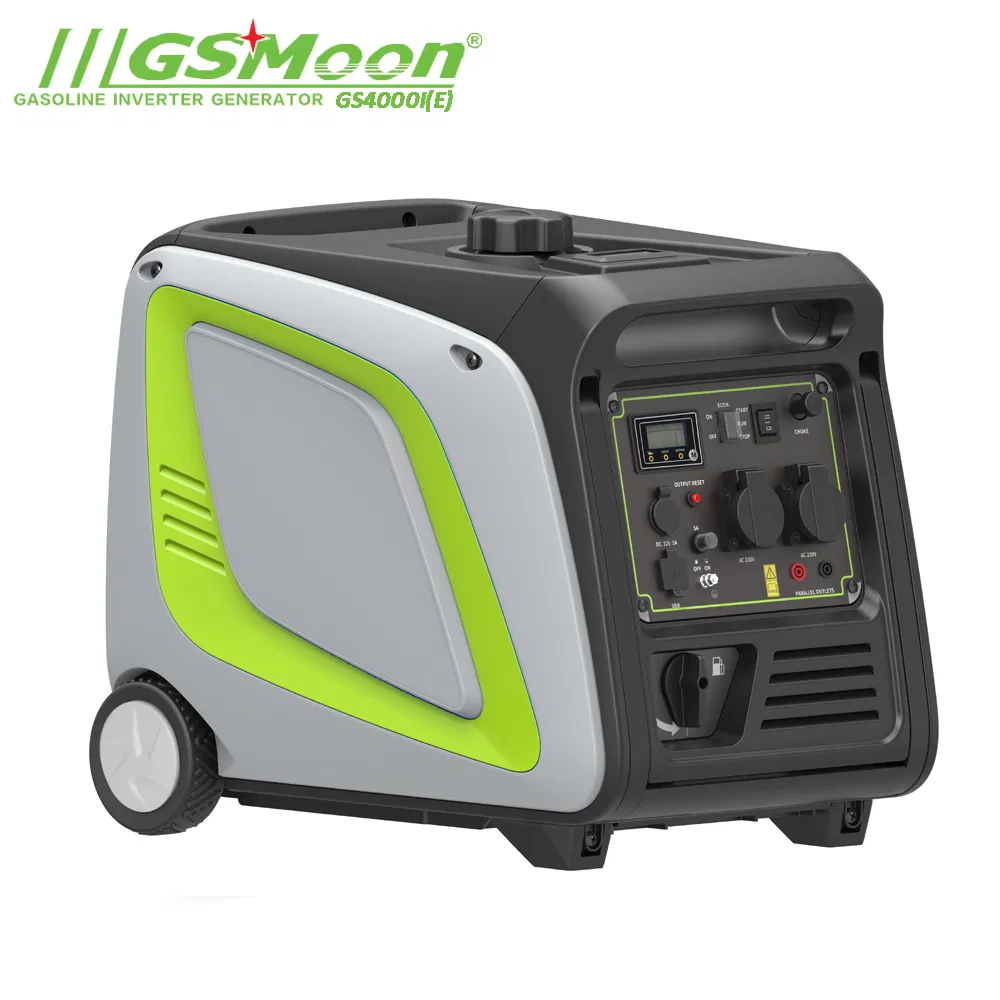

Inverter Generator
Lithium Battery Powered Tools

Suitable for: sensitive electric devices, RV, camping, tailgating party, outdoor projects and as source of backup power during an emergency.

Ideal for electrical devices like TVs, stereos and computers, refrigerator etc.

Key Features:

Inverter technology, very stable Pure Sinewave electricity
Light and portable compact design
Quiet operation, 58dB is the average sound level measured at a distance of 7 meters (quieter than general conversation volume)
Low displacement, 223CC engine, designed to protect the environment
Engine, alternator, inverter, and exterior shell designed and developed in-house with full patent coverage

Technical Specifications
Generator Model NO.	GS5500I(E) (Features built-in USB and Reset button. Electric Start, LED, and remote control options available)
Generator Type	Inverter Generator
AC Voltage and Frequency	100V, 110V, 120V, 220V, 230V, 240V @ 50HZ/60HZ
Max. Output	5.2KW
Rated Output	4.8KW
DC Output	12V / 8.0A, 5V / 1A, 5V / 2.1A (Optional)
Noise Level (7M)	58dB
Engine Specs
Engine Model No.	XY170F-3
Type	Forced Air-cooled, 4 Stroke, OHV
Bore×Stroke	70×58mm
Displacement	223cc
Max. Output	5.5KW / 4600rpm
Fuel	Regular Automobile Gasoline
Fuel tank Capacity	8.8L
Rated Continuous Operation	3.5hr @ 100% Load
Lubricating oil	SAE 10W30
Lubricating oil Capacity	0.70 liter
Starting System	Recoil Starter / Recoil + Electric Start
Ignition system	C.D.I.
Dimension & Logistics
Net dimension L×W×H	610×415×495MM
Overall dimension L×W×H	665×465×535 MM
G.W / N.W	42 / 38.5kg, 45 / 41.5kg
20GP / 40GP / 40HQ	168 / 344 / 344
Certificates & Standards
Certificates	CE/GS/EPA/ROHS/EURO5/EC/EMC/BSCI/ISO9001
Delivery Time	Sample: 7 to 10 days; Mass order: 25 to 30 days
Warranty	1 year

Why choose us?

Established in 1989, featuring a high annual turnover and large manufacturing scale.
300,000 pcs of annual generator production capacity.
One of the earliest inverter generator manufacturers, with over 19 years of focus on portable inverter generators.
Strong technical force with self-designed and in-house manufactured engine, alternator, and inverter modules.
Owning over 600 development patents.
A wide range of portable generator options from 0.7KVA to 7KVA.
Extensive global export experience to USA, Europe, Russia, Australia, etc. fully certified with EPA/CARB/CE/GS/PSE/Cetl/Rohs/Euro5/EC.
Reliable product quality with competitive and favorable factory direct pricing.

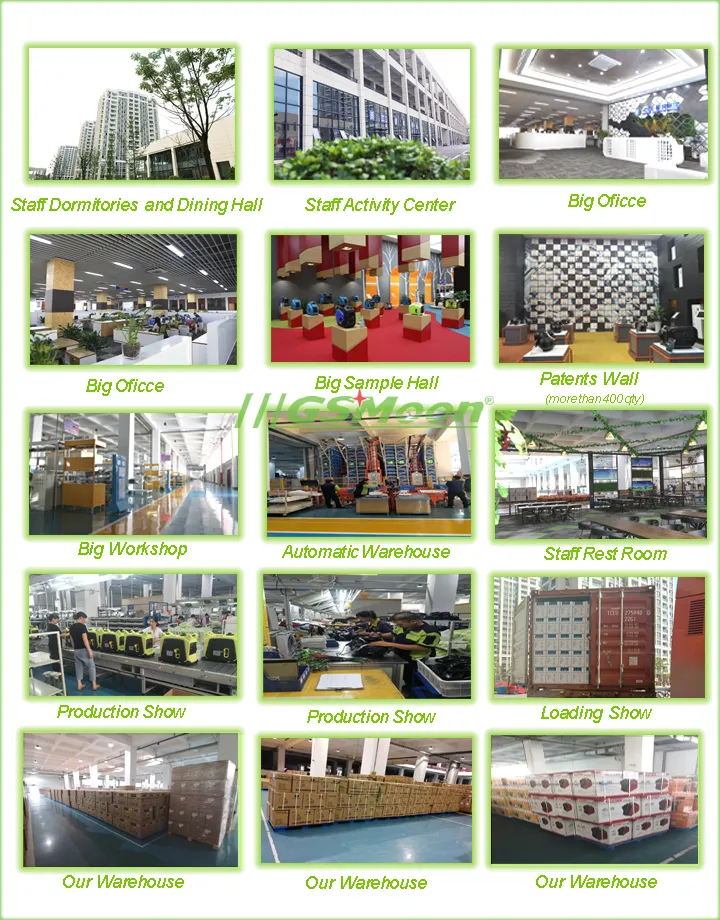

About Us

Test Lab Show

Packing Show

Certificates

Suitable Scenes

FAQ

1Are you a manufacturer or a trading company?

We are a professional manufacturer and hold independent export rights. We have been specialized in manufacturing portable inverter gasoline generators for over 19 years, allowing us to offer high quality products with highly competitive pricing.

2What is the annual output capacity for your inverter generators?

Our current production capacity reaches 300,000 units per year.

3What is the Minimum Order Quantity (MOQ)? Can I purchase samples first?

Generally, the standard MOQ is 100 units. However, sample orders are warmly welcomed to let you evaluate and test product quality and market response.

4Do you provide OEM & ODM services for product customization?

Yes, we provide full OEM and ODM services. We can customize the generator color, product labels, user manuals, and packaging cartons according to your requirements.

5Do you have strict quality control systems in place?

Yes, we implement strict quality controls. All finished items undergo 100% inspection and testing before shipment.

6What warranty terms do you provide for the generators?

We provide a standard 1-year product warranty for all our inverter generators.
