Gods Power
1 / 5

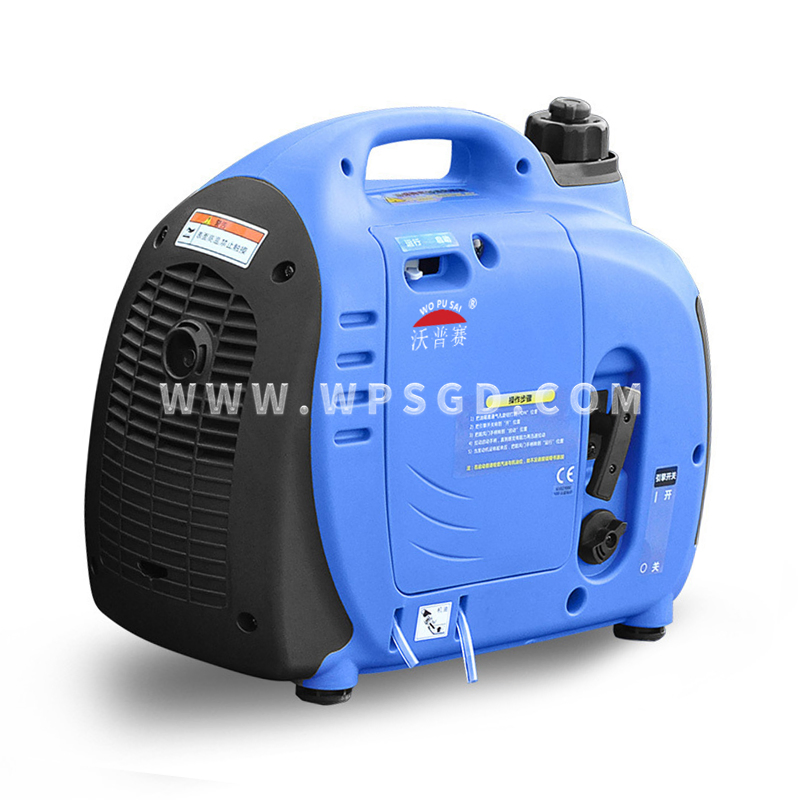

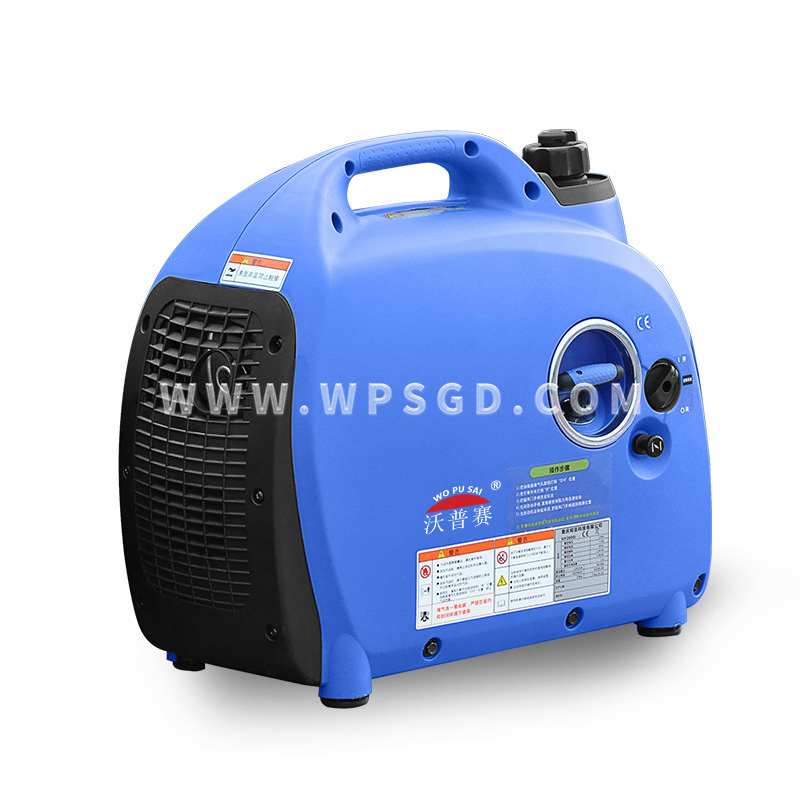

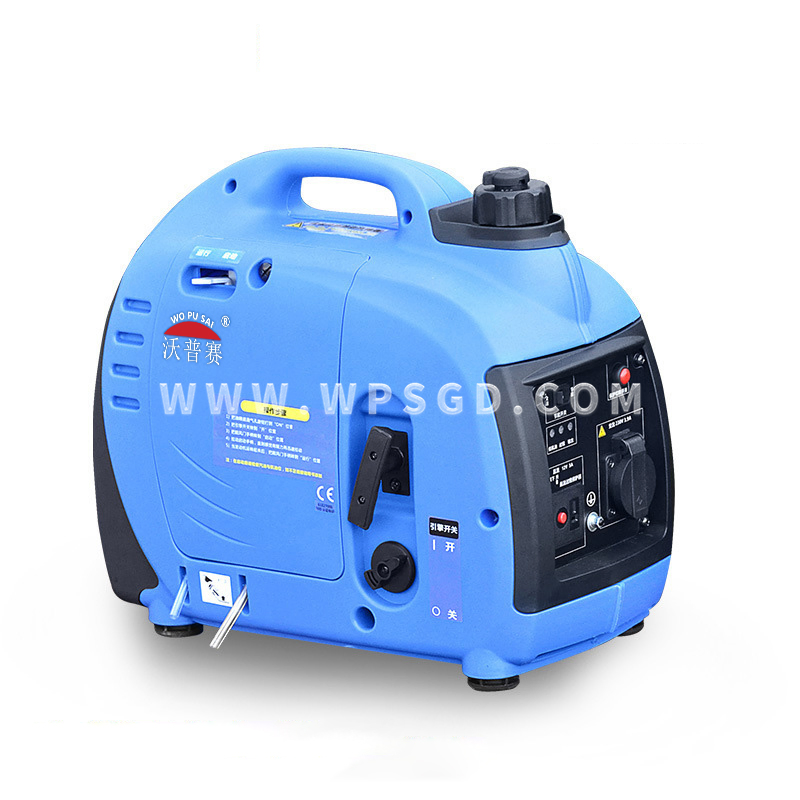

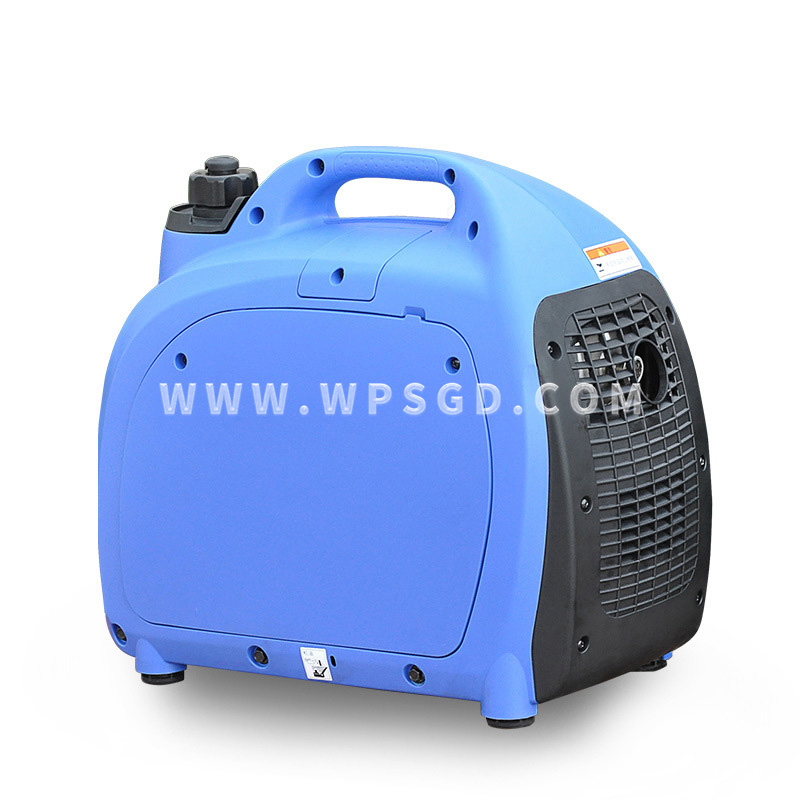

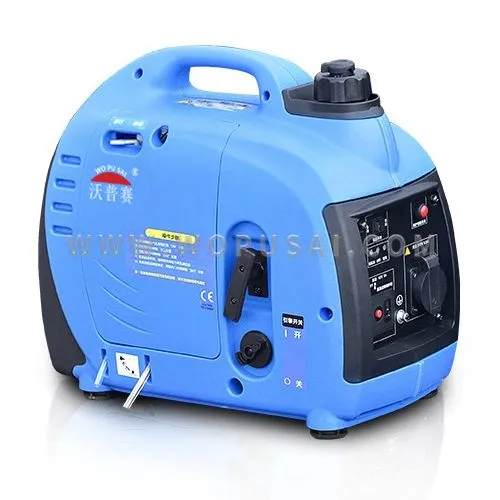

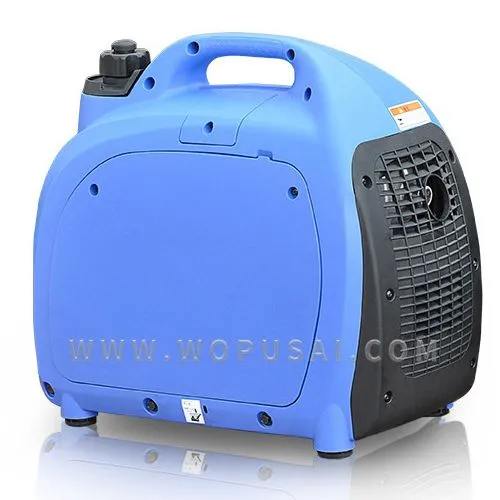

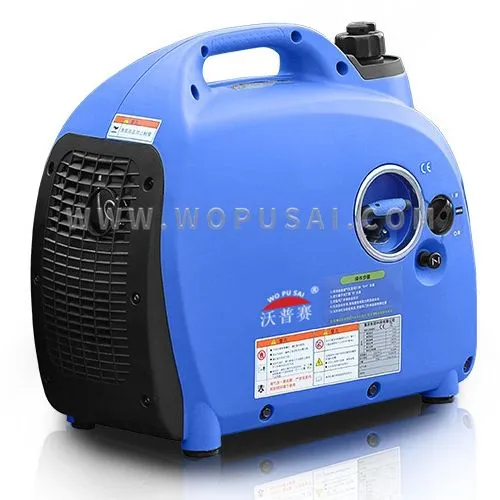

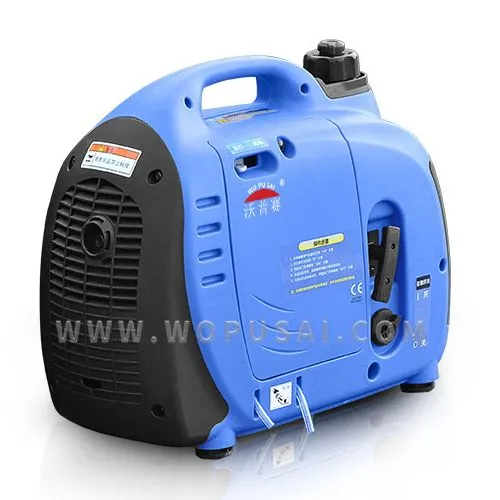

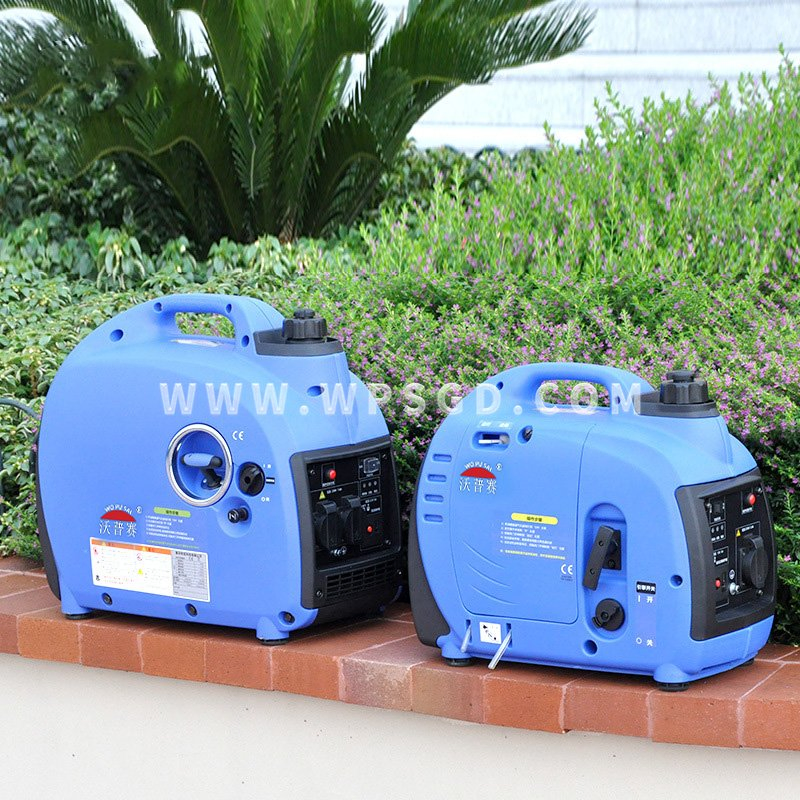

Digital frequency conversion ultra-quiet
1-2kw Gasoline generator set
Car portable outdoor use
| Digital inverter petrol generator set parameters | ||
|---|---|---|
| Unit Model | DGE900I | DEG1600I |
| Rated Power | 0.9KW | 1.6KW |
| Maximum power | 1KW | 2KW |
| Rated frequency | 50Hz | |
| Rated speed | 4500rpm | |
| Rated voltage | 230V | |
| DC voltage | 12V | |
| Power factor | 1 | |
| Waveform distortion rate | ≤5% | |
| Engine Model | D144F | D147F |
| Engine Horsepower | 1.8HP | 3.2HP |
| Engine Type | Single-cylinder four-stroke air-cooled petrol engine | |
| Engine displacement | 50cc | 100cc |
| Cylinder Bore | 43mm | 48mm |
| Stroke | 36mm | 43mm |
| Fuel Type | 93# Petrol | |
| Fuel Capacity | 2.1L | 3.8L |
| Oil Capacity | 0.38L | 0.5L |
| Duration | 4h | 4h |
| Ignition System | C.D.I | |
| Starting method | Hand pull. Backlash start. | |
| Noise level | ≤58dB | ≤60dB |
| Parallel use | Two/multiple units in parallel | |
| Oil Alarm | Yes | |

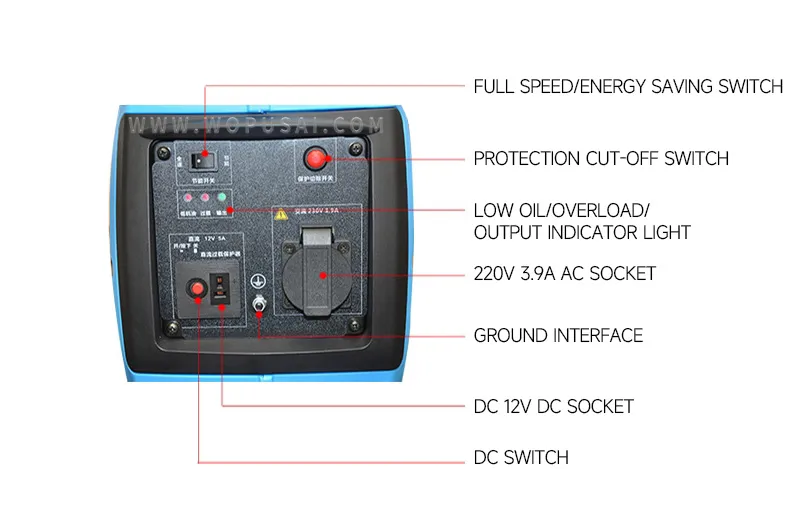

| Output indication | Yes | |
| Overload alarm | Yes | |
| Packaging | Cardboard box | |

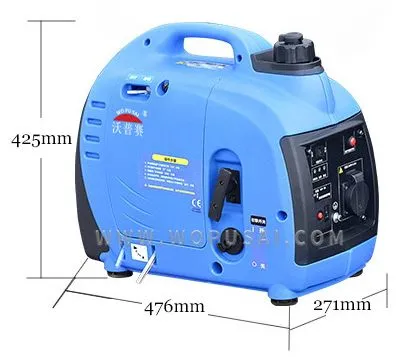

| Dimension | 476*271*425mm | |
| Weight | 15KG | 22KG |

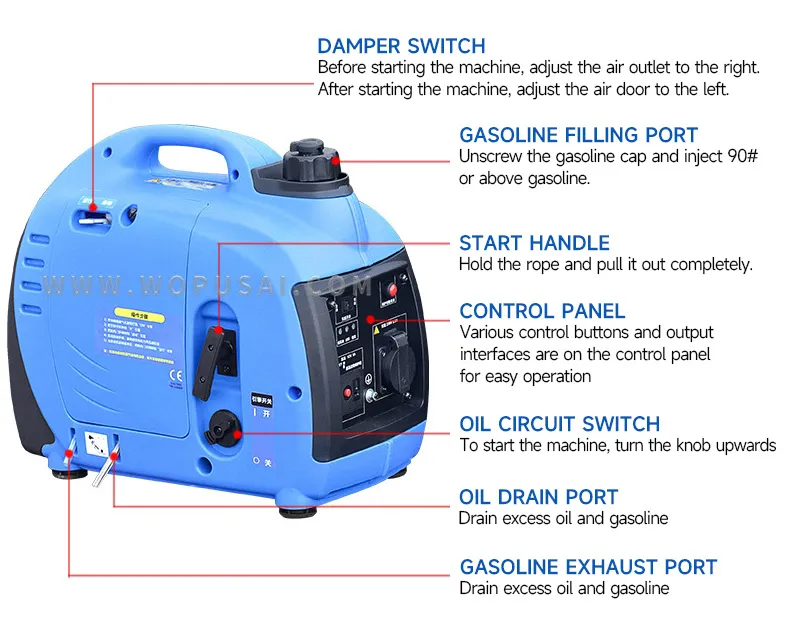

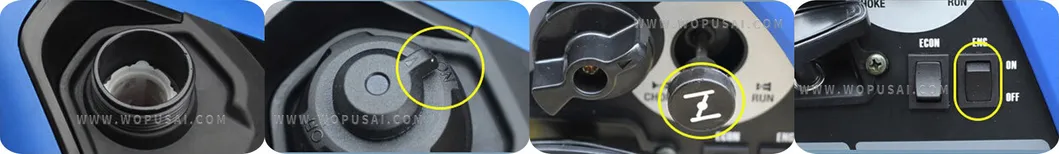

Open the fuel tank and fill it with 93# gasoline or 97# unleaded gasoline. Since the fuel tank has a standard capacity, it is recommended not to fill it too full in actual use.
Tighten the fuel tank cap and turn the venting rotary button to the "ON" position.
Open the fuel tank and fill it with 93# gasoline or 97# unleaded gasoline. Since the fuel tank has a standard capacity, it is recommended not to fill it too full in actual use.
Open the fuel tank and fill it with 93# gasoline or 97# unleaded gasoline. Since the fuel tank has a standard capacity, it is recommended not to fill it too full in actual use.
Small four-stroke petrol engines are used for power. They have strong power and excellent performance. As a national brand of small four-stroke gasoline engine, the performance, reliability and safety of the core power of digital inverter generator sets are fully guaranteed.
The digital variable frequency generator set has a novel and beautiful appearance design, a unique and reasonable internal process structure, and also has relevant patents for appearance design and internal structure. The patented air duct makes the air intake and exhaust smoother, with less noise and mechanical vibration.

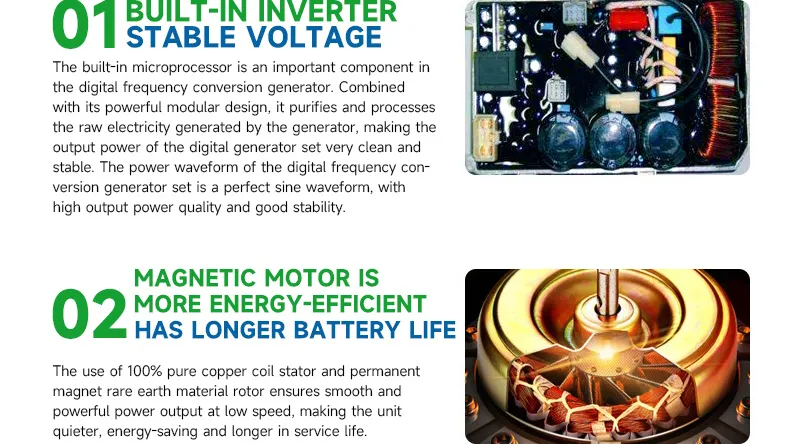

The key component of the digital variable frequency generator is its built-in microprocessor (inverter). With a powerful modular design, it processes and purifies the raw power generated by the generator, making the power output of the digital generator set very clean and stable. The power waveform of the digital variable frequency generator set is a perfect sine waveform, so the high-quality power is particularly suitable for electrical equipment and instruments that are sensitive to voltage and current fluctuations.

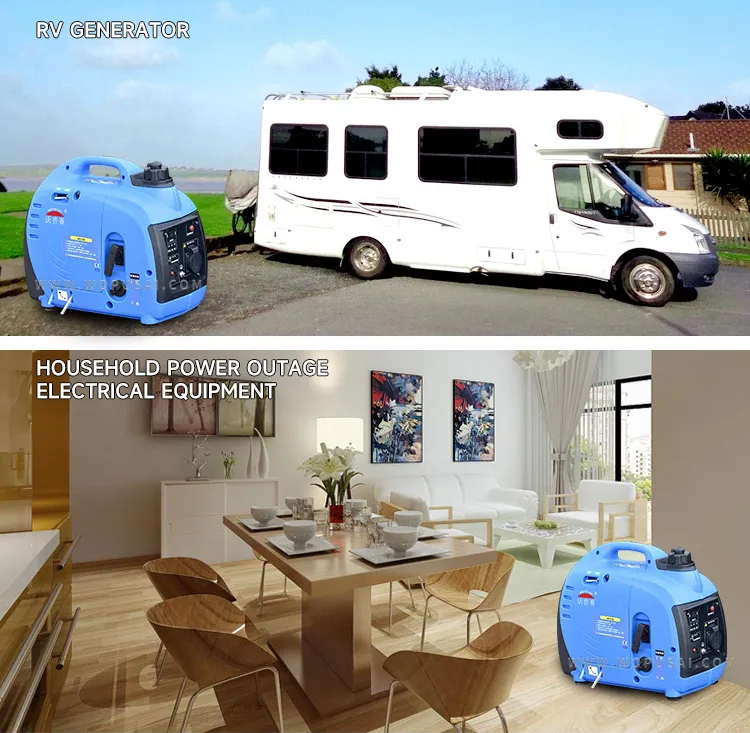

The digital variable frequency generator adopts a unique double-layer noise reduction structure, making the operation quieter and more comfortable. The whole machine running noise is 3-9 decibels lower than the traditional generator set. Its emissions can meet the EPA (US Environmental Protection Agency) 2012 Phase II standards. Compared with traditional generators, it is a well-deserved environmentally friendly power generation equipment. Whether it is used in densely populated urban areas, camping in the wild, or as a backup power source for home indoors, the digital variable frequency generator set is a very ideal choice.
The digital variable frequency generator is equipped with a variety of automatic safety protection devices, such as overload, low oil pressure and other protection devices, which greatly facilitates your operation and eliminates your worries. In addition, the unit is also equipped with a unique intelligent throttle, which can automatically adjust the speed according to the actual load changes, making its fuel consumption 20%-40% lower than that of ordinary units, and the running time is longer, bringing more economic benefits to users. At the same time, it also greatly extends the service life of the whole machine.
We insist on a penalty of ten and commitment to no statute of limitations, and all of these are written into the contract. For the same price, we offer a higher configuration; for the same configuration, we offer a lower price.
During the warranty period, we promise to arrive at the scene within 24 hours (depending on actual traffic situations) to provide free maintenance services. Our service departments protect the rights and interests of customers with a commitment to never shirk responsibilities.
Supported by a national consultant team: 8 senior professional and technical staff with over 20 years of experience, and 20 professional technical staff. Our team has a wealth of front-line experience, allowing customers to choose with confidence.
As a source production and assembly manufacturer, procurement costs are lower than peers. Under the premise of quality assurance, our prices remain highly competitive.
Independent research and development of diesel generator sets of environmental protection projects. The heat dissipation and dust removal integrated device holds more than 10 invention patents in silent type diesel generator sets and generator smoke treatment systems.
(1) Fuel economy, high thermal efficiency, flat fuel consumption rate curve when working conditions change, and economy under low load.
(2) Reliable and durable operation. Low failure rate due to no ignition system.
(3) Wide range of applications.
(4) Low harmful emissions.
(5) Excellent fire safety.
(1) There are many grades of stand-alone capacity. The units range from a few kilowatts to tens of thousands of kilowatts.
(2) Compact structure of supporting equipment, flexible installation location.
(3) High thermal efficiency and low fuel consumption (thermal efficiency 30~46%).
(4) Fast startup and rapid realization of full power in case of emergency (takes only a few seconds to bring full load to expiration within 1 minute).
(5) Easy maintenance operation, fewer people, and easy to maintain during standby period.
(6) The lowest overall cost of diesel generator set construction and power generation.
The electrical frequency of a generator refers to the frequency of alternating current (AC). For AC generators, the frequency is usually 50 to 60 Hz (DC generators have no concept of frequency). A frequency of 50 to 60 Hz indicates stable operation of the system.
When using the generator, you should ensure that it operates within the specified frequency range to avoid damage to the equipment.
The generator excitation system is a collective term for the power supply and its ancillary equipment that supply the excitation current to the synchronous generator. It generally consists of two main parts: the excitation power unit and the excitation regulator.
It includes DC exciter, brushless exciter, AC exciter, and more. Generator excitation methods are continuously developed and improved due to the emergence of new technologies and regulation devices.
High efficiency: Four-stroke diesel engines, due to a clear division of labor, feature high combustion efficiency, making them more energy efficient than two-stroke engines with cleaner emissions.
Stability: Smooth running and less noise make them suitable for long-term stable operations, such as for generator sets and automobile engines.
Adaptable: Able to adapt to different loads and working conditions, which is why they are widely used in transport, industrial, and power generation equipment.
Yes, customized generator solutions match the unique requirements of different industries. Customization options ensure the power rating, configuration, and performance characteristics accurately fit the operating environment (such as high-humidity mines, bustling construction sites, or remote fields).
For example, customized generators for mining applications integrate specialized explosion-proof technology, optimized air-duct cooling, and dustproof designs to significantly improve safety, reliability, and the service life of the equipment under extreme environments.
