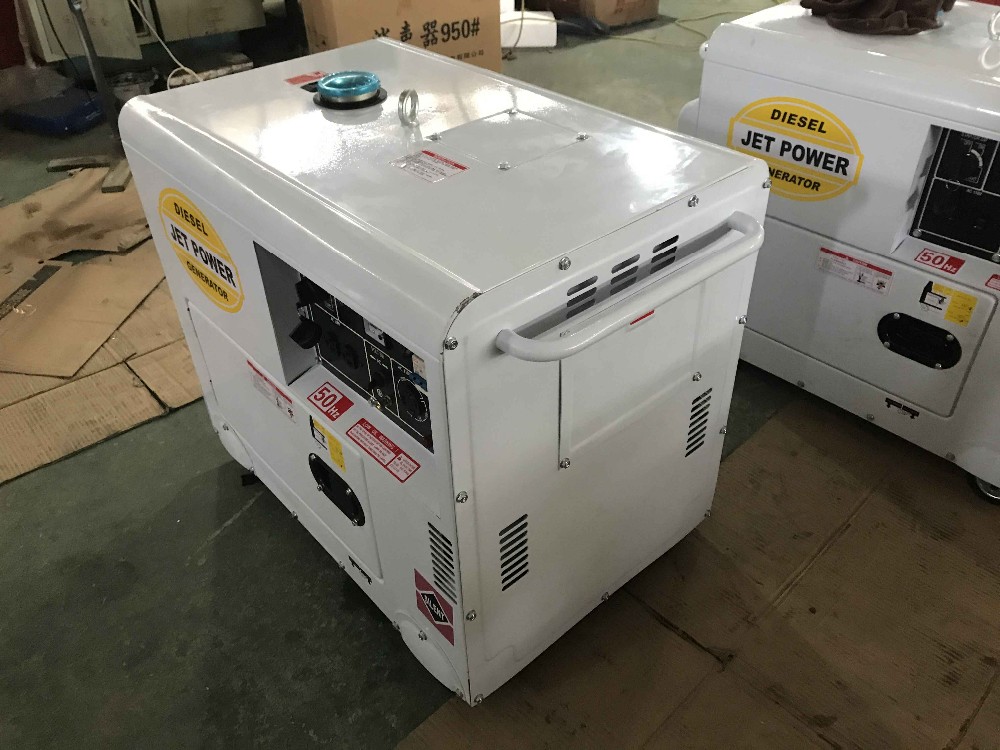

| Model | JDE3500SE | JDE6500SE | JDE7500SE | JDE8500SE | JDE9500SE |
|---|---|---|---|---|---|
| Rated frequency (Hz) | 50 / 60 | 50 / 60 | 50 / 60 | 50 / 60 | 50 / 60 |
| Rated output (KW) | 2.8 / 3.3 | 4.5 / 5.0 | 5.0 / 5.5 | 5.5 / 6.0 | 6.0 / 6.5 |
| Max. output (KW) | 3.2 / 3.8 | 5.0 / 5.5 | 5.5 / 6.0 | 6.0 / 6.5 | 6.5 / 7.0 |
| Rated Voltage (V) | 230 120/240 | ||||
| Rated current (A) | 12.2 / 27.5/13.8 | 19.6 / 41.7/20.8 | 21.7 / 45.8/22.9 | 23.9 / 50/25 | 26 / 54/27 |
| Rated rotation speed (r/min) | 3000 / 3600 rpm | ||||
| Phase NO. | Single phase | ||||
| Power factor (Cos Φ) | 1 | 1 | 1 | 1 | 1 |
| Insulation Grade | B | B | B | B | B |
| Pole number | 2 | 2 | 2 | 2 | 2 |

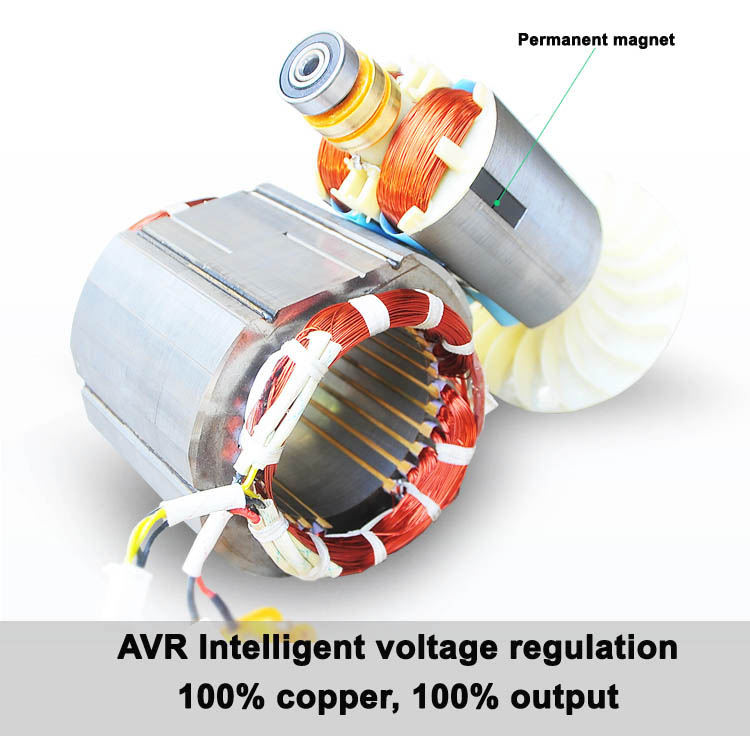

| Excitation mode | Self-excitation & constant voltage (AVR) | ||||

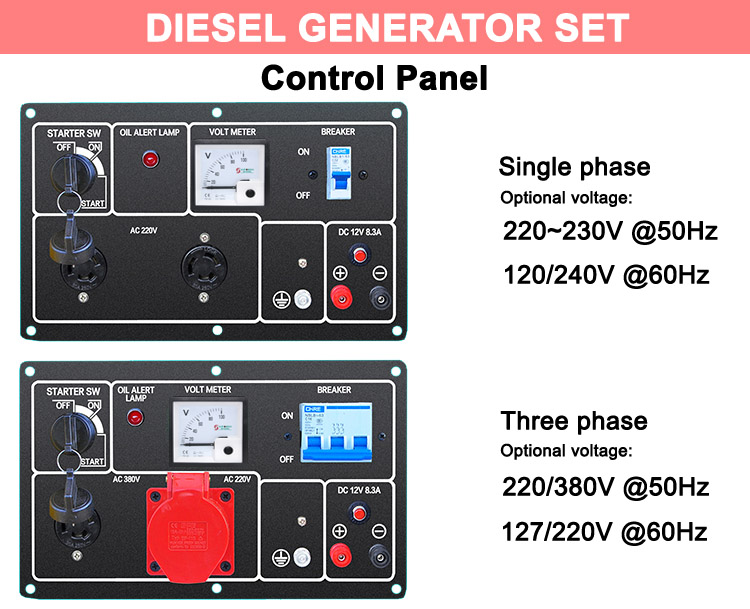

| Panel Type | General Panel | ||||
| Voltage (V) | 115/230 120/240 | ||||
| Receptacle | Two receptacles | ||||
| DC12V output | Connection pole output | ||||
| Noise level（7m）dB(A) | 60 | 60 | 65 | 65 | 65 |

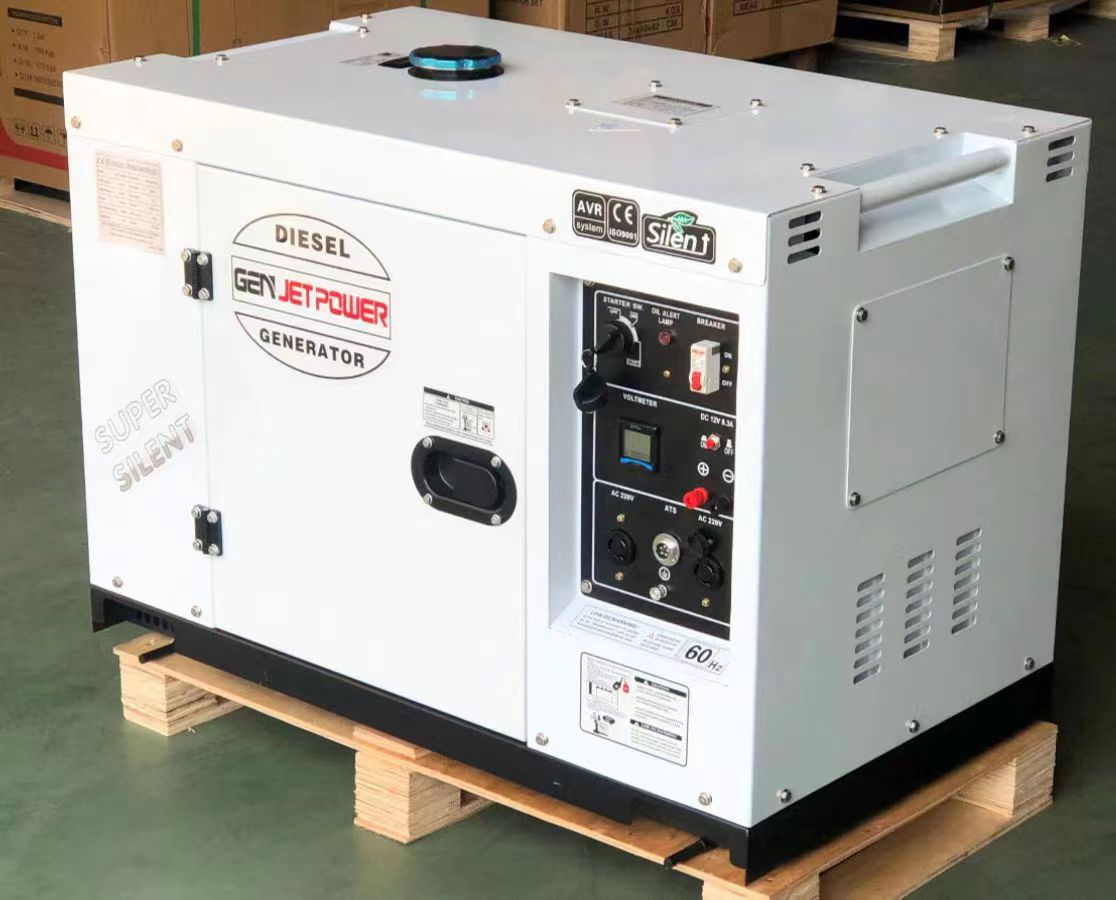

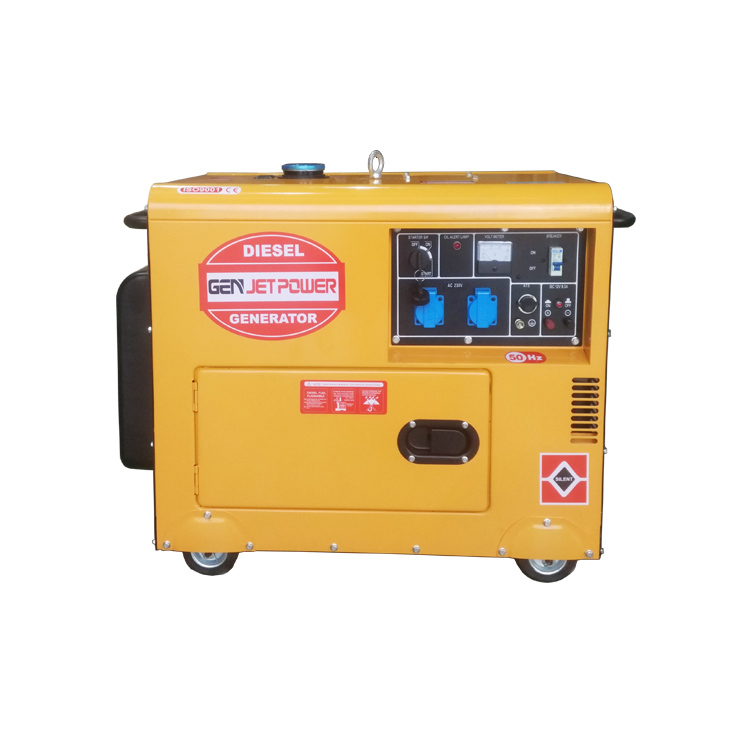

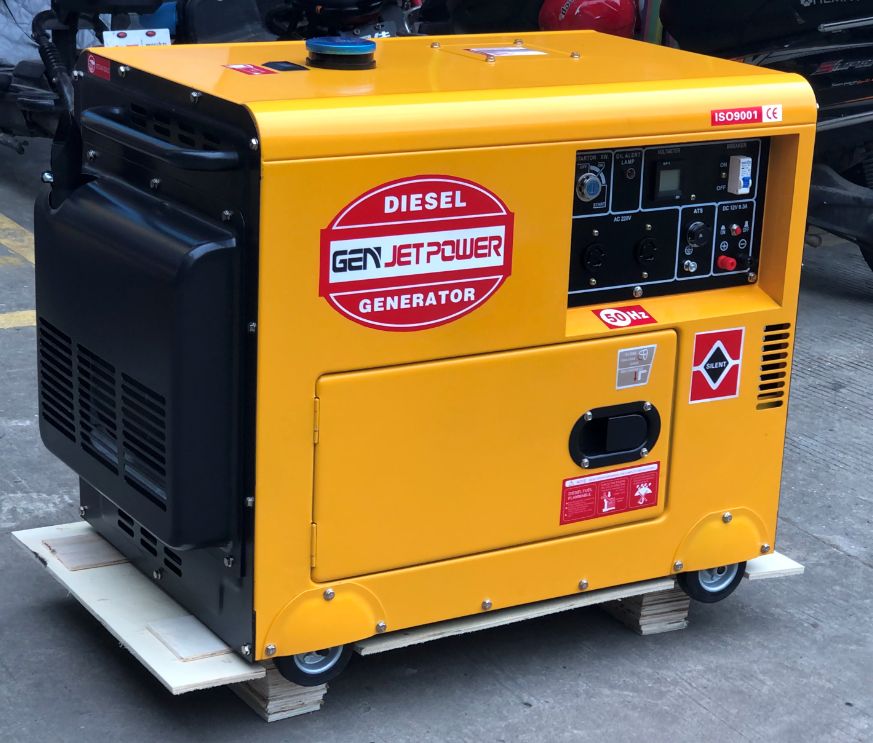

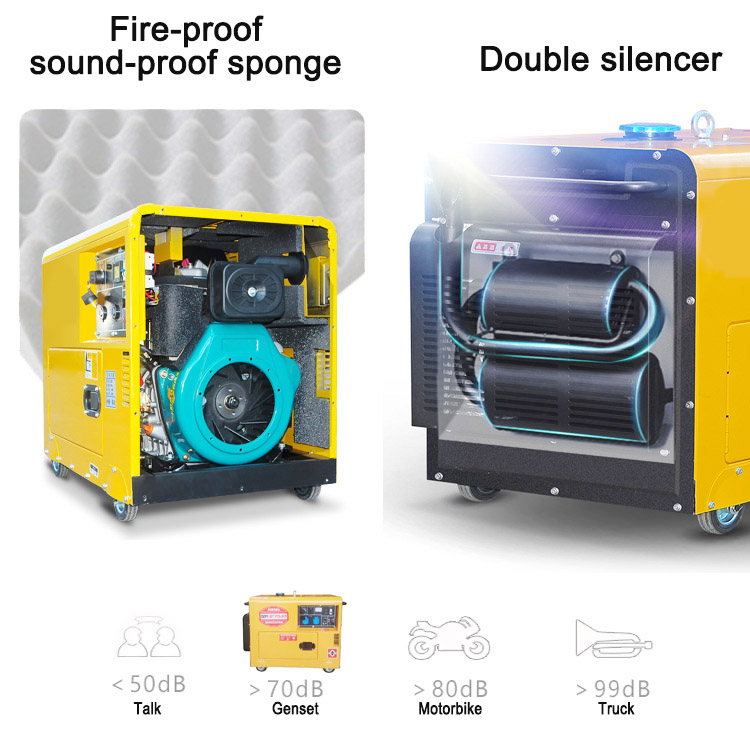

| Structure type | Silent frame | ||||
| Engine Model | KM178FG | KM186FAG | KM188FG | KM188FG | KM192FG |

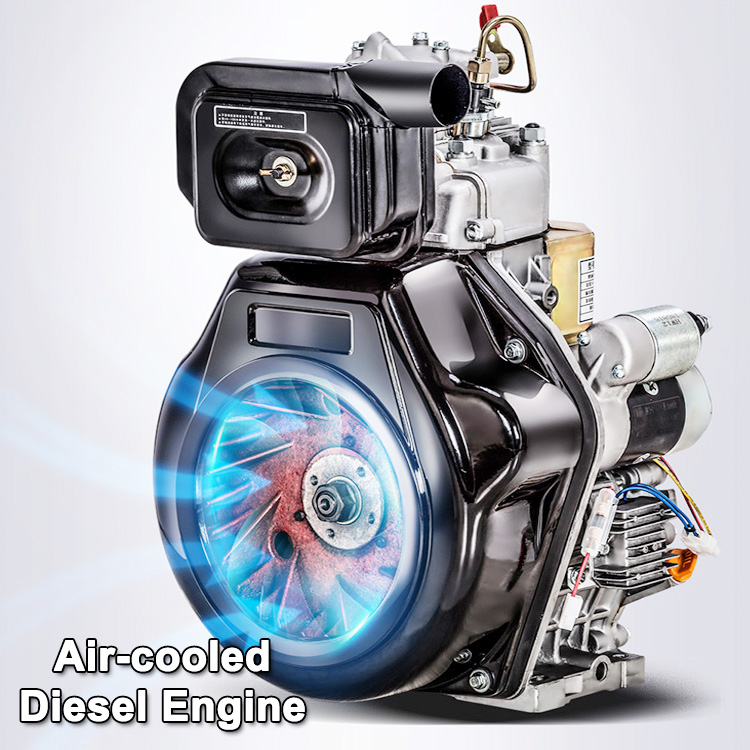

| Engine Type | Single cylinder, vertical, four-stroke, direct injection, air-cooled | ||||
| Cylinder NO.-bore×stroke (mm) | 1-78×62 | 1-86×72 | 1-88×75 | 1-88×75 | 1-92×75 |
| Displacement (ml) | 296 | 418 | 456 | 456 | 518 |
| Rated power [KW/(r/min)] | 3.68/3000 4.0/3600 | 5.7/3000 6.3/3600 | 7.5/3000 8.2/3600 | 7.5/3000 8.2/3600 | 8.0/3000 9.2/3600 |
| Compression ratio | 20:01 | 19:01 | 19:01 | 19:01 | 19:01 |
| Lubrication system | Pressure splashed | ||||
| Starting system | Electric Start | ||||
| Fuel type | 0#（summer） -10#（winter） -35#（chillness） diesel | ||||
| Lube oil brand | CD grade or SAE10W-30，15W-40 | ||||
| Lube capacity (L) | 1.1 | 1.65 | 1.65 | 1.65 | 1.65 |
| Starting motor capacity (V-kW) | 12V 0.8kW | ||||
| Charging generator capacity (V-A) | 12V 3A | ||||
| Battery capacity (V-Ah) | 12V 36Ah | ||||
| Fuel consumption (g/kW.h) | ≤370 | ≤360 | ≤360 | ≤360 | ≤360 |
| Fuel tank capacity (L) | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 |
| Continuous running time (hr) | 8.5 | 5.5 | 5.5 | 5.5 | 5.5 |
| Packing size MM | 930×530×740 | ||||
| G.Weight (kg) | 155 | 160 | 163 | 165 | 170 |
| Loading quantity @ 20GP | 72 pcs | ||||

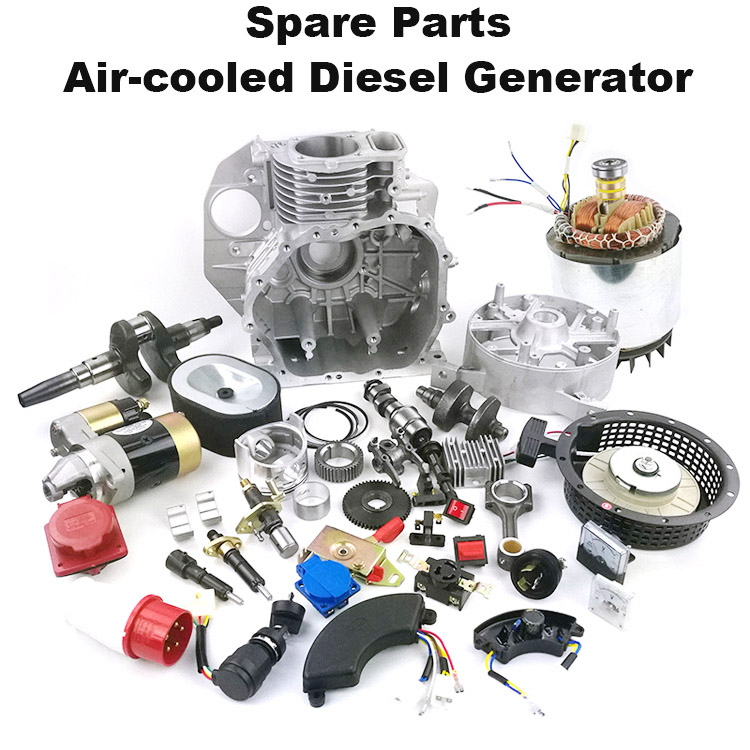

1. During the guarantee period- ur will provide the free easydamageable spare parts of alternator caused by our quality of production or raw material.
2. After expiration- our provides cost spare parts maintenance of alternator. If engine with international warranty service, the engine product warranty by local authorization Service agent.
| Packaging & Delivery Specifications | |
|---|---|
| packaging details | wooden case, plywood case, Plastic film package, depends on Client's requirement |
| delivery details | in 30 days |
