| Engine Spec Details | |
| Engine Model | 1104A-44TG2 |
| Number of Cylinders | 4 cylinders in line |
| Cycle | 4 stroke |
| Aspiration | Turbocharged |
| Bore × Stroke | 105mm x 135mm |
| Displacement | 4.4L |
| Compression ratio | 17.25:1 |
| Prime Power/Speed | 64KW / 1500rpm |
| Standby Power/Speed | 70KW / 1500rpm |
| Speed Governor | Mech |
| Cooling System | Forced water cooling cycle |
| Steady speed droop | ≤3% |
| Total lubrication system capacity | 8.3L |
| Coolant capacity (engine only) | 7.0L |
| Fuel Consumption | 208g/kWh |
| Starter Motor | DC12V |
| Alternator | DC12V |
| Alternator Spec Details | |
| Alternator Model | Stamford/Leroy Somer/Marathon/Mecc-Alte |
| Standby power | 75KVA/60KW |
| Frequency/speed | 50HZ/1500rpm |
| Exciter type | Single bearing, Brushless, Self-excited |
| Power factor | 0.8 |
| Voltage adjust range | ≥5% |
| Voltage regulation NL-FL | ≤±1% |
| Insulation Grade | H |
| Protection Grade | IP23 |
| Phase | Three phases or Single phase |

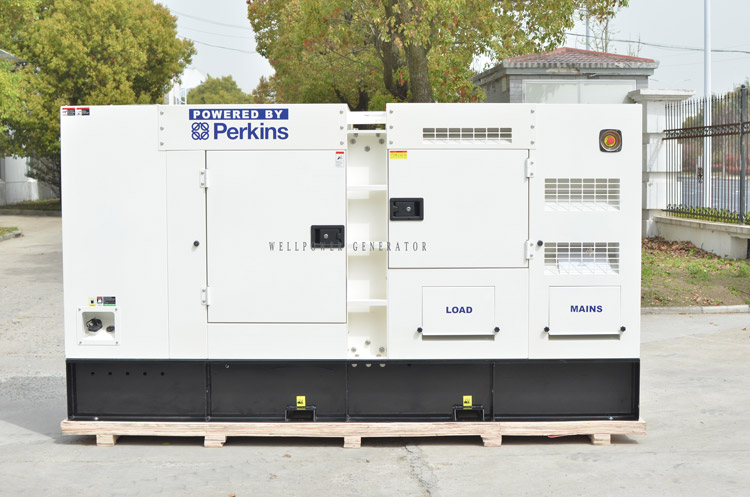

1. The silent canopy is made of galvanized solid steel, with high density sound absorbing cotton built inside the canopy.
2. The canopy with good performance of Anti-rust, sound proof and rainproof.
3. It can reduce the noise to 65-68db(A) @ 7 m when generator running with no load.

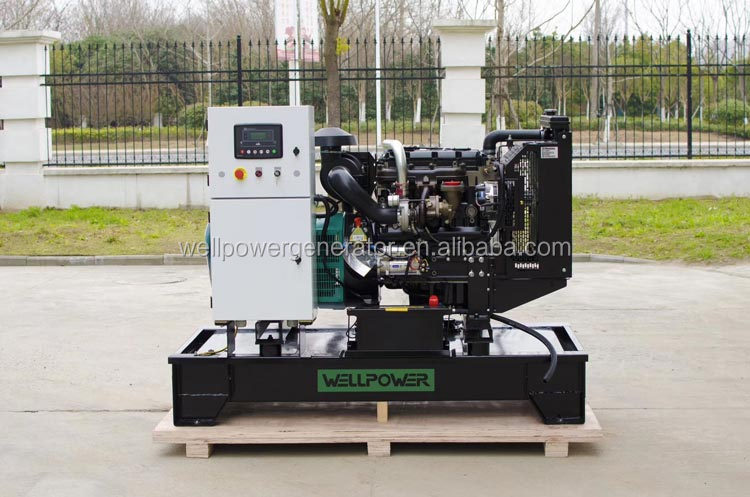

If you have no require for the noise level or nobody around when generator running, we suggest the cost-effective open type.

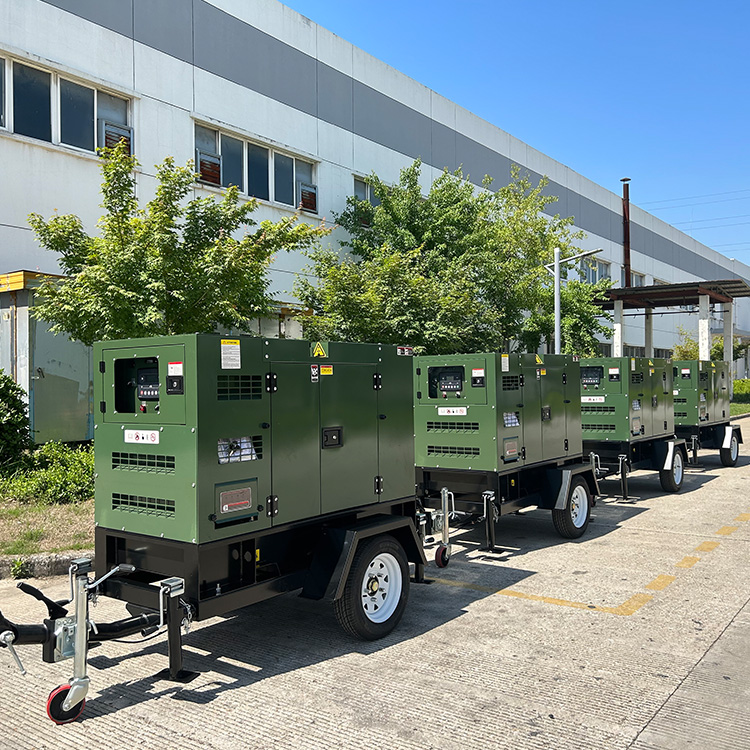

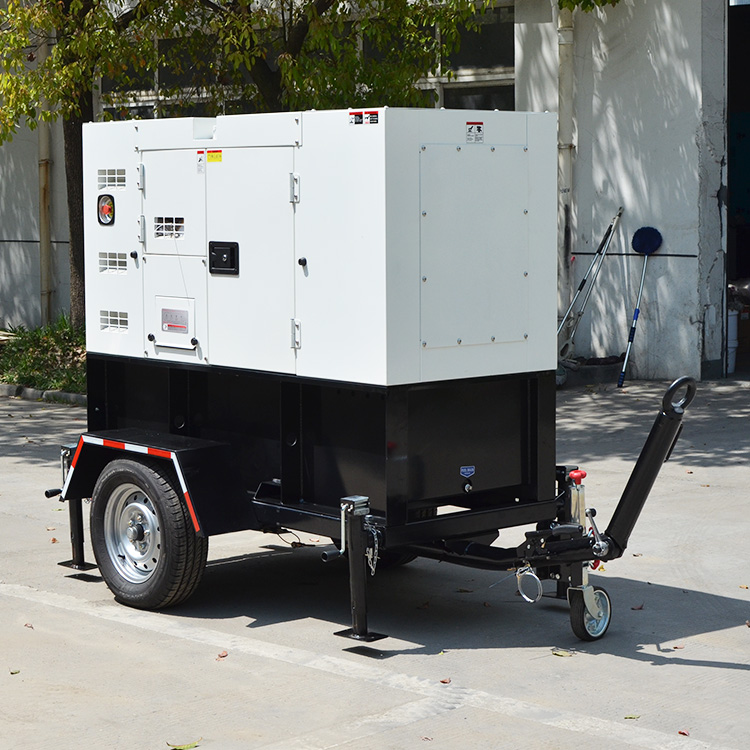

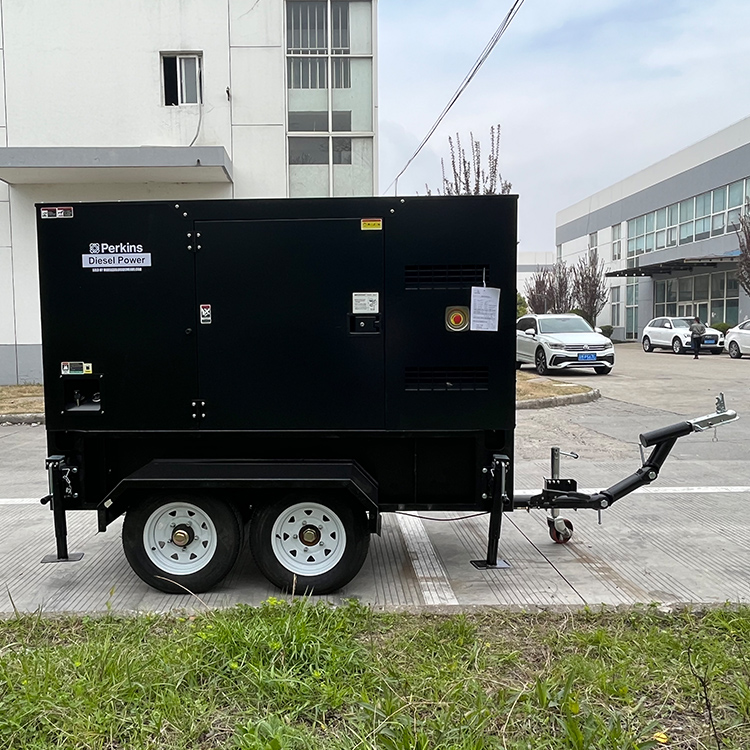

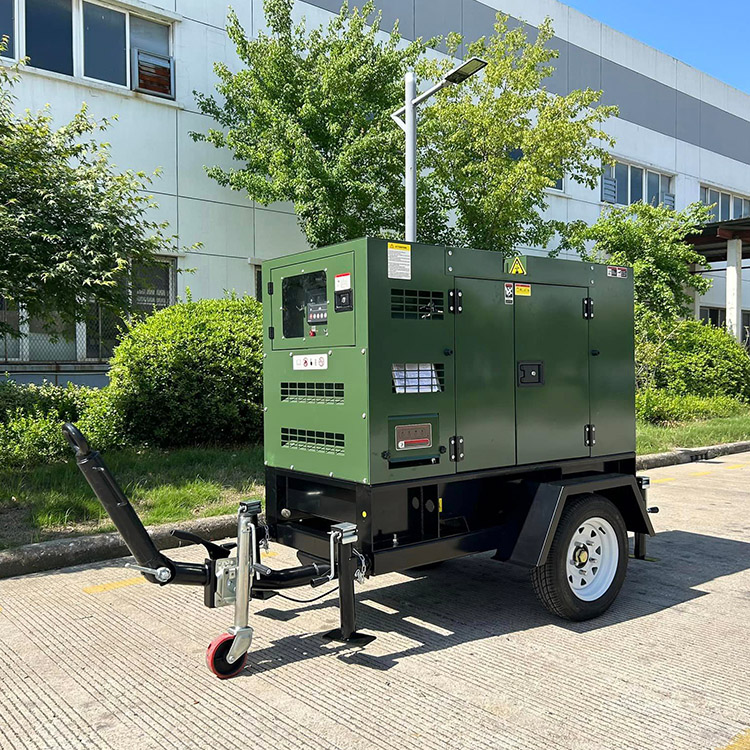

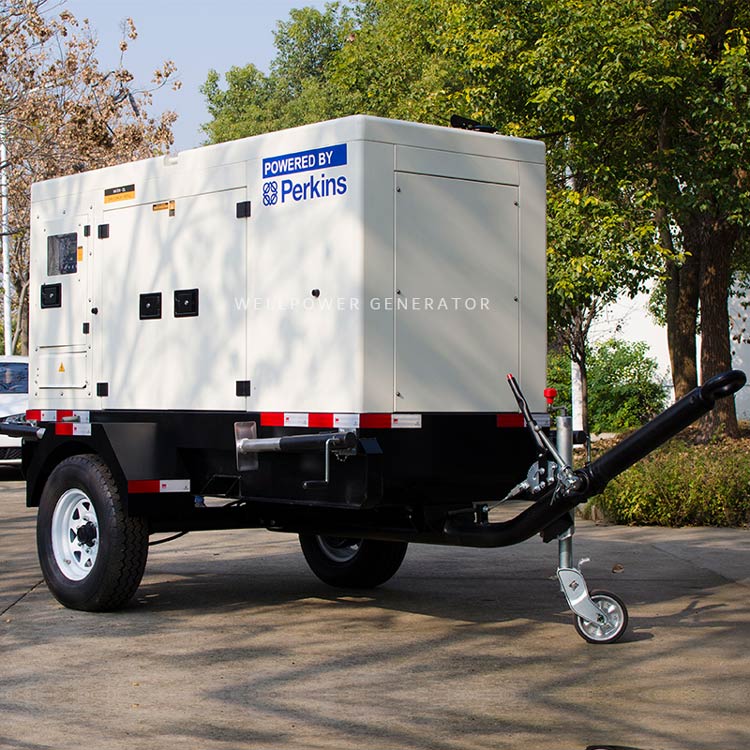

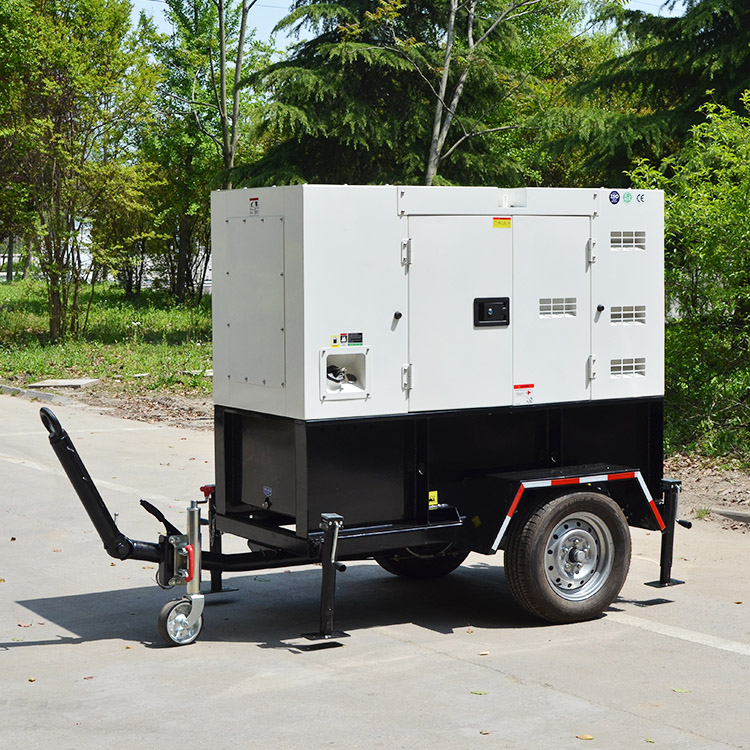

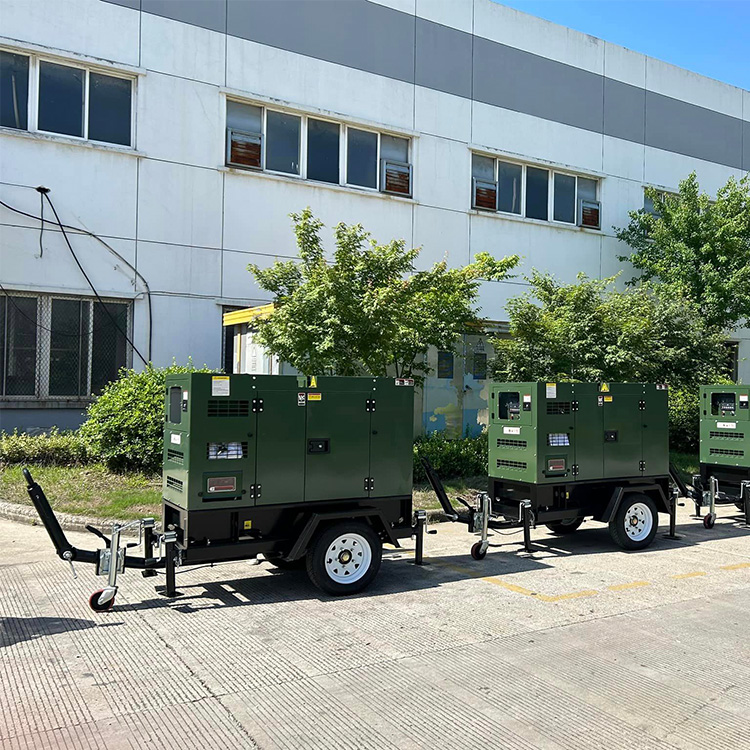

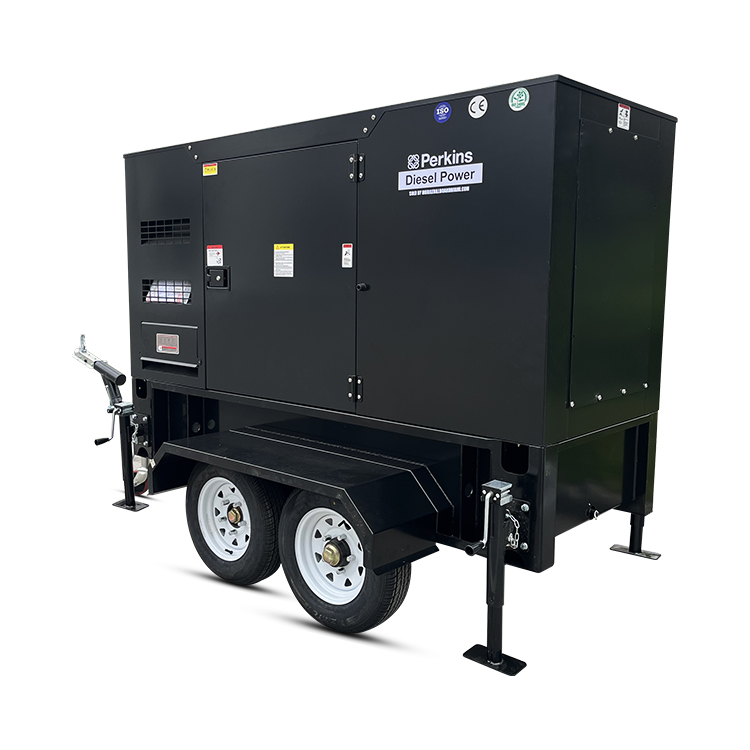

Equipped with silent canopy and heavy duty movable trailer. The best solutions for your flexible power demand.

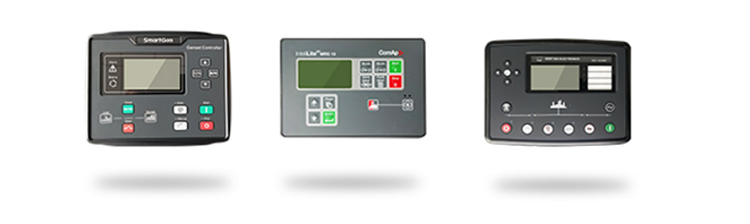

ComAp, Deepsea, Smart Gen available; Digital readouts of running parameters; Real-time monitoring for emergency handling; Standardized wire connecting for easy maintenance.
Both internal & external version available.

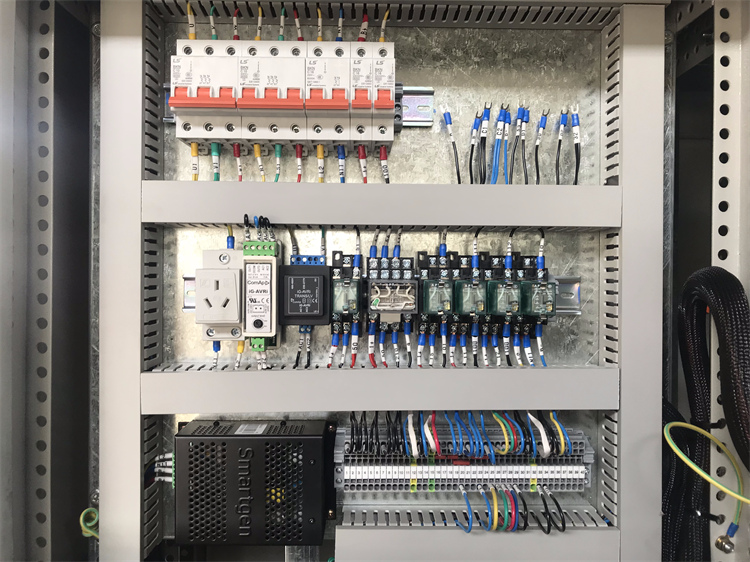

Ensure that multiple generators are used at the same time to obtain greater power.
| Component | Open Type | Silent Type |
| Sound-proof & Weather-proof Canopy | N/A | √ |
| Daily base fuel tank (8 hours capacity) | N/A | √ |
| Perkins engine, WellPower Generator, Smartgen Controller | √ | √ |
| Electric start and 24v charger, batteries | √ | √ |
| Standard air filter, oil filter, fuel filter | √ | √ |
| High-efficient silencer | √ | √ |
| Steel base-frame against vibration | √ | √ |
| Soft pipe for fuel and handle for lube going-out | √ | √ |
| Full set of manuals and wire connecting drawings | √ | √ |
| Engine | Fuel/Cooling System | Control/Others | Voltage Connections |

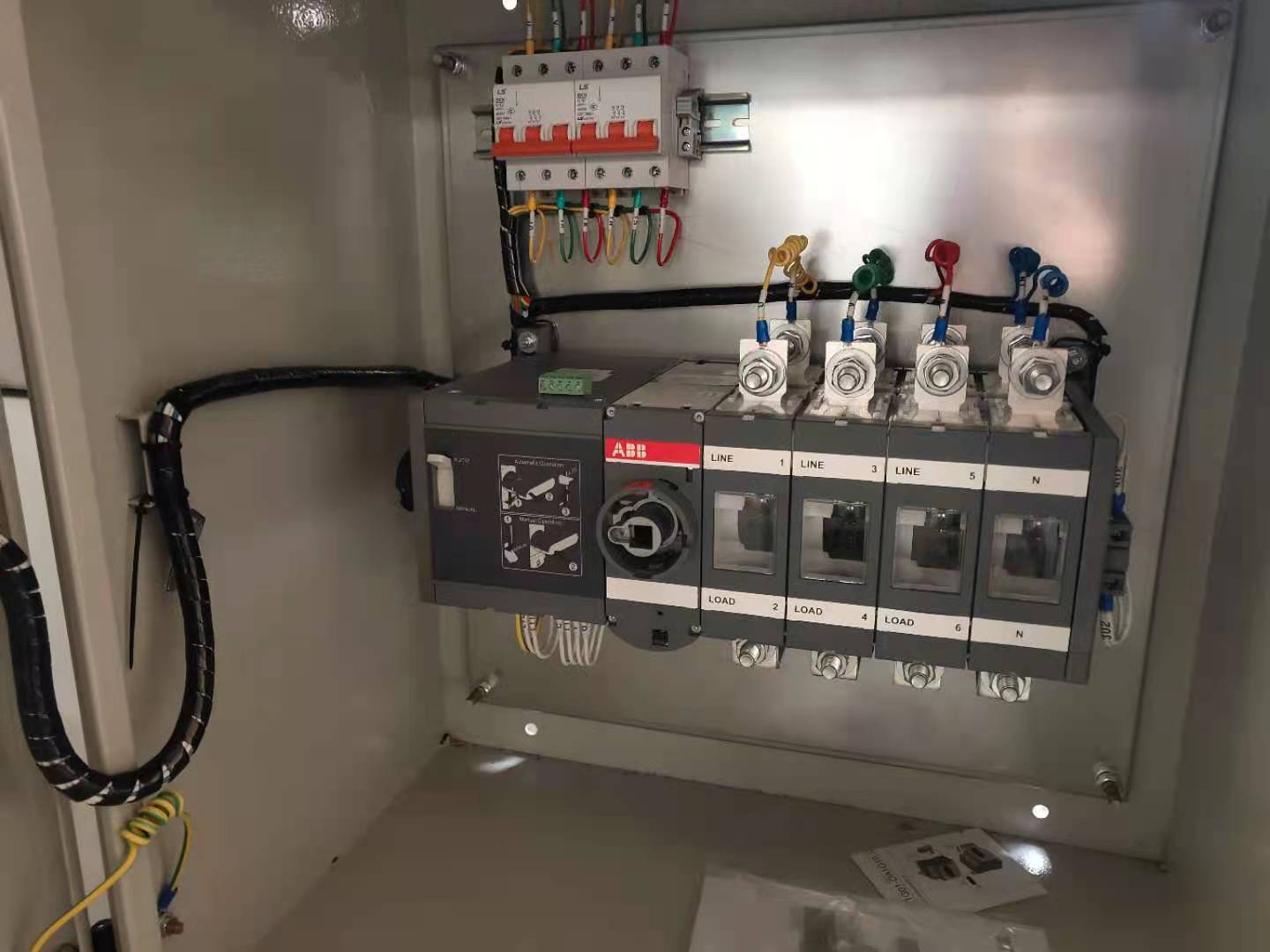

| Coolant Heater, Lube oil heater, Electronic governor, Engine oil temperature | External Tank, Water Separator, Remote radiator, Cooling tower | Remote Control Panel, Auto Transfer Switch, Paralleling System | 480/277V, 400/230V, 380/220V, 208/120V etc. |
| High Voltage of 6.3kv, 6.6kv, 10.5kv, 13.8kv etc are available | |||

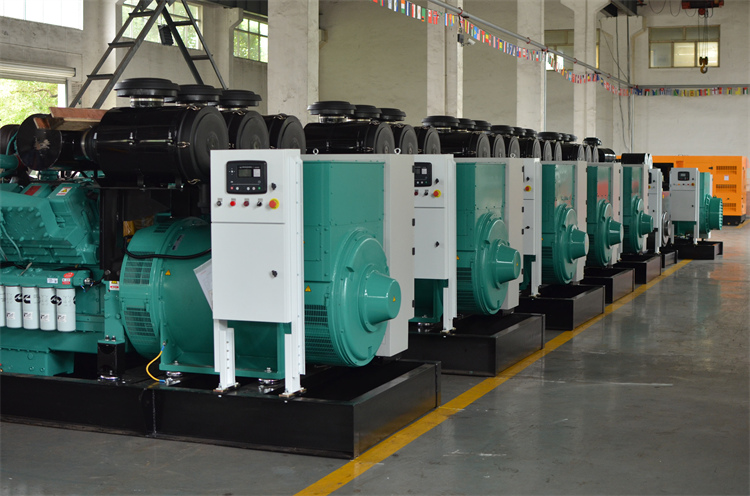

One of the largest diesel generator set manufacturers in China mainland. Our production capacity amounts to 9000 sets per year. We are specialized in making 10kva to 3000kva diesel generator sets under the brands of CUMMINS, VOLVO PENTA, PERKINS, DEUTZ, DAEWOO, MTU, SHANGCHAI, FAWD, WEICHAI, JICHAI and other engines to equip with STAMFORD, MARATHON, LEROY SOMER, MECC ALTE, SIMENS, ENGGA...
According to your requests, they can be open type, silent type, mobile type and container type. Our goal is to provide our users the best and most effective power solution. Customer satisfaction is our pursuit.

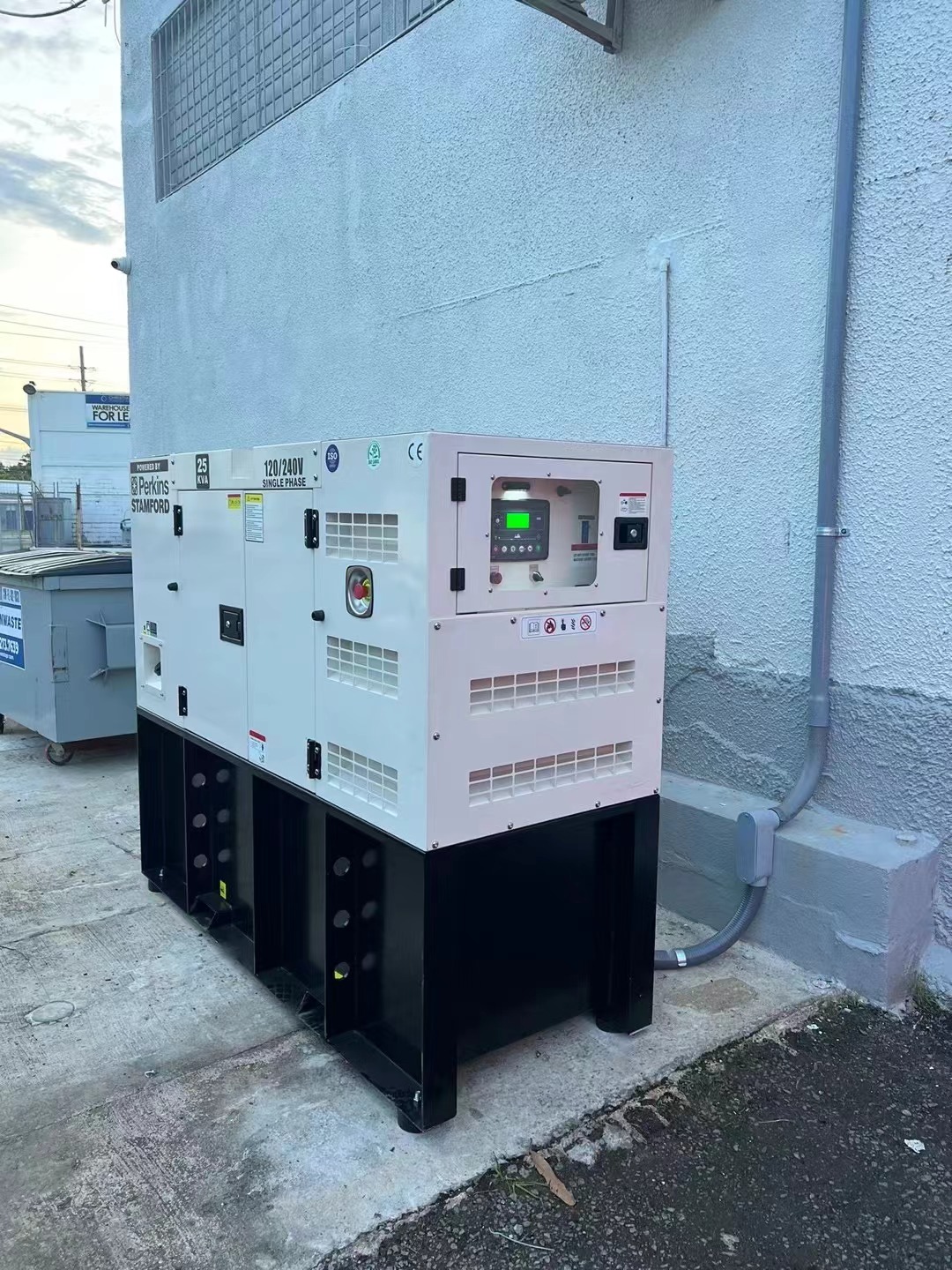

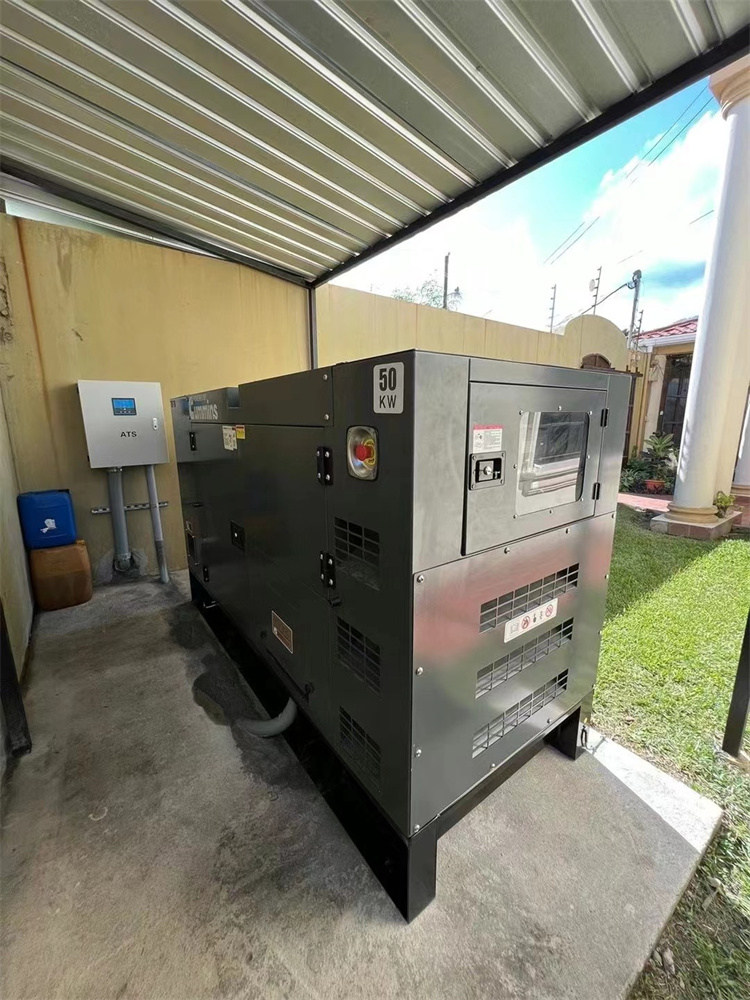

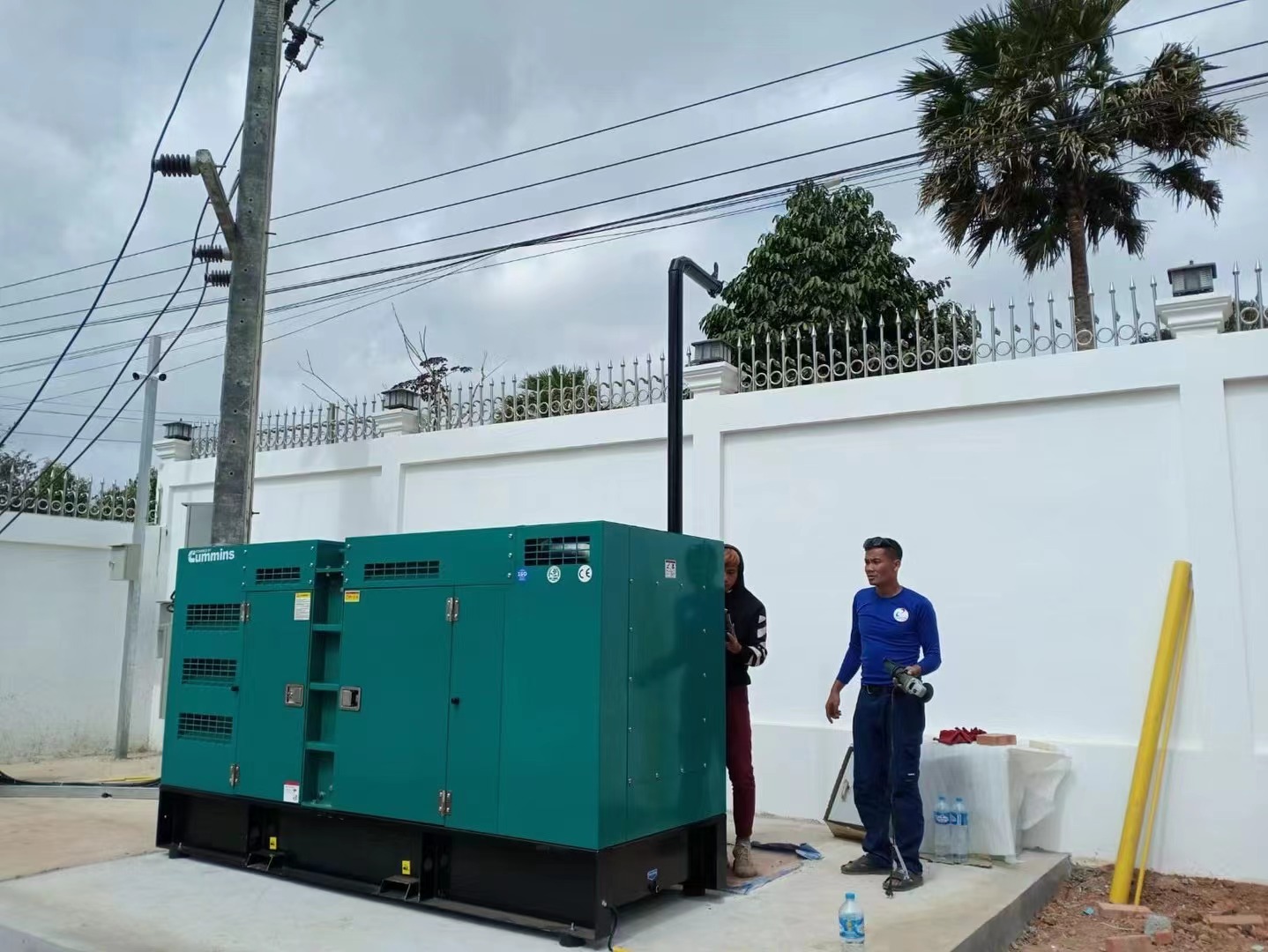

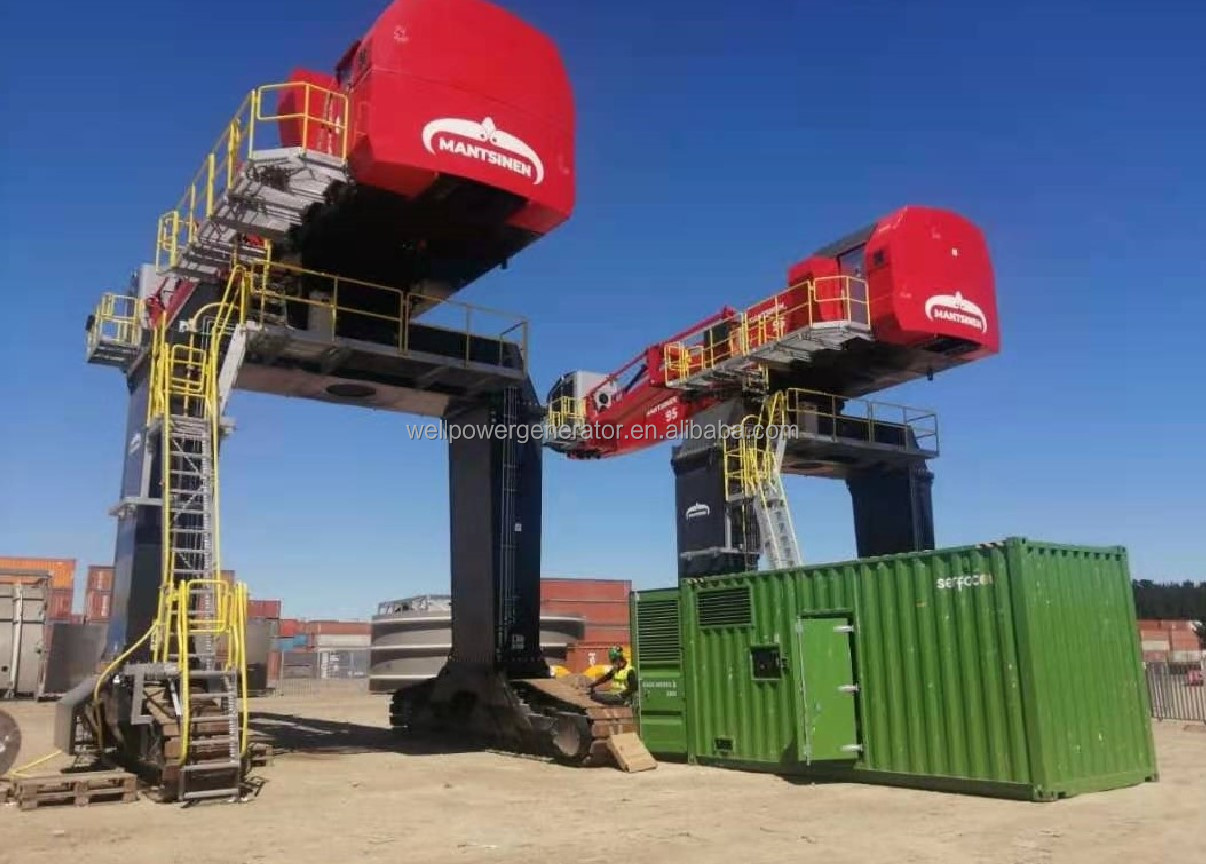

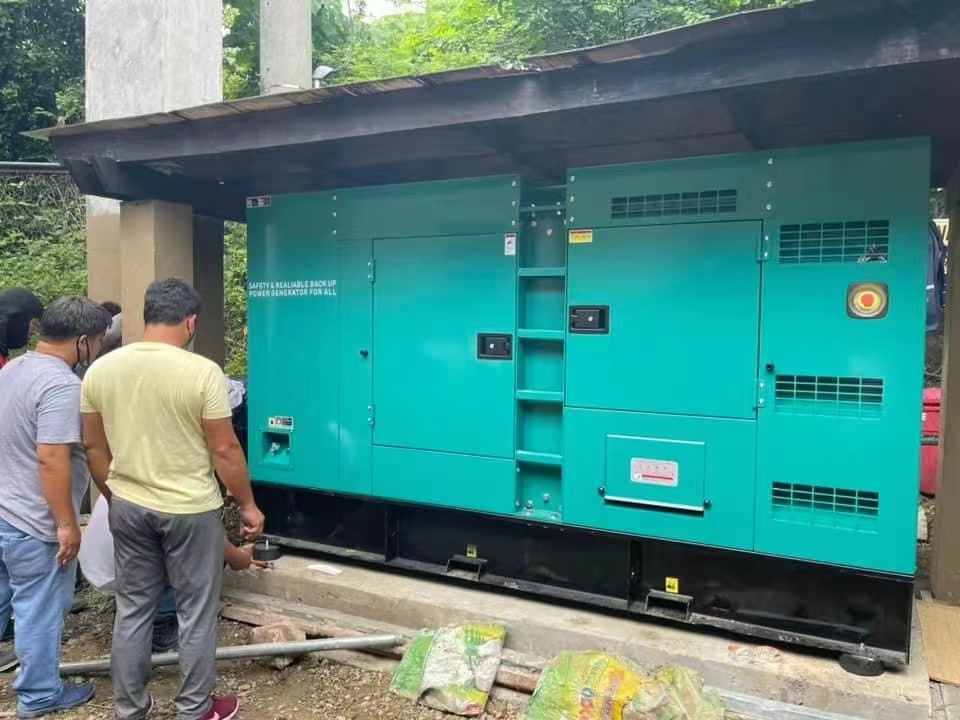

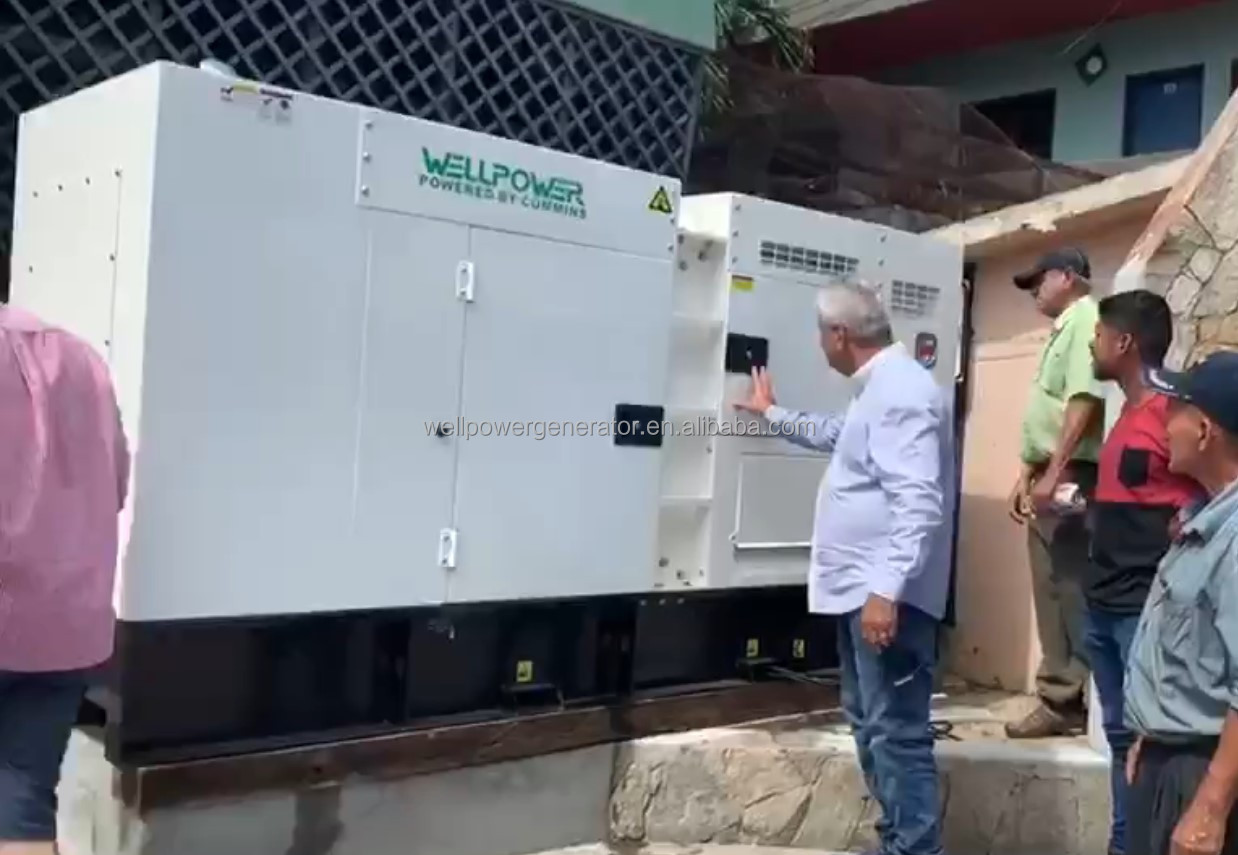

Our diesel generators are widely used in mines, communications, ports, highway, hotels, buildings and so on.
