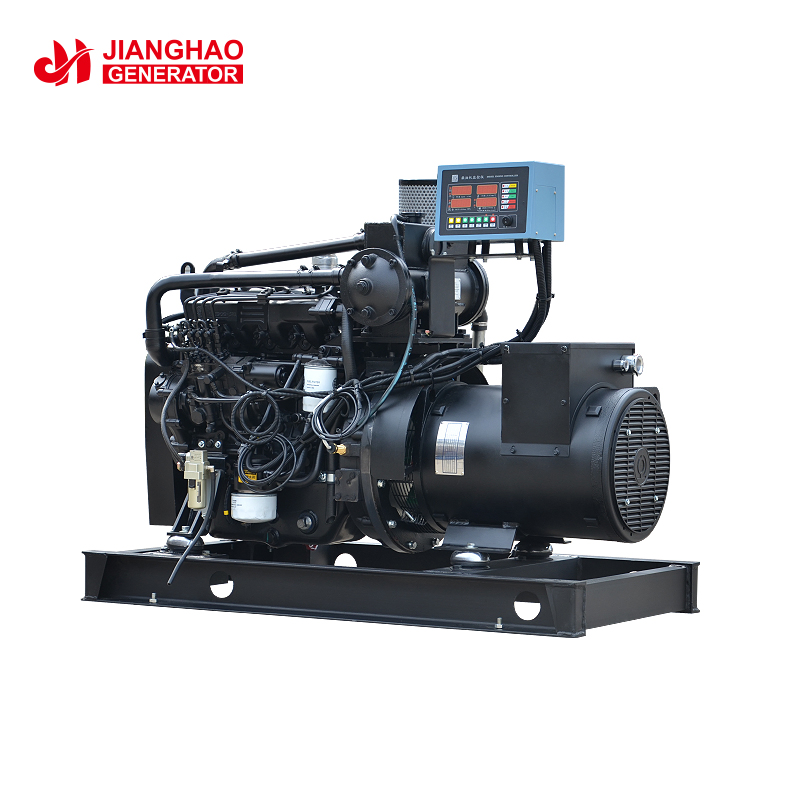

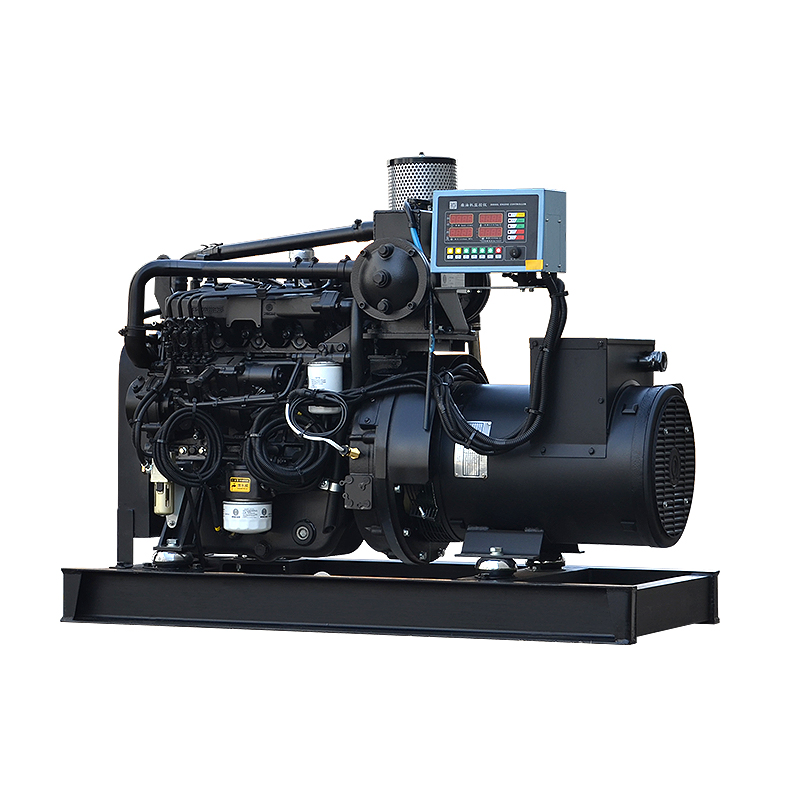

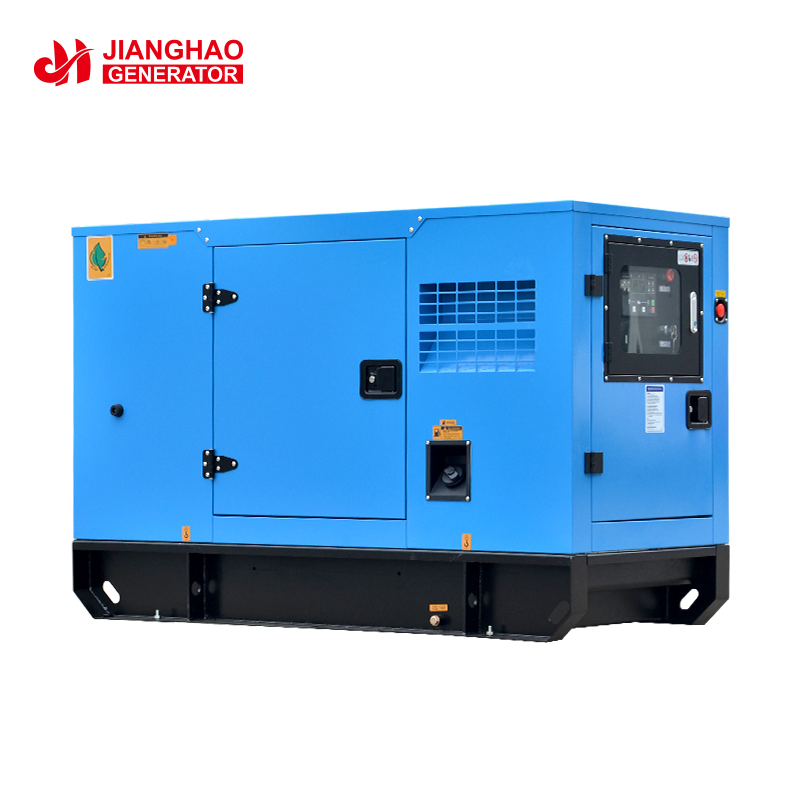

| Model NO. | CCFJ-30JW |
| Type | Self-Starting Diesel Generator |
| Installation Method | Fixed |
| Stroke | Four Stroke |
| Cooling Method | Water Cooling |
| Output Type | AC Three Phase |
| Speed | 1500rpm, 1800rpm |
| Conditions of Use | Land Use |
| Usage | Common Units, Standby Unit, Emergency Crew |
| Landuse Type | Low Noise |
| Excitation Mode | AC Rotating Exciter |
| Voltage | 380/220V (Customized Available) |
| Certificate | CE / ISO9001 |
| Rated Current | 57.0 A |
| HS Code | 8502110000 |
| Production Capacity | 500,000 sets/Year |
| Diesel Generator Details | |
| Power / Frequency | 30KW / 50Hz/60Hz |
| Optional Casing | Open / Soundproof / Trailer |
| Open Type Size | 1740 * 850 * 1270mm |
| Open Type Weight | 850 kg |
| Diesel Engine Specifications | |
| Engine Model | Weichai TD226B-3CD (Tc226b-3CD) |
| Standby Power | 40 kW |
| Cylinder Arrangement | 3 in-line arrangement |
| Bore * Stroke | 102 * 120 mm |
| Displacement | 3.117 L |
| Fuel Consumption | 6.9 L/h |
| Speed Governor | Mechanical |
| Alternator & Controller Details | |
| Optional Alternators | Stamford / Marathon |
| Exciter Type | Single bearing, brushless, self-excited |
| Power Factor | 0.8 |
| Voltage Adjustment Range | ≥ 5% |
| Insulation & Protection | Class H / IP23 |
| Optional Controller | Deepsea / Smartgen |
| Transport Package | Plywood Case |
| Package Size | 159.00cm * 120.00cm * 118.00cm |
| Package Gross Weight | 1150.00kg |
| Product Specification Size | 1590 * 1200 * 180mm |
A: The generator set has a rated power of 30 kW and a standby power capacity of 40 kW.
A: This model is powered by a Weichai TD226B-3CD (Tc226b-3CD) engine, featuring 3 cylinders arranged in-line, a mechanical speed governor, and a displacement of 3.117L.
A: You can choose between optional Stamford or Marathon alternators (brushless, self-excited, single-bearing design) and opt for Deepsea or Smartgen controller systems.
A: The generator set uses a water cooling method. It is available in Open, Soundproof, or Trailer configuration types to suit different application environments.
A: The CCFJ-30JW diesel generator set is fully certified in compliance with CE and ISO9001 quality system standards.

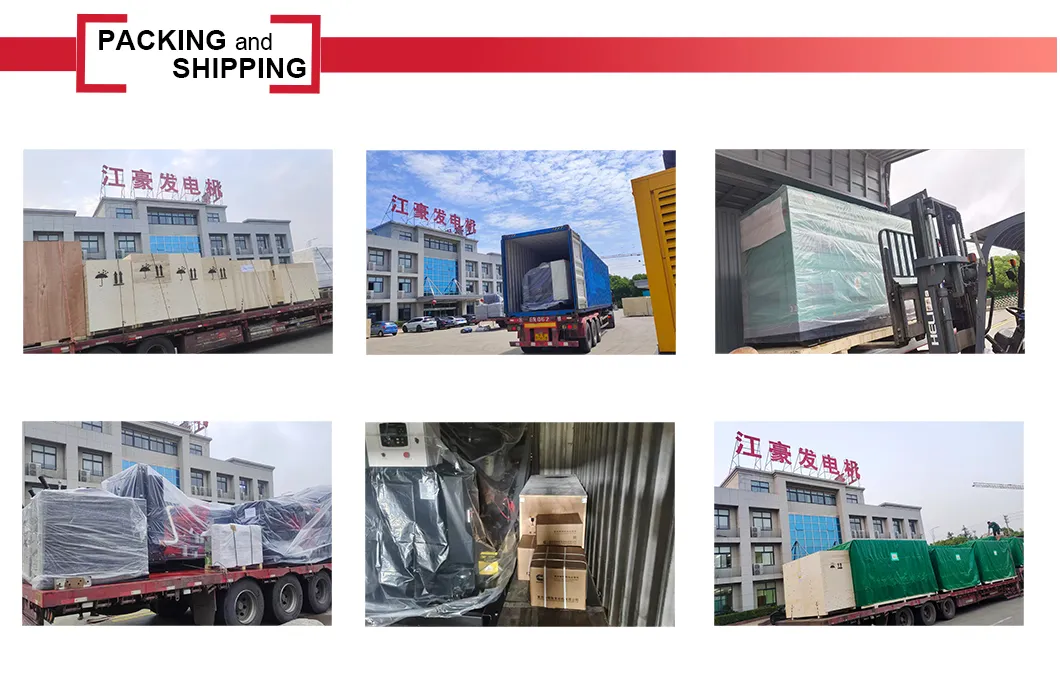

A: The unit is shipped in a robust plywood case with packaging dimensions of 159.00cm * 120.00cm * 118.00cm and a total gross weight of 1150.00kg.
