Basic Info.
Cooling Method
Water Cooling
Output Type
AC Three Phase
Dimension
2100*900*1500mm
Alternator
MP-H-100-4, UCM274E
Transport Package
Plywood Crate
Production Capacity
100 Sets Per Months
Product Description
i

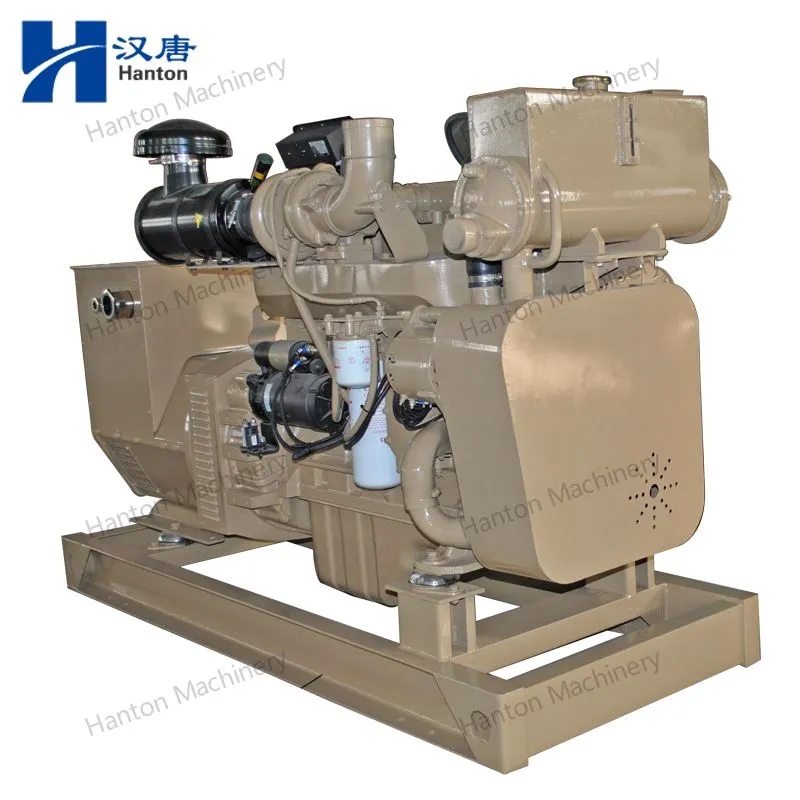

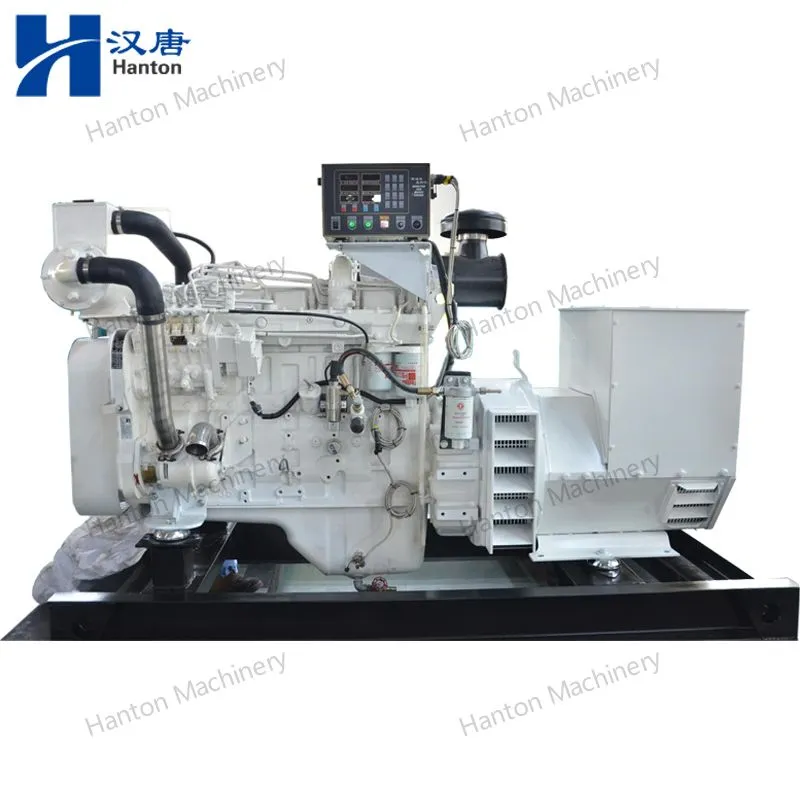

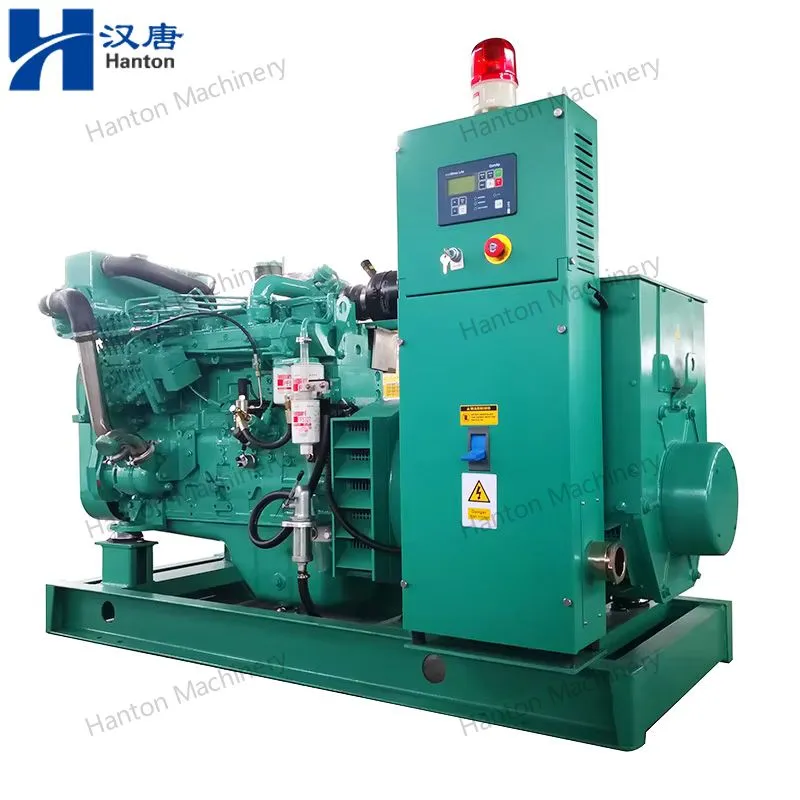

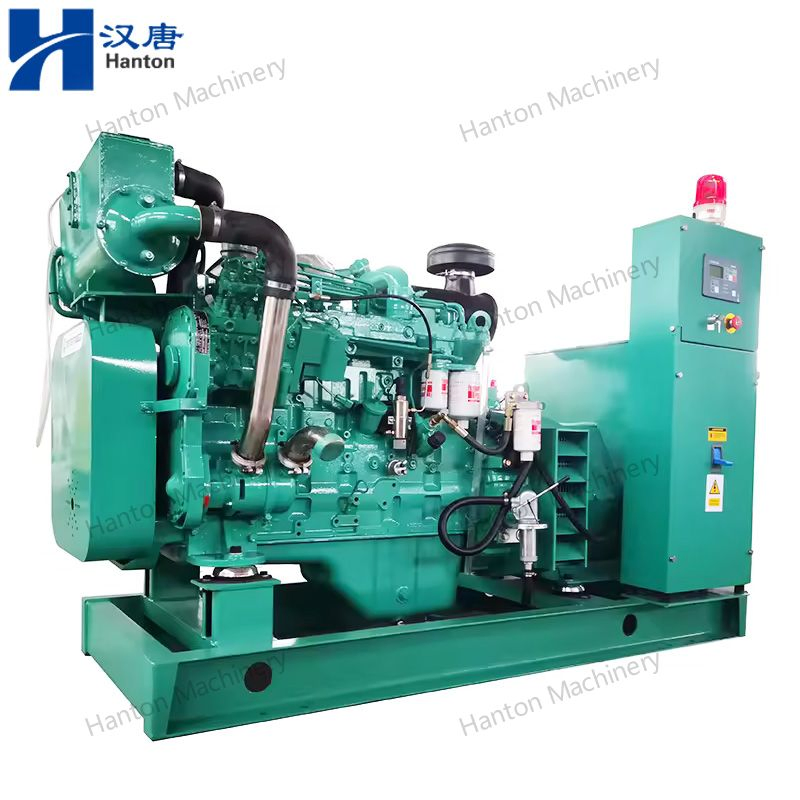

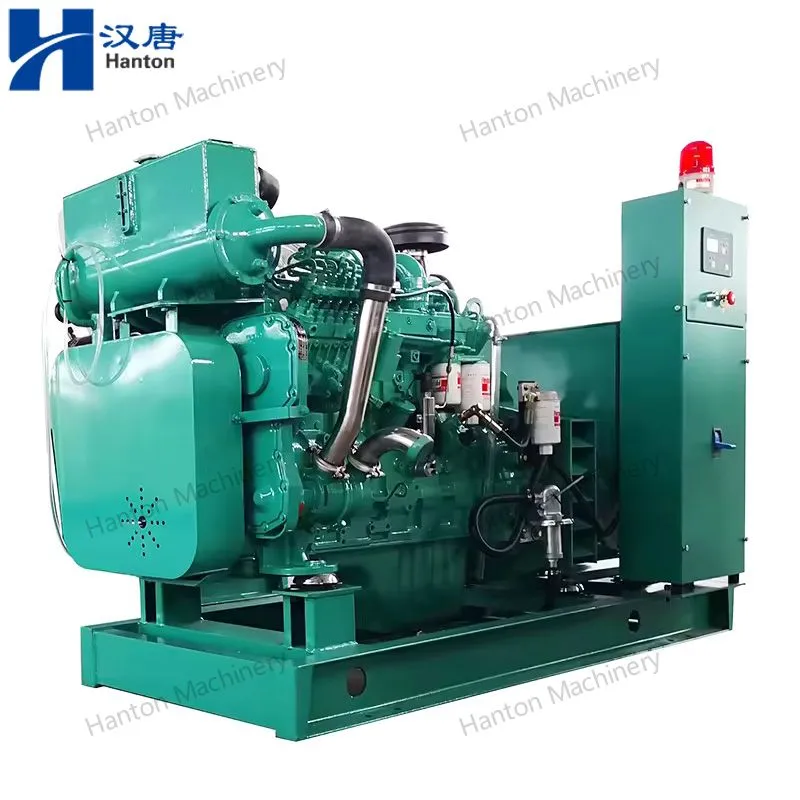

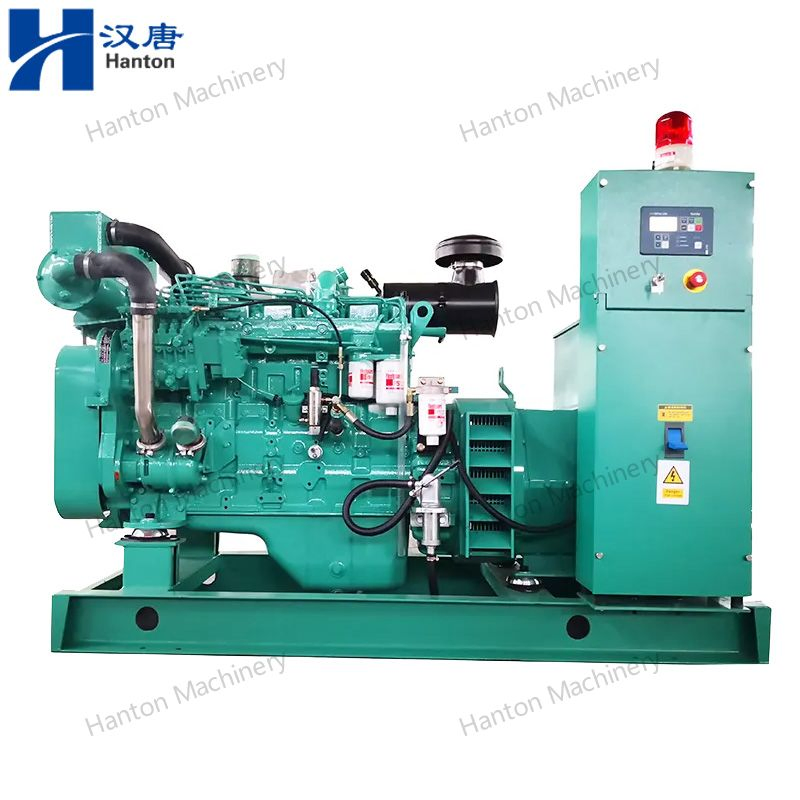

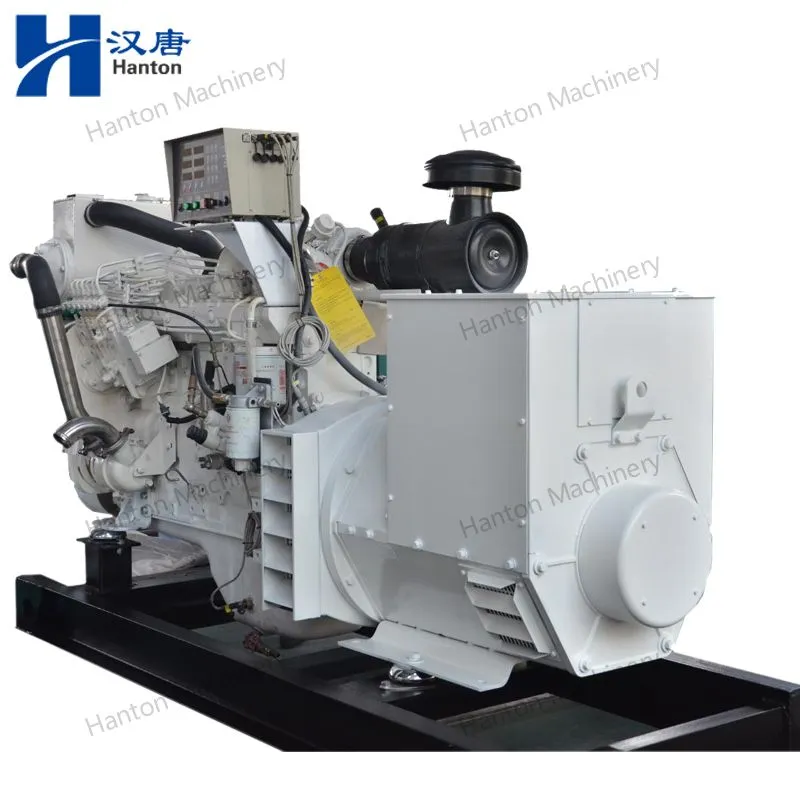

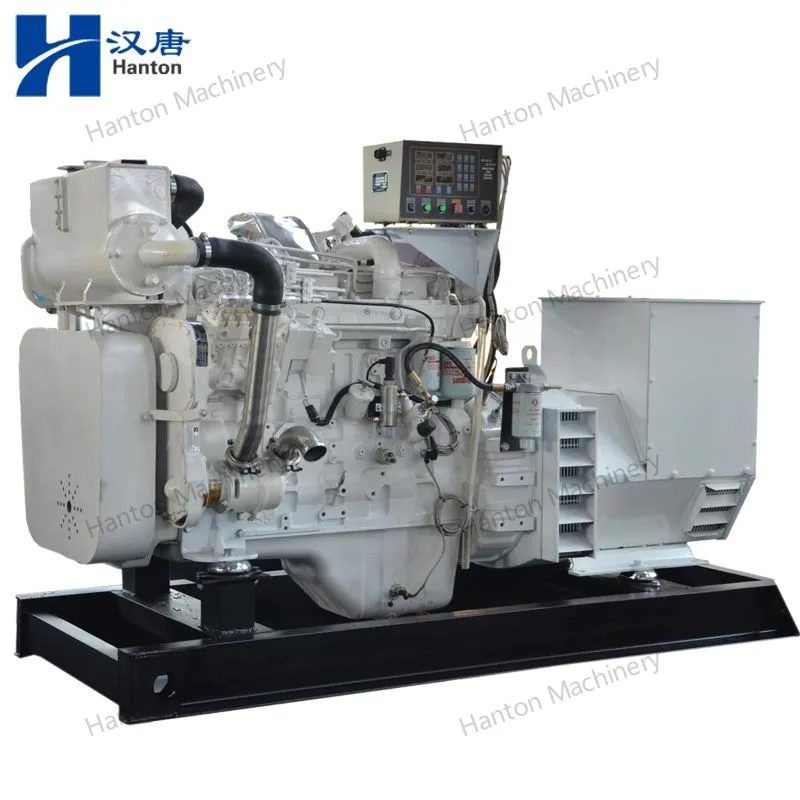

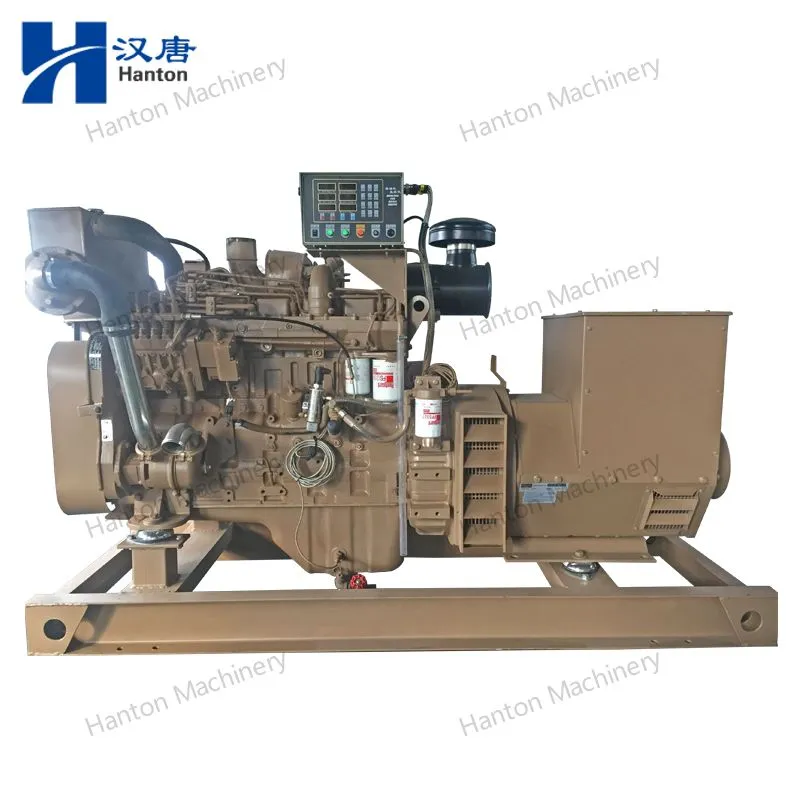

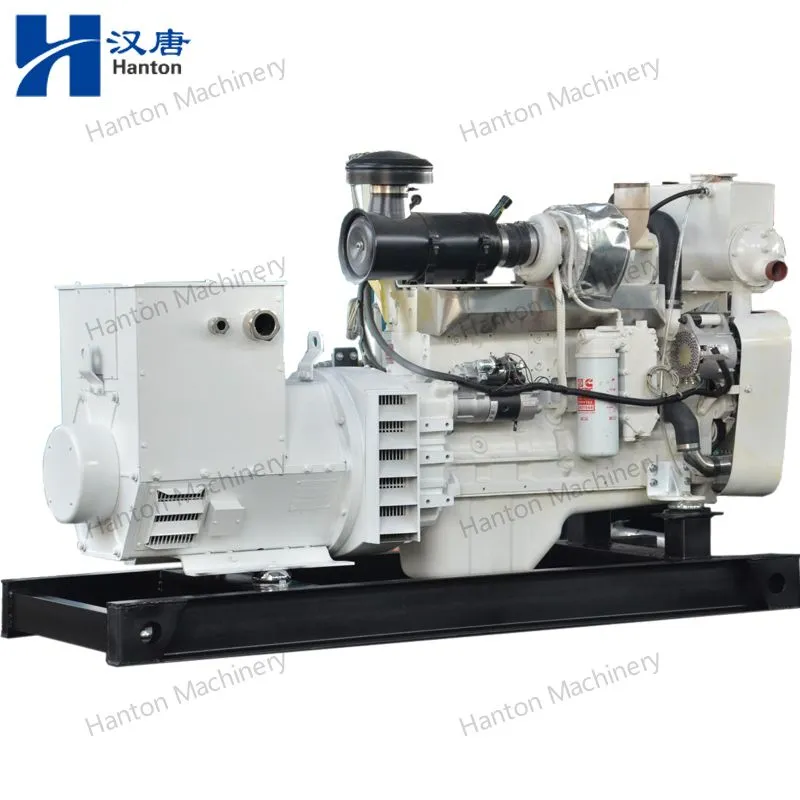

Cummins Diesel Marine Generator Set with Engine 6CT8.3-GM 6CT8.3-DM Series and Alternator, with list of Cummins marine gensets, as below:
| Power (KVA/KW) |
Hz |
Engine |
Alternator |
Sizes (cm) |
Weight |
| Marathon |
Stam-ford |
| 50/40 |
50 |
4BTA3.9-GM |
MP-H-40-4 |
UCM224E |
150/75/132 |
1100 |
| 63/50 |
50 |
6BTA5.9-GM |
MP-H-50-4 |
UCM224F |
185/82/135 |
1280 |
| 80/64 |
50 |
6BTA5.9-GM |
MP-H-64-4 |
UCM274C |
185/82/135 |
1280 |
| 93.8/75 |
50 |
6BTA5.9-GM |
MP-H-75-4 |
UCM274D |
185/82/135 |
1280 |
| 113/90 |
50 |
6BTA5.9-GM |
MP-H-90-4 |
UCM274E |
185/82/135 |
1280 |
| 125/100 |
50 |
6CT8.3-GM |
MP-H-100-4 |
UCM274E |
210/90/150 |
1900 |
| 150/120 |
50 |
6CTA8.3-GM |
MP-H-120-4 |
UCM274G |
210/90/150 |
1900 |
| 188/150 |
50 |
NT855-DM |
MP-H-150-4 |
UCDM274J |
286/130/185 |
3100 |
| 200/160 |
50 |
6LTAA8.9-GM |
- |
UCDM274J |
225/100/179 |
1750 |
| 250/200 |
50 |
NTA855-DM |
MP-H-200-4 |
HCM434D |
286/130/185 |
3100 |
| 313/250 |
50 |
NTA855-DM |
MP-H-250-4 |
HCM434E |
286/130/185 |
3100 |
| 350/280 |
50 |
NTA855-DM |
MP-H-280-4 |
HCM434F |
286/130/185 |
3100 |
| 375/300 |
50 |
KTA19-DM |
MP-H-300-4 |
HCM534C |
315/100/215 |
3850 |
| 438/350 |
50 |
KTA19-DM |
MX-H-350-4 |
HCM534D |
315/100/215 |
3850 |
| 500/400 |
50 |
KTA19-DM |
MX-H-400-4 |
HCM534E |
315/100/215 |
3850 |
| 625/500 |
50 |
KT38-DM |
MX-H-500-4 |
HCM634G |
410/165/220 |
6200 |
| 750/600 |
50 |
KTA38-DM |
MX-H-630-4 |
HCM634H |
410/165/220 |
6300 |
| 875/700 |
50 |
KTA38-DM |
MX-H-750-4 |
HCM634K |
410/165/220 |
6300 |
| 1000/800 |
50 |
KTA38-DM |
MX-H-830-4 |
LVM634G |
410/165/220 |
6300 |
| 1125/900 |
50 |
QSK38-DM |
MX-H-1000-4 |
PM734C |
- |
- |
| 1125/900 |
50 |
KTA50-DM |
MX-H-1000-4 |
PM734C |
440/200/240 |
9900 |
| 50/40 |
60 |
4BTA3.9-GM |
MP-H-40-4 |
UCM224D |
150/75/132 |
1100 |
| 63/50 |
60 |
4BTA3.9-GM |
MP-H-50-4 |
UCM224E |
150/75/132 |
1100 |
| 80/64 |
60 |
6BTA5.9-GM |
MP-H-64-4 |
UCM224G |
185/82/135 |
1280 |
| 94/75 |
60 |
6BTA5.9-GM |
MP-H-75-4 |
UCM274C |
185/82/135 |
1280 |
| 113/90 |
60 |
6BTA5.9-GM |
MP-H-90-4 |
CUM274D |
185/82/135 |
1280 |
| 125/100 |
60 |
6BTA5.9-GM |
MP-H-100-4 |
UCM274E |
185/82/135 |
1280 |
| 150/120 |
60 |
6CTA8.9-GM |
MP-H-120-4 |
UCM274F |
210/90/150 |
1900 |
| 188/150 |
60 |
6CTA8.9-GM |
MP-H-150-4 |
UCM274G |
210/90/150 |
1900 |
| 313/250 |
60 |
NTA855-DM |
MP-H-250-4 |
HCM434D |
286/130/185 |
3100 |
| 338/270 |
60 |
NTA855-DM |
MP-H-300-4 |
HCM434E |
286/130/185 |
3100 |
| 438/350 |
60 |
KTA19-DM |
MP-H-350-4 |
HCM534C |
315/100/215 |
3850 |
| 500/400 |
60 |
KTA19-DM |
MX-H-400-4 |
HCM534C |
315/100/215 |
3850 |
| 563/450 |
60 |
KTA19-DM |
MX-H-450-4 |
HCM534D |
315/100/215 |
3850 |
| 750/600 |
60 |
KT38-DM |
MX-H-600-4 |
HCM634G |
410/165/220 |
6200 |
| 788/630 |
60 |
KTA38-DM |
MX-H-630-4 |
HCM634G |
410/165/220 |
6300 |
| 875/700 |
60 |
KTA38-DM |
MX-H-700-4 |
HCM634H |
410/165/220 |
6300 |
| 1000/800 |
60 |
KTA38-DM |
MX-H-850-4 |
HCM634J |
410/165/220 |
6300 |
| 1125/900 |
60 |
KTA38-DM |
MX-H-1000-4 |
HCM634K |
410/165/220 |
6300 |
✓
Origins from Cummins, who produces most Cummins engine series and other related products in China, including:
| SN |
Models |
| 1 |
4BT3.9, 6BT5.9, 4ISBE4.5, 6ISBE6.7, QSB4.5, QSB6.7, ISB |
| 2 |
6CT8.3, L8.9, L9.3, L9.5, ISLe8.9, QSL |
| 3 |
MTA11, QSM, ISME |
| 4 |
ISF2.8, ISF3.8, QSF2.8, QSF3.8 |
| 5 |
ISZ13, QSZ13, ISG |
| 6 |
NT855 |
| 7 |
KT19, KT38, KT50, QSK19, QSK38, etc |
| 8 |
- |
| 9 |
Fleetguard |
| 10 |
Holset |
⚙
for different applications, such as:
| SN |
Applications |
| 1 |
diesel generator set |
| 2 |
water pump set, fire pump set |
| 3 |
construction and engineering machinery (crane, excavator, bulldozer, loader, etc) |
| 4 |
Automobile (bus, coach, shuttle, etc) |
| 5 |
marine main propulsion, marine auxiliary generator set |
⚙
And besides complete engines, we also export a lot of engine parts, including:
| SN |
Part Descriptions |
| 1 |
cylinder head, cylinder block, cylinder liner |
| 2 |
piston, piston ring, conrod |
| 3 |
main bearing, conrod bearing, thrust bearing |
| 4 |
fuel injector, fuel injection pump, common rail |
| 5 |
oil pan gasket, cylinder head gasket |
| 6 |
overhaul gasket kit, upper gasket kit, lower gasket kit |
| 7 |
oil pan |
| 8 |
fuel transfer pump, water pump, oil pump, vacuum pump, power steering pump |
| 9 |
oil filter, fuel filter, fuel water separator, air filter, Etc |
★
Beyond Cummins, we also deal with many other brands of engines and gearboxes, etc, including:
| SN |
Brands |
| 1 |
Deutz, MWM |
| 2 |
Detroit |
| 3 |
Weichai |
| 4 |
Yuchai |
| 5 |
SDEC |
| 6 |
Advance |
| 7 |
Fada |
| 8 |
Jinbei, Brilliance |
| 9 |
Yuejin |
Frequently Asked Questions
Q What is the price of the generator sets?
Our prices are determined by various factors, including: Brand, Model, Power, Quantity, Price Term (FOB, CIF, CPT, FCA, etc), Certificates, etc.
Q What is the Minimum Order Quantity (MOQ)?
For complete engine, the MOQ is 1 set; for engine parts, it is 1 engine set.
Q Are product samples available?
Sample orders are acceptable, but with a higher unit price. For regular partners, free samples are available if necessary.
Q How long is the production cycle (lead time)?
For engine parts, we usually have enough stock. For engines, the lead time is usually around 10-20 days; for engines in stock, it typically takes 1 week.
Q How long does shipment take?
If by Express, usually 3-4 working days; if by air, usually 3-5 working days; if by sea, 3-7 days to Southeast Asia, 15-20 days to Middle East, South Asia and Australia, 20-25 days to Europe, USA and Africa, and 30-35 days to Latin America and other regions.
Q What are the accepted payment methods?
We accept T/T (bank wire transfer), L/C, Western Union, Money Gram, Sigue, Secured Trade, etc.
