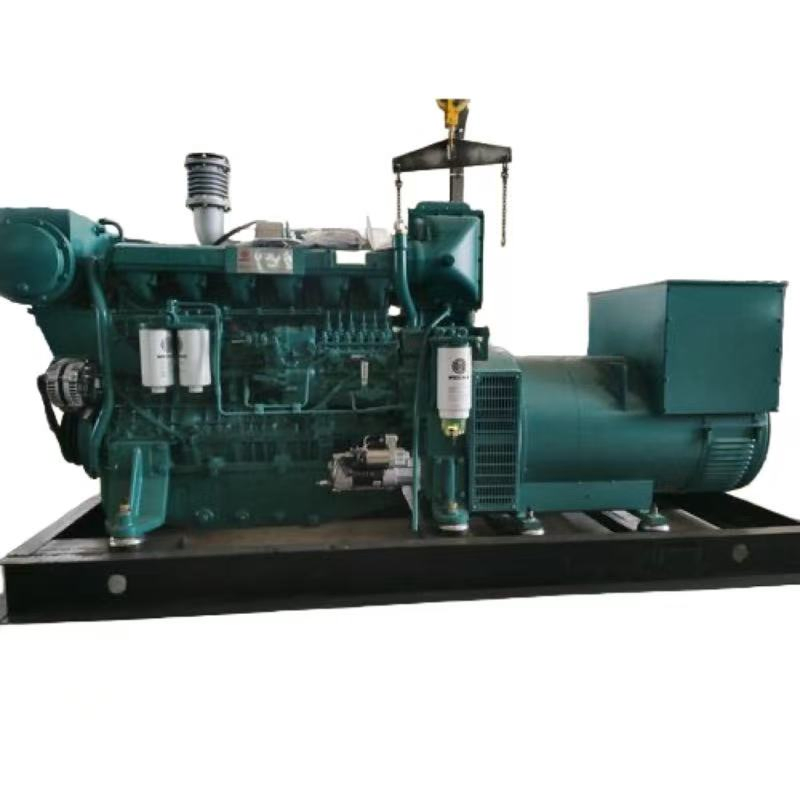

Diesel Portable Marine Power Weichai Wh25 Ccfj2000j-WMV Generator Set

1 / 5

Diesel Portable Marine Power Weichai Wh25 Ccfj2000j-WMV Generator Set

Customization:	Available
After-sales Service:	Global Service
Warranty:	1 Year Warranty

Send Inquiry

Product Description

Basic Info

Model NO.

WH25 CCFJ2000J-WMV

Type

Basic Diesel Generator

Installation Method

Fixed

Stroke

Four Stroke

Cooling Method

Water Cooling

Output Type

AC Three Phase

Speed

300-1000rpm

Conditions of Use

Marine

Usage

Common Units, Emergency Crew

Landuse Type of Unit

Ordinary

Excitation Mode

AC Rotating Exciter

Certificate

CCS

Delivery Time

25 Days

Color

Green, Black, Blue

Power

2000kw

Weight

36852kg

Transport Package

Plywood Case

Specification

7430*2120*2929

Trademark

Weichai / Huide

Origin

Jiangsu

HS Code

85021200

Production Capacity

200PCS Per Month

Product Description

Diesel Portable Marine Power Weichai WH25 CCFJ2000J-WMV Generator Set

Weichai marine generator sets are mainly divided into primary and emergency generator sets according to their uses. The power range of primary generator sets is 16-8730kW, and the power range of emergency generator sets is 30-900kW. The primary generator sets include diesel and gas generator set according to their fuel. The diesel generator sets include Yangchai series, Deutz series, Landking series, Baudouin series, 170 series and CW200/250 series products. The gas generator set mainly includes Deutz series. The manufacture and test of the generator sets comply with the general technical conditions of GB/T13032-2010 Marine Diesel Generator Set.

Notes: This model portfolio and introduction is mainly about 50Hz products, and 60Hz products with corresponding powers can also be produced.

Series	Model	Primary power/kW	Continuous power/kW	Diesel generator model	Generator Brand	Starting system	Mode of speed regulation	Emission stage	Dimensions/mm	Net weight/kg
X6170	CCFJ250J-W*	250	250	X6170ZCD280-1	Siemens Kang Fu	electric starter/air starter	Mechanical/electronic	IMO2	328812551977	5152
	CCFJ300J-W*	300	300	X6170ZCD330-1				IMO2	324112551977	5307
	CCFJ350J-W*	350	350	X6170ZCD390-4				IMO2	340012362001	5230
	CCFJ400J-W*	400	400	X6170ZCD440-4				IMO2	346612362001	5282
	CCFJ450J-W*	450	400	X6170ZCD500-5				IMO2	372814062004	6513
	CCFJ500J-W*	500	400	X6170ZCD556-5				IMO2	372814062004	6513
	CCFJ500J-W*	500	450	X6170ZCD601-5				IMO2	372814062004	6513
8170	CCFJ400J-W*	400	400	8170ZCD441-1	Siemens Kang Fu	electric starter/air starter	electronic	IMO2	442414932277	6251
	CCFJ500J-W*	500	500	8170ZCD600-5	Siemens Kang Fu	electric starter/air starter	electronic	IMO2	441814062004	7263
	CCFJ400J-W*	400	400	8170ZCD441-1*	Siemens Kang Fu	electric starter	Electronical-controlled common rail	IMO2	442414932277	6251
	CCFJ450J-W*	450	450	8170ZCD490-1*				IMO2	441814062004	7263
	CCFJ500J-W*	500	500	8170ZCD600-5*				IMO2	441814062004	7263
6WH17*	CCFJ450J-W*	450	450	6WH17CD539-1	Siemens	electric starter	Electronical-controlled common rail	IMO2	443515501715	8150
	CCFJ500J-W*	500	500	6WH17CD638-2				IMO2	443515501715	8150
	CCFJ550J-W*	550	500	6WH17CD660-5				IMO2	443515501715	8150
	CCFJ600J-W*	600	500	6WH17CD809-5				IMO2	443515501715	8150
12WH17*	CCFJ800J-W*	800	800	12WH17CD990-1	Siemens	electric starter	Electronical-controlled common rail	IMO2	531516001782	12868
	CCFJ1000J-W*	1000	900	12WH17CD1210-2				IMO2	531516001782	12868
	CCFJ1000J-W*	1000	1000	12WH17CD1265-5				IMO2	531516001782	12868
	CCFJ1200J-W*	1200	1200	12WH17CD1485-5				IMO2	531516001782	12868
	CCFJ1500J-W*	1500	1300	12WH17CD1782-5				IMO2	531516001782	12868
CW200	CCFJ450J-WMW	-	450	CW6200ZD-39	Siemens	air starter	Electronical-controlled common rail	IMO2	455018002450	11500
	CCFJ500J-WMW	-	500	CW6200ZD				IMO2	455018002450	11500
	CCFJ600J-WMV	-	600	XCW6200ZD				IMO2	460018002450	12000
	CCFJ700J-WMV	-	700	XCW6200ZD-10				IMO2	460018002450	12500
	CCFJ800J-WMV	-	800	XCW8200ZD-1				IMO2	530020002500	14000
	CCFJ900J-WMV	-	900	XCW8200ZD-10				IMO2	530020002500	14000
	CCFJ1000J-WMV	-	1000	XCW8200ZD-2				IMO2	530020002500	14000
	CCFJ1200J-WMV	-	1200	XCW12V200ZD				IMO2	540019003000	20000
	CCFJ1500J-WMV	-	1500	CW16V200ZD				IMO2	650019003000	25000
CW250	CCFJ1200J-WMX	-	1200	CW6250ZLD	Siemens	electric starter	Mechanical/electronic	IMO2	615012803100	24150
CW250	CCFJ1700J-WMX	-	1700	CW8250ZLD	Siemens	electric starter	Mechanical/electronic	IMO2	720012803100	28000
WH20*	CCFJ600J-WM*	-	600	6WH20LCD700-7.5	Siemens	air starter	Mechanical/electronic	IMO2	59471600261	18562
	CCFJ700J-WM*	-	700	6WH20LCD800-7.2				IMO2	594716002616	18562
	CCFJ800J-WM*	-	800	6WH20LCD900-7.5				IMO2	594716002616	18562
	CCFJ900J-WM*	-	900	6WH20LCD1000-1				IMO2	594716002616	18562
	CCFJ900J-WM*	-	900	6WH20LCD1000-9				IMO2	594716002616	18562
	CCFJ1100J-WM*	-	1100	6WH20LCD1200-1				IMO2	594716002616	18562
	CCFJ1200J-WM*	-	1200	6WH20LCD1320-1				IMO2	594716002616	18562
	CCFJ900J-WM*	-	900	8WH20LCD1000-7.5				IMO2	715617502694	22580
	CCFJ900J-WM*	-	900	8WH20LCD1000-7.2				IMO2	715617502694	22580
	CCFJ1100J-WM*	-	1100	8WH20LCD1200-7.5				IMO2	715617502694	22580
	CCFJ1100J-WM*	-	1100	8WH20LCD1200-9				IMO2	715617502694	22580
	CCFJ1250J-WM*	-	1250	8WH20LCD1440-1				IMO2	715617502694	22580
	CCFJ1250J-WM*	-	1250	8WH20LCD1440-9				IMO2	715617502694	22580
	CCFJ1400J-WM*	-	1400	8WH20LCD1600-1				IMO2	715617502694	22580
WH25*	CCFJ1100J-WM*	-	1100	6WH25LCD1296-7.2	Siemens	air starter	Mechanical/electronic	IMO2	735618502929	30560
	CCFJ1200J-WM*	-	1200	6WH25LCD1350-7.5				IMO2	735618502929	30560
	CCFJ1300J-WM*	-	1300	6WH25LCD1470-7.5				IMO2	735618502929	30560
	CCFJ1500J-WM*	-	1500	6WH25LCD1620-9				IMO2	735618502929	30560
	CCFJ1600J-WM*	-	1600	6WH25LCD1800-1				IMO2	735618502929	30560
	CCFJ1600J-WM*	-	1600	6WH25LCD1800-9				IMO2	735618502929	30560
	CCFJ1800J-WM*	-	1800	6WH25LCD2010-1				IMO2	735618502929	30560
	CCFJ1600J-WM*	-	1600	8WH25LCD1800-7.5				IMO2	743021202929	36852
	CCFJ1600J-WM*	-	1600	8WH25LCD1800-7.2				IMO2	743021202929	36852
	CCFJ1800J-WM*	-	1800	8WH25LCD2000-7.5				IMO2	743021202929	36852
	CCFJ2000J-WM*	-	2000	8WH25LCD2200-1				IMO2	743021202929	36852
	CCFJ2000J-WM*	-	2000	8WH25LCD2200-9				IMO2	743021202929	36852
	CCFJ2000J-WM*	-	2200	8WH25LCD2450-1				IMO2	743021202929	36852
Remark: I. Definition of power: Normal power of the generator set: 1. The average load rate exceeding 24 hours of running does not exceed 70%. 2. Within every 12h, with an overload by 10%, the engine can run for 1h. 3. The annual running time is not limited. Continuous power of the generator set: 1. The annual running time is not limited. 2. Run under constant 100% load. 3. Every 12h, can overload 10% operation for 1h. II. The requirements of power matching: 1. For ship types with annual running time exceeding 3000h or large impact load, such as seine fishing with light, refrigerating, rake and prick, floating crane, sand suction boat and wind power installation, the model shall be selected according to the continuous power of the generator set. 2. For ship types such as inland river transport ships, coastal fishing boats and high-speed boats with domestic electricity or auxiliary pumps as the main load, the model can be selected according to the normal power of the generator set. 3. For ship types such as Light lure fish ships, rake barbed fishing boats and floating crane class ships, sand suction, lifting class engineering ships, It is recommended to contact with the application department before selection. III. Product Power Description: 1. CW200 series, CW250 series, WH620 series, WH20 series, WH25 series, WH28 series common power and sustained power value is the same. 2. High speed machine series, WHM6160 series, 170 series and WH17 series are divided into common power and continuous power. 3. Dimension and weight are for reference only. 4. The delivery date of products marked with * shall be subject to the reply of the manufacturer. Product parameters and model portfolio are for reference only. Please contact relevant personnel for official information on delivery time and fishing boat model portfolio.

Product Gallery

Frequently Asked Questions

What is the power range of Weichai marine generator sets?

The power range of the primary generator sets is 16-8730kW, while the power range of emergency generator sets is 30-900kW.

Which standards do these marine generator sets comply with?

The manufacture and testing of the generator sets strictly comply with the general technical conditions of GB/T13032-2010 Marine Diesel Generator Set.

What is the difference between Normal Power and Continuous Power?

Normal power allows an average load rate of up to 70% over 24 hours of operation. Continuous power has no annual running limit under a constant 100% load. Both options support a 10% overload operation for 1 hour within every 12-hour period.

Can 60Hz marine generator sets be manufactured?

Yes. While the standard model portfolio is presented for 50Hz products, 60Hz products with corresponding powers can be custom produced upon request.

Which ship types require selection based on Continuous Power?

It is recommended to select models based on continuous power for ship types with an annual running time exceeding 3000 hours or those subjected to large impact loads, such as light seine fishing, refrigerating vessels, rake and prick boats, floating cranes, sand suction boats, and wind power installation vessels.

What types of starting systems and speed regulations are available?

Depending on the specific model, starting options include electric starter or air starter systems. Speed regulation modes range from mechanical and electronic controls to advanced electronical-controlled common rail systems.
