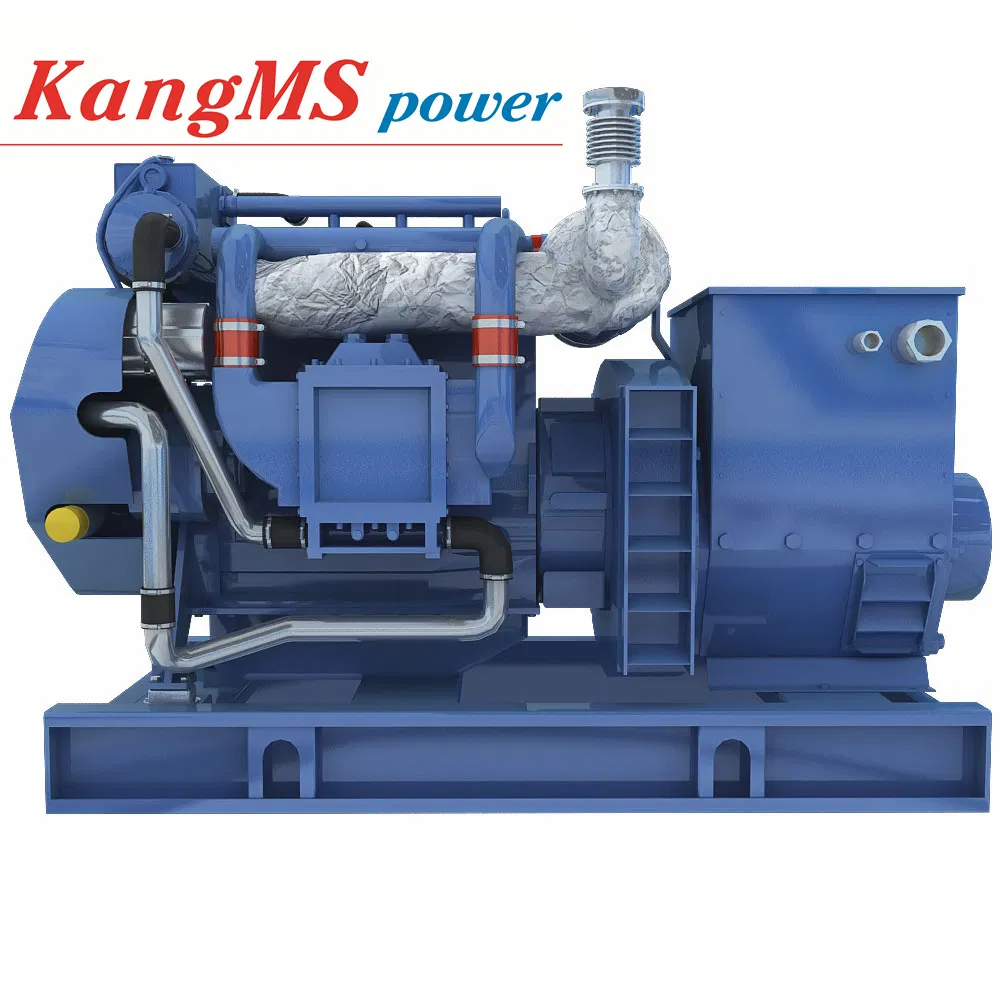

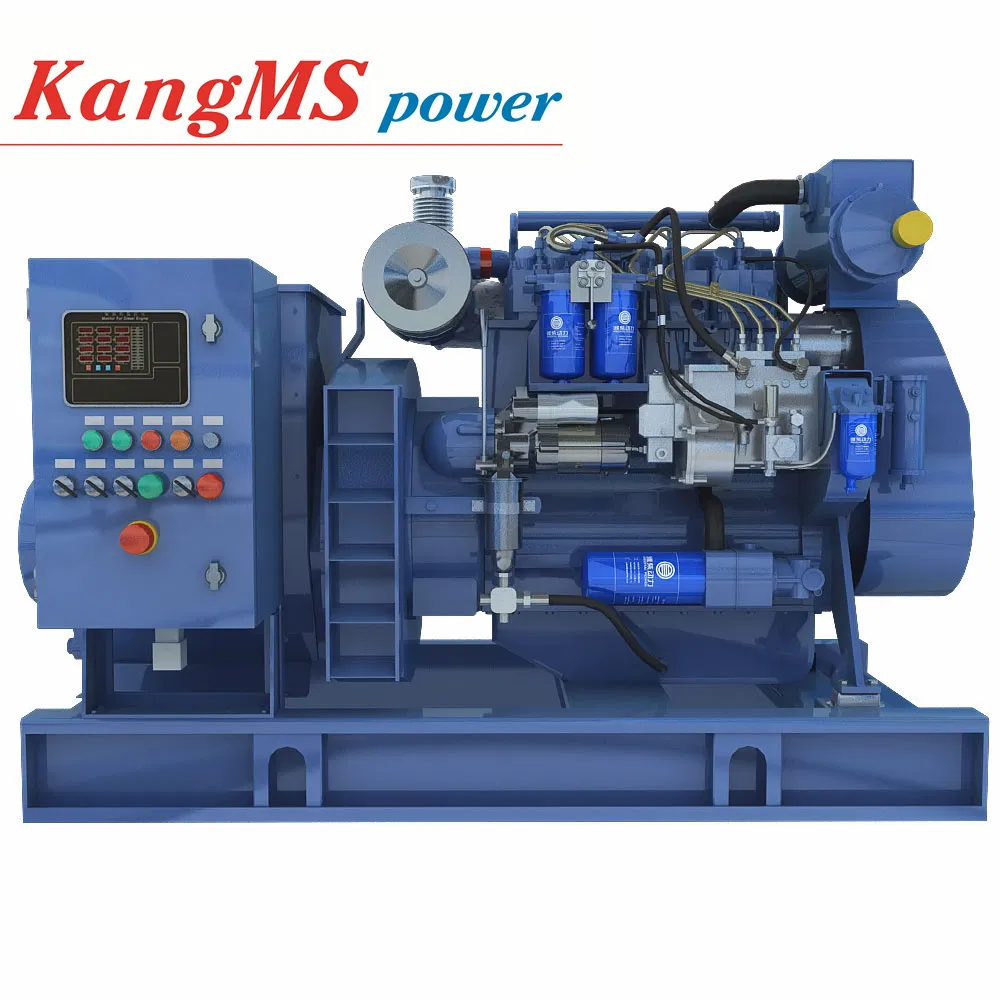

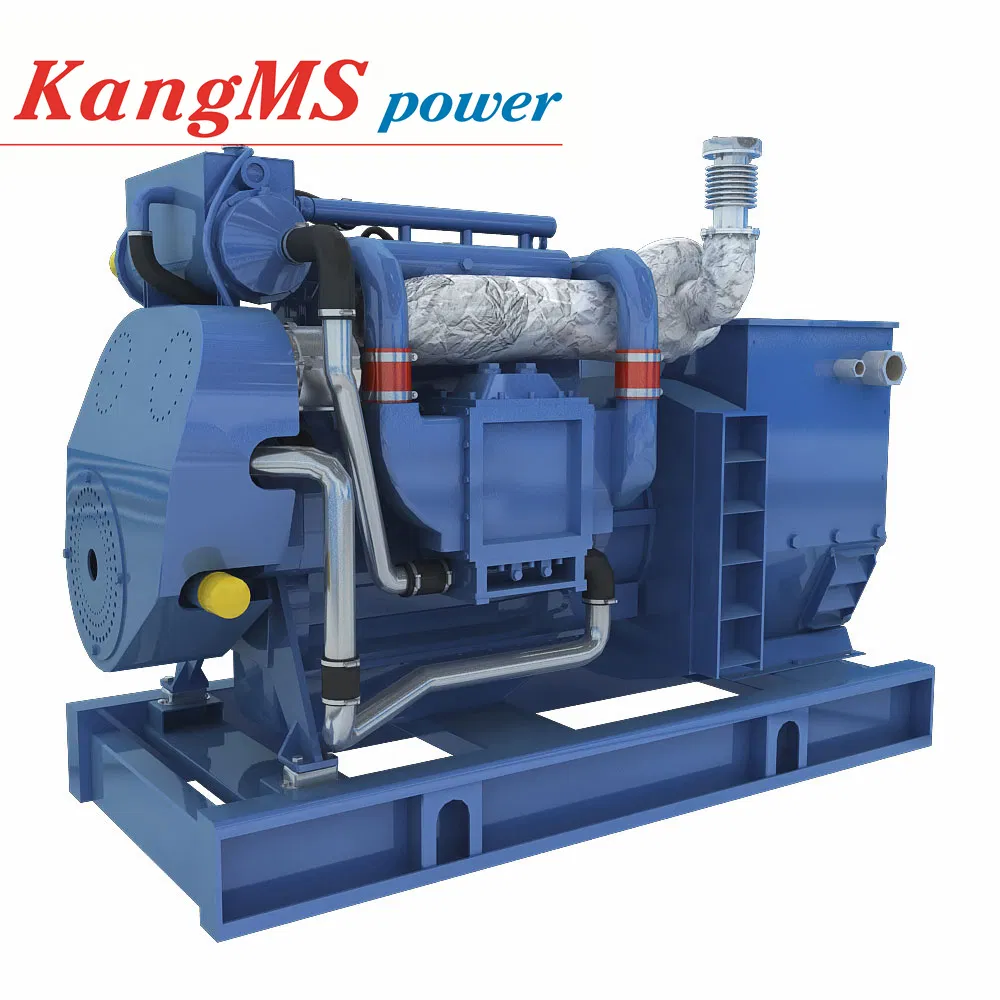

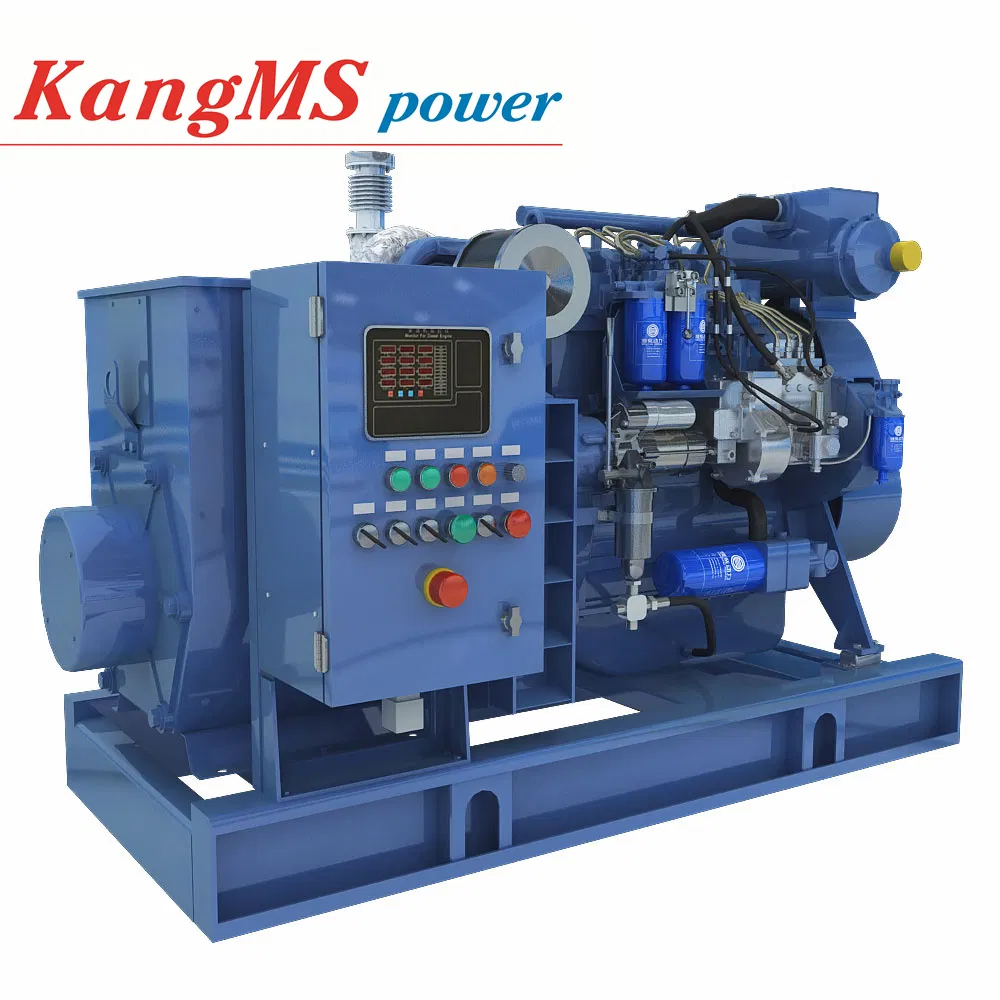

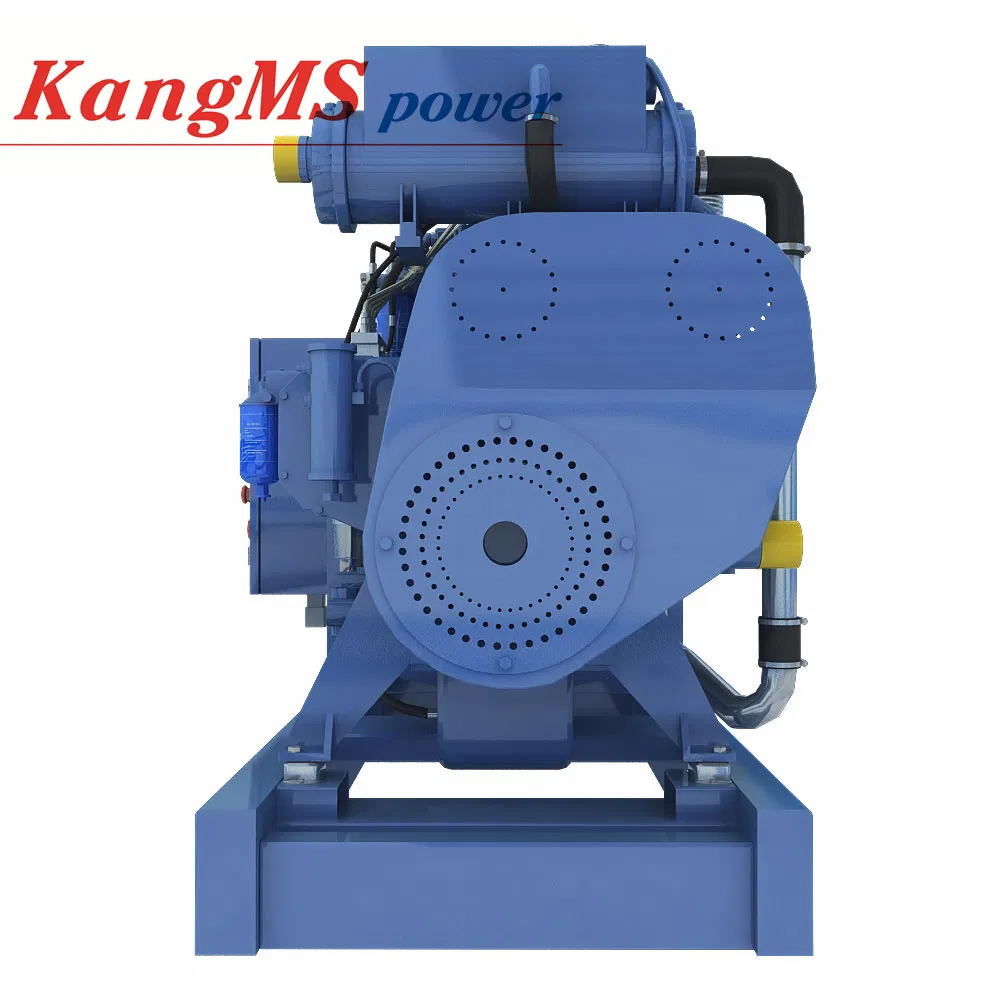

Marine Generator 102HP Diesel Generator Marine Generator Set for Boat

Customization:	Available
After-sales Service:	1 Years
Warranty:	1 Years

Basic Information

Model NO. CCFJ75J-W*

Type Basic Diesel Generator

Installation Method Fixed

Stroke Four Stroke

Cooling Method Water Cooling

Output Type AC Three Phase

Conditions of Use Marine

Usage Standby Unit, Emergency Crew

Landuse Type of Unit Ordinary

Excitation Mode AC Rotating Exciter

Model Ccfj75j-W*

Rated Power(Kw) 75kw 102HP

Diesel Engine Model Wp4CD100e200

Dimensions 1700*778*1212

Transport Package Wooden Box

Specification 1700*778*1212

HS Code 8502110000

Production Capacity 50 Sets/ Month

Product Description

Marine Generator 102hp Diesel Generator Marine Generator Set For Boat

Marine generator sets are mainly divided into primary and emergency generator sets according to their uses. The power range of primary generator sets is 16-8170kW, and the power range of emergency generator sets is 30-900kW. The primary generator sets include diesel and gas generator sets according to their fuel. The diesel generator sets include Yangchai series, Deutz series, Steyr series, Landking series, Baudouin series, 170 series and CW200/250 series products. The gas generator sets mainly include Deutz series. The manufacture and test of the generator sets comply with the general technical conditions of GB/T13032-2010 Marine Diesel Generator Set.

Product Specifications

Series	Deutz	Start Method	Electric Start/Pneumatic Start
Model	CCFJ75J-W*	Speed Mode	Machinery & Electronics
Rated Power(kw)	75	Frequency	50HZ
Diesel Engine Model	WP4CD100E200	Rated Fuel Consumption(L/h)	17
Rated current(A)	135	Net Weight(kg)	1096
Dimensions	17007781212

Series	Model	Primary power/kW	Continuous power/kW	Diesel generator model	Generator Brand	Starting system	Mode of speed regulation	Dimensions /mm	Net weight/kg
Deutz	CCFJ30J-W*	30	30	WP4CD44E120	Siemens / Marathon / Kang Fu	electric starter/air starter	Mechanical/electronic	17008271212	895
	CCFJ40J-W*	40	40	WP4CD66E200		electric starter/air starter	Mechanical/electronic	17008271212	945
	CCFJ50J-W*	50	50	WP4CD66E200		electric starter/air starter	Mechanical/electronic	17008271212	974
	CCFJ64J-W*	64	64	WP4CD100E200		electric starter/air starter	Mechanical/electronic	17008271212	1052
	CCFJ75J-W*	75	64	WP4CD100E200		electric starter/air starter	Mechanical/electronic	17008271212	1096
	CCFJ90J-W*	90	90	WP6CD132E200		electric starter/air starter	Mechanical/electronic	21507781385	1375
	CCFJ100J-W*	100	100	WP6CD132E200		electric starter/air starter	Mechanical/electronic	21507781385	1400
	CCFJ120J-W*	120	100	WP6CD152E200		electric starter/air starter	Mechanical/electronic	21507781385	1400

I. Definition of power:

Primary power of the generator set:

1. The average load rate exceeding 24 hours of running does not exceed 70%.

2. Within every 12h, with an overload by 10%, the engine can run for 1h.

3. The annual running time does not exceed 3000h.

Continuous power of the generator set:

1. The annual running time is not limited.

2. Run under constant 100% load.

3. The capacity of 10% overload.

II. The requirements of power matching:

1. For ship types with annual running time exceeding 3000h or large impact load, such as seine fishing with light, refrigerating, rake and prick, floating crane, sand suction boat and wind power installation, the model shall be selected according to the continuous power of the generator set.

2. For ship types such as inland river transport ships, coastal fishing boats and high-speed boats with domestic electricity or auxiliary pumps as the main load, the model can be selected according to the normal power of the generator set.

III. Additional Notes:

Dimensions and weight are for reference only. For specific product parameters and generator set model selection, please make specific docking with relevant personnel.

The delivery date of products marked with * shall be subject to the reply of the manufacturer. Product parameters and model portfolio are for reference only. Please contact relevant personnel for official information on delivery time and fishing boat model portfolio.

Packaging & Shipping

Frequently Asked Questions

What is the distinction between primary and emergency marine generator sets?

Primary marine generator sets are designed for continuous or standard electrical power supply during normal vessel operations, covering a range of 16-8170kW. Emergency generator sets (ranging from 30-900kW) are dedicated units reserved for fallback security and emergency crew power needs in case of primary system failures.

What regulatory standards do these marine diesel generator sets comply with?

The manufacture and testing of these marine generator sets comply strictly with the general technical conditions defined by the GB/T13032-2010 Marine Diesel Generator Set standard, ensuring high safety and operation quality standards for ship applications.

How is the Primary Power rating of these generator sets defined?

Primary Power is defined under three conditions: (1) The average load rate over 24 hours of operation must not exceed 70%. (2) The system allows a 10% overload operation for up to 1 hour within every 12-hour cycle. (3) The total cumulative annual running time should not exceed 3000 hours.

Under what conditions should I select a model based on Continuous Power?

You should choose a continuous power rating model for vessels with high annual operational demands exceeding 3000 hours, or those experiencing large, sudden impact loads. Examples include seine fishing boats with high-intensity lighting, refrigerating vessels, floating cranes, sand suction boats, and wind power installation ships.

What options are available for starting and regulating the speed of the generator?

These units support dual starting systems, accommodating either an electric starter or an air/pneumatic starter. Speed regulation can be handled via mechanical or electronic systems depending on model preferences and matching requirements.

What packaging is used for delivery?

The standard transport packaging for these marine diesel generators is a sturdy, durable wooden box designed to prevent transit damage and ensure safe long-distance ocean shipping.
