24kw 30kw Medium Speed Series Weichai Marine Diesel Generator Set

Basic Info

Type Basic Diesel Generator

Installation Method Fixed

Stroke Four Stroke

Cooling Method Water Cooling

Output Type AC Three Phase

Conditions of Use Land Use

Usage Common Units, Standby Unit, Emergency Crew

Landuse Type of Unit Low Noise Automation Type

Excitation Mode AC Rotating Exciter

Weight 1480kg

Transport Package as Required

Specification 2250mm*880mm*1445mm

HS Code 8502120000

Production Capacity 6000PCS Per Year

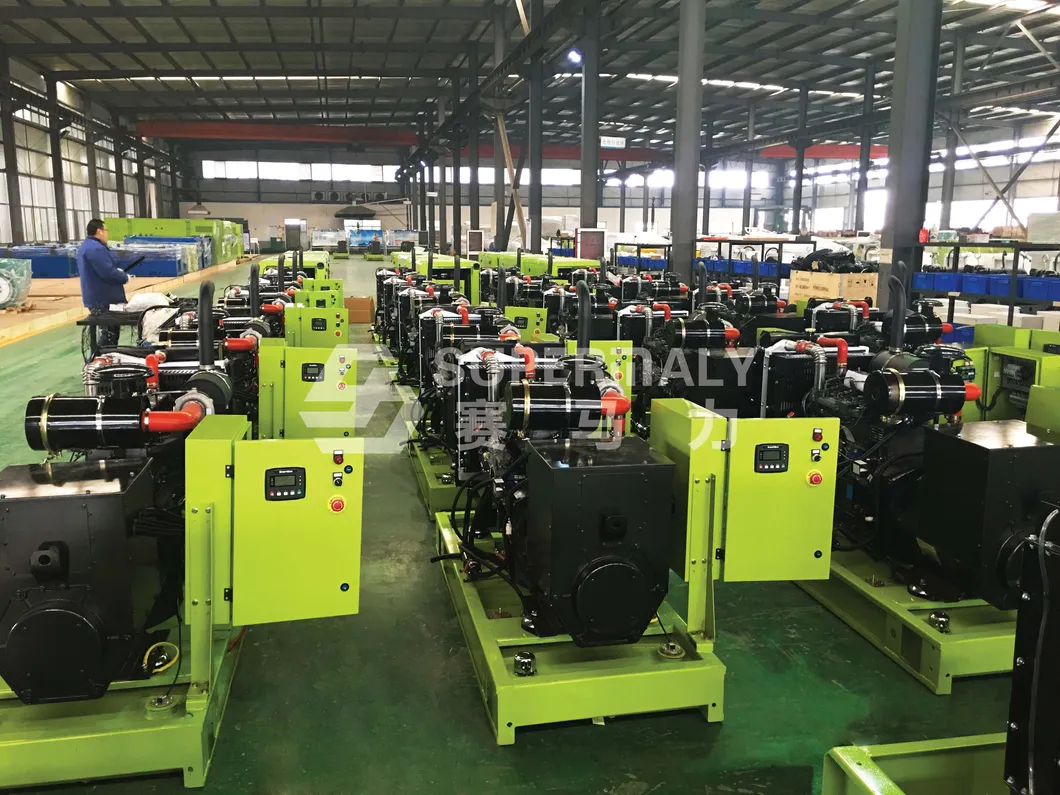

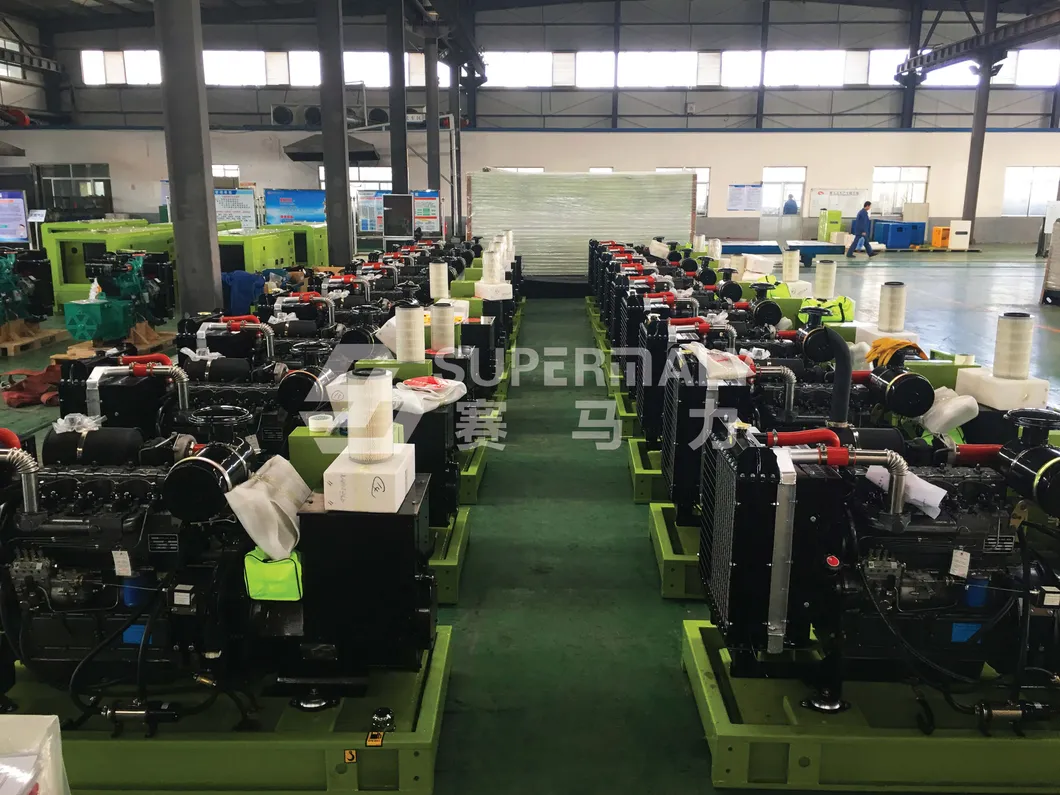

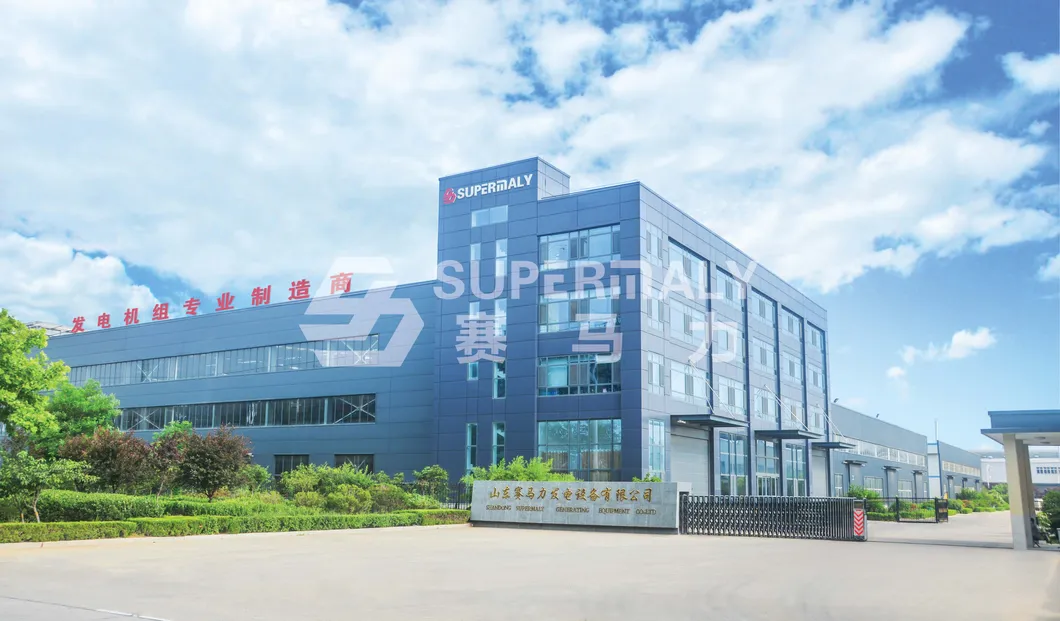

Factory View

Product Description

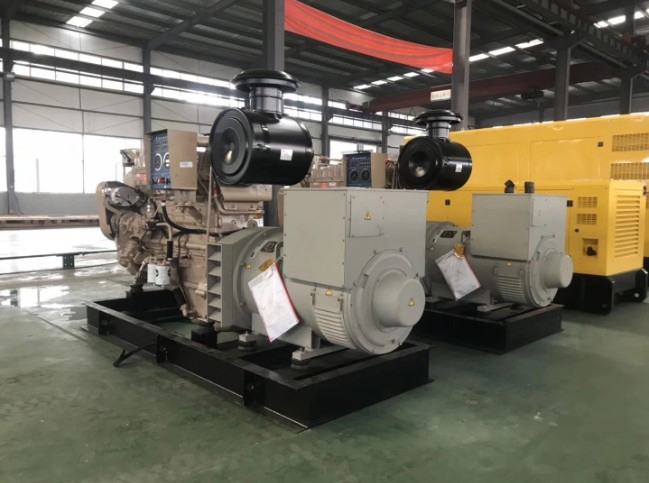

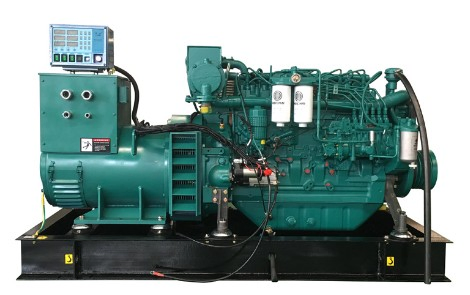

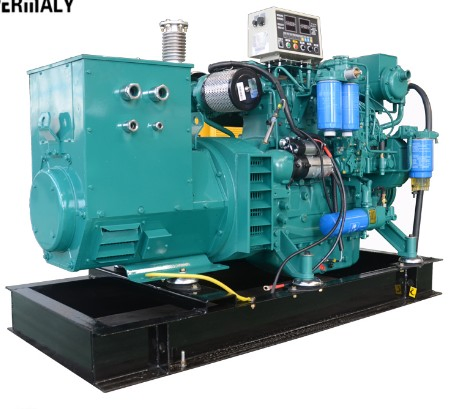

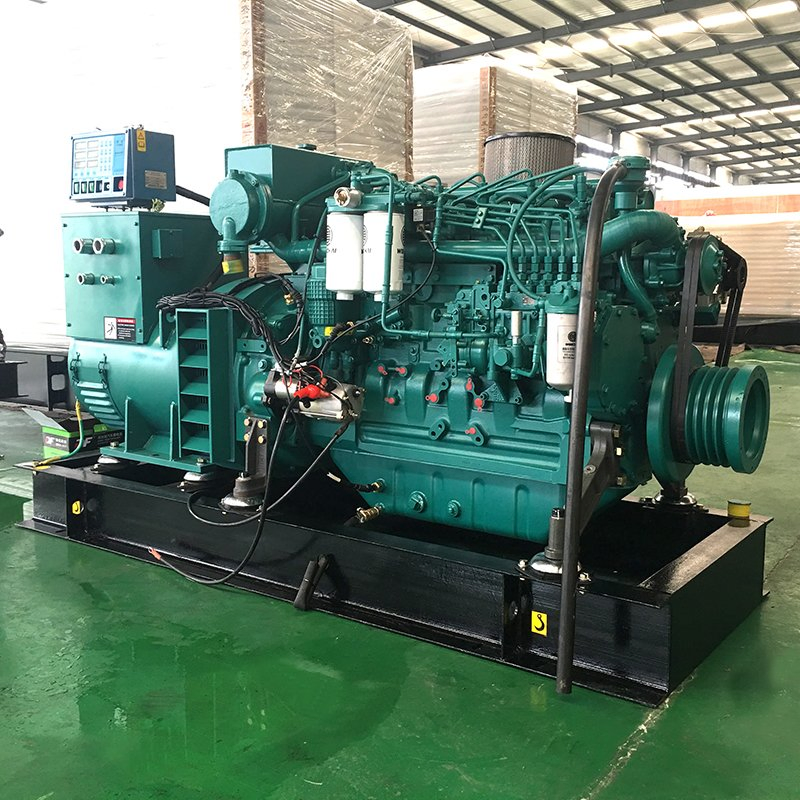

24kW 30kW medium speed series marine diesel generator set

Optional Configurations: Soundproof Canopy, ATS (Automatic Transfer Switch), AMF Panel, Trailer, and Parallel System.

200kVA Diesel Generator Set Specifications
Genset Specification
Genset Model	BC-200
Prime Power(Kw/Kva)	160/200
Frequency	50Hz
Structure type	Open or Soundproof
Dba@7m	silent genset 55-78 dba @ 7m , open type 75-98 dba @7m
Engine Model	6CTAA8.3-G2
Alternator Model	STG274H
Open type Dimension LWH(mm)	22008501500
Weight(Kg)	1900
Silent type Dimension LWH(mm)	240011001700
Weight(Kg)	2200
Engine Detail
Model	6CTA8.3-G2
Engine speed	1500rpm
Engine Characters	water-cooled, 6 cylinders in line, 4-cycle, direct injection
The maximum output(kw)	220KW
Aspiration	Turbocharged
Bore(mm)xStroke(mm)	114*135
Compression ratio	16.5:1
Fuel consumption(L/H)	40(100%loading)
Displacement(Liters)	8.3
Exhaust air flow(m3/min)	240
Compress air flow(m3/min)	16.8
Exhaust gas flow(m3/min)	32.58
Exhaust highest temperature	640ºC
Lube-oil pan capacity(L)	20
Cooling water capacity(L)	12.3Liters(Engine only)
Voltage for start(V)	24
Instrument for adjusting speed	Electronically
Noise level(A)@7m	<=96dBA(open type) , <=74dBA(silent type)
Alternator Detail
Model	STG274H
Output power(Kw/Kva)	160/200
Number of phase	3
Power factor(Cos Phi)	0.8
Number of Pole	6
Exciter type	Shunt
Insulation class	H
Voltage regulation	0.50%
Total harmonics (TGH/THC)	4%
Wave form:Nema=TIF	50
Wave form:I.E.C=THF	2%
Bearing	single
Coupling	Direct

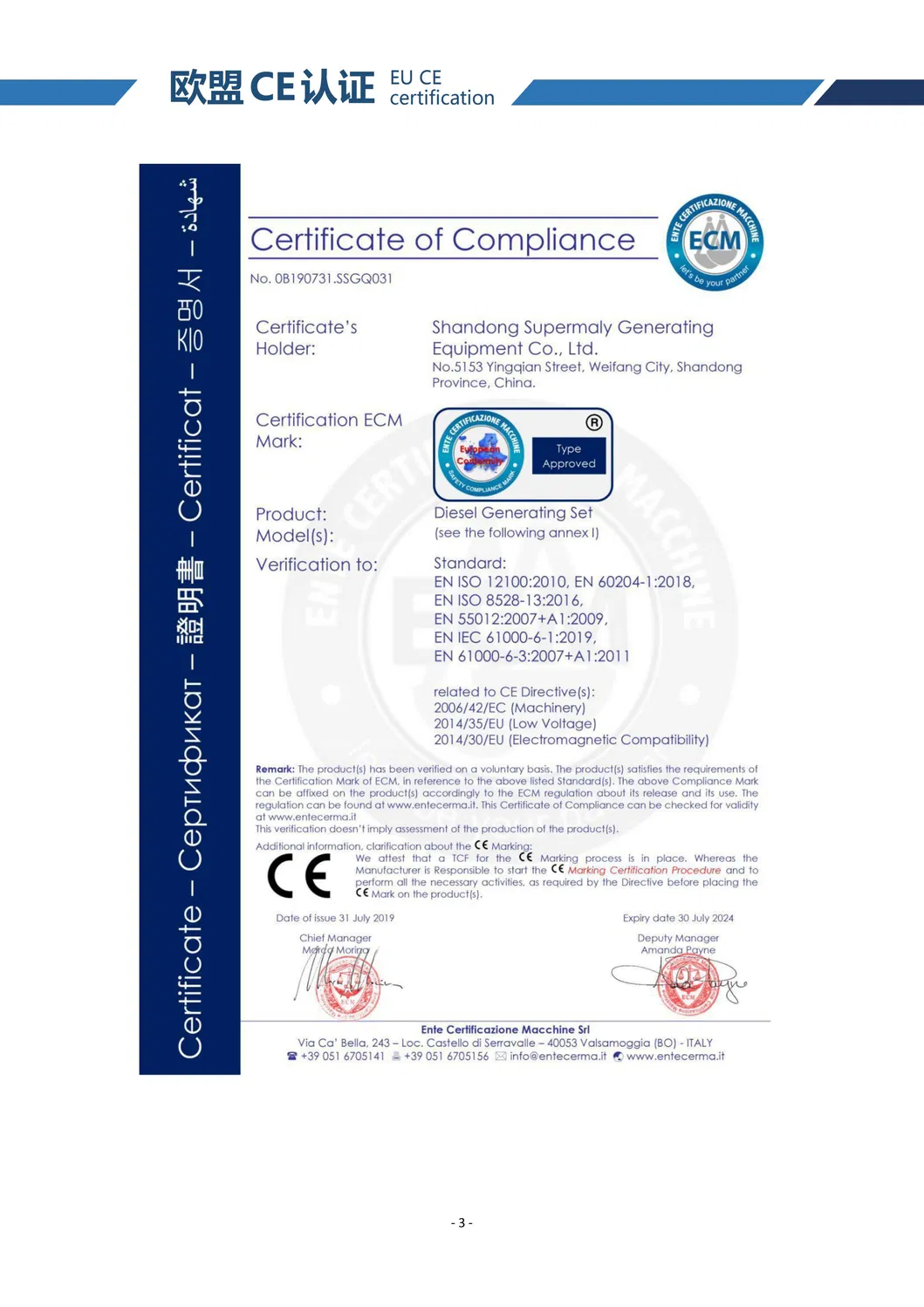

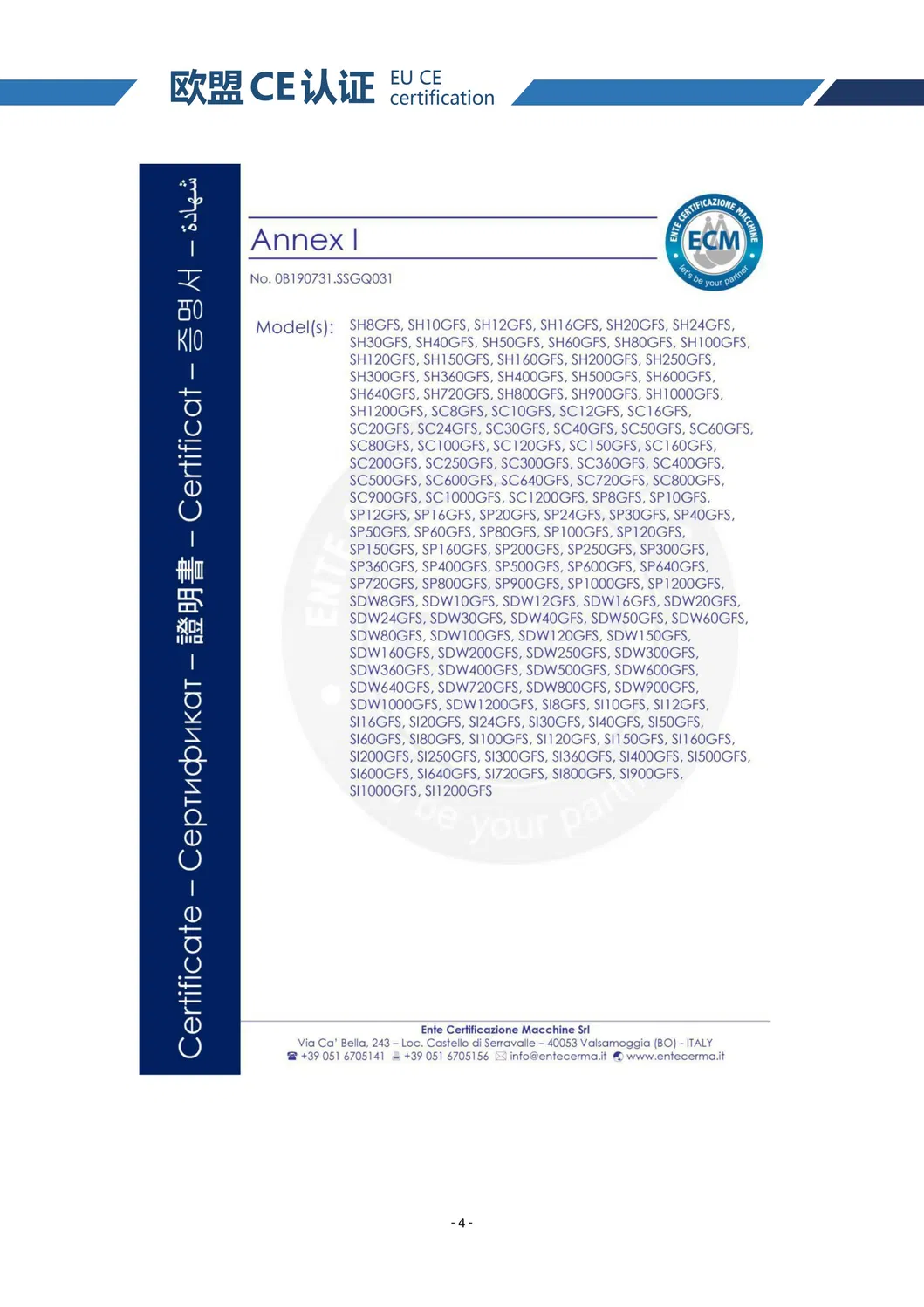

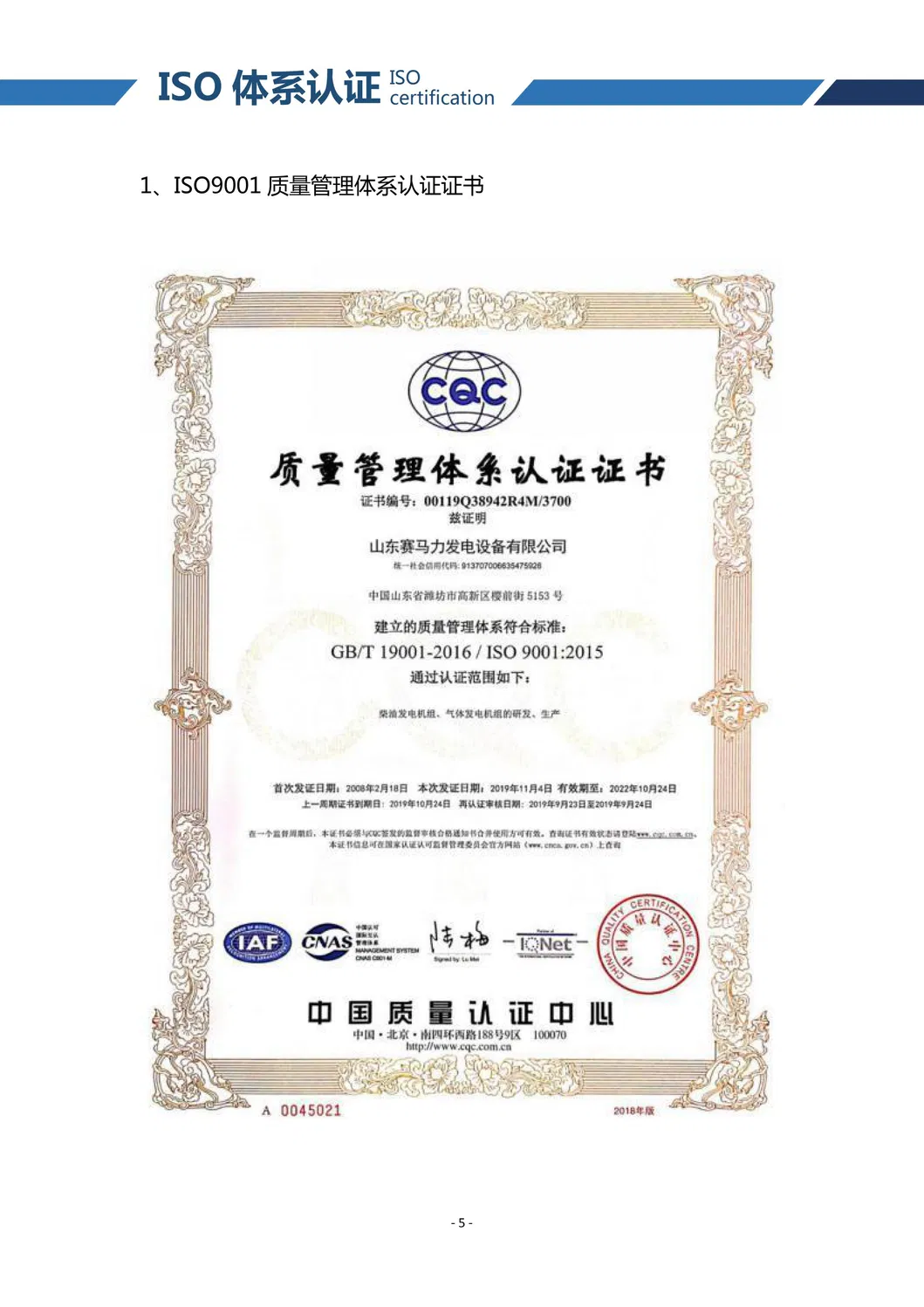

Certificate

FAQ

What is the prime power output and frequency of this generator set?

The generator set provides a prime power output of 160 kW (200 kVA) operating at a standard frequency of 50Hz.

How can quality and performance be guaranteed?

Quality is secured by using CE-certified engines and alternators. Pre-production samples are thoroughly tested before mass production, and a final quality inspection is always carried out prior to shipment.

What are the cooling and excitation features of the generator set?

It is designed with an efficient water-cooling system and utilizes an AC rotating exciter (shunt type excitation mode) for reliable performance.

What optional features and systems are available for configuration?

Optional features include soundproof canopy, ATS (automatic transfer switch), AMF control panel, mobile trailer, and parallel power systems.

What are the delivery terms and payment options accepted?

Accepted delivery terms include FOB, CFR, CIF, and EXW. Payments are accepted in USD, EUR, and CNY via T/T, L/C, Western Union, or cash.

What are the differences in noise levels between open and silent structure types?

The silent type generator set operates at a noise level range of 55-78 dBA @ 7m (<=74dBA), whereas the open type ranges between 75-98 dBA @ 7m (<=96dBA).
