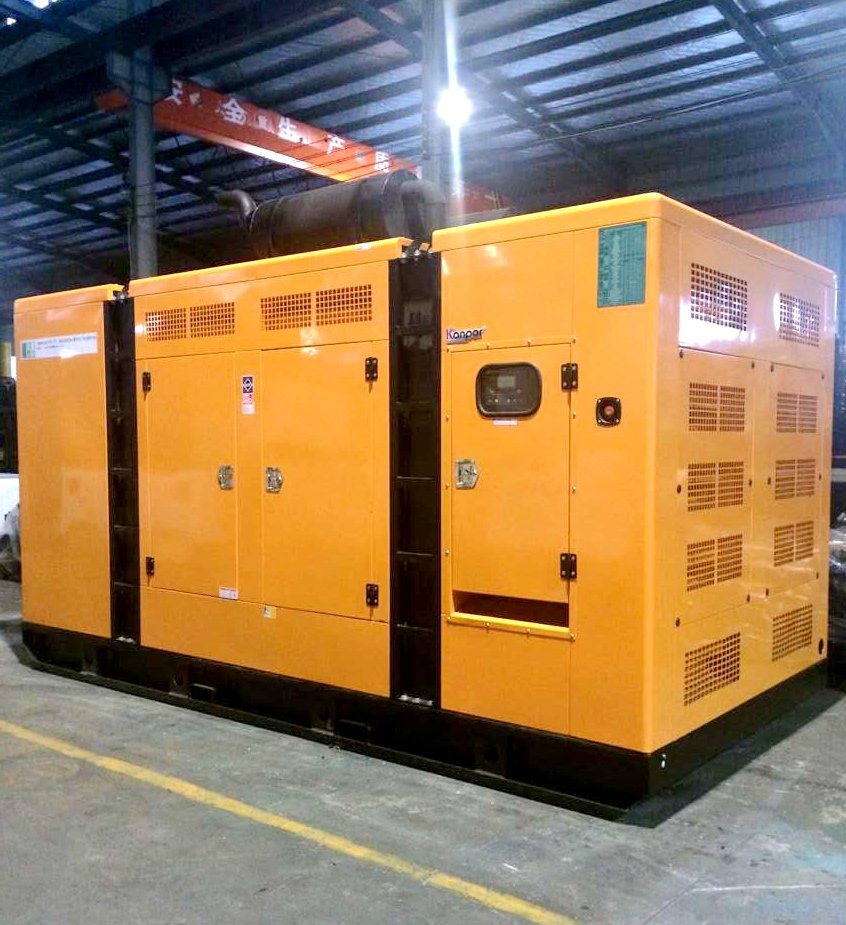

Weifang 350kVA Diesel Generator Set with Ricardo Engine Silent for Marine Use

Customization:	Available
After-sales Service:	1 Year or 1000 Working Hours
Warranty:	1 Year or 1000 Working Hours

Basic Info

Model NO. KPW350

Type Basic Diesel Generator

Installation Method Fixed

Stroke Four Stroke

Cooling Method Water Cooling

Output Type AC Three Phase

Conditions of Use Land Use

Usage Common Units, Standby Unit, Emergency Crew

Landuse Type of Unit Low Noise Automation Type

Excitation Mode AC Rotating Exciter

Transport Package Plywood Case

Specification 3600x1300x2000mm

HS Code 8502120000

Production Capacity 300PCS Per Month

Product Description

Weifang 350kVA Diesel Generator Set with Ricardo Engine Silent for Marine Use

1. GENERATOR DATA Voltage Available:

50Hz: 380-400-415V/220-230-240V;

60Hz: 220-380-416-440-480V/110-208-220-240V

Any special voltage is also available as client's request

Prime Power:

Comply with GB/T2820-97(eqv.ISO8528).

Genset can run unlimitedly under certain power range.

One hour 10% over load in every 12 running hours is allowed;

Standby Power:

Standby power is the limit value of maximum output for emergency use.

It is off-oil power, overloading is prohibited.

2. MAIN SPECIFICATION

Genset Model	Unit	KPW275	KPW330	KPW350	KPW400
Rated Power	KW/KVA	200/250	240/300	260/325	304/380
Standby Power	KW/KVA	220/275	264/330	280/350	320/400
Rated Voltage	V	220V/127V 380V/220V 400V/230V 415V/240V 480V/277V 600V/346V
Speed	RPM	1500/1800
Rated frequency	Hz	50/60
Engine Model	-	6126AZLD	6126IZD	6126IZD	6126IZD
Engine Power	KW	258	350	350	350
Air intake way	-	Turbo	Turbo	Turbo	Turbo
Governor	-	Mechanical	Mechanical	Mechanical	Mechanical
Cylinder	QTY	6	6	6	6
Bore*Stroke	mm*mm	126×135	126×135	126×135	126×135
Displacement	L	9.726	9.726	9.726	9.726
Fuel Consumption	g/kw.h	221	221	221	221
Compression Ratio	-	16:1	16:1	16:1	16:1
Alternator Model	-	STF-274K	STF-314D	STF-314ES	STF-314FS
Voltage Regulation	-	AVR
Excitation Method	-	Brushless
Open Type Size	mm	2700x900x1800	3000x1000x1800	3000x1000x1800	3000x1000x1800
Open Type Weight	kg	2480	2680	2850	3020
Soundproof Size	mm	3200x1150x1900	3600x1300x2000	3600x1300x2000	3600x1300x2000
Soundproof Weight	kg	3450	3700	3950	4100

3. PRODUCT FEATURES

(1). Full control panel with power indicator light and oil light.
(2). Emergency shutdown for low oil pressure and high water temperature.
(3). Large fuel tank ensure continuous running.
(4). Low noise & vibration.
(5). Compact structure.
(6). Reliable performance.
(7). Easy for installation and maintenance.
(8). 50Hz and 60Hz both are available for choice.

Frequently Asked Questions (FAQ)

What is the difference between Prime Power and Standby Power?

Prime Power complies with GB/T2820-97 (eqv. ISO8528), allowing the generator set to run continuously within certain limits with a 10% overload allowed for 1 hour within every 12 running hours. Standby Power is the maximum emergency output limit; overloading is strictly prohibited.

What standard voltage options are available for the generators?

Standard options support 50Hz (380-415V/220-240V) and 60Hz (220-480V/110-240V). Special customized voltage configurations are also available upon request.

What safety mechanisms are built into the generator system?

The generator units feature a full control panel with safety indicators (power and oil lights) and a automatic emergency shutdown protection system triggered by low oil pressure or high water temperature.

What kind of cooling and excitation systems do these generator sets use?

These diesel generators are built with an efficient water-cooling system and utilize a brushless AC rotating exciter (regulated by AVR) for dependable electrical generation.

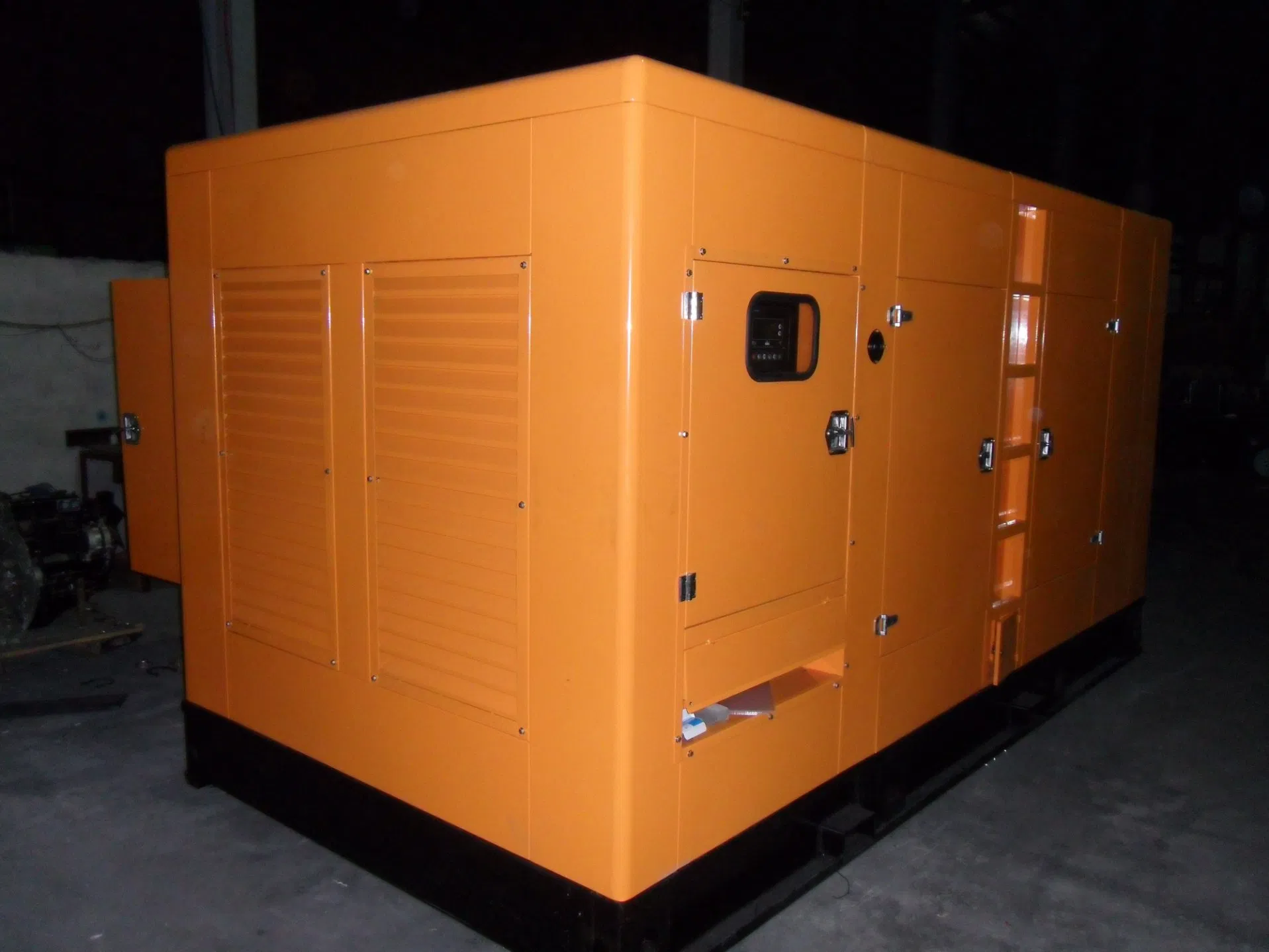

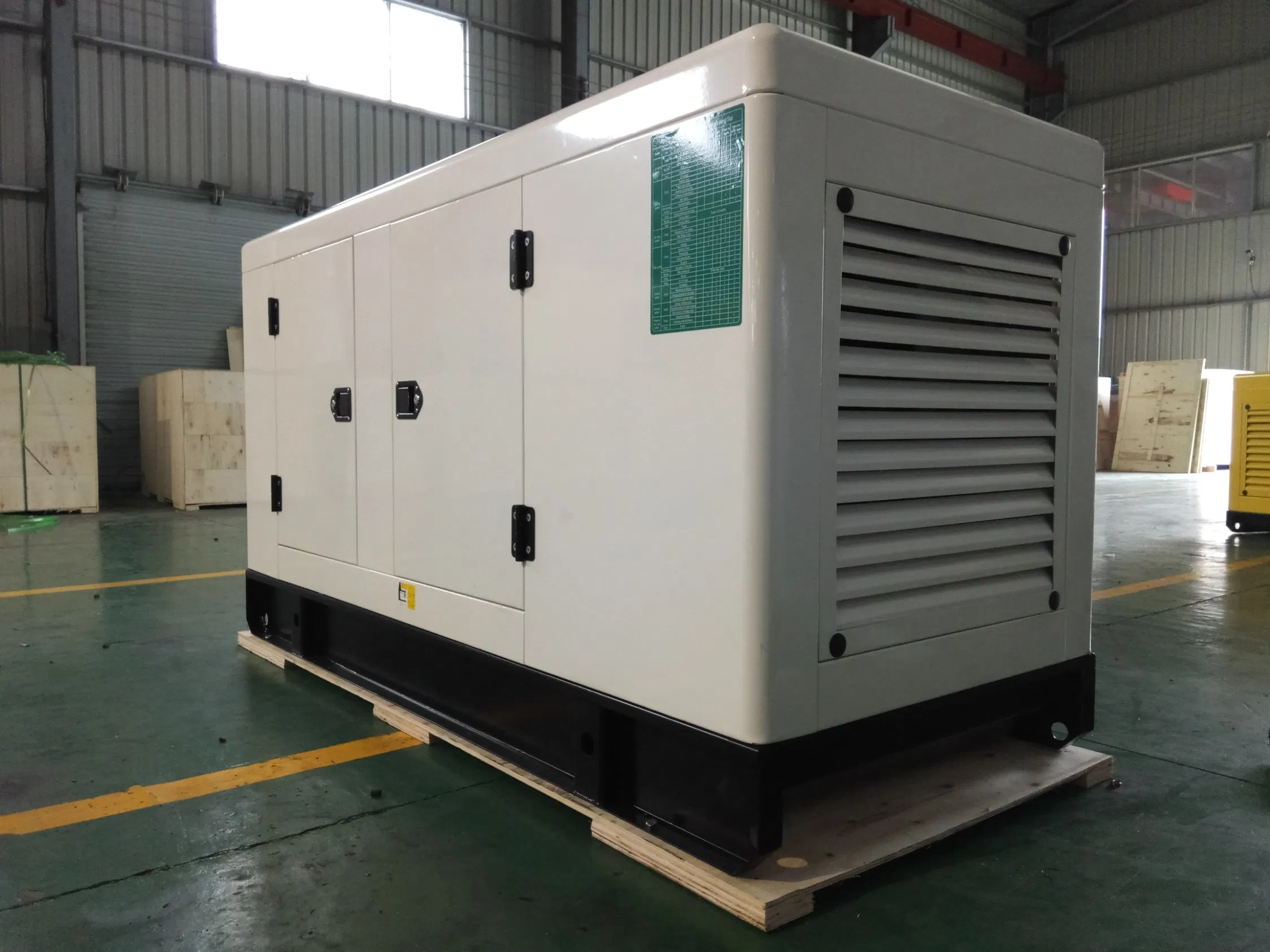

Are there silent or weather-proof options available for these models?

Yes, these units are available in both Open Type and Soundproof (Silent) configurations to accommodate different environmental and noise regulations. Detail specifications on size and weight for both options can be found in our main specification table.
