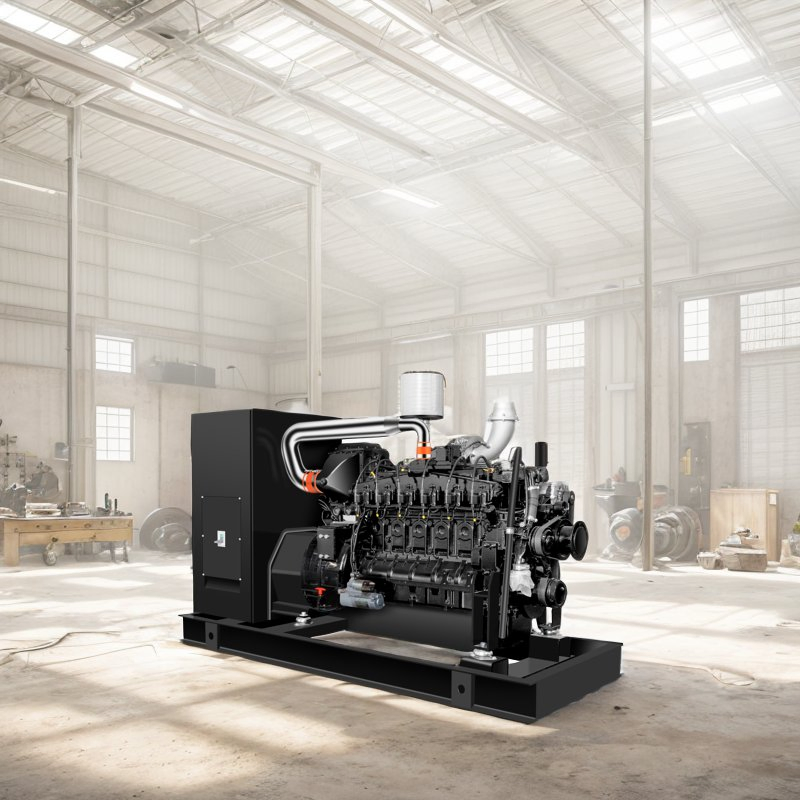

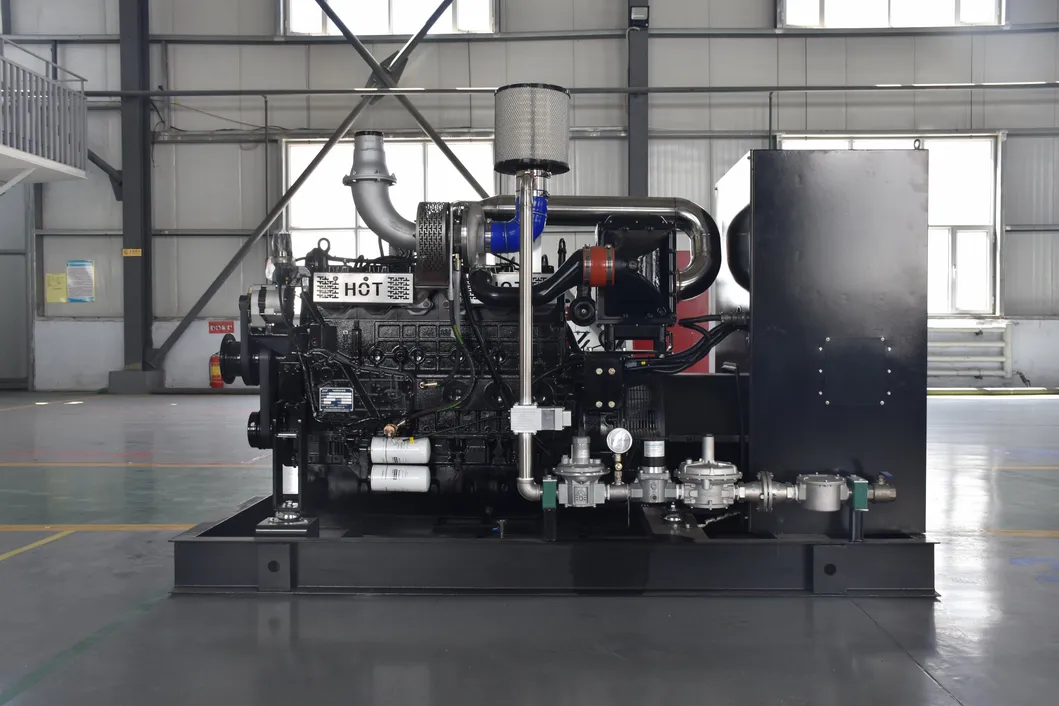

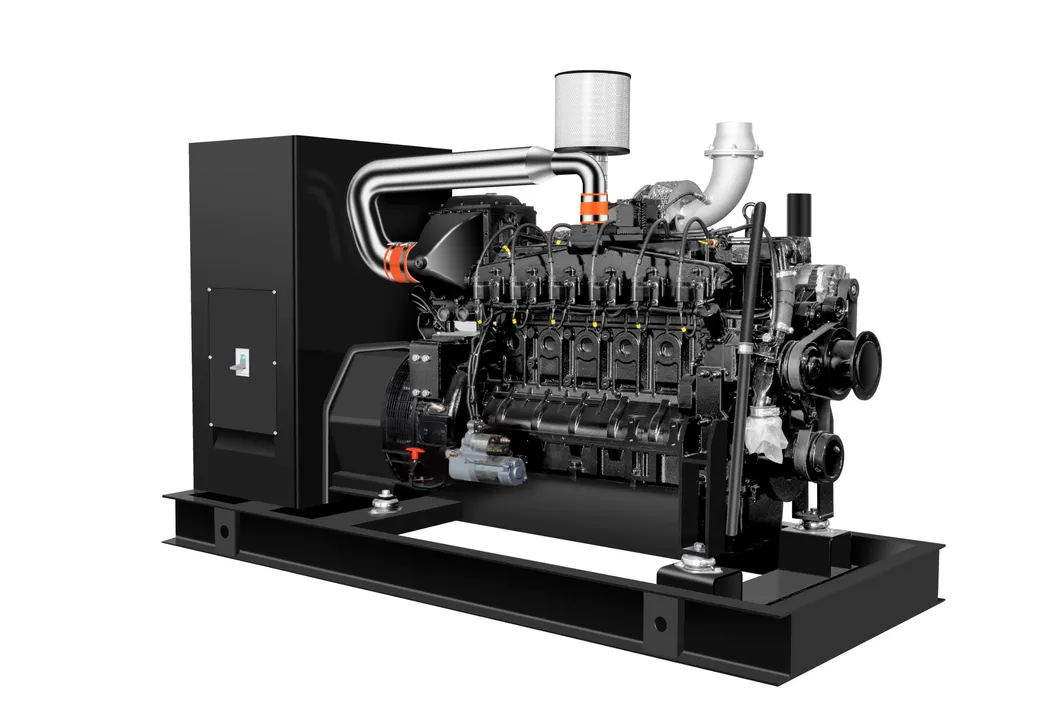

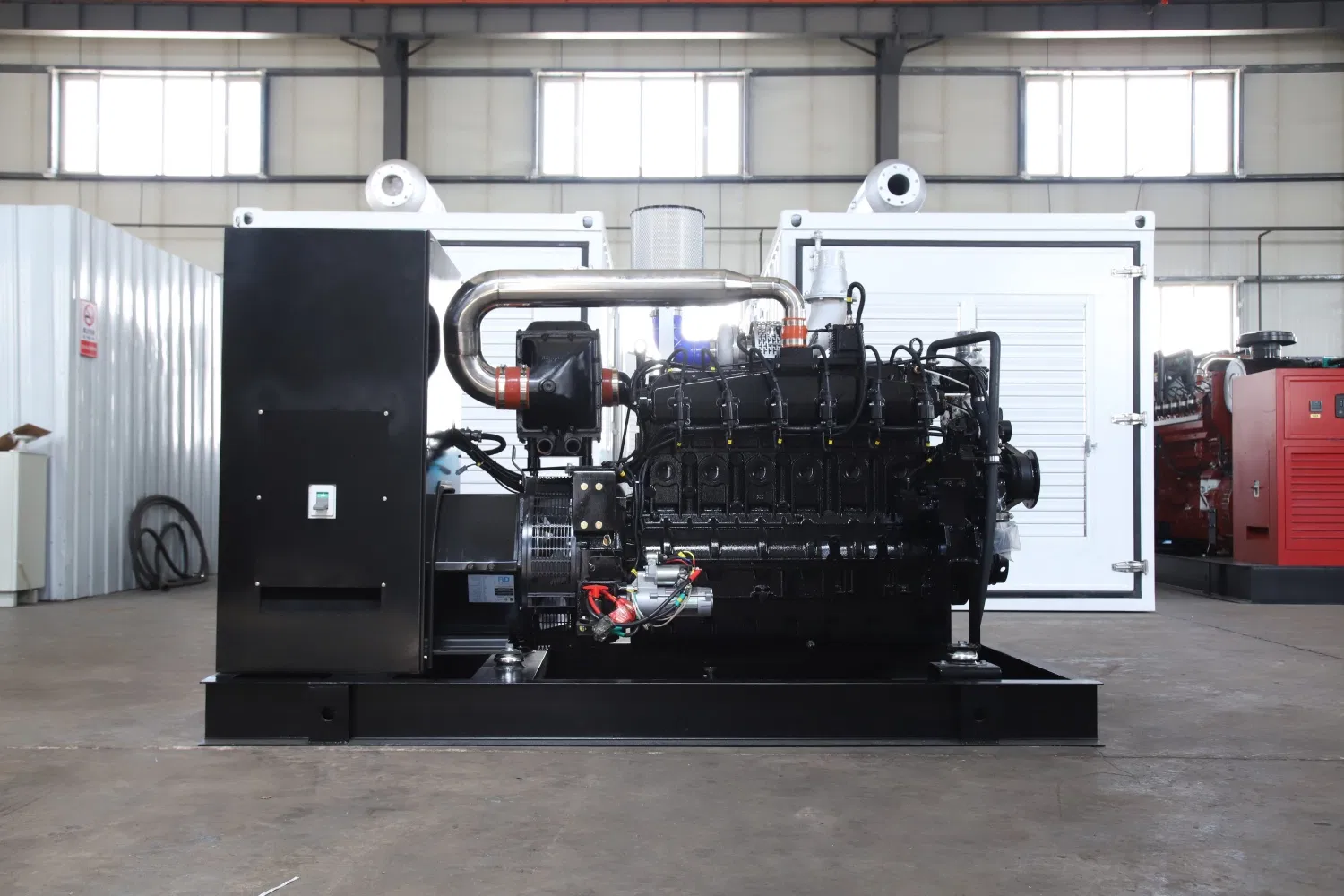

High-Efficiency 50Hz 1500rpm AC 3 Phase LNG CNG LPG Yto Power Engine Gas Piston Power Plant Natural Gas and Biogas Generator Set for Sustainable Energy
High-Efficiency 50Hz 1500rpm AC 3 Phase LNG CNG LPG Yto Power Engine Gas Piston Power Plant Natural Gas and Biogas Generator Set for Sustainable Energy
High-Efficiency 50Hz 1500rpm AC 3 Phase LNG CNG LPG Yto Power Engine Gas Piston Power Plant Natural Gas and Biogas Generator Set for Sustainable Energy
High-Efficiency 50Hz 1500rpm AC 3 Phase LNG CNG LPG Yto Power Engine Gas Piston Power Plant Natural Gas and Biogas Generator Set for Sustainable Energy
High-Efficiency 50Hz 1500rpm AC 3 Phase LNG CNG LPG Yto Power Engine Gas Piston Power Plant Natural Gas and Biogas Generator Set for Sustainable Energy
1 / 5
High-Efficiency 50Hz 1500rpm AC 3 Phase LNG CNG LPG Yto Power Engine Gas Piston Power Plant Natural Gas and Biogas Generator Set for Sustainable Energy
High-Efficiency 50Hz 1500rpm AC 3 Phase LNG CNG LPG Yto Power Engine Gas Piston Power Plant Natural Gas and Biogas Generator Set for Sustainable Energy
High-Efficiency 50Hz 1500rpm AC 3 Phase LNG CNG LPG Yto Power Engine Gas Piston Power Plant Natural Gas and Biogas Generator Set for Sustainable Energy
High-Efficiency 50Hz 1500rpm AC 3 Phase LNG CNG LPG Yto Power Engine Gas Piston Power Plant Natural Gas and Biogas Generator Set for Sustainable Energy
High-Efficiency 50Hz 1500rpm AC 3 Phase LNG CNG LPG Yto Power Engine Gas Piston Power Plant Natural Gas and Biogas Generator Set for Sustainable Energy

High-Efficiency 50Hz 1500rpm AC 3 Phase LNG CNG LPG Yto Power Engine Gas Piston Power Plant Natural Gas and Biogas Generator Set for Sustainable Energy

Customization: Available
After-sales Service: Online Service
Warranty: 1 Year
Send Inquiry

Product Description

Basic Info.

Model NO.WL220
Output TypeAC Three Phase
Gas SourceGas
CertificationCE, TLC, ISO, CCC, EAC
Power＞200kW
StandardStandard
ModelWl220
Power Rating220kw
Rated Speed1500rpm
Frequency50Hz
Rated Current396A
Dimension3150*1320*1850mm
Weight2500kgs
IntakeExhaust Water Cooled Turbocharged
Displacement11.6L
Compression Ratio12:1
Engine Oil Consumption<1.9g/Kw.H
Exhaust Gas Temprature625 Degree
Fuel Supply MethodPre-Mix
Lubricating Oil Capacity36L
Coolant Capacity80L
Transport PackageExport Standard Packing
Specification3150*1320*1850mm
OriginChina
HS Code8502390090
Production Capacity5000 Set/Year

Packaging & Delivery

Package Size350.00cm * 170.00cm * 210.00cm
Package Gross Weight2600.000kg
Lead Time 7 days (1 - 1 Sets)
To be negotiated ( > 1 Sets)

Product Description

220KW/275KVA
LNG/CNG/LPG/Methane/Propane/Syngas/Hydrogen/Diesel/Biomass/Biogas
Natural Gas Generator/Gas Piston Power Plant/Biogas Plant
High-Efficiency 50Hz 1500rpm AC 3 Phase LNG CNG LPG Yto Power Engine Gas Piston Power Plant Natural Gas and Biogas Generator Set for Sustainable Energy
High-Efficiency 50Hz 1500rpm AC 3 Phase LNG CNG LPG Yto Power Engine Gas Piston Power Plant Natural Gas and Biogas Generator Set for Sustainable Energy
High-Efficiency 50Hz 1500rpm AC 3 Phase LNG CNG LPG Yto Power Engine Gas Piston Power Plant Natural Gas and Biogas Generator Set for Sustainable Energy
High-Efficiency 50Hz 1500rpm AC 3 Phase LNG CNG LPG Yto Power Engine Gas Piston Power Plant Natural Gas and Biogas Generator Set for Sustainable Energy
High-Efficiency 50Hz 1500rpm AC 3 Phase LNG CNG LPG Yto Power Engine Gas Piston Power Plant Natural Gas and Biogas Generator Set for Sustainable Energy
High-Efficiency 50Hz 1500rpm AC 3 Phase LNG CNG LPG Yto Power Engine Gas Piston Power Plant Natural Gas and Biogas Generator Set for Sustainable Energy

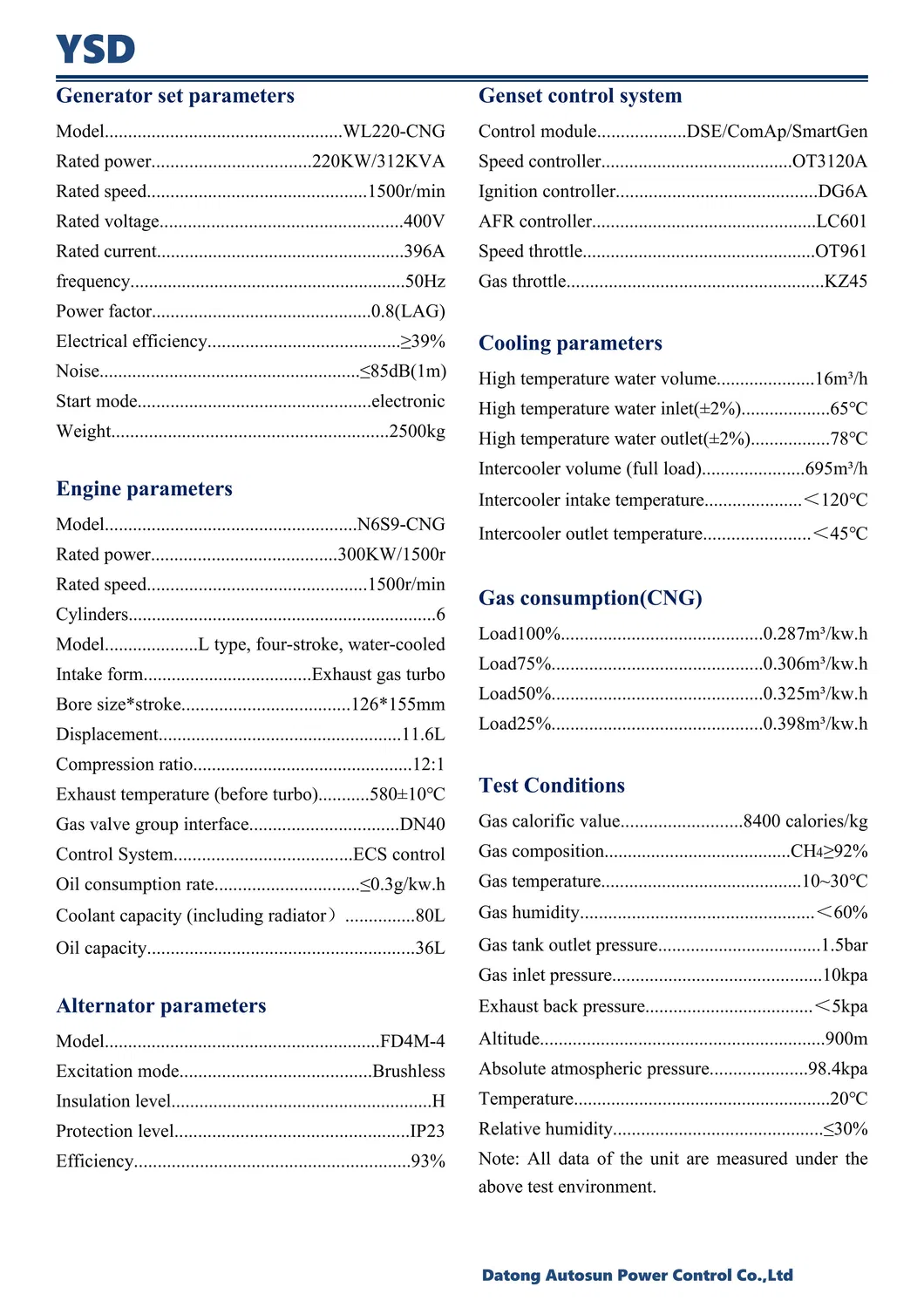

NO. ITEM Data
1ModelWL220
2Basic Power(KW)220
3Back up power (KW)220
4Rated speed1500rpm
5frequency50HZ
6Rated current(A)396
7Dimensions(mm)3150×1320×1850
8Weight(kg)2500
9Rated voltage400V/230V
10Exhaust gas temperature(ºC)625±50
11Excitation modebrushless
12Insulation classH
13Protection levelIP23
14Voltage regulation modeautomatic adjustment
Main Products

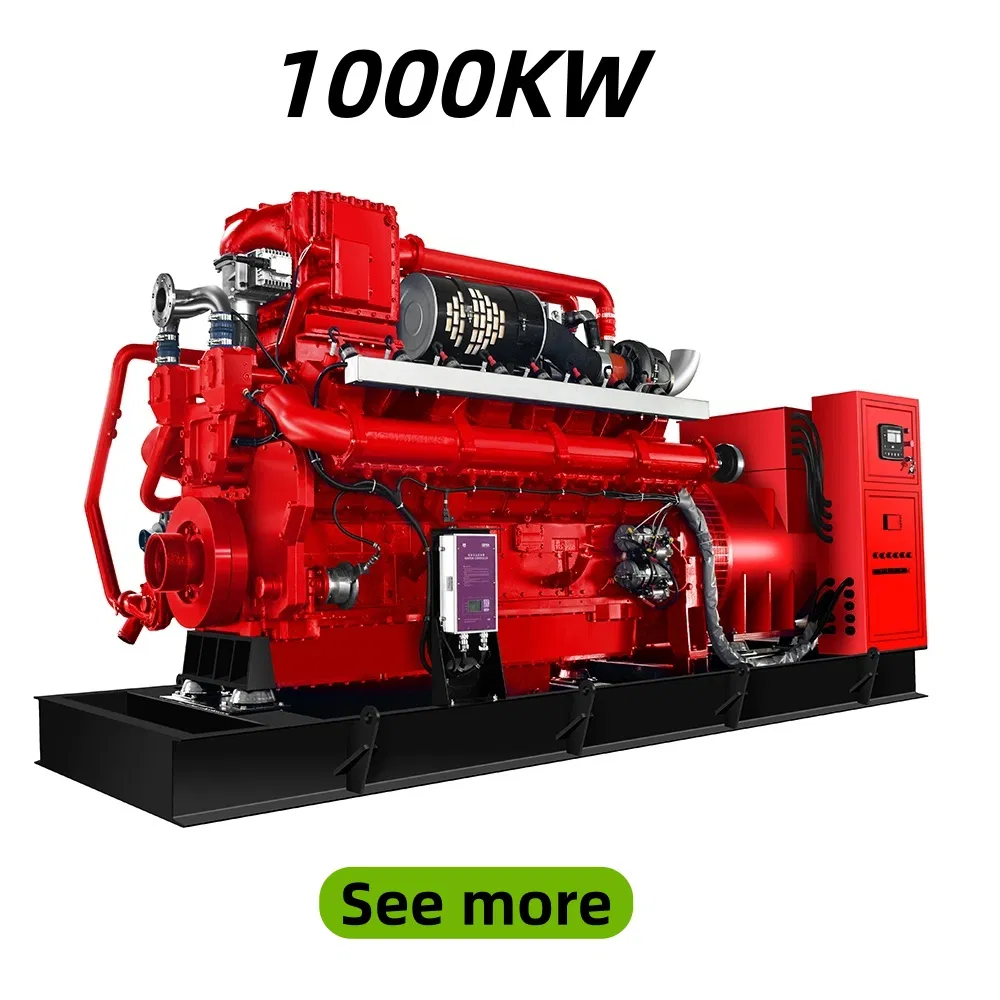

Main Product 1

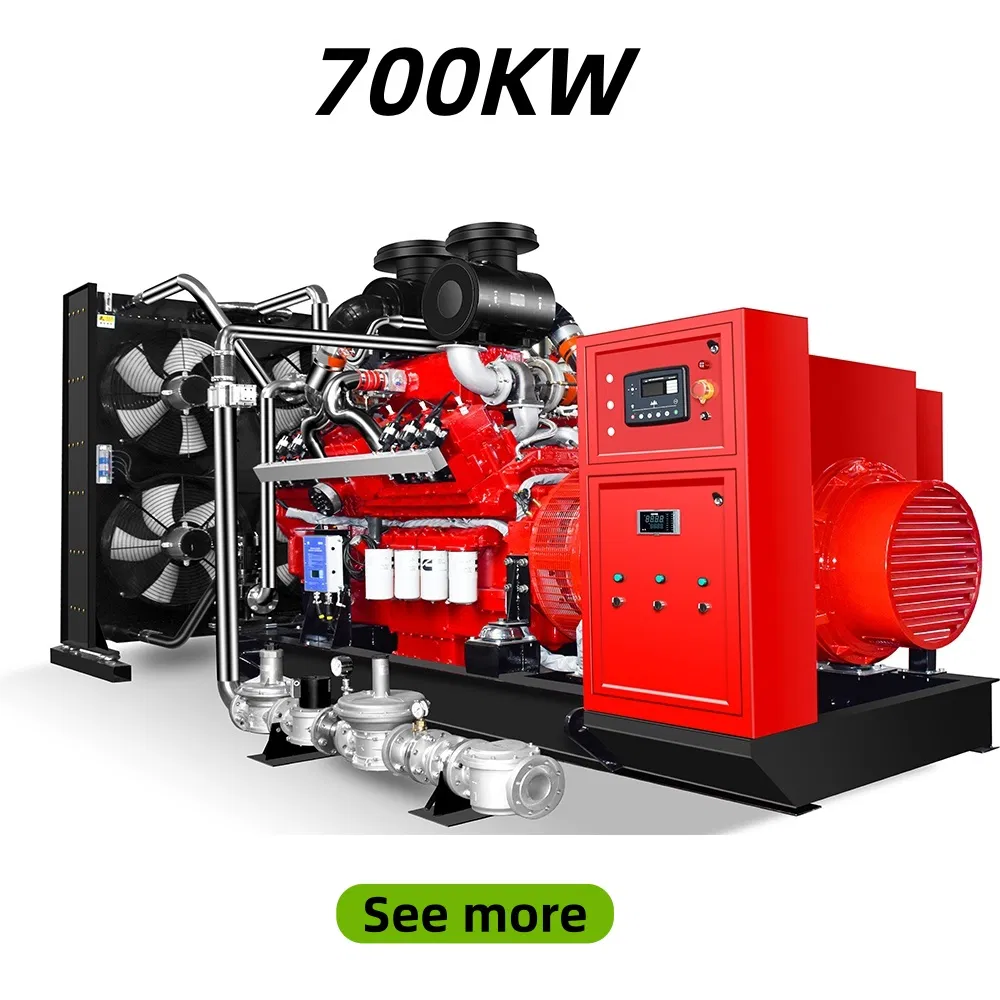

Main Product 2

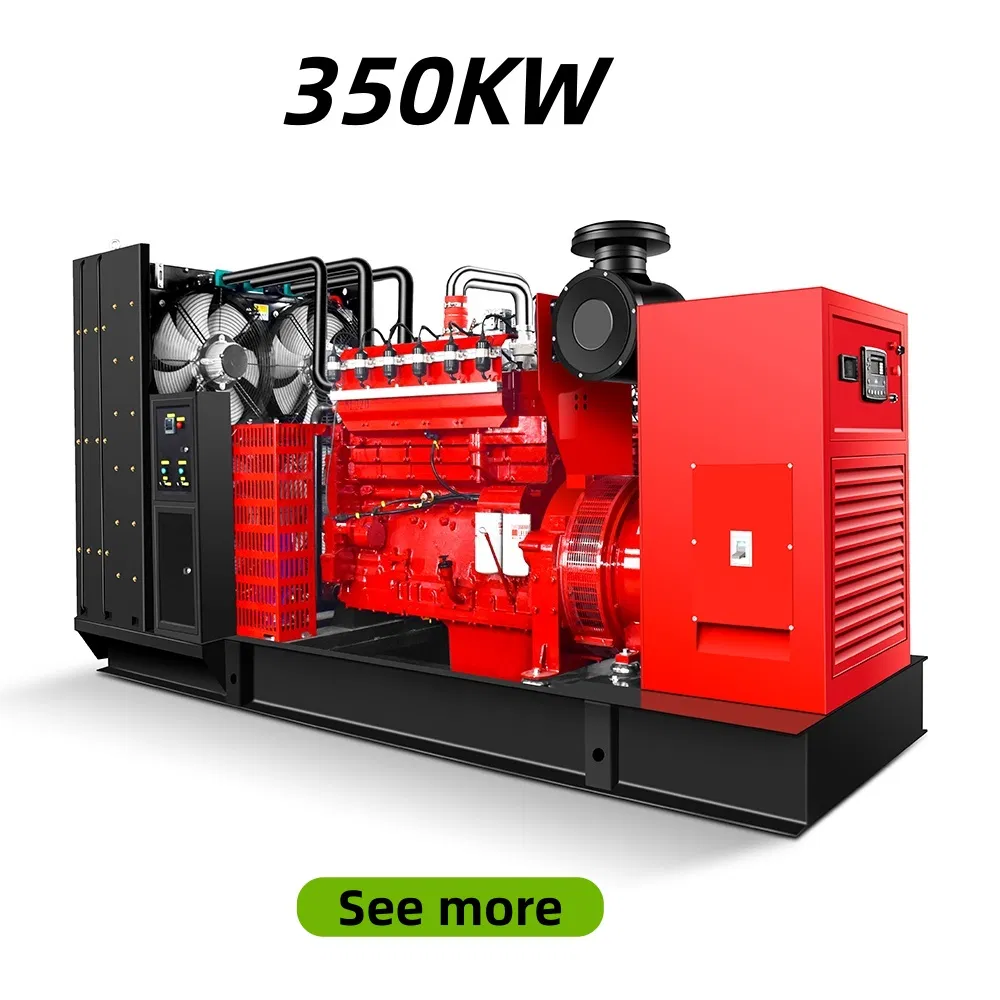

Main Product 3

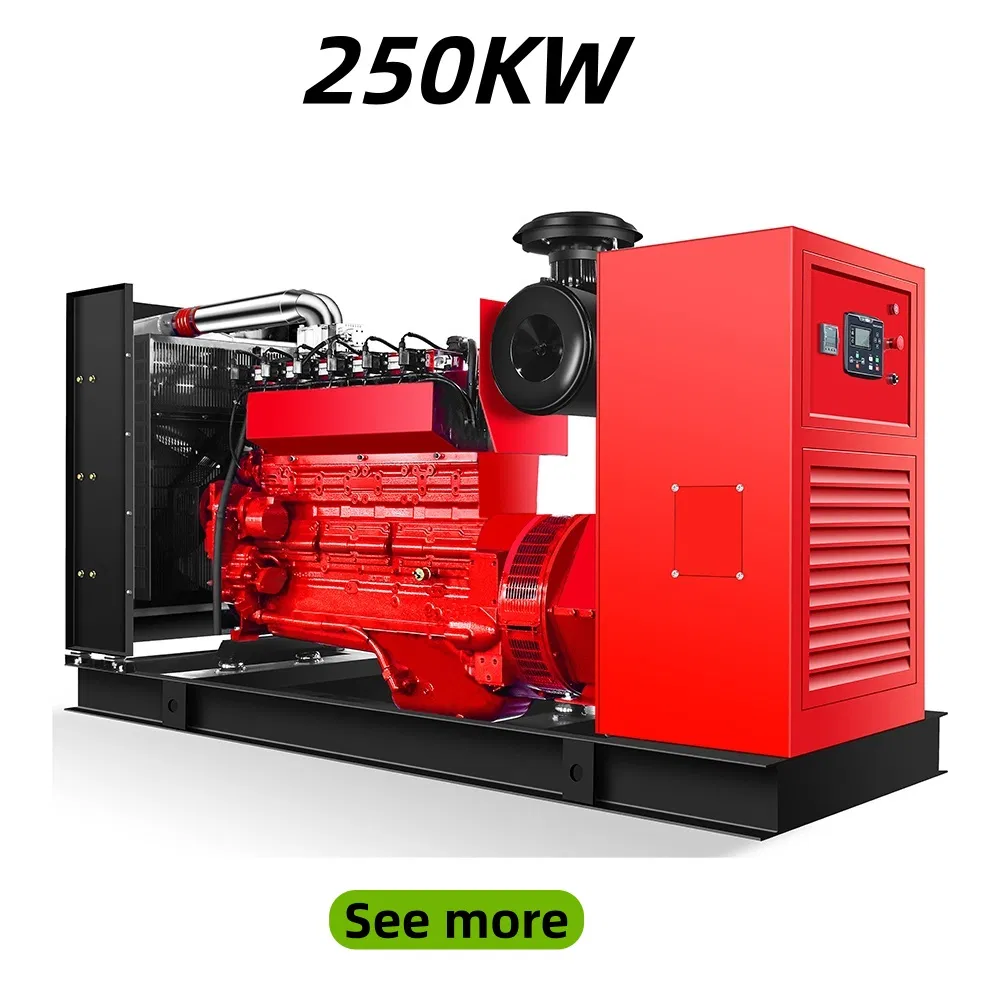

Main Product 4

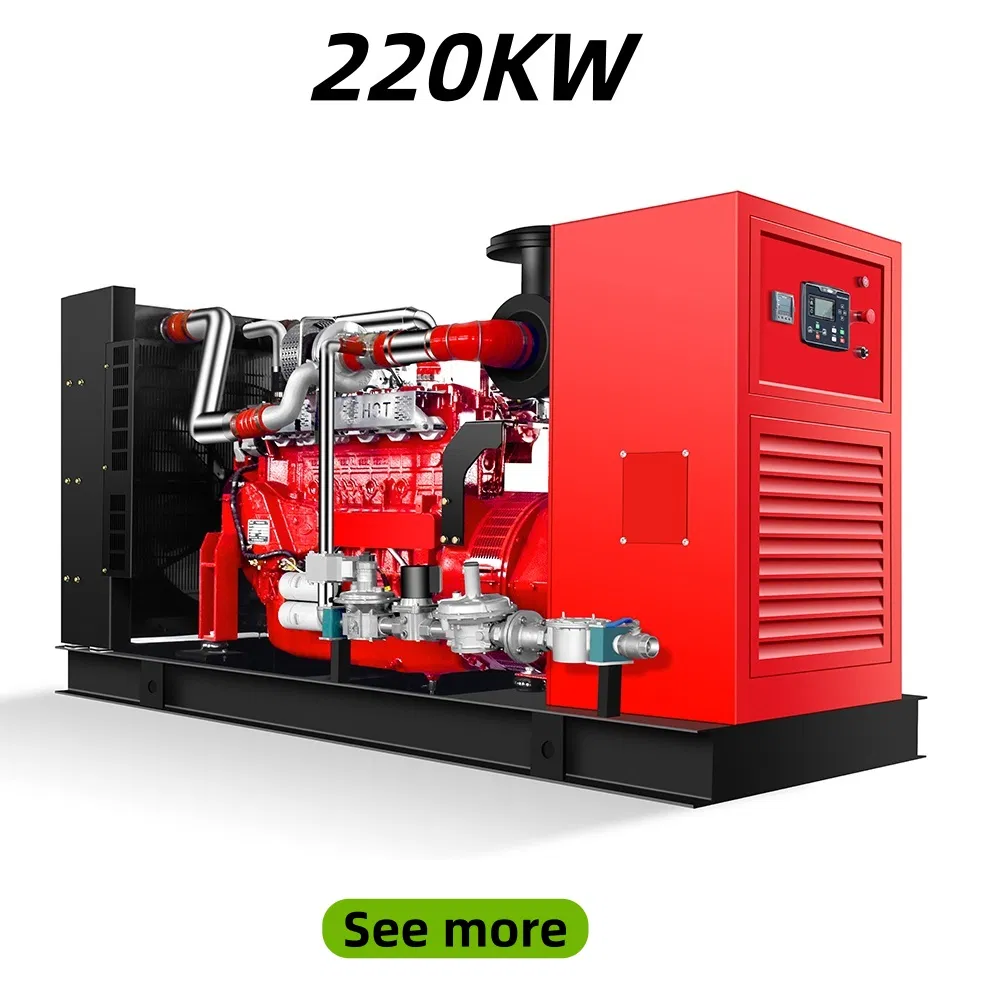

Main Product 5

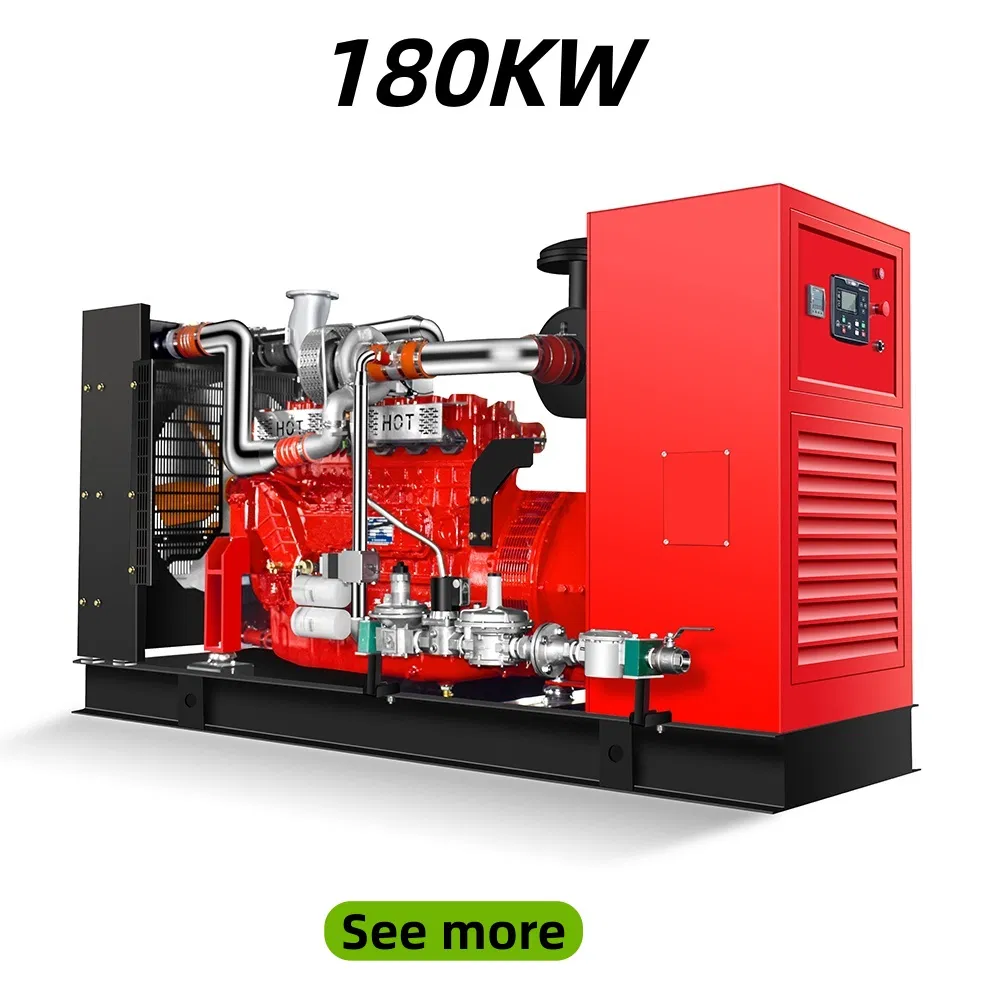

Main Product 6
Details 1
Details 2
Details 3
Details 4
Details 5
Details 6
Details 7

Frequently Asked Questions

QWhat's the warranty period for your products?
Our products come with a generous warranty of 1 year or 1500 running hours, whichever comes first. Enjoy peace of mind with the option to extend the warranty, catering to your specific requirements.
QWhat is the power range of our gas generator set?
Our gas generator set offers a versatile power range from 30KW to 1500KW, designed to meet diverse energy needs.
QWhat is the Minimum Order Quantity (MOQ)?
Our minimum order requirement is just 1 set, providing flexibility for your purchasing decisions.
QWhat's the typical delivery time for orders?
Delivery timelines are flexible and can be negotiated to best suit your schedule.
QDo you offer OEM/ODM services?
Absolutely! We offer comprehensive OEM/ODM services, tailoring production to your specific requirements.
QWhat are your payment terms?
We require a 30% TT payment in advance, with the remaining balance due before delivery. This ensures a smooth transaction process.
