Weichai 400kw/500kw Methanol Generator Set LNG/LPG/Natural Gas/Biogas Genset

Customization:	Available
Warranty:	1year
Output Type:	AC Three Phase

Overview & Basic Info.

Basic Info.

Model NO.GHW400GF-M

Gas SourceMethanol

CertificationCE, TLC, ISO, CCC

Power400kw-500kw

StandardStandard

Support Processing CustomizationYes

Product NameWeichai 400kw Methanol Generator Set

Voltage400V

Frequency50Hz

Speed1500rpm

Transport Packageas Requirements

TrademarkWeichai/Simeno

OriginJinan

HS Code84099990

Production Capacity10895 PCS

Packaging & Delivery

Package Size3250.00cm * 2450.00cm * 2650.00cm

Package Gross Weight2100.000kg

Product Description

Product Specifications

Product NameWeichai 400KW methanol generator set

Power400KW

Product certificationISP9001

Voltage400V

Frequency50Hz

Phase3

Starting methodelectric start

Battery capacity120Ah

RPM3

Speed1500RPM

Cooling methodwater-cooled

Protection levelIP23

Whether support processing customizationYes

Whether importedNo

Model of Methanol generator set	GHW35GF-M	GHW150GF-M	GHW200GF-M	GHW300GF-M	GHW400GF-M
Rated Power	35kW ()	150kW ()	200kW ()	300kW ()	400kW ()
Rated Voltage	400V/230V	400V/230V	400V/230V	400V/230V	400V/230V
Rated frequency	50 Hz	50 Hz	50 Hz	50 Hz	50 Hz
Electrical Phase	Three-phase four-wire system	Three-phase four-wire system	Three-phase four-wire system	Three-phase four-wire system	Three-phase four-wire system
Power Factor	0.8 ( lag)	0.8 ( lag)	0.8 ( lag)	0.8 ( lag)	0.8 ( lag)
Steady-state voltage regulation	≤±2%	≤±2%	≤±2%	≤±2%	≤±2%
Transient voltage adjustment rate	-25%~+35%	-25%~+35%	-25%~+35%	-25%~+35%	-25%~+35%
Voltage recovery time	≤10s	≤10s	≤10s	≤10s	≤10s
Voltage fluctuation rate	≤1%	≤1%	≤1%	≤1%	≤1%
Steady-state frequency regulation	≤±2%	≤±2%	≤±2%	≤±2%	≤±2%
Frequency settling time	≤10s	≤10s	≤10s	≤10s	≤10s
Transient frequency regulation	-25%~+18%	-25%~+18%	-25%~+18%	-25%~+18%	-25%~+18%
Frequency Wave Rate	≤0.5%	≤0.5%	≤0.5%	≤0.5%	≤0.5%
Power (kW/h)	50kW	200kW	240kW	380kW	600kW
Rotational speed	3000 r/min	1500 r/min	1500 r/min	1500 r/min	1500 r/min

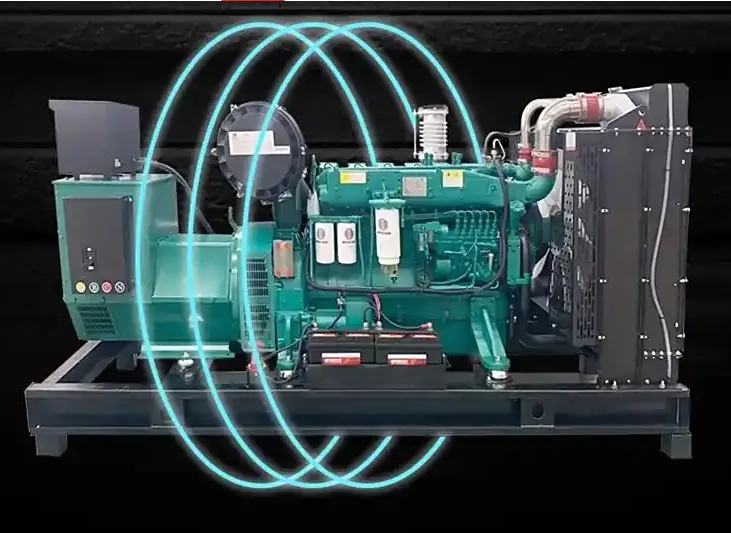

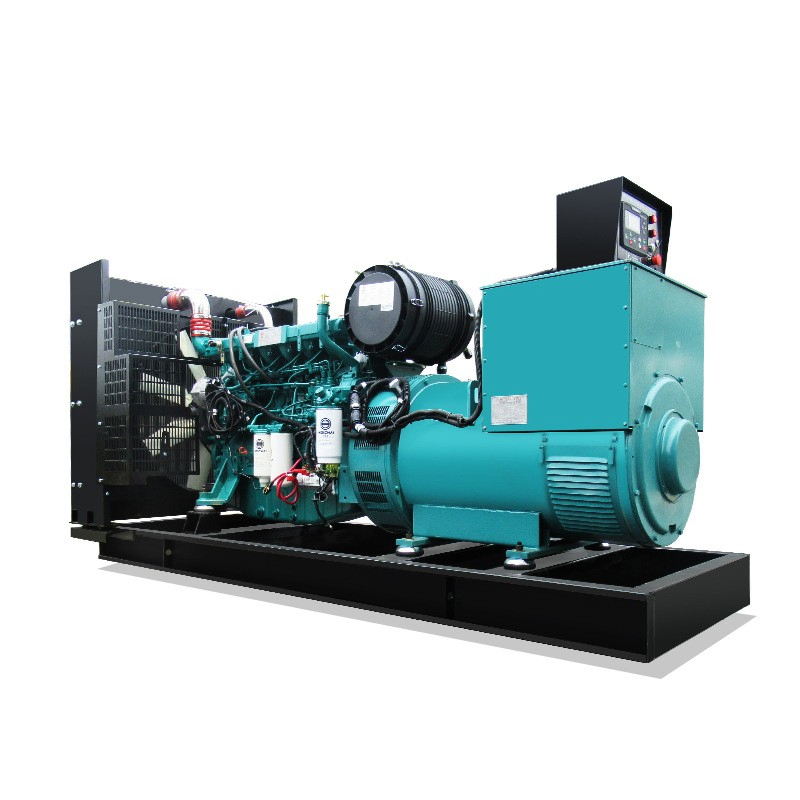

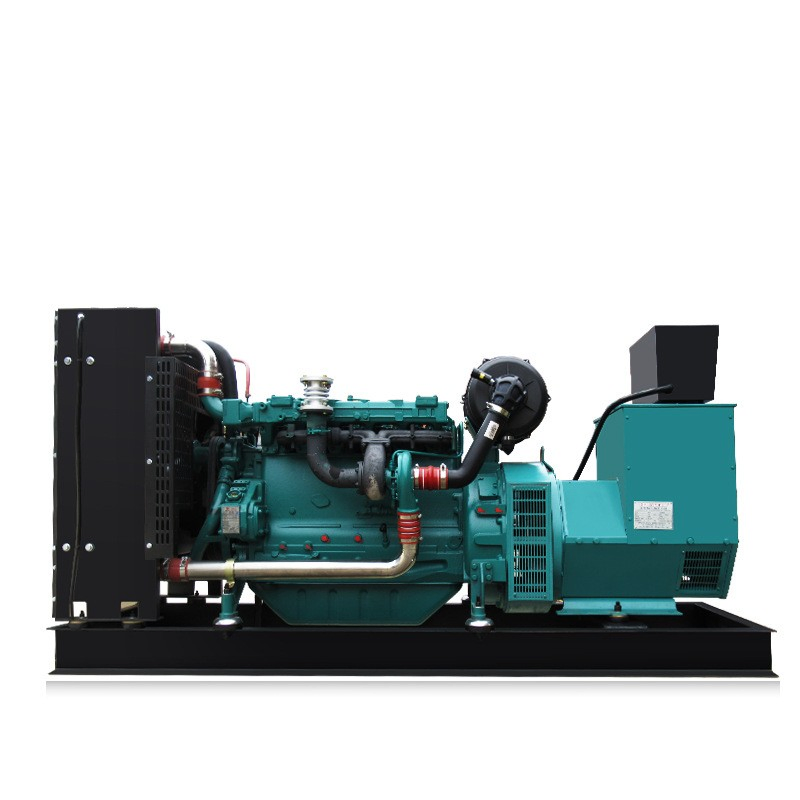

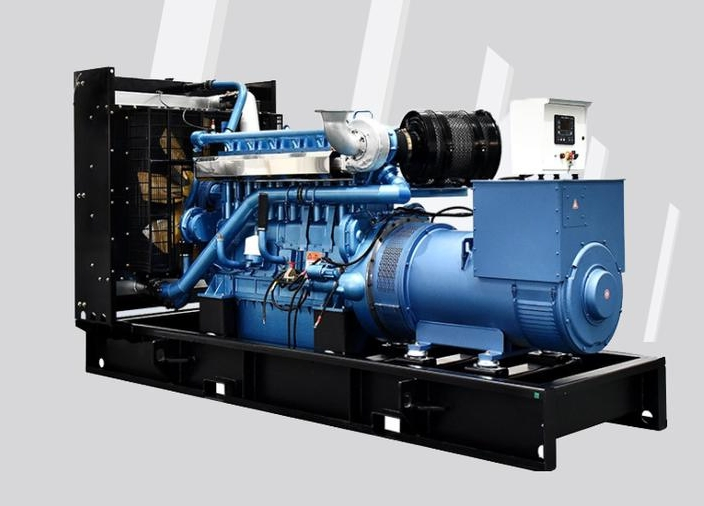

Detailed Photos

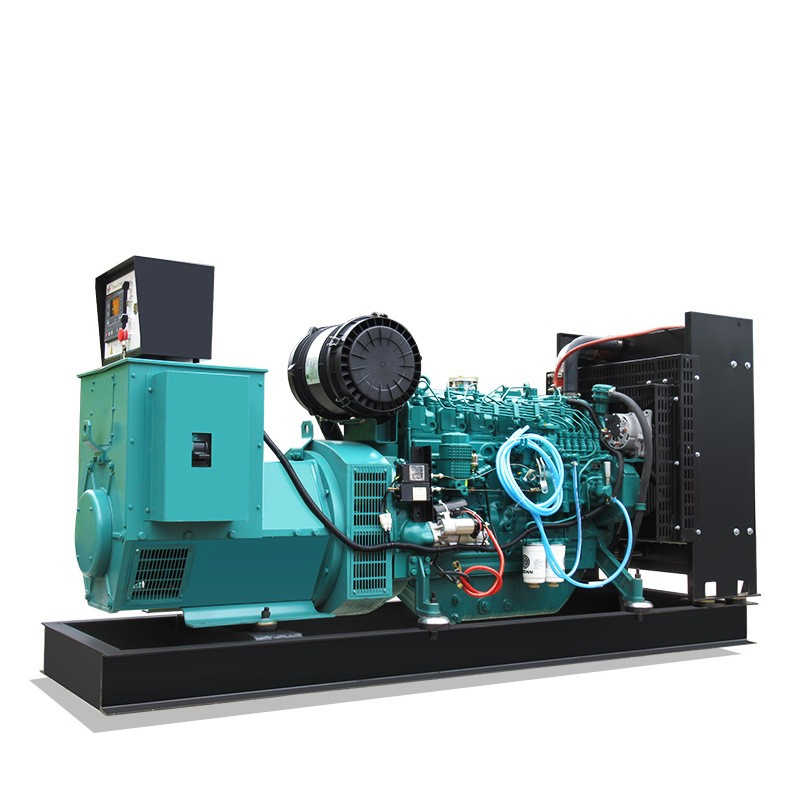

Weichai 400kw/500kw Methanol Generator Set LNG/LPG/Natural Gas/Biogas Genset

Product Parameters

Engine (1500 rpm): fuel and oil filter, dry air filter, oil and antifreeze drain valve, oil inlet and outlet ports, 40-degree high-efficiency cooling water tank.
Generator (400VAC, 50Hz): temperature rise class H, insulation class H, protection class IP23.
Control and assembly system: self-starting control panel, key knob, emergency stop button, high-strength steel base frame, high-performance vibration and noise reduction rubber vibration isolator.
Smoke exhaust system and others: industrial grade silencer, smoke exhaust stainless steel bellows, smoke exhaust flange and gasket, unit test report, certificate of conformity, electrical schematic diagram.
Related accessories: PMG permanent magnet assembly, cell phone APP monitoring, fuel water jacket heater, automatic replenishment control box, ATS automatic switching switch, differential protection device, discharge pump.
Basic control system: adopting DEEPSEA or control module, adopting pointer meter to indicate the unit, the system has low oil pressure and high water temperature overspeed short-circuit protection.
Self-starting control system: adopts DEEPSEA or control module, control module adopts LCD to display the unit, ATS dual power supply automatic switching switch, dual power supply voltage display.
Parallel and simultaneous system: the control module has the functions of parallel, grid-connection and power management, the number of parallel generator sets can be up to 128, power measurement device is optional, and the communication function is optional.

Operation Parameters

Whether support processing customizationYes

Whether importedNo

Product nameWeichai 400KW methanol generator set

Product certificationISP9001

Voltage400V

Frequency50Hz

Starting methodelectric start

Phase3

Battery capacity120Ah

RPM3

Speed1500RPM

Cooling methodwater-cooled

Power400KW

Protection levelIP23

Packaging & Shipping

Certifications

Weichai 400kw/500kw Methanol Generator Set Certification 1

Weichai 400kw/500kw Methanol Generator Set Certification 2

Export Experience

Applications:

Sales and leasing of standard generator sets, mobile power trucks, containerized power stations, static speaker units, intelligent power stations.
Methanol fuel supply, generator set repair and maintenance, fog accessories sales, methanol generator set hosting operation and maintenance.
Methanol power station investment and construction and financial leasing.

Frequently Asked Questions (FAQ)

Q1: What is the main gas source and fuel used for the GHW400GF-M generator set?

A1: The primary fuel and gas source for this model is Methanol.

Q2: What is the rated power and voltage configuration of the Weichai 400KW Methanol Generator Set?

A2: The rated power is 400KW, running at a rated voltage of 400V/230V, and a rated frequency of 50 Hz.

Q3: Which quality and safety certifications does the generator set comply with?

A3: The generator units are compliant with certifications including CE, TLC, ISO, CCC, and ISP9001.

Q4: What starting method and cooling system does this generator utilize?

A4: It features an electric start method with a 120Ah battery capacity and uses a water-cooled system for temperature regulation.

Q5: Can the control system handle automatic power source switching and parallel setups?

A5: Yes. It supports self-starting systems using DEEPSEA or similar control modules, incorporating ATS dual power supply automatic switching and parallel systems capable of managing up to 128 generator sets.

Q6: Is processing customization supported for specific user requirements?

A6: Yes, processing customization is fully supported to tailor the generator specifications and transport requirements as needed.
