Our company independently develops a series of gas-fired units, using lean combustion technology to achieve overall electronic control of gas-fired units. These units utilize natural gas (CNG, LNG), liquefied petroleum gas (LPG), oilfield associated gas, coalbed methane, and biogas. Widely used in oil and gas fields, coal mines, landfills, and industrial power stations. Power range: 10kW-4000kW.

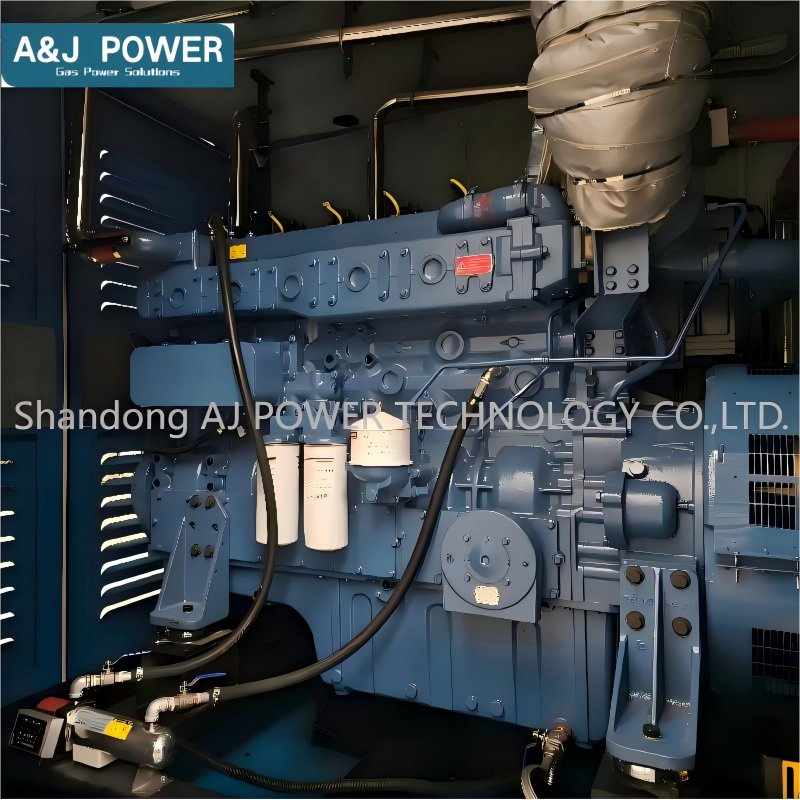

Engine: Advanced Yuchai original gas engine design, offering high reliability.
Gas Control System: Woodward (USA) lean combustion technology for complex gas sources.
Alternator: 100% pure copper brushless technology (customizable brands).
Intake Valve: Renowned international and domestic brands (MADAS, DUNGS, etc.).

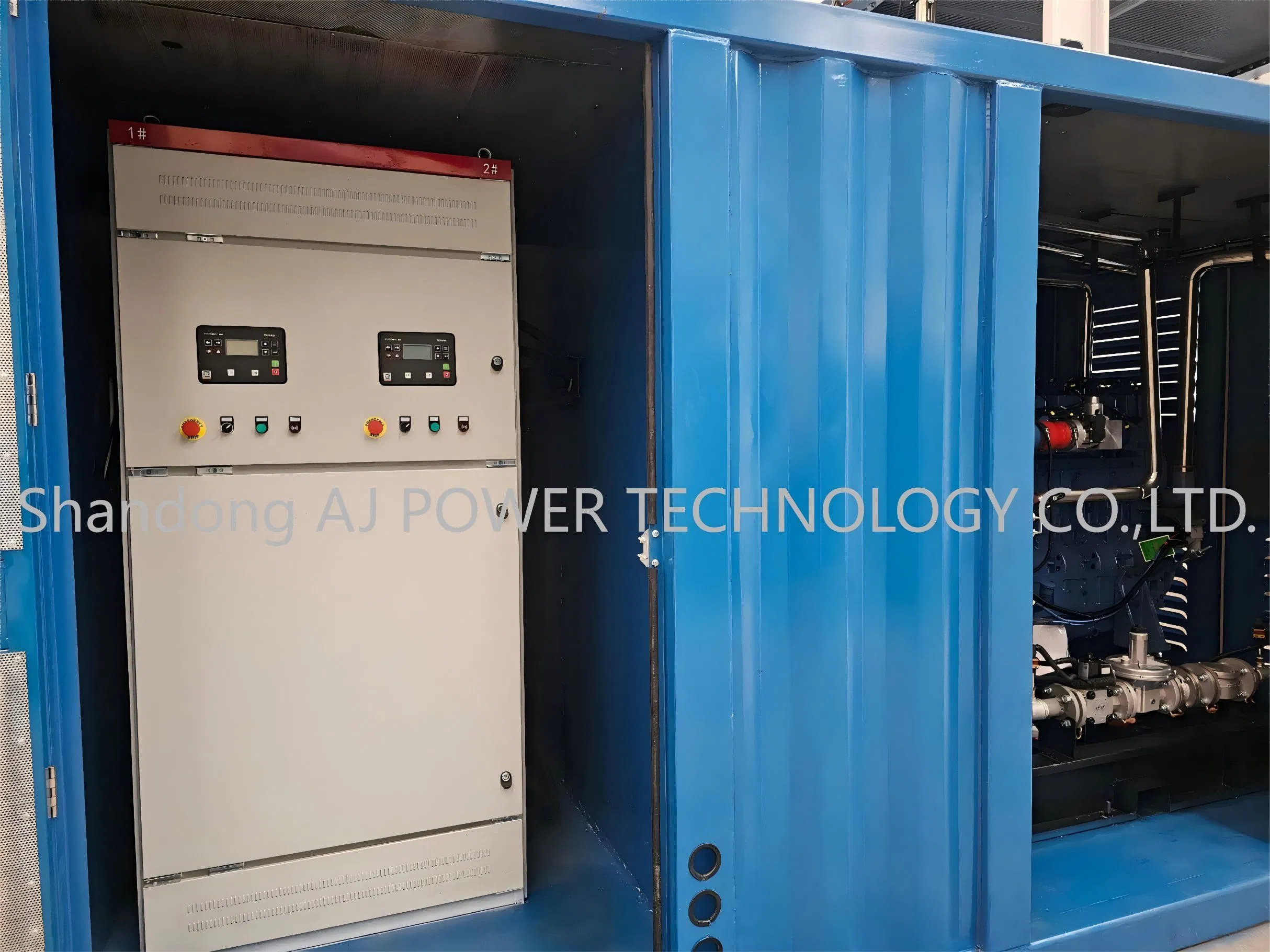

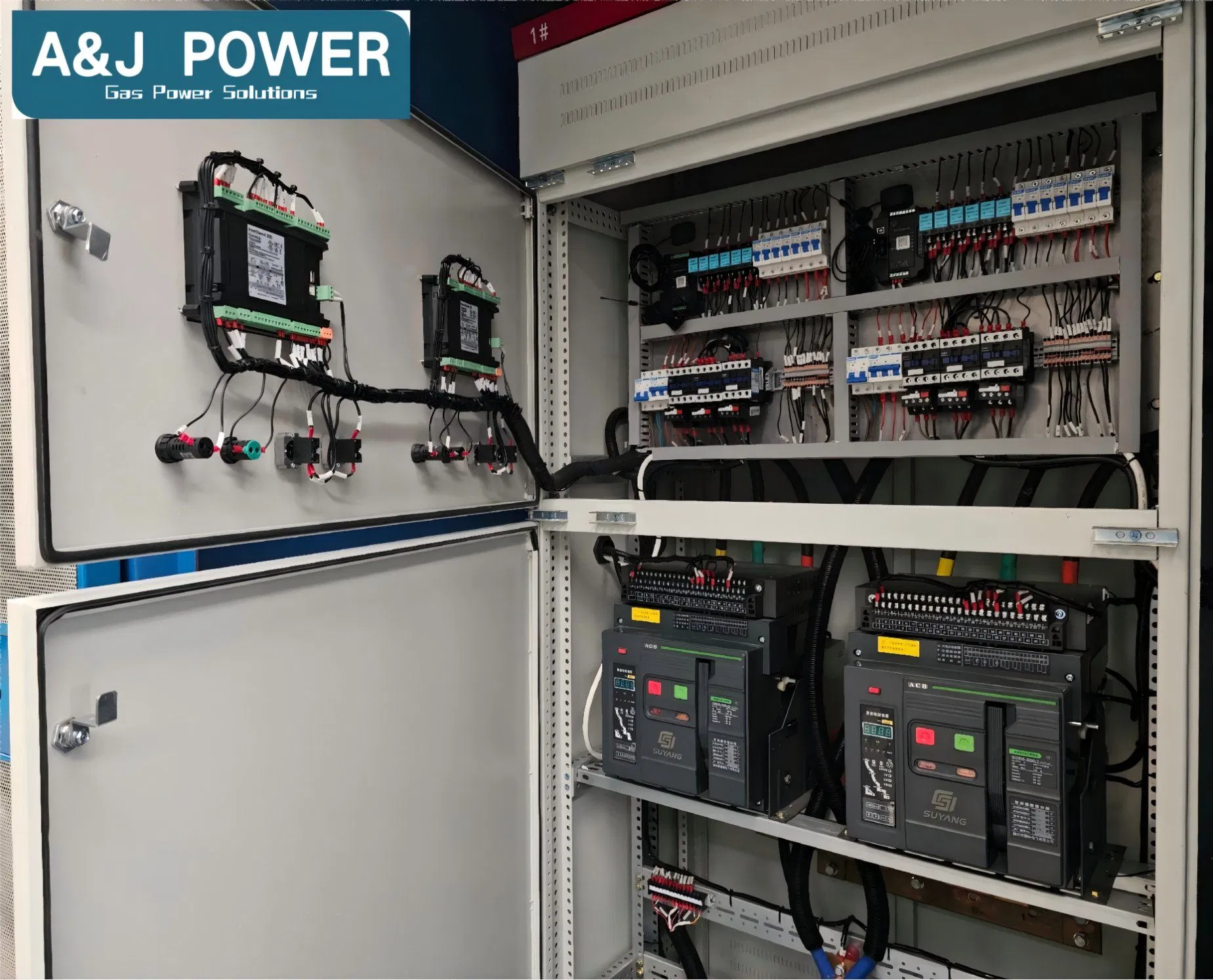

Generator Control: Intelligent monitoring with fault diagnosis (DEIF, COMAP, DEEP SEA).
With new lean combustion technology, high-energy ignition, and optimized intake/exhaust ducts, our generators provide high efficiency (>3.7kw.h/m³) and extended service life 2-3 times the industry average.
| Gas Generator Set Parameters | |||
|---|---|---|---|
| Model | AJG-700 | Rated Power | 700KW/875KVA |
| Certificate | CE, EAC | Continuous Power | 600KW/750KVA |
| Gas Engine Performance | |||
| Brand | YUCHAI | Model | YC6TD600N-D30 |
| Type | Water-cooled, 4-stroke | Rated Speed | 1500RPM |
| Displacement | 19.6 L | Starting | 24V DC |
Standard Warranty: 12 months or 1,500 operating hours.
Extended Warranty: Optional up to 36 months.
Regular maintenance ensures optimal performance:
