50Hz: 380-400-415V / 220-230-240V
60Hz: 220-380-416-440-480V / 110-208-220-240V
Any special voltage is also available as client's request
Comply with GB/T2820-97 (eqv. ISO8528).
Genset can run unlimitedly under certain power range.
One hour 10% overload in every 12 running hours is allowed.
Standby power is the limit value of maximum output for emergency use.
It is off-oil power, overloading is prohibited.

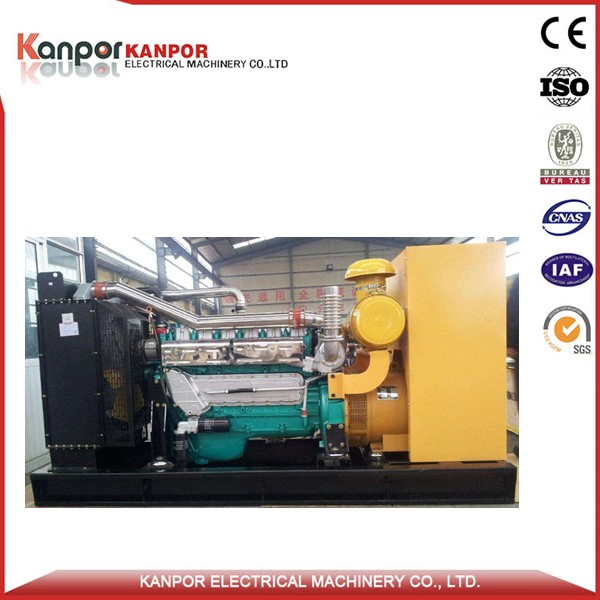

| Model | Standby output (kw/kva) | Prime output (kw/kva) | Engine model | Alternator model |
|---|---|---|---|---|

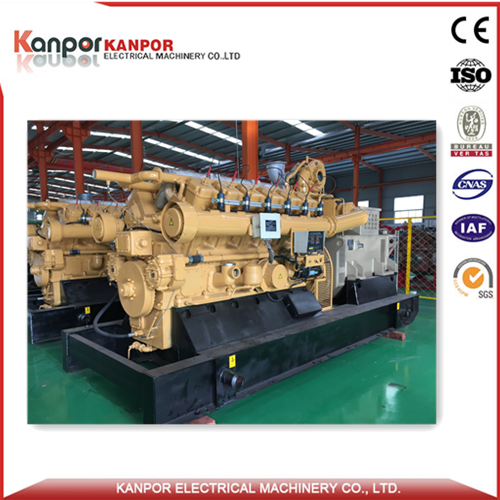

| KP770-LPG | 560/700 | 616/770 | Z12V190ZLDK | 1FC6 456-6 |
| Genset Data | ||||
| Size & Weight (Open type) | 5480x2100x2335mm (14500kgs) | |||
| Frequency | 50Hz | |||
| Standard Features | Radiator 50°C max, fans are driven by belt, with safety guard/Ripple flex exhaust pipe, exhaust siphone, flange, muffler | |||
| Voltage | 400/230V | |||
| Phase & Wires | 3 phase, 4 wires | |||
| Power Factor | COSΦ=0.8 (lagging) | |||
| Battery | 24V | |||
| Fuel Tank | Not included | |||
| Breaker | Standard Breaker | |||
| Engine Data | ||||
| Brand & Model | Z12V190ZLDK | |||
| Cycle | 4 stroke | |||
| Engine Standby Power (kwm) | 700 | |||
| Air Intake Way | Turbo | |||
| Governor | Electronic | |||
| Cylinder | 12 | |||
| Bore*Stroke (mm) | 190*210 | |||
| Displacement (L) | 71.45 | |||
| Fuel Consumption | 10MJ/kw.h against standby power | |||
| Compression Ratio | 15:1 | |||
| Combustion System | Direct injection | |||
| Speed | 1000RPM | |||
| Cooling way | Water cooled | |||
| Alternator Data | ||||
| Brand & Model | 1FC6 456-6 | |||
| Alternator Standby Power | 560KW | |||
| Frequency & Speed | 50Hz, 1000RPM | |||
| Phase & Voltage | 3 phases 4 wires & 400/230V | |||
| System | Brushless AC Synchronous, Single bearing | |||
| Insulation & Protection | H, IP21-23 | |||
| Voltage Regulator | Standard AVR | |||
| Control System | ||||
| Brand & Model | HGM9510 | |||
| Two language interface: Chinese/English | ||||
| Start or Stop Generator set manually / automatically; Open controller output can be defined as pre-heat/idle output. | ||||
| High Coolant temperature protection; Low oil pressure protection. Over speed protection | ||||
| Over load protection; Generator over/under frequency protection: Generator over/under/unbalance voltage protection | ||||
