| Technical Specifications | |
|---|---|
| Model NO. | Z12V280 |
| Output Type | AC Three Phase |
| Gas Source | Natural Gas; Hydrogen; CBM; Biogas; COG |
| Certification | ISO |
| Power | 2200kW |
| Standard | Standard |
| Rated Rotation Speed (Rpm) | 1000 |
| Generating Efficiency | About 42% |
| Exhaust Gas Temperature | Less Than 450 Celsius Degrees |
| NOx Emission | Less Than 250 Mg/M3 |
| Specification | 7.2 × 1.9 × 3.2m |
| HS Code | 850220000 |

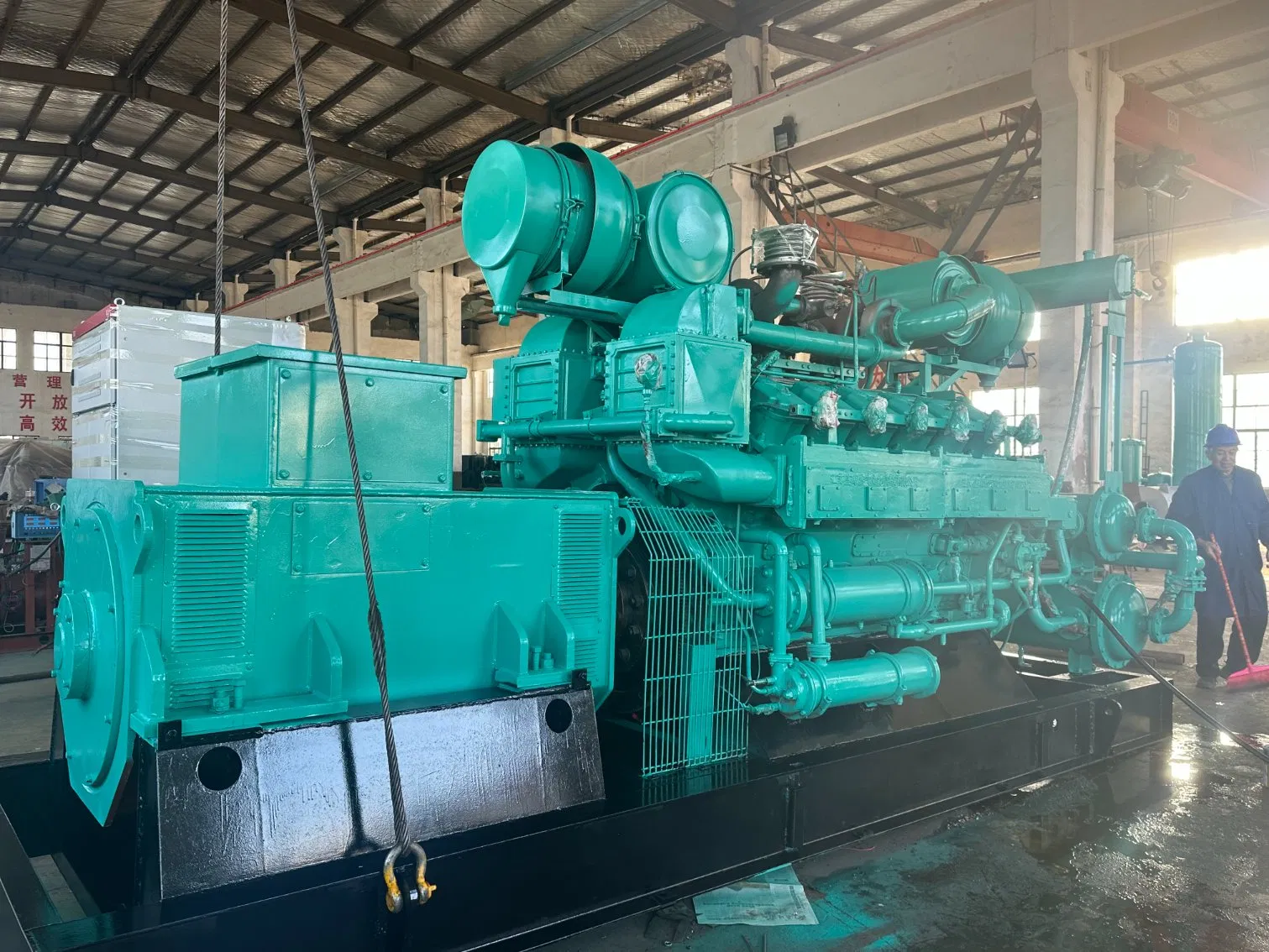

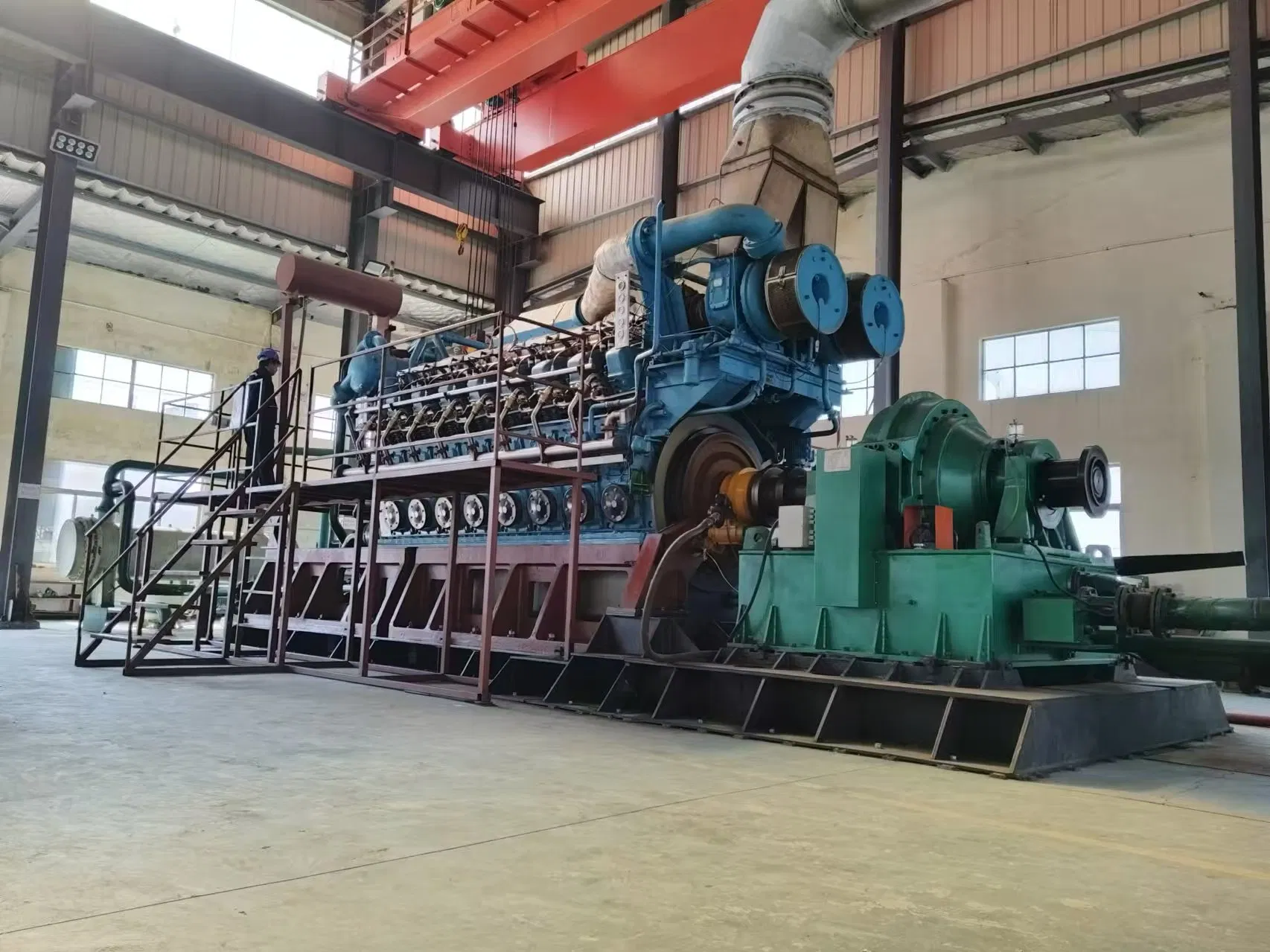

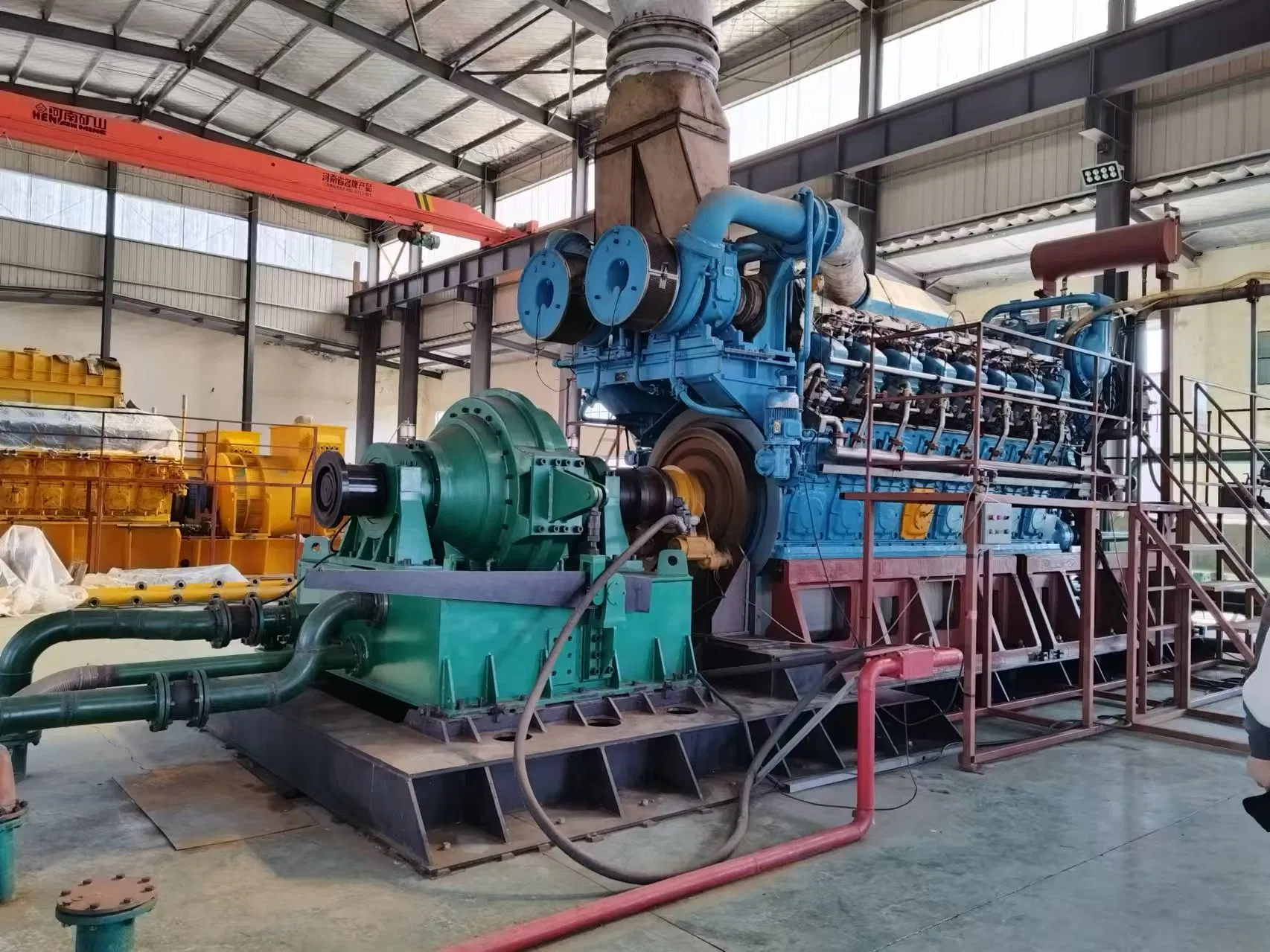

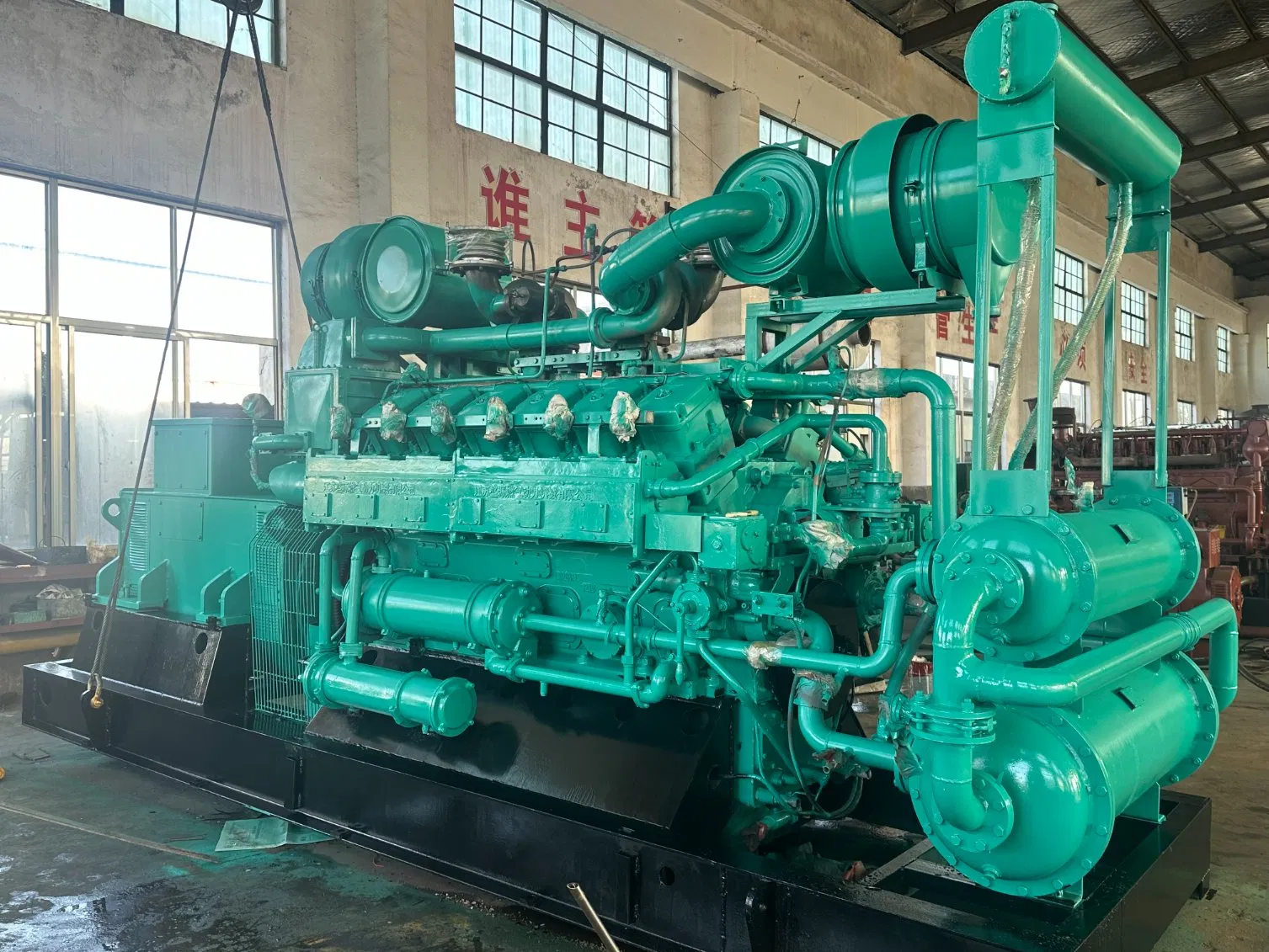

Unrivaled Efficiency and High-Performance Power Solutions
Our groundbreaking 4000kW natural gas generator set is expertly crafted to deliver unrivaled efficiency and performance. This marvel of engineering is designed to set new standards in creative power solutions. NOx Emissions of exhaust gas are impressively controlled at ≤ 500mg/Nm³, with maximum temperatures not exceeding 450 ºC, ensuring environmentally responsible operations.
With over three decades of unmatched expertise, we lead the industry in crafting bespoke gas generator set solutions and pioneering purification systems for exhaust gas. These innovations are designed for global markets, significantly enhancing energy efficiency while drastically curbing emissions.
Our gas generator sets stand as an icon of quality and reliability, offering a formidable power range of 300kW to 5000kW. Renowned for their robustness, these low-speed gensets promise an exceptional operational lifespan exceeding 60,000 hours. Through the integration of direct injection technology, which seamlessly combines pressurized gas with air directly into engine cylinders, our machines ensure optimal fuel efficiency and adapt seamlessly to varying gas qualities.
| Gas Generator Set Parameters | |
|---|---|
| Rated Power (kW) | 2200 |
| Rated Voltage (V) | 10500 |
| Power Factor | 0.8 lag |
| Gas Consumption Rate (kJ/kW·h) | 9000±5% |
| Weight (kg) | 38000 |
| Overhaul Cycle | 60,000 hours |
| Engine Parameters | |
| Model | Z12V280/T |
| Number of Cylinders | 12 (V-type) |
| Bore / Stroke (mm) | 280 / 285 |
| Displacement (L) | 210.5 |
| Starting Method | Air start |
| Generator Parameters | |
| Rated Capacity (kVA) | 2750 |
| Excitation Method | Brushless self-excited |
| Insulation / Protection Class | H-class / IP23 |
* The data provided serves as a preliminary reference guide and should be validated through technical agreement.
