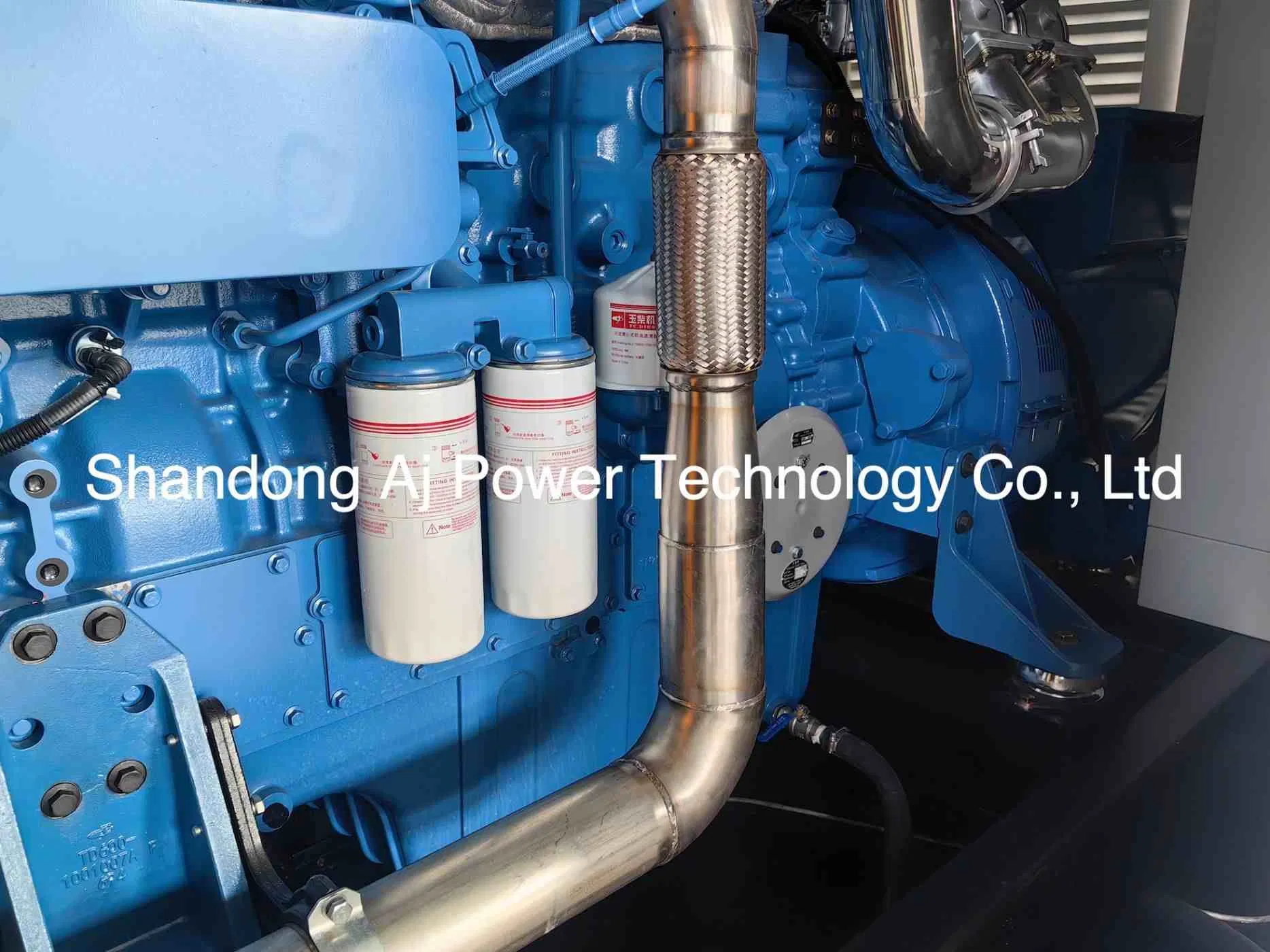

High Quality 300kw 350kw 400kw 500kw Yuchai Weichai Gas Generator Set for Natural/Biogas/LPG/CNG/Propane/Hydrogen/Dual Fuel

Customization:	Available
After-sales Service:	Customized
Warranty:	12 Months or 1500 Hours of Operation

Basic Info.

Model NO.AJG-350

Output TypeAC Three Phase

Gas SourceNatural Gas

CertificationCE, ISO

Power350kw

StandardStandard

Rated Power350kw/437.5kVA

Rated Current450A

Rated Voltage230/400V

Frequency50/60Hz

Speed1500/1800rpm

Regulator BrandMadas

Gas Mixer BrandWoodward

Water Temperature BrandBosch

E-Throttle BrandBosch

Spark Plug BrandTorch

AlternatorBrushless Alternator

Intake MethodTurbo

Cooling MethodWater Cooling

OptionalCHP/ATS/Logo/Silent Canopy

Delivery Time15-25 Days

Transport PackageCustomized

Specification350kw

OriginChina

HS Code8502200000

Production Capacity500 Sets/Month

Packaging & Delivery

Package Size 500.00cm * 240.00cm * 250.00cm

Package Gross Weight 6000.000kg

Product Description

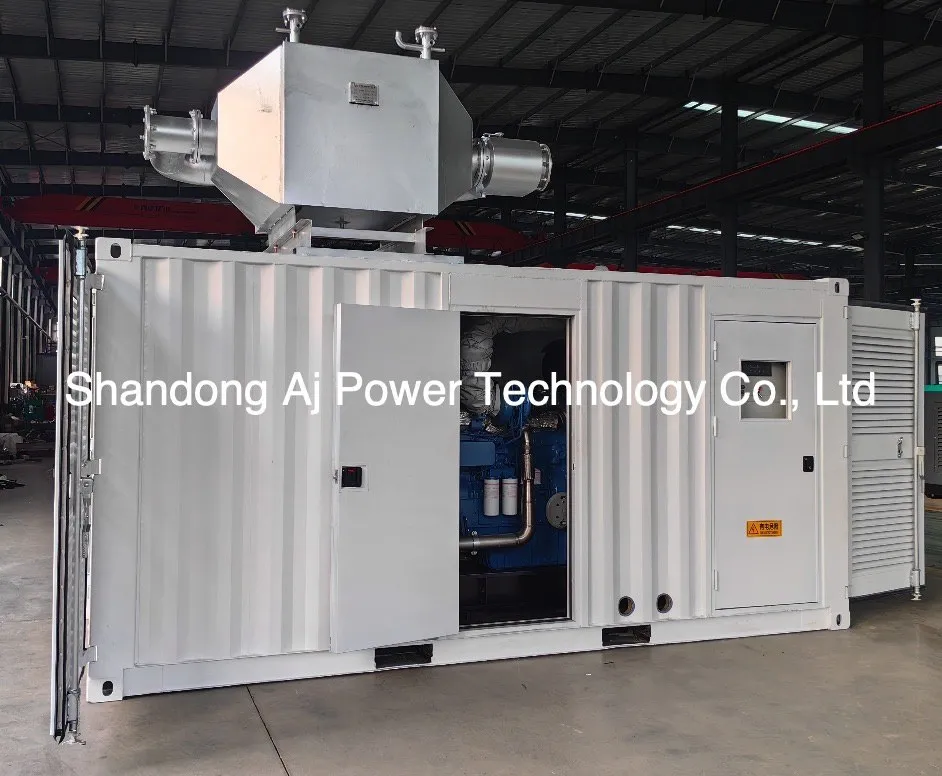

Gas Generator

We independently develop a series of gas-fired units, using lean combustion technology to achieve overall electronic control of gas-fired units. The gas-fired units can use natural gas (CNG, LNG), liquefied petroleum gas (LPG), oilfield associated gas, coalbed methane (gas), and biogas, and are widely used in oil and gas fields, coal mines, landfills, farm biogas power generation, factory power stations, mining power supply combined heat, power, and cooling projects, and other civil fields. At present, the product spectrum covers a power range of 10kW-4000kW.

Specification

Applications & Configuration

Engine: Yuchai original gas engine, advanced design, high reliability.

Gas control system: Woodward, USA, adopts lean combustion technology, can adapt to complex gas sources.

Alternator: 100% pure copper brushless (Leroy Somer, Samford, Mecc Alte, Marathon, etc.), can be customized according to requirements.

Intake valve group: All well-known domestic and foreign brands (MADAS, DUNGS, Madewelle, etc.)

Generator control system: Intelligent monitoring panel with fault diagnosis function (DEIF, CO MAP, DEEP SEA, etc.)

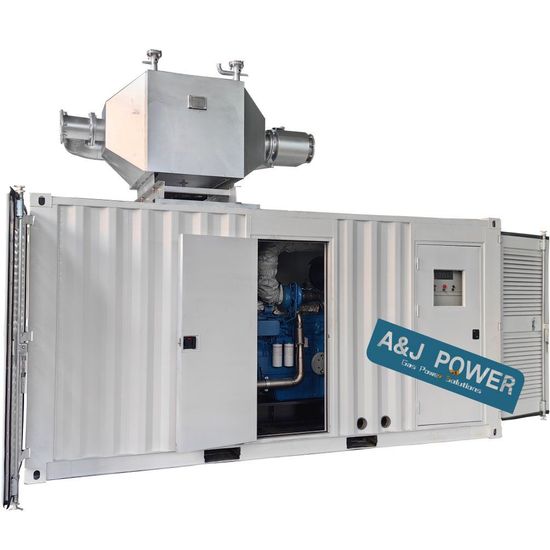

Video display of this product

A professional manufacturer of gas generator/biogas generator/natural gas generator with 20 years of production experience in the industry.

With the new lean combustion technology, high energy ignition and Venturi mixer, the natural gas power generation efficiency can reach >3.7kw.h/m³. Through the optimization of gas engine inlet and exhaust duct, all cylinders work evenly, exhaust smoothly, and greatly reduce cylinder temperature and exhaust temperature. The exhaust temperature in front of the turbine is only 600±10 degree centigrade. The service life of the gas generator set is 2 to 3 times that of the industry average.

Product Elevations

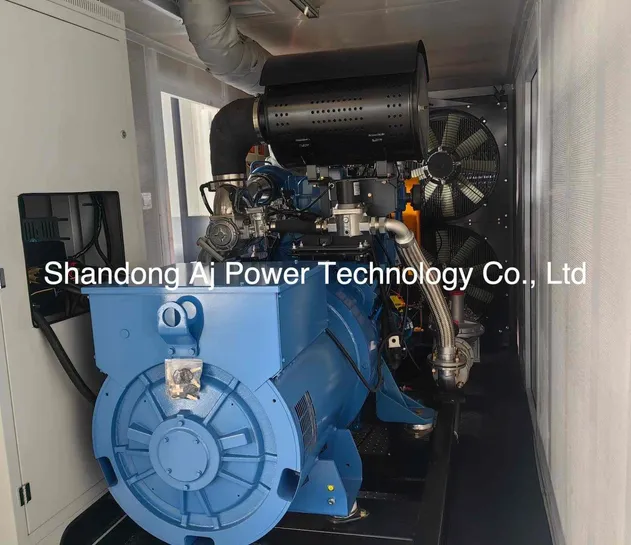

Right Elevation

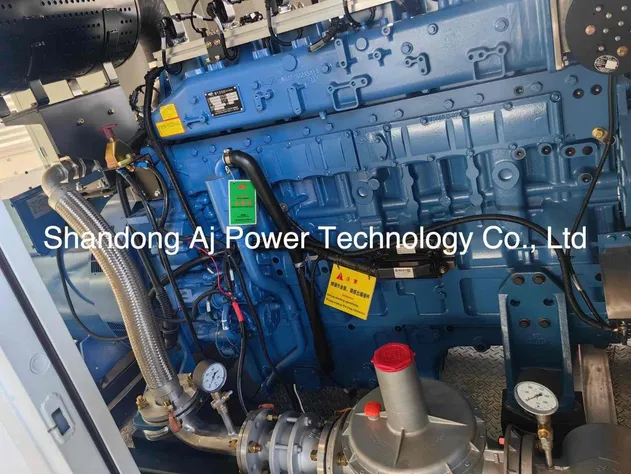

Left Elevation

Front Elevation

Technical Specifications

(Custom configurations available upon request.)

Gas Generator Set Parameters
Model	AJG-350	Rated Power	350kw/437.5kVA
Certificate	CE, EAC	Continuous Power	300KW/375KVA (CH4 ≥ 90%)
Gas Engine Performance Parameters
Brand	YUCHAI	Model	YC6TD600N-D30
Type	Water-cooled, four-stroke, inline six-cylinder	Rated Power/Speed	400KW/1500RPM
Cylinders - Bore*Stroke	L6 - 152 * 180 mm	Displacement	19.6 L
Intake Method	Turbocharger intercooler	Gas Consumption (100% Load)	≤105 (m³/h)
Oil Capacity	56 L	Starting Method	24V DC
Alternator Performance Parameters
Brand	FIRST ALL	Model	QYI-314FM
Rated Power	350KW/437.5KVA	Voltage Regulation	≤±1
Voltage Regulator	Brushless, Self Excitation	Excitation Method	H
Gas Control System
Brand	Woodward, USA	Mixer	Woodward Venturi Mixer
Adopts technologies such as high-energy ignition, lean combustion, and exhaust gas bypass.
Genset Control System Parameters
Controller Brand	DEIF	Controller Model	AGC150
Operation Method	Manual/Automatic	Communication Method	RS485/Modbus/CAN
Realize automatic start and stop, data measurement, alarm protection and "three remote" functions of the generator set.

Project Cases

Over the years, we have installed a large number of generators around the world, with a total capacity of 420MW.

After Sales Service

Standard Warranty: 12 months or 1,500 operating hours (whichever comes first).
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.

Gas generator sets are power equipment. After the engine runs for a long time, it is inevitable that problems such as wear and aging will occur. Regular maintenance is like a "physical examination" for the engine. It can detect and solve potential problems in time to prevent them from happening. Ensure that the engine always maintains the best operating state.

Replace the engine oil and filter

The engine oil is the blood of the engine. Regularly replacing the engine oil and filter can reduce wear and extend the life of the engine.

Check and replace the spark plug

The spark plug is a key component for igniting the combustible mixture. Regular inspection and replacement can ensure the normal operation of the ignition system and avoid engine starting difficulties or unstable operation.

Clean and check the cooling system

The cooling system is responsible for taking away the heat generated by the engine and maintaining its normal operating temperature. Regular cleaning and inspection prevents blockage or leakage of the cooling system to ensure that the engine is not damaged by overheating.

Check and adjust the transmission system

The transmission system is responsible for transmitting the power of the engine to the load. Regularly check its working status and adjust and replace the worn parts in time to ensure transmission efficiency and reduce energy loss.

Comprehensive inspection and tightening

Combined with the maintenance manual, formulate a personalized maintenance plan for each engine, and conduct a comprehensive inspection of the engine regularly, such as tightening loose bolts and nuts to prevent damage or falling off of components caused by vibration.

Use genuine accessories

The generator sets produced can provide genuine accessories. Using genuine parts can extend the life of your generator.

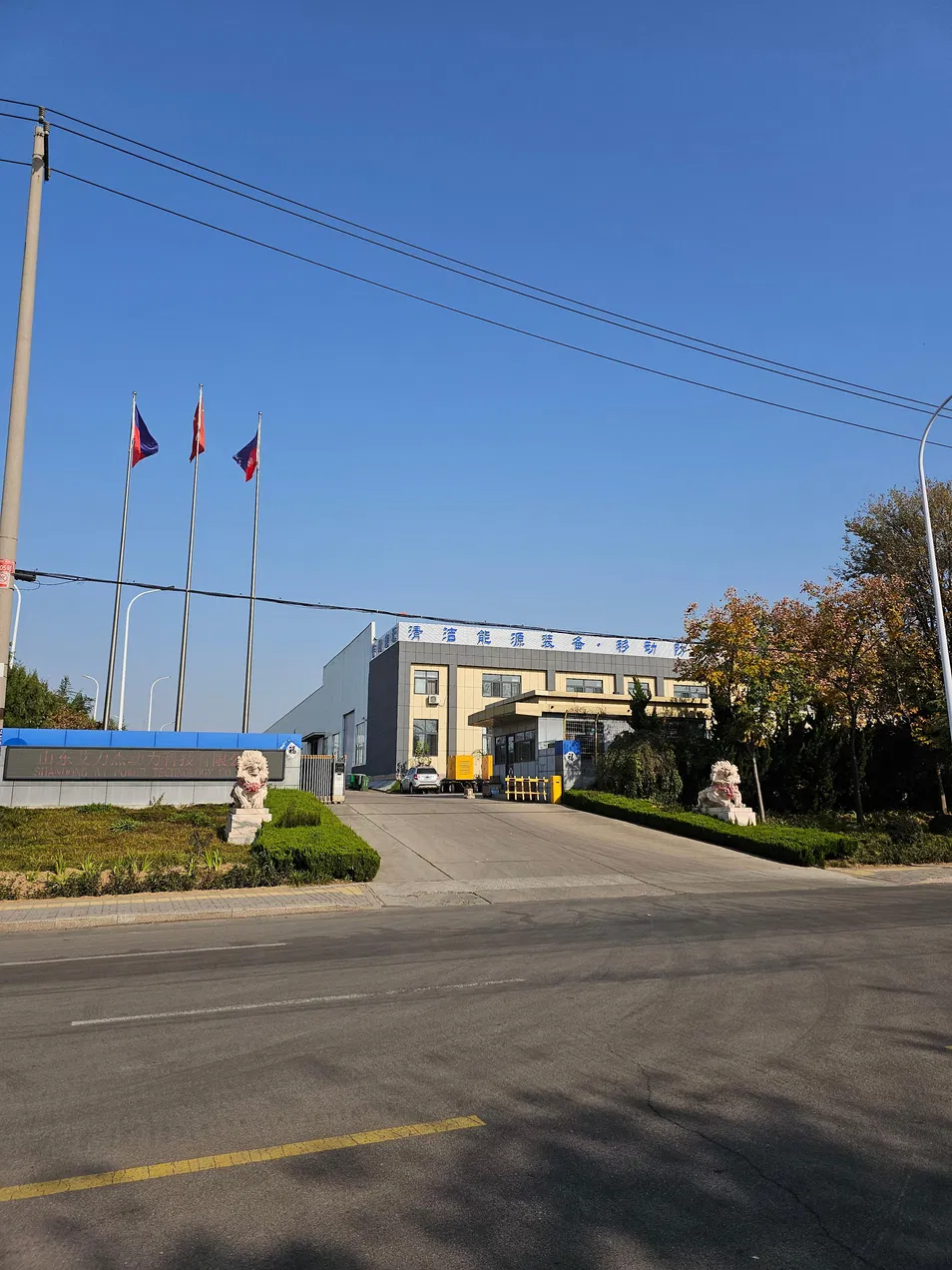

Company Profile

Why Choose Us?

Produced in the original factory, no middlemen to make a profit.
OEM/ODM capabilities.
Competitive pricing & bulk discounts.
Fast shipping & customs clearance support.
Turnkey project solutions.

Our generator sets offer higher point efficiency, lower operating costs, high flexibility, and optimized configuration to meet diverse application requirements.

Our generator sets can meet emergency, backup, primary, and continuous power generation needs in any challenging environment. When you need power, our equipment takes on the challenge, proving its worth in a wide range of commercial and industrial power generation applications.

We are committed to providing reliable products, high-quality services and strong technical support, and becoming a professional power solution expert. This has been throughout our various businesses and innovations. We are committed to providing reliable products, high-quality services and strong technical support, making full use of resources, saving costs and energy, and protecting the environment.

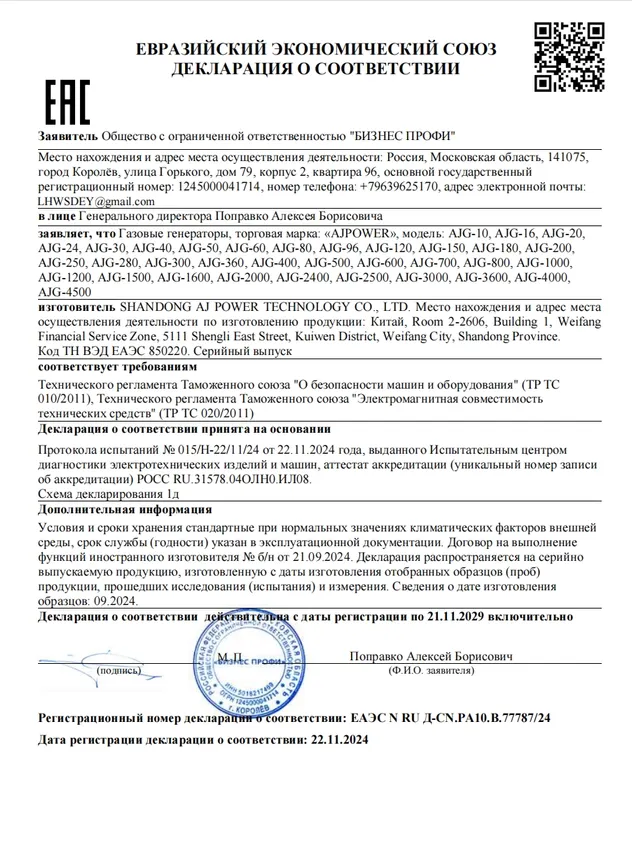

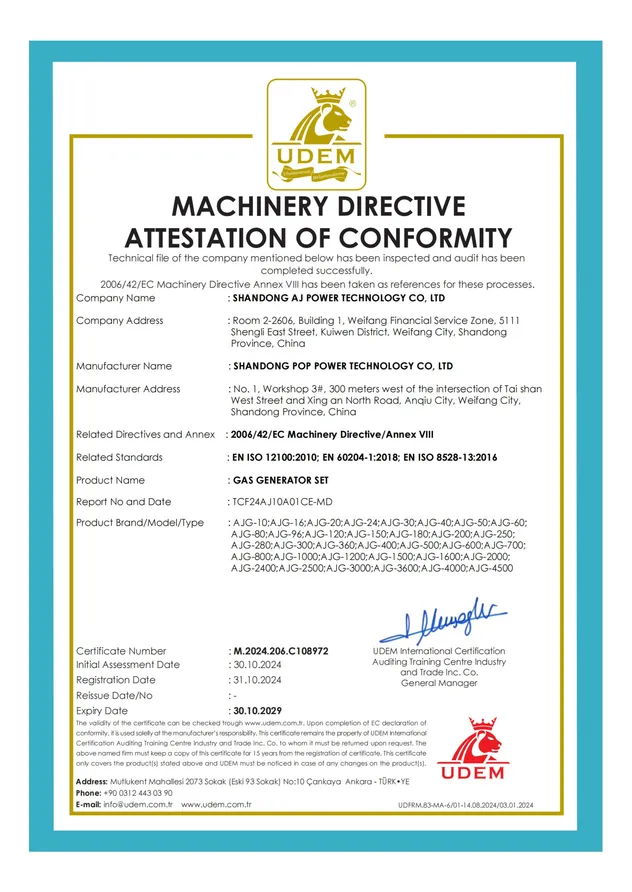

Certifications

Frequently Asked Questions

How long is the order delivery cycle?

The delivery time for standard models is 15-25 days; the delivery time for customized models is 30-45 days. Welcome to place an order and inquire.

Do you provide overseas after-sales service?

Yes, we have cooperative service centers in major regions.

Can I request a customized generator set?

Of course! Please state the size, configuration and other requirements before placing an order, and we will make a customized plan according to the requirements.

What export documents do you provide?

We provide complete export packaging documents, including commercial invoice, packing list, bill of lading, product certificate, etc.

How to place an order?

Contact us to get a quote, and then confirm with a purchase order.

What is the standard warranty for these gas generator sets?

The standard warranty is 12 months or 1,500 operating hours (whichever comes first), with optional extended warranty coverage up to 36 months.
