| Key Product Details | |
| Model NO. | AJG-250 |
| Output Type | AC Three Phase |
| Gas Source | Natural Gas |

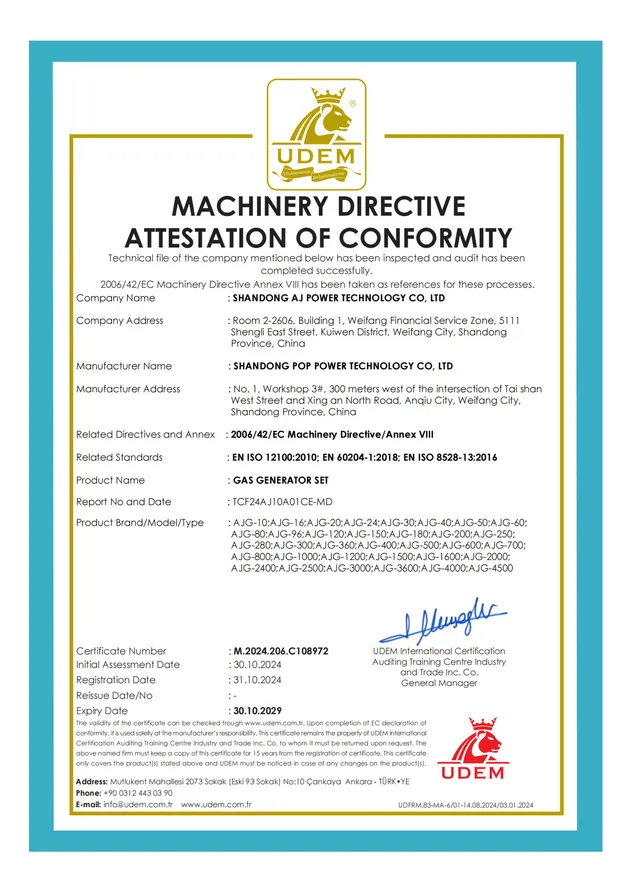

| Certification | CE, ISO |
| Power | 250kw |
| Standard | Standard |
| Rated Power | 250kw/312.5kVA |
| Rated Current | 450A |
| Rated Voltage | 230/400V |
| Frequency | 50/60Hz |
| Speed | 1500/1800rpm |
| Component Specifications & Logistics | |
| Regulator Brand | Madas |
| Gas Mixer Brand | Woodward |
| Water Temp Brand | Bosch |
| E-Throttle Brand | Bosch |
| Spark Plug Brand | Torch |
| Alternator | Brushless Alternator |
| Intake Method | Turbo |
| Cooling Method | Water Cooling |

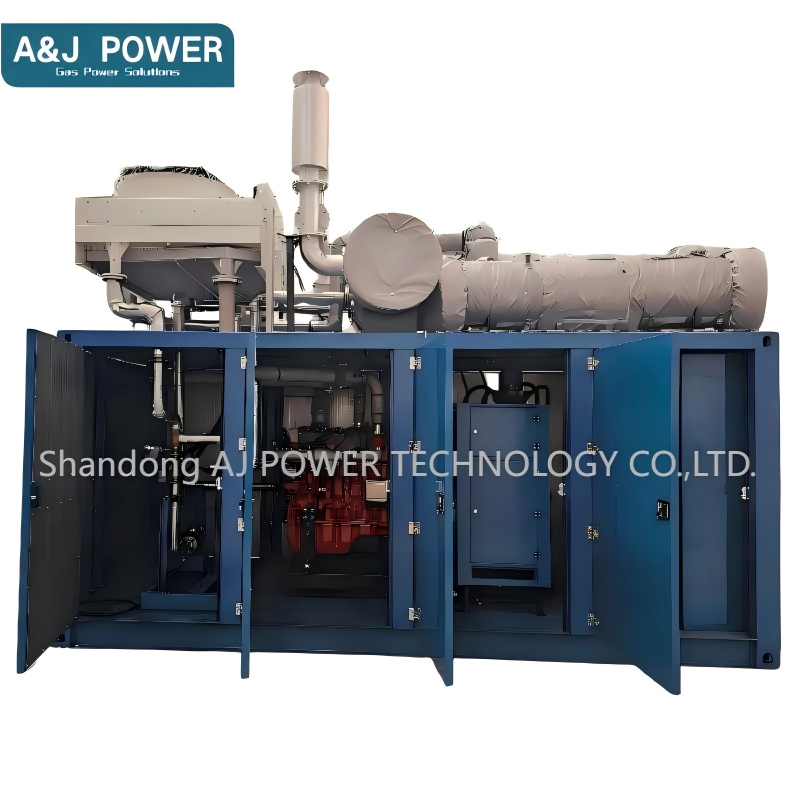

| Optional Configurations | CHP/ATS/Logo/Silent Canopy |
| Package Size | 600.00cm * 230.00cm * 240.00cm |
| Package Gross Weight | 7000.000kg |
We independently develop a series of gas-fired units, using lean combustion technology to achieve overall electronic control of gas-fired units. The gas-fired units can use natural gas (CNG, LNG), liquefied petroleum gas (LPG), oilfield associated gas, coalbed methane (gas), and biogas, and are widely used in oil and gas fields, coal mines, landfills, farm biogas power generation, factory power stations, mining power supply combined heat, power, and cooling projects, and other civil fields. Our product spectrum covers a power range of 10kW-4000kW.
With advanced lean combustion technology, high-energy ignition, and a Venturi mixer, the natural gas power generation efficiency can reach >3.7kw.h/m³.
Through optimized intake and exhaust duct designs, all cylinders perform evenly and smoothly. This significantly lowers cylinder and exhaust temperatures, maintaining the exhaust temp in front of the turbine at only 600±10°C, extending service life by 2 to 3 times compared to industry averages.
Custom configurations are available upon request.
| Gas Generator Set Parameters | |||
| Model | AJG-250 | Rated Power | 250KW/312.5KVA |

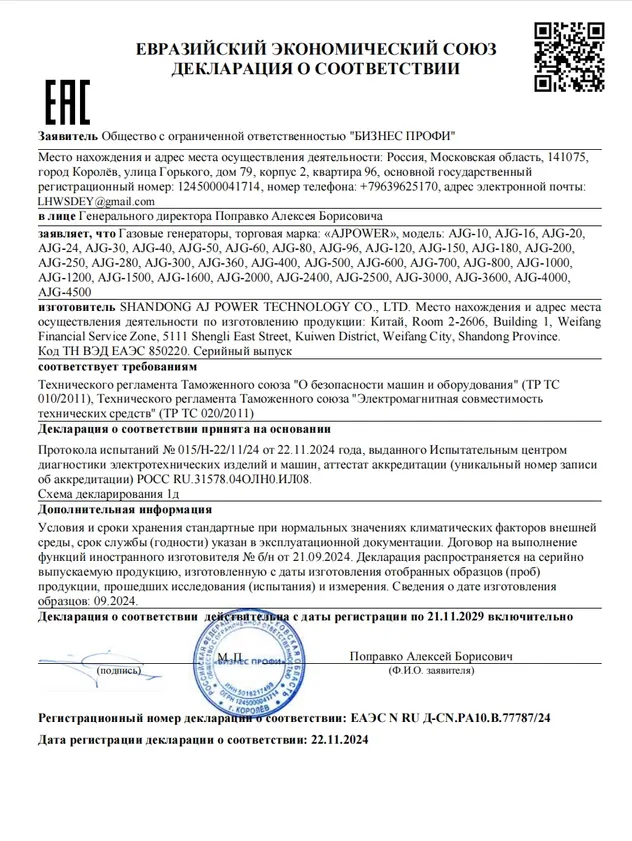

| Certificate | CE, EAC | Continuous Power | 200KW/250KVA (CH4 ≥ 90%) |
| Gas Engine Performance Parameters | |||
| Brand | YUCHAI | Model | YC6K420N-D30 |
| Type | Water-cooled, four-stroke, inline six-cylinder | Rated Power/Speed | 281KW / 1500RPM |
| Cylinder Bore & Stroke | L6 - 129 * 155 mm | Displacement | 12.94L |
| Intake Method | Turbocharger intercooler | Gas Consumption (100% Load) | ≤75 m³/h |
| Oil Capacity | 32L | Starting Method | 24V DC |
| Alternator Performance Parameters | |||

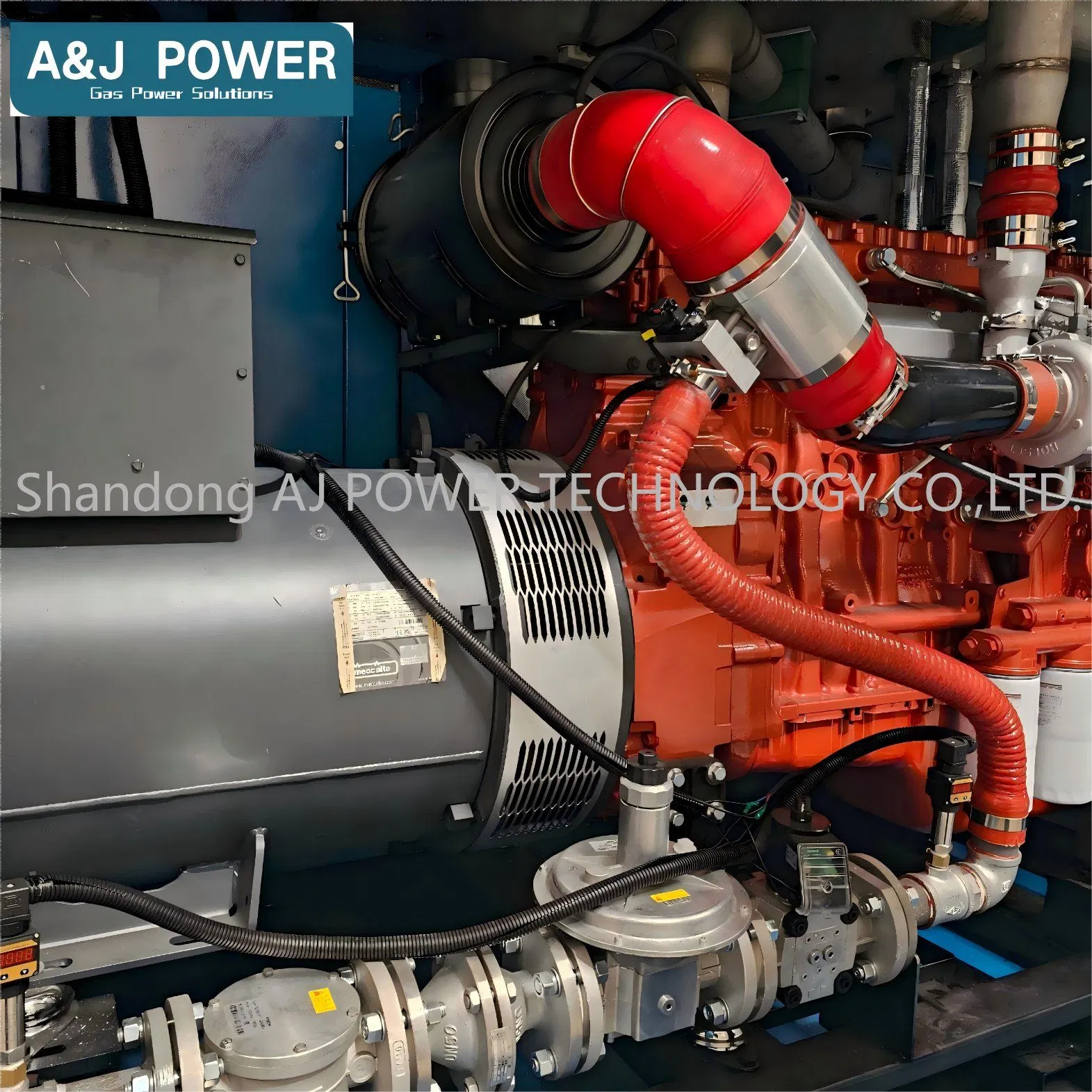

| Brand | Mecc Alte | Model | ECO38 3L4A |
| Rated Power | 280KW/350KVA | Voltage Regulation | ≤±1% |
| Voltage Regulator | Brushless, Self Excitation | Excitation Method | H |
| Gas Control & Control System Parameters | |||
| Gas System Brand | Woodward, USA | Mixer Type | Woodward Venturi Mixer |
| Adopts advanced technologies including high-energy ignition, lean combustion, and exhaust gas bypass. | |||
| Controller Brand | DEIF | Controller Model | AGC150 |
| Operation Method | Manual / Automatic | Communication Method | RS485 / Modbus / CAN |
| Features automatic start/stop, data measurements, alarm protection, and remote operation functions. | |||
| Thermal & Structural Parameters | |||

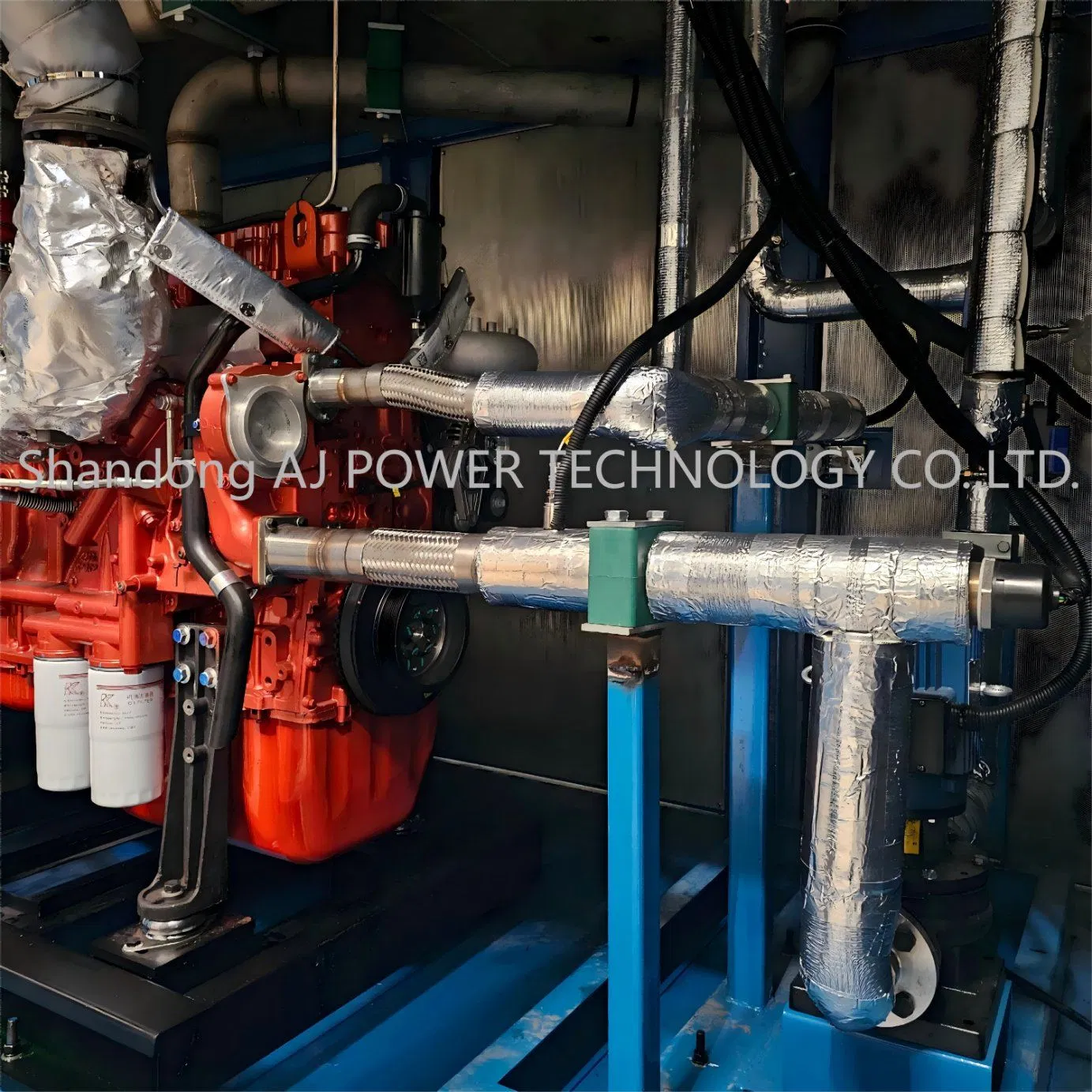

| Rated Thermal Power | 384KW | Rated Outlet Water Temp | 85℃ |
| Supply/Return Water Temp | 20℃ / 60℃ | Water Pressure Resistance | 3bar |
| Rated Water Flow Rate | 16.4 / 5.5 m³/h | Water Resistance | 50kPa |
| Rated Thermal Efficiency | 51% | Rated Overall Efficiency | 86% |
| Flue Gas Volume | 1200 m³/h | Flue Gas Temperature | 120℃ |
| Length * Width * Height | 5284mm * 1540mm * 2480mm | Unit Noise | 75dB(A) @ 1m |
Over the years, our gas generator systems have been successfully installed worldwide, delivering a total combined capacity of 420MW.
Regular maintenance acts as a reliable preventive checkup for your generator. Proper servicing prevents unexpected down-time and maintains peak running efficiency.
Regularly replace the engine oil and filter to minimize internal component wear and extend engine life.
Inspect and replace spark plugs timely to guarantee smooth engine start-ups and prevent power instability.
Clean and verify the cooling loop to prevent blockages, leakage, or engine overheating damage.
Check running status and replace worn components promptly to secure transmission efficiency and prevent power loss.
Adhere to standard maintenance schedules. Inspect all bolts, nuts, and joints to avoid vibration-induced loose parts.
Always use authentic, manufacturer-approved replacement parts to optimize performance and longevity.
Our generator sets offer high electrical efficiency, minimal operational costs, superb installation flexibility, and optimized layouts to satisfy diverse industrial requirements.
Designed to cope with challenging conditions, these systems efficiently handle emergency, backup, and continuous power generation needs.
