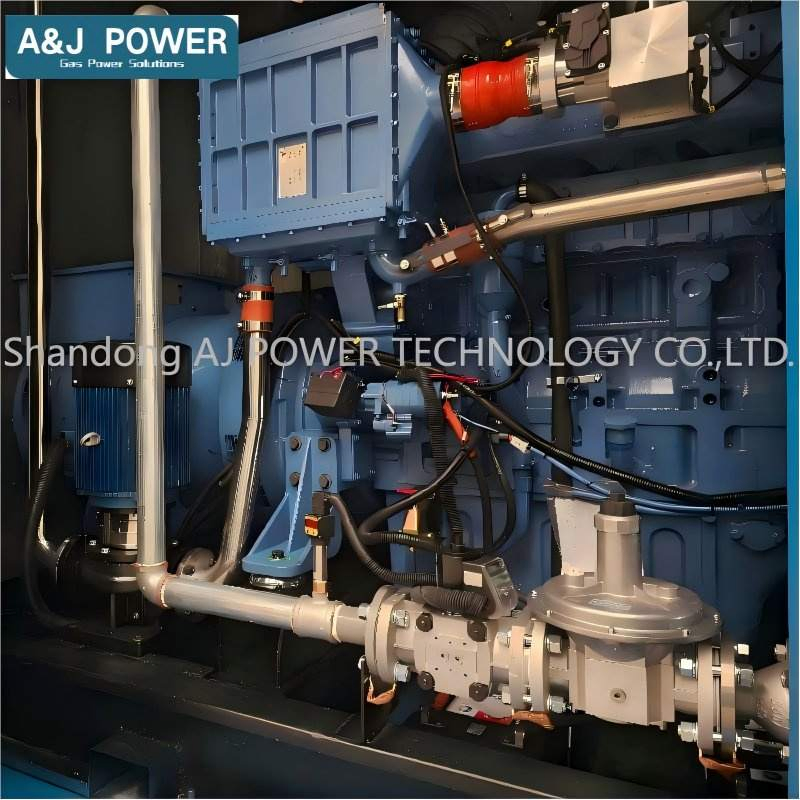

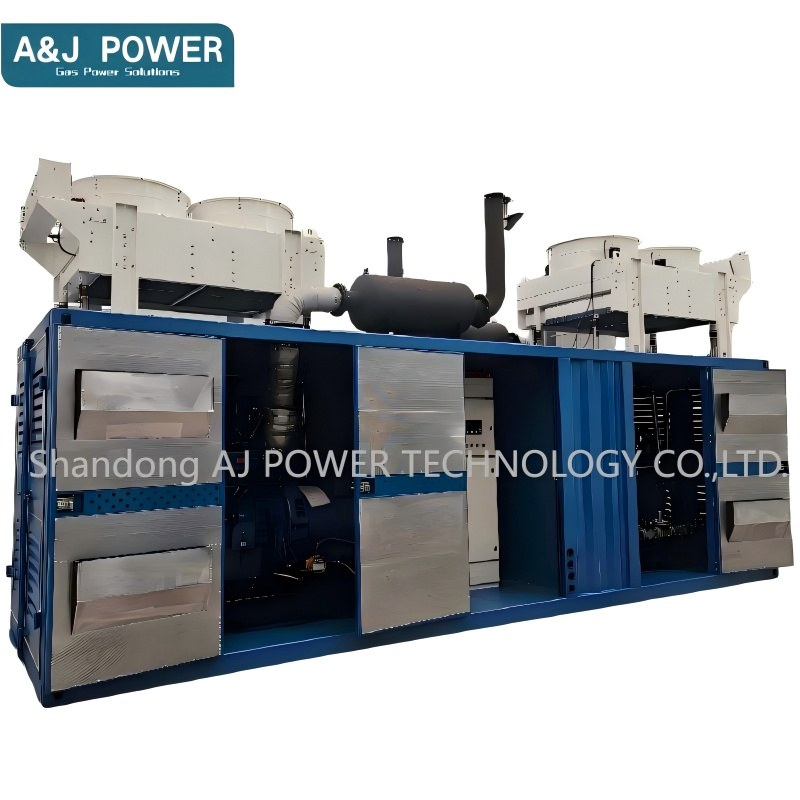

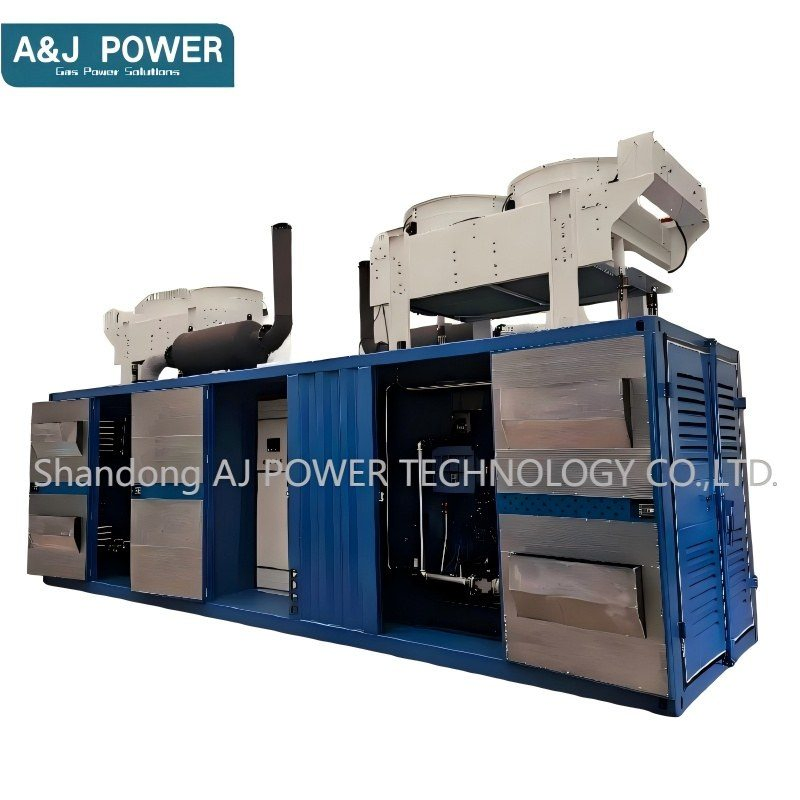

500kw 600kw 700kw 800kw Heavy-Duty Yuchai Natural Gas Generator Set LNG CNG Dual Fuel for Bitcoin Mining Farm

Customization: Available
After-sales Service: Customized
Warranty: 12 Months or 1500 Hours of Operation

Product Description

  • Overview
  • Product Parameters
Basic Info.
Model NO. AJG-700
Output Type AC Three Phase
Gas Source Natural Gas
Certification CE, ISO
Power 700kw
Standard Standard
Rated Power 700kw/875kVA
Rated Current 450A
Rated Voltage 230/400V
Frequency 50/60Hz
Speed 1500/1800rpm

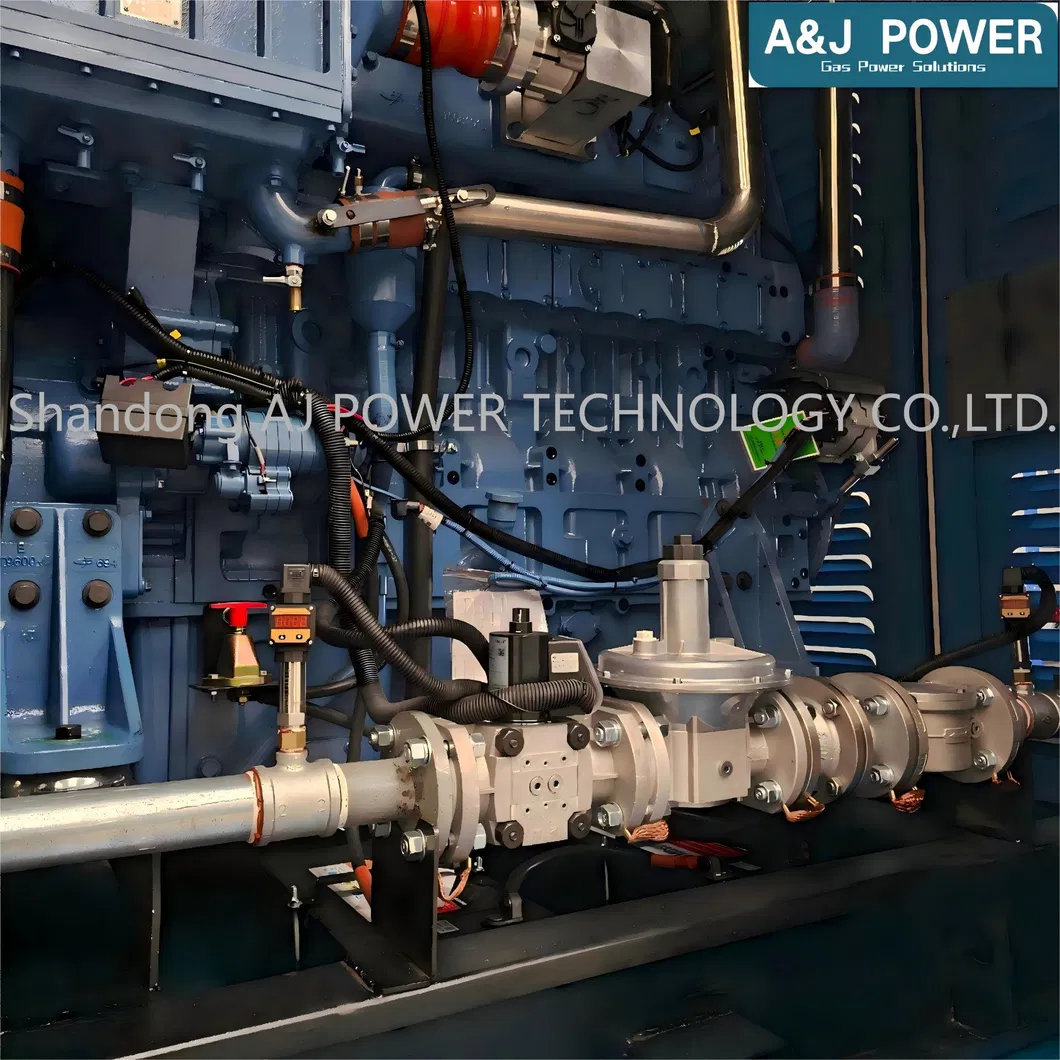

Regulator Brand Madas
Gas Mixer Brand Woodward
Water Temperature Brand Bosch
E-Throttle Brand Bosch
Spark Plug Brand Torch
Alternator Brushless Alternator
Intake Method Turbo
Cooling Method Water Cooling
Optional CHP/ATS/Logo/Silent Canopy
Delivery Time 15-25 Days
Transport Package Customized
Specification 700kw
Origin China
HS Code 8502200000
Production Capacity 500 Sets/Month
Packaging & Delivery
Package Size 350.00cm * 160.00cm * 180.00cm
Package Gross Weight 3300.000kg
Product Description

The enterprise can be traced back as early as 2004 and is composed of a number of engine and generator companies. It is mainly engaged in the research and development and production of diesel engines, gas engines, diesel generator sets and gas generator sets. The factory covers an area of 60000 square meters, including the production department, technical department, and international trade department. More than 50 employees.

The company has passed ISO9001 quality management system certification, ISO14001 environmental management system certification, OHSAS18001 occupational health and safety system certification, Saudi SASO certification, EU CE certification.

Diesel generator sets range from 6.5KW to 4000KW. The units are selected from well-known brand diesel engines such as MTU, Ricardo, Yangdong and other famous brands such as Marathon and Farrand.

Gas generator sets range from 2kW to 4500kW, and are divided into natural gas generator sets, biogas generator sets, liquefied petroleum gas generator sets and biomass gas generator sets.

The company has self-support import and export rights, and the products are exported to foreign countries, especially the Southeast Asia, Middle East and Central Asian countries along the Belt and Road. At present, the company has established long-term and stable cooperative relations with more than 20 countries including Asia, Africa and America.

Product Parameters
Model AJG-700
Rated power (kW/KVA) 700/875
Rated voltage (V) Three-phase 220/380
Frequency (Hz) 50
Rated current (A) 450
Size (mm) 3500*1600*1800
Weight (kg) 1850

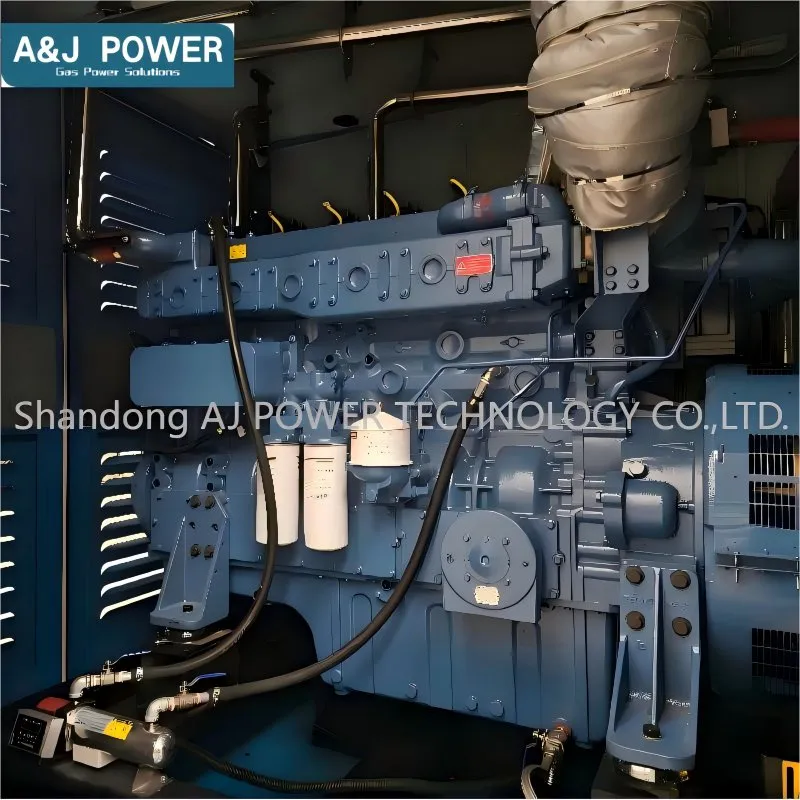

Engine Brand YUCHAI
Model 6TD
Type Four-stroke, Water-cooling, Inline 6 cylinders
Rated Power(kW) 294
Rated Speed(rpm) 1500
Cylinder No. 6
Bore*Stroke(mm) 129×165
Cooling Method Water-cooling
Oil Consumption(g/KWH) ≤1
Consumption(Nm³/Kw*h) ≤0.3
Starting method 24V DC
Alternator Brand PUDELI
Model PDL-250
Rated Power(kW/KVA) 250/312.5
Efficiency 92.5%
Voltage Regulation ≤±1
Excitation mode Brushless, Self Excitation
Insulation Class H

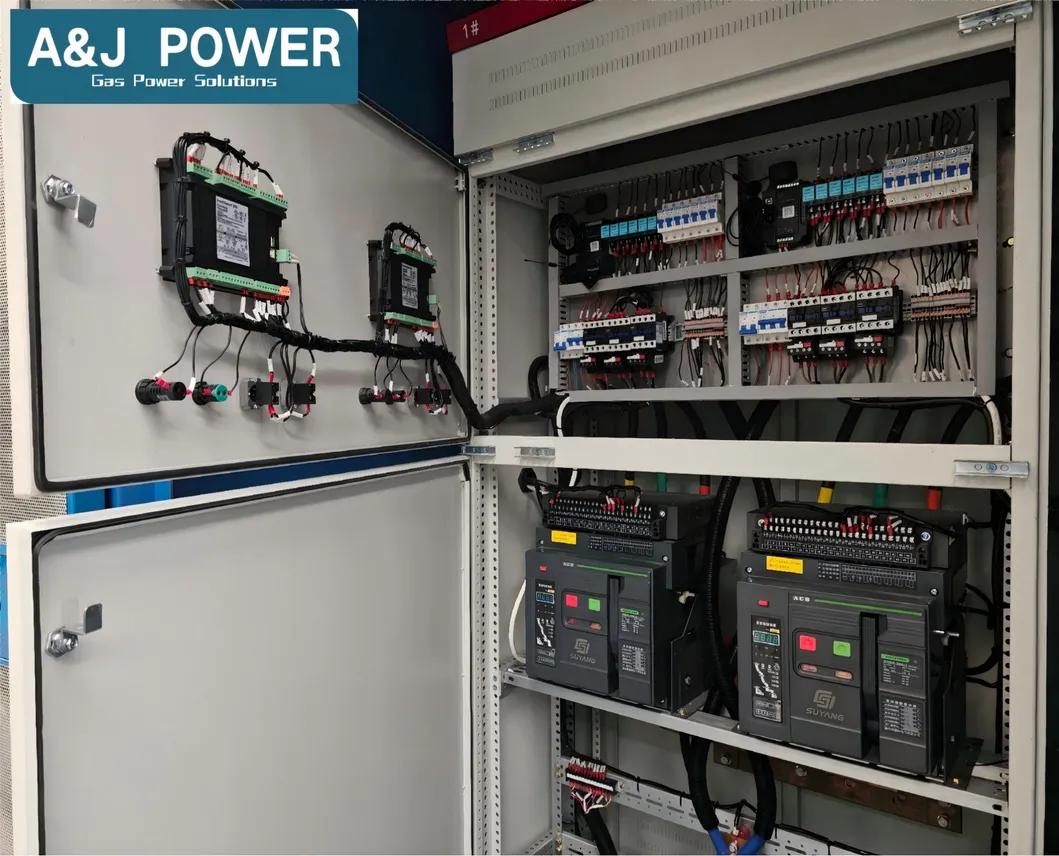

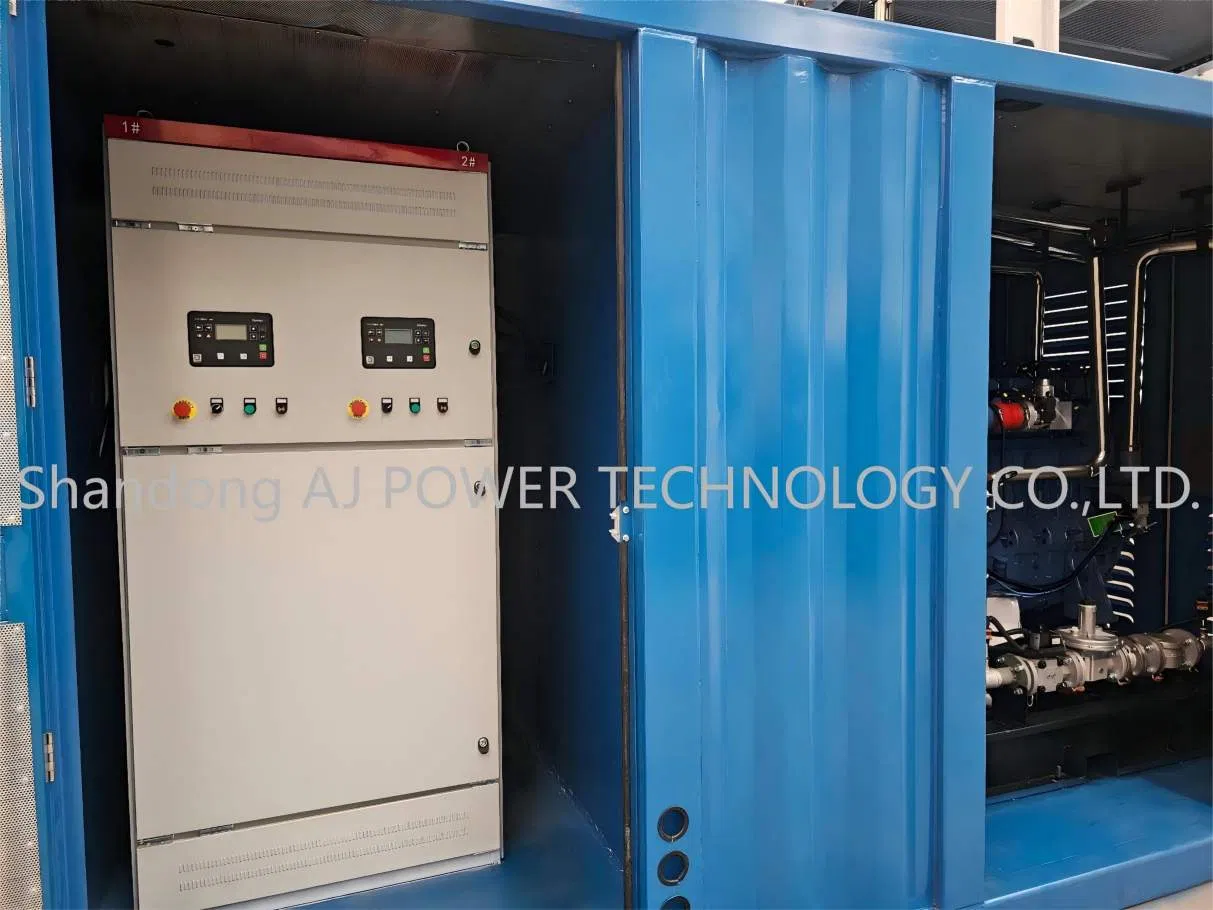

Control System Model DES 6020
Working Voltage DC8.0V - DC35.0V
Overall Dimensions 266 mm x 182 mm x 45 mm
Panel Cutout 214mm x 160mm
Working Condition Temperature: (-25~+70)°C Humidity: (20~93)%
Weight 0.95kg
Product Gallery
Frequently Asked Questions
Q1: What are the primary gas sources supported by these generator sets?
A1: The gas generator sets are highly versatile and compatible with Natural Gas (LNG/CNG), Biogas, Liquefied Petroleum Gas (LPG), and Biomass Gas.
Q2: What engine brand is utilized in the AJG-700 model?
A2: The AJG-700 model is powered by a high-performance YUCHAI 6TD engine, featuring a four-stroke, water-cooling, inline 6-cylinder configuration.
Q3: What are the rated power output details for this generator set?
A3: The model has a rated power output of 700kW (875kVA), operating at a rated voltage of 230/400V, rated current of 450A, and a frequency of 50/60Hz.
Q4: What certifications does the manufacturing system hold?
A4: The products and facilities comply with international quality and safety benchmarks, holding ISO9001, ISO14001, OHSAS18001, Saudi SASO, and European Union CE certifications.
Q5: Are custom configurations available for these generator sets?
A5: Yes, multiple optional setups can be integrated, including Combined Heat and Power (CHP) systems, Automatic Transfer Switches (ATS), custom logos, and silent canopies.
Q6: What is the typical packaging and shipment standard?
A6: Each unit is securely customized inside a package measuring approximately 350.00cm * 160.00cm * 180.00cm, with a gross weight of about 3300kg. Deliveries are typically scheduled within 15-25 days.
