High-Efficiency 50/60Hz 1500rpm Dual Fuel Diesel Hydrogen Nitrogen Natural Gas Biomass Biogas Methane 250kw Natural Gas Turbine Power Generator Set for Sale
1 / 5

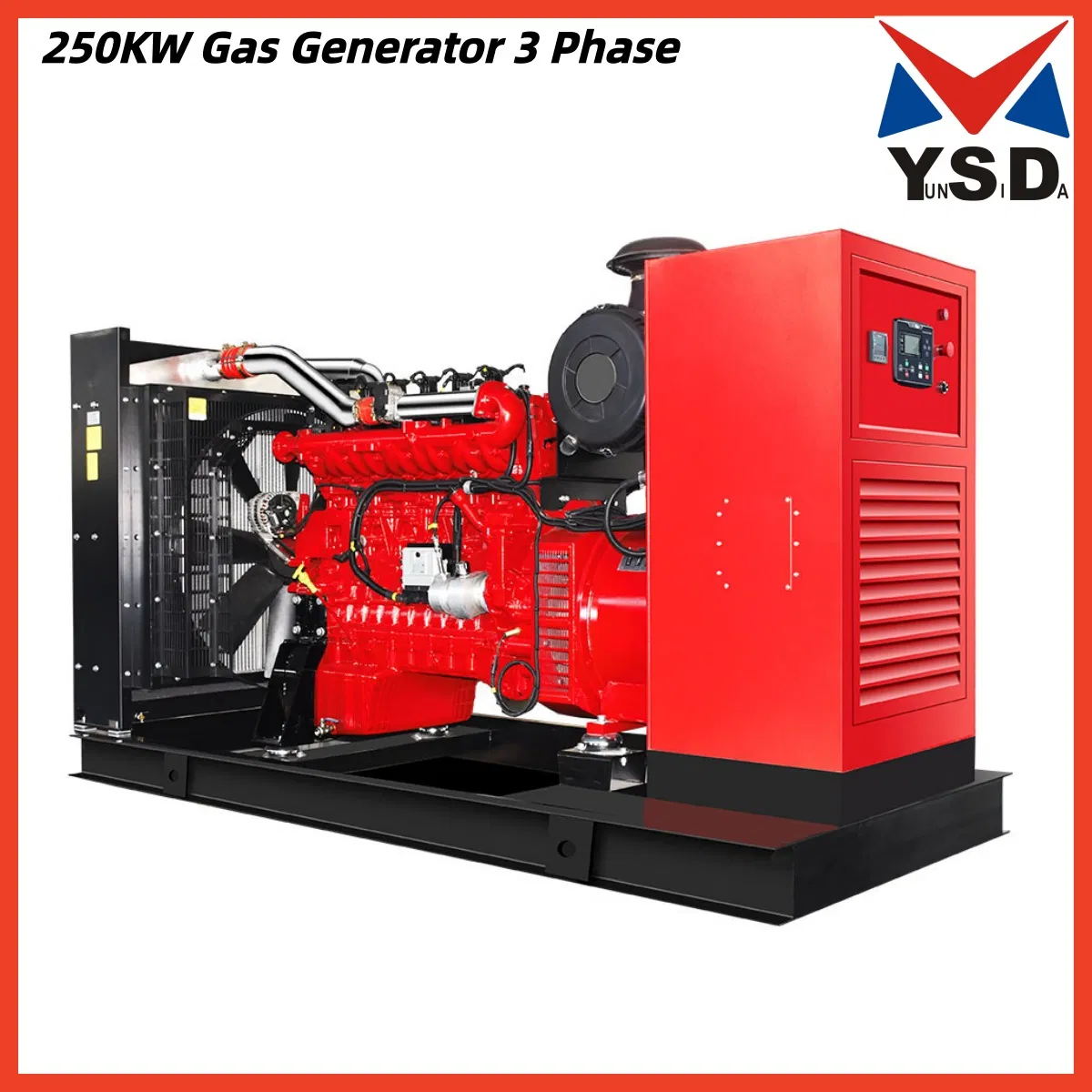

High-Efficiency 50/60Hz 1500rpm Dual Fuel Diesel Hydrogen Nitrogen Natural Gas Biomass Biogas Methane 250kw Natural Gas Turbine Power Generator Set for Sale

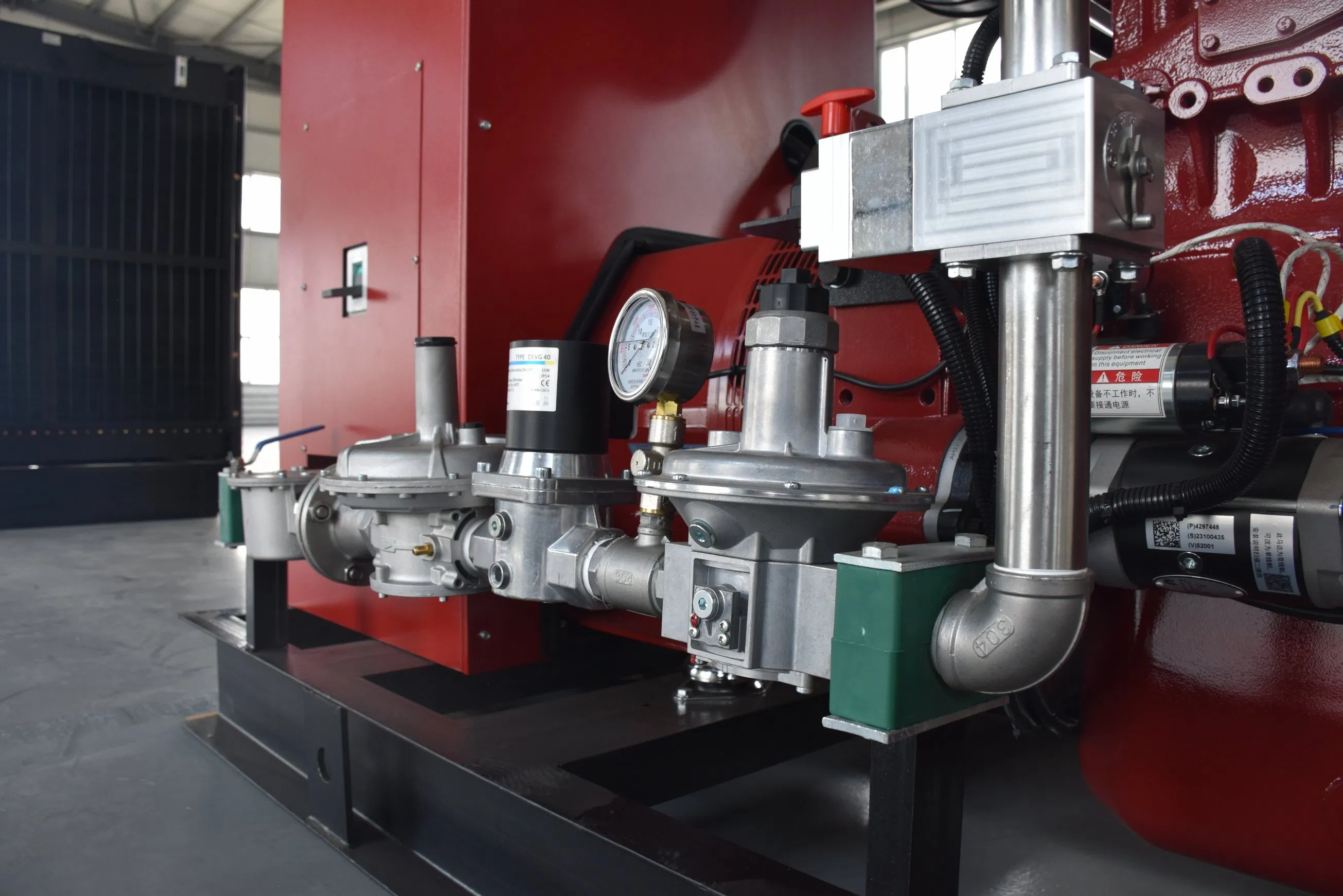

Our gas generator set adopts a new lean combustion technology, combined with high-energy ignition and Venturi mixer. The natural gas power generation efficiency can reach >3.7kw.h/m³. By optimizing the intake and exhaust passages of the gas engine, each cylinder can work evenly and exhaust smoothly, significantly reducing cylinder temperature and exhaust temperature. The exhaust temperature before the turbine is only 600 ± 10 ºC, and the service life of the gas generator set is 2-3 times the industry average.
Technical Specifications Overview
✓Engine:Commins
✓Alternator:Faraday
✓Frequency:50/60Hz
✓Gas Consumption:71 m³/hour
✓Certificates:ISO, CE, EAC
✓Warranty:8000 Hours or 1 Year
Specifications & Delivery
Basic Info
Model NO.WL250
Output TypeAC Three Phase
Gas SourceGas
CertificationCE, TLC, ISO, CCC, EAC
Power＞200kW
StandardStandard
Rated Speed1500rpm
Frequency50Hz
Rated Current450A
Weight2800kgs
TrademarkYSD
OriginChina
Production Capacity5000 Set/Year
Packaging & Delivery
Package Size350.00cm * 170.00cm * 210.00cm
Package Gross Weight2900.000kg
Lead Time
15 Days (1-1 Set) To Be Negotiated (>1 Set)
Dimension3300*1600*2000mm
Intake SystemWater Cooled Turbocharged
Displacement14L
Compression Ratio12:1
Engine Oil Consumption<1.9g/Kw.H
Exhaust Gas Temp625 Degree
Fuel Supply MethodPre-Mix
Lubricating Oil Capacity36L
Coolant Capacity85L
Transport PackageStandard Export Package

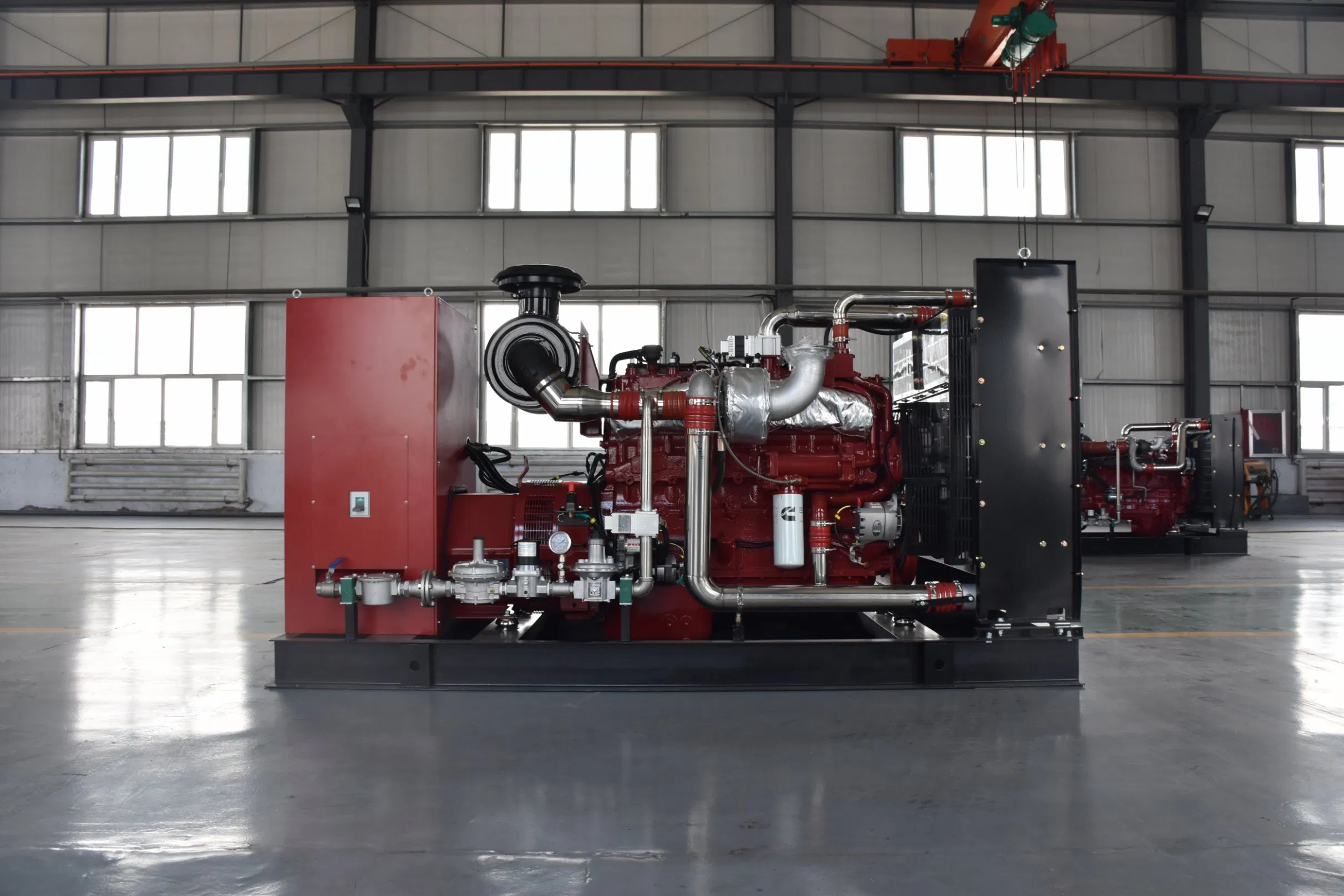

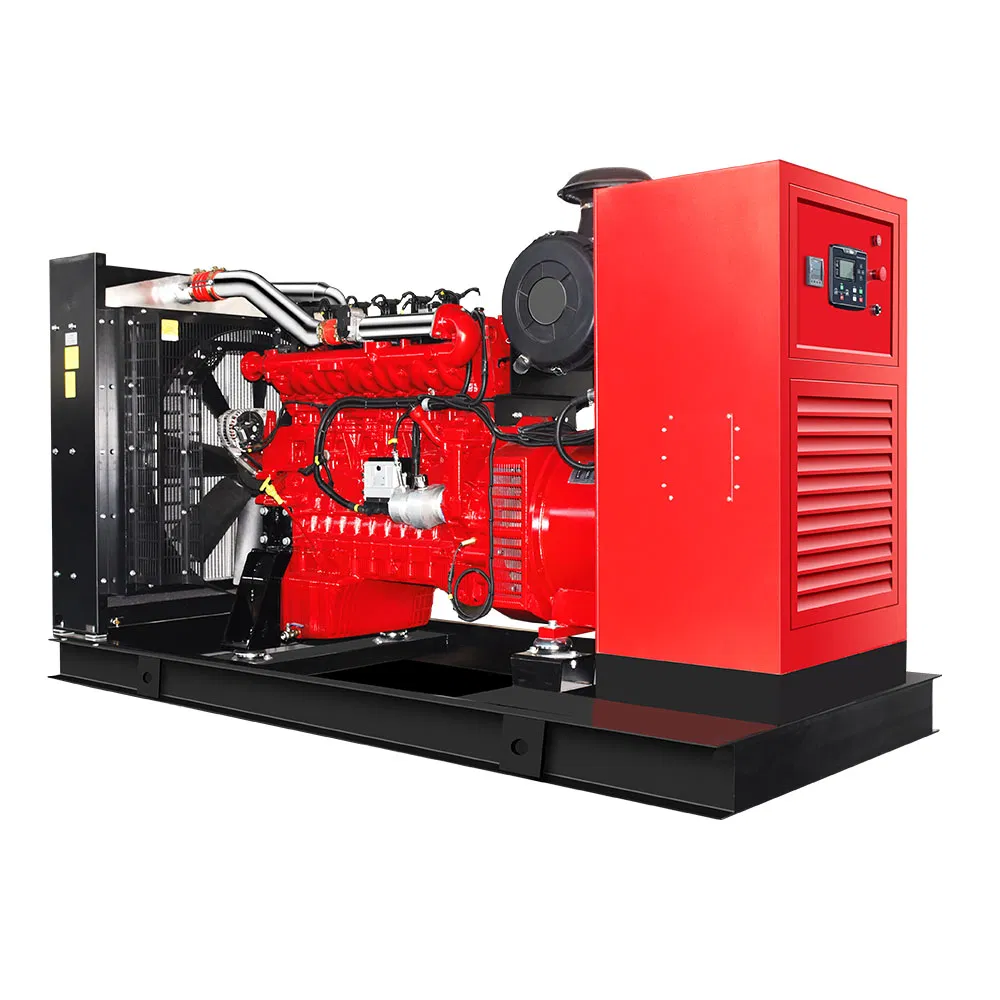

Product Gallery

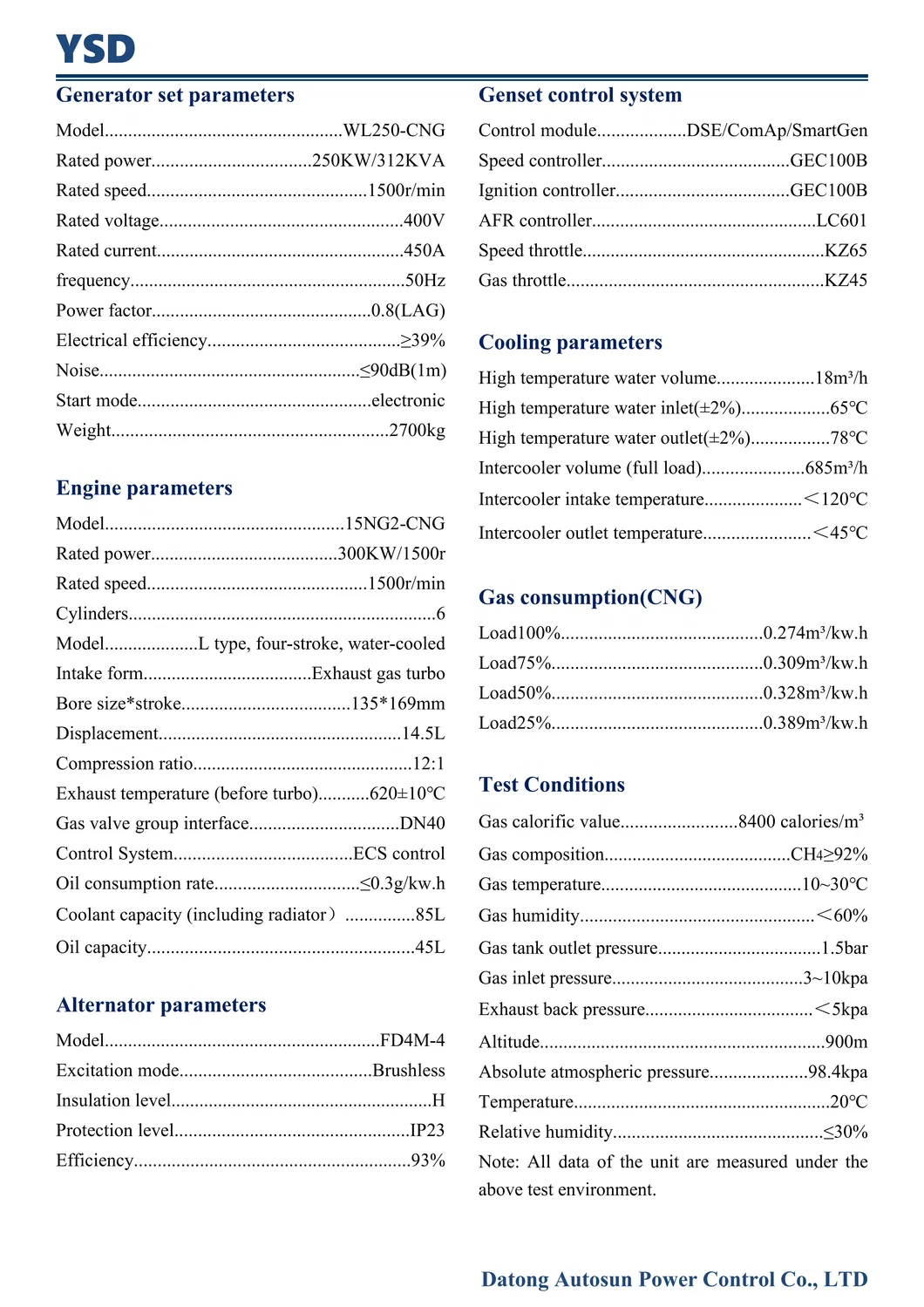

Detailed Specifications
NO.
ITEM
Data
1
Model
WL250
2
Basic Power (KW)
250
3
Back up power (KW)
250
4
Rated speed
1500rpm
5
Frequency
50HZ
6
Rated current (A)
450
7
Dimensions (mm)
3300*1600*2000mm
8
Weight (kg)
2800
9
Rated voltage
400V/230V
10
Exhaust gas temperature (ºC)
625±50
11
Excitation mode
brushless
12
Insulation class
H
13
Protection level
IP23
14
Voltage regulation mode
automatic adjustment

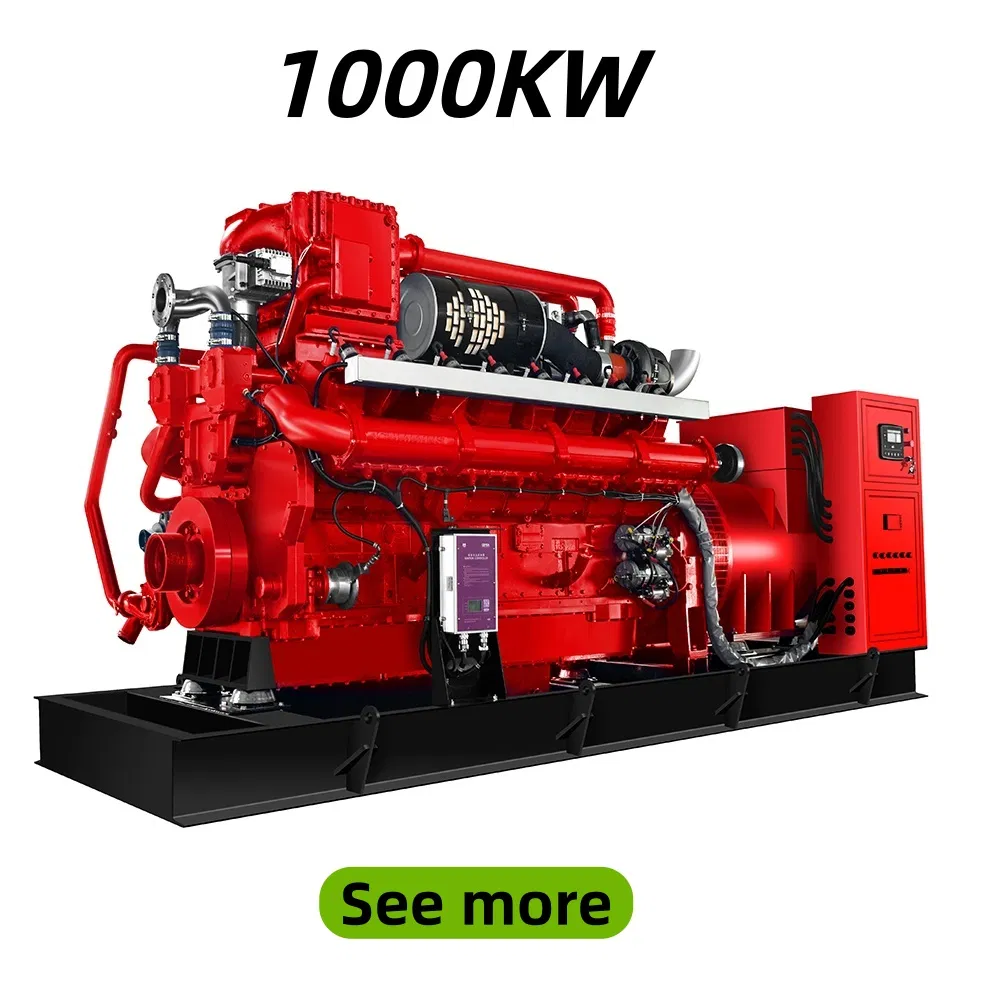

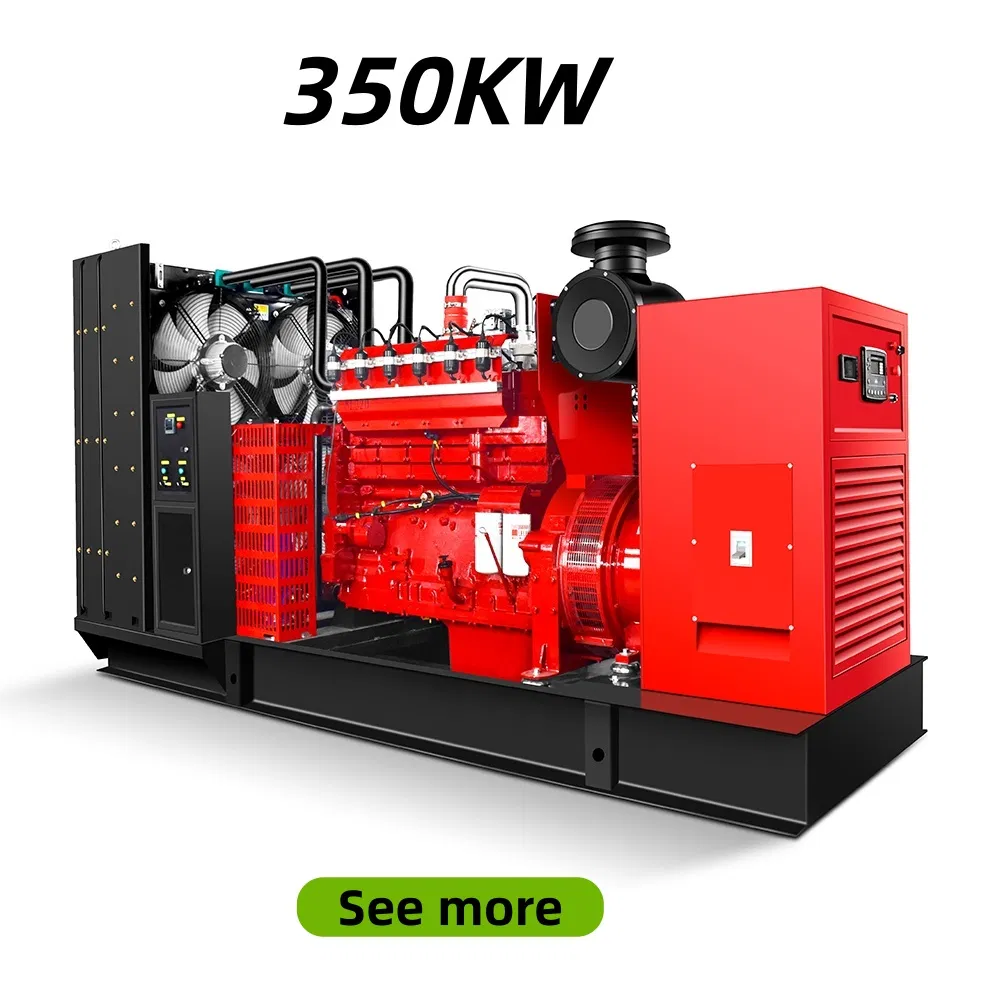

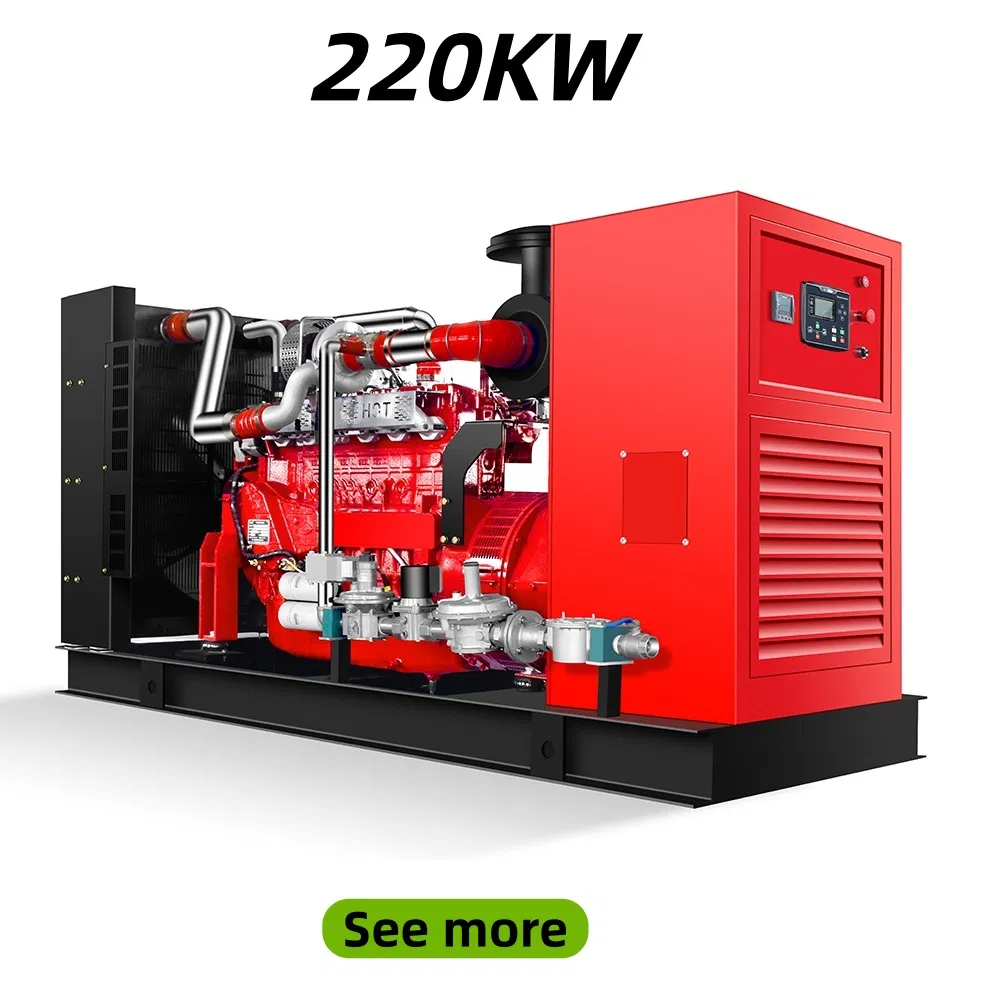

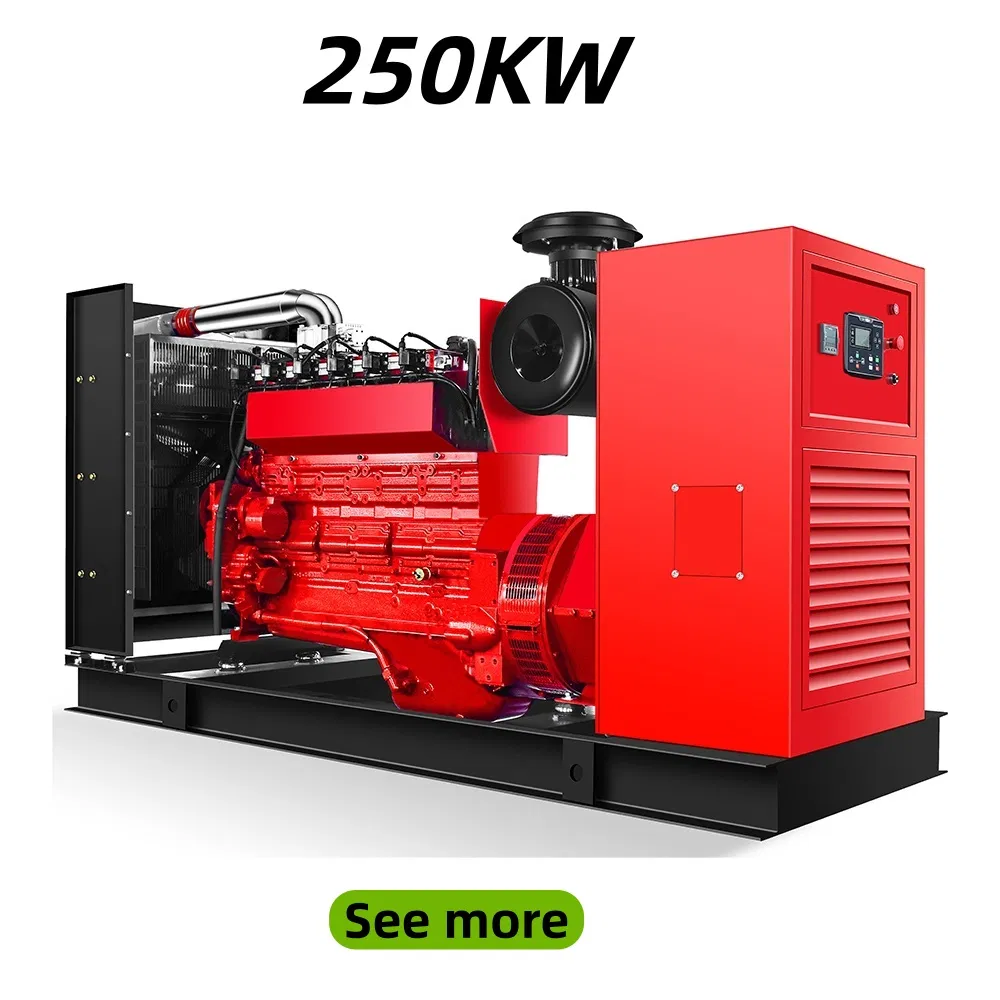

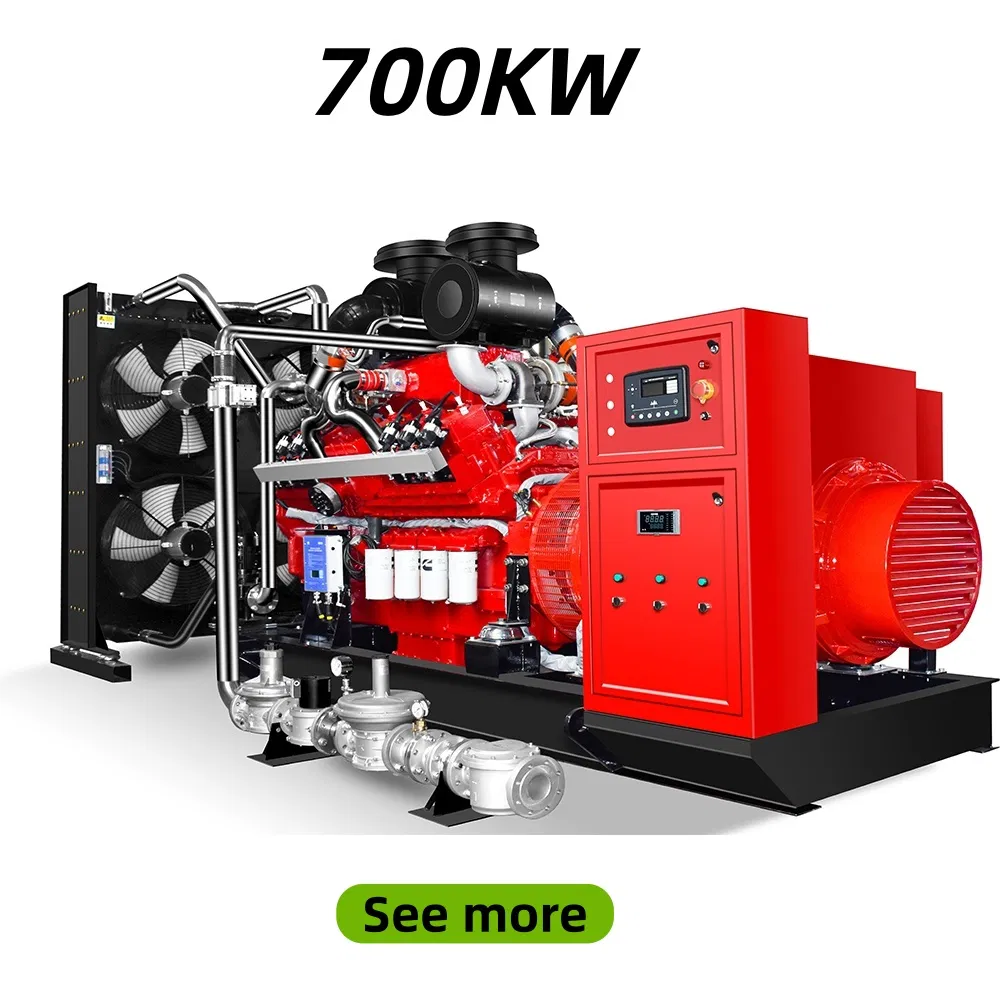

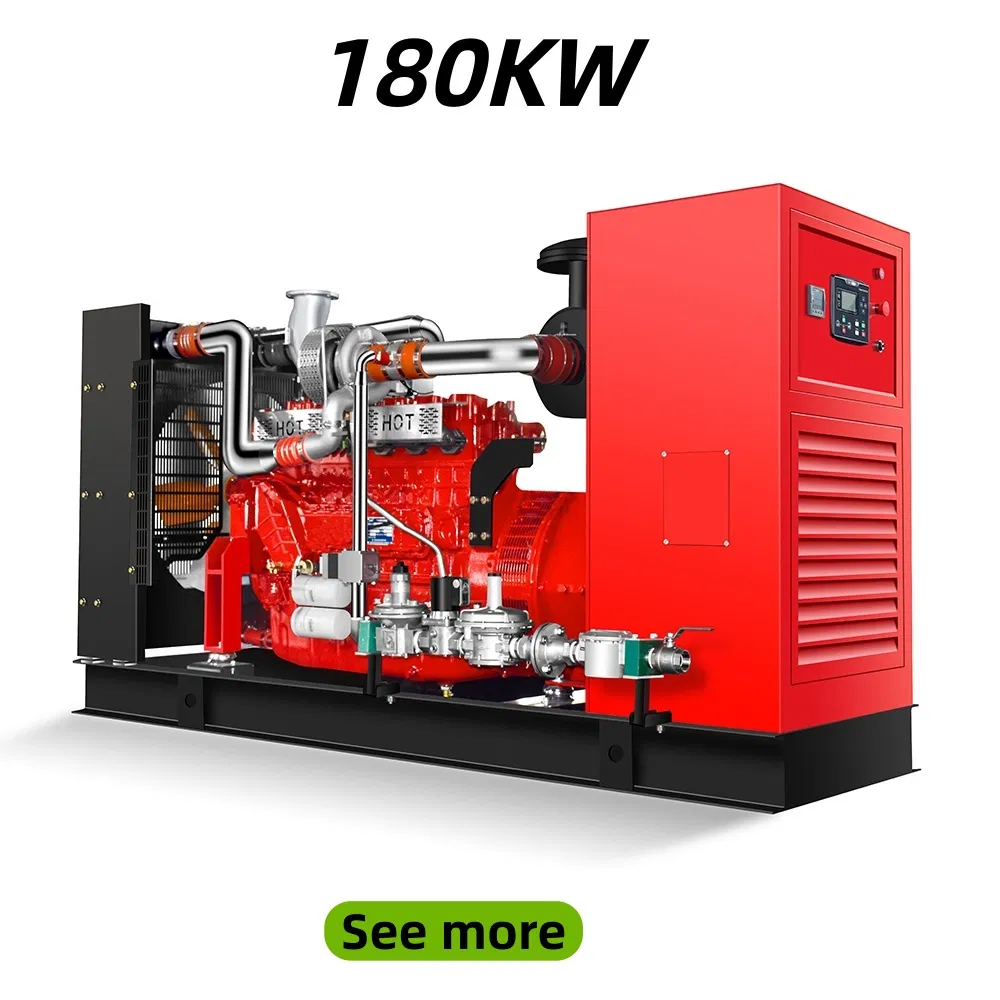

Main Product Line

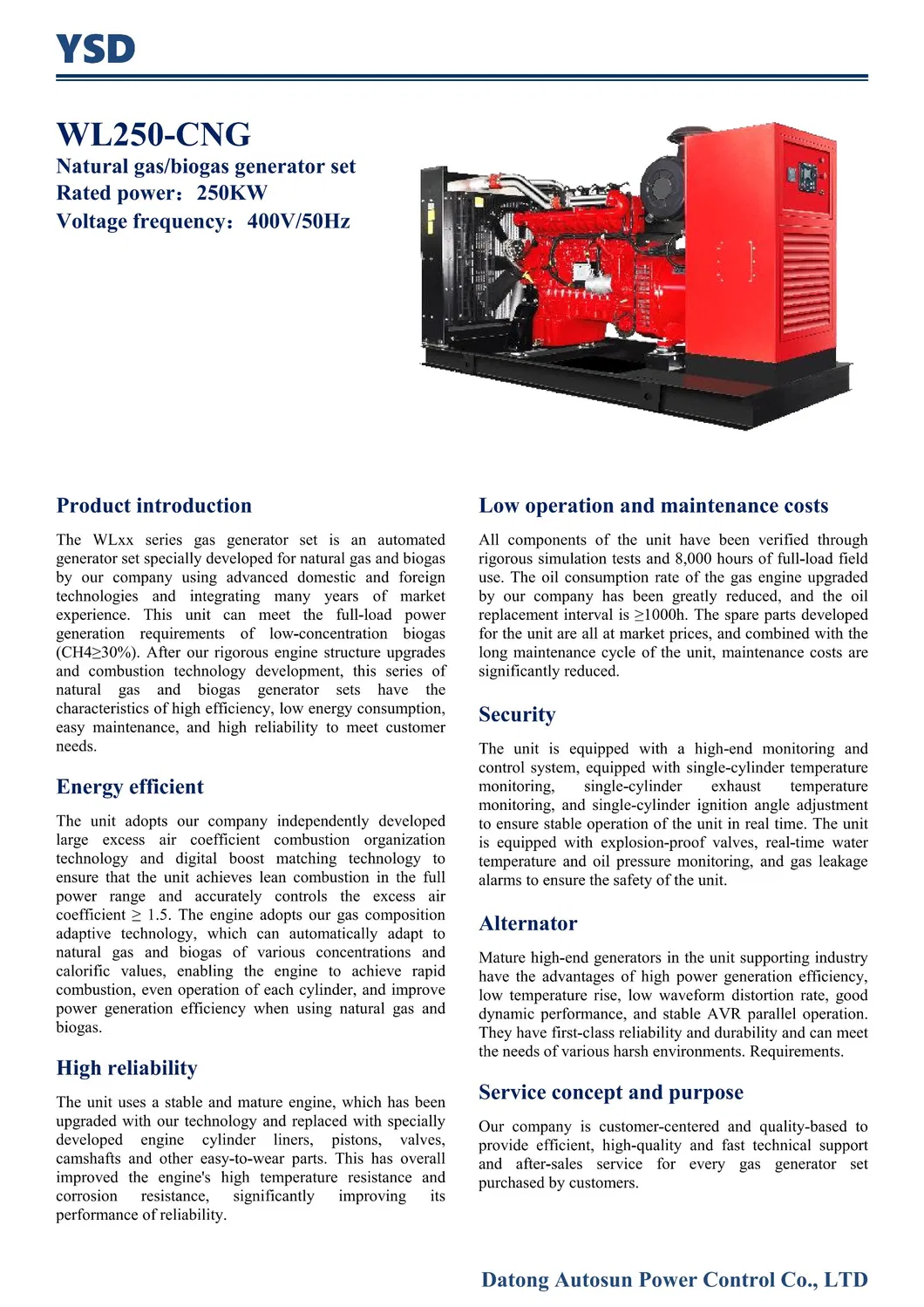

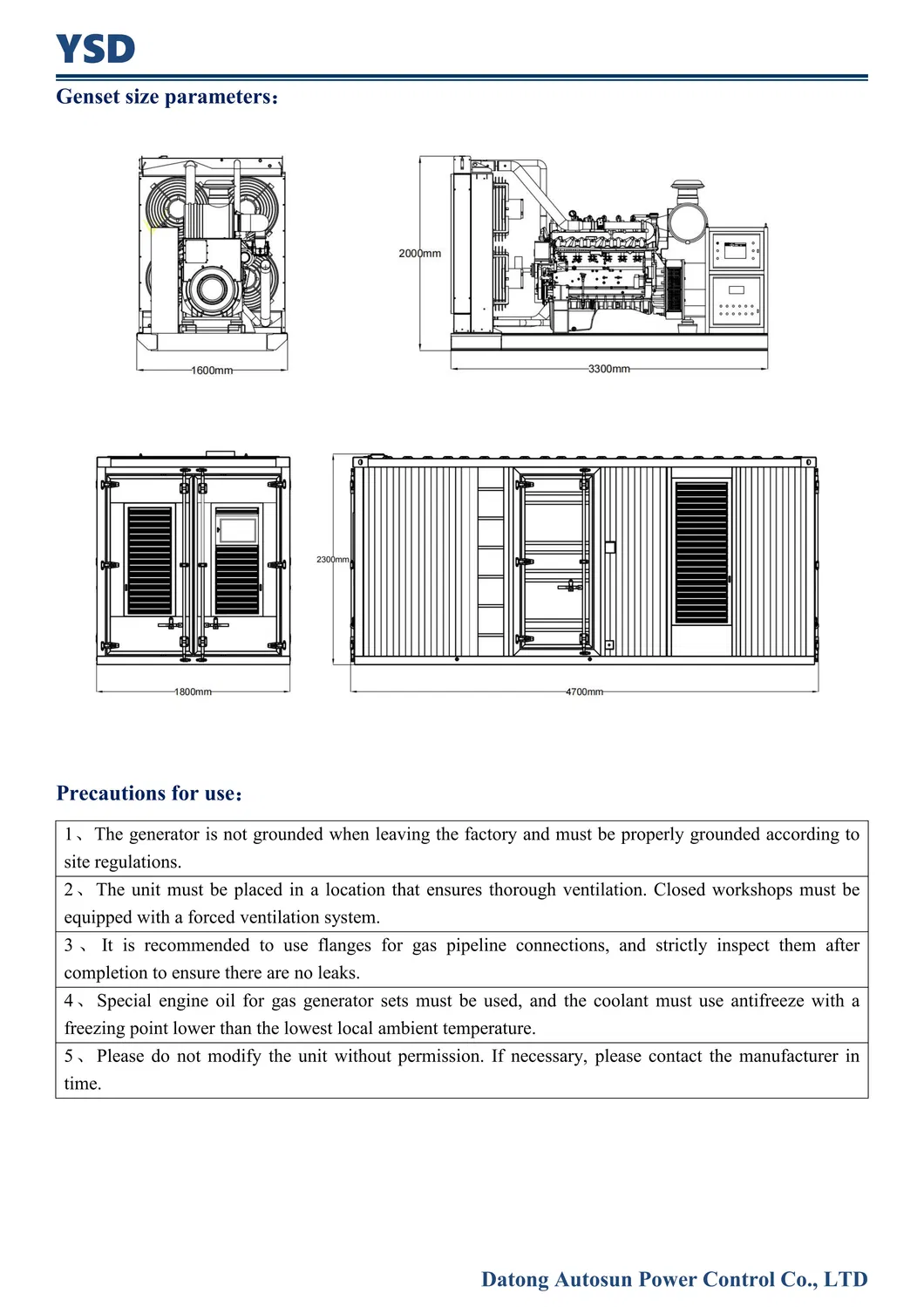

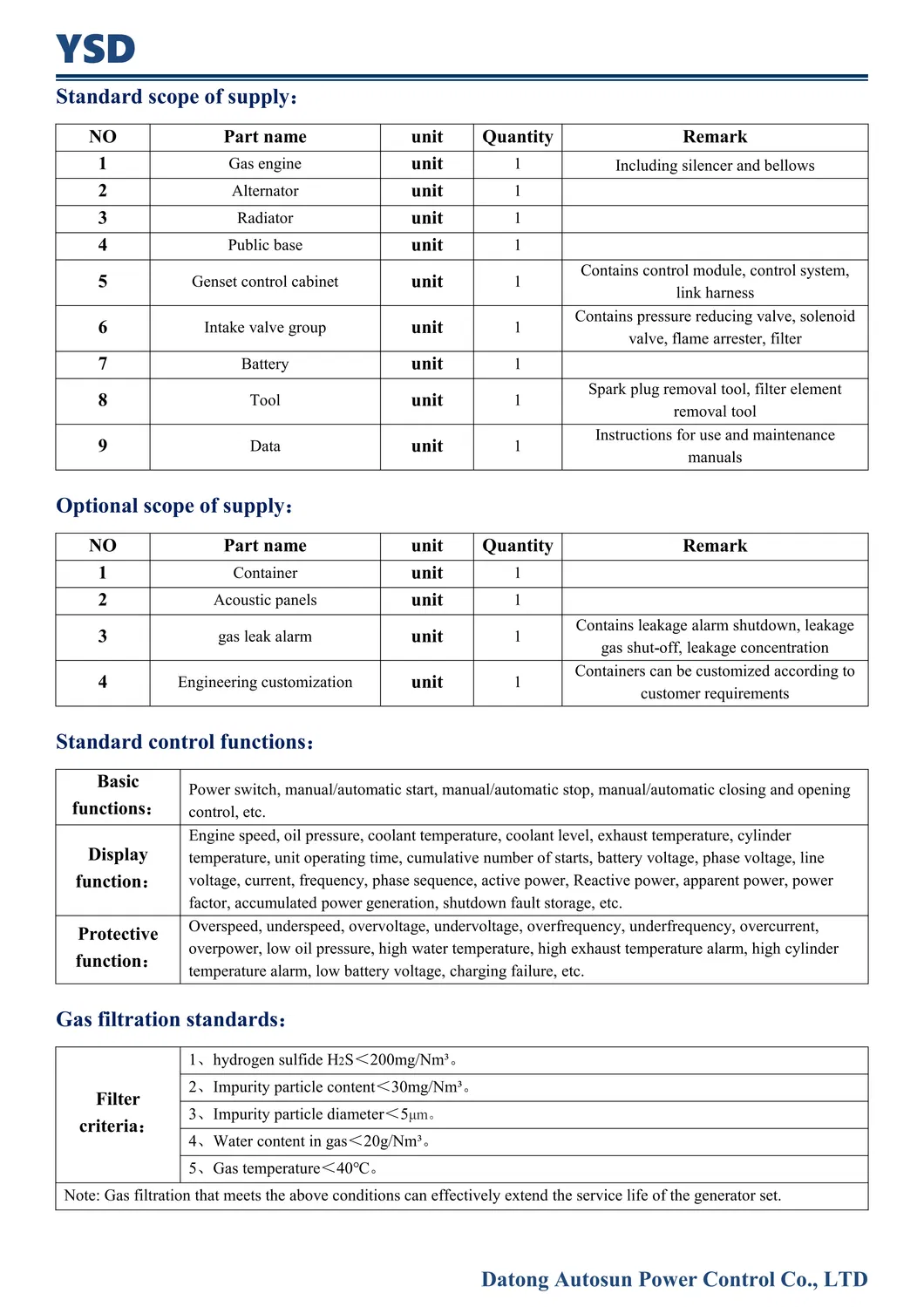

System Diagrams & Production Details
Frequently Asked Questions
Q1
Are you a trading company or a factory?
We proudly operate as a factory, ensuring direct and efficient communication and production quality control.
Q2
What is the warranty period for the generator set?
Our standard warranty covers 1 year or 1500 running hours, whichever occurs first. If you have special requirements, we can discuss extending the warranty for added peace of mind.
Q3
What is the available power range of the gas generator sets?
Our robust gas generator sets offer a wide power range from 30KW to 1500KW, providing versatile power solutions for various project sizes.
Q4
What is the Minimum Order Quantity (MOQ)?
Our MOQ is just 1 set, making it easy for you to start and test the equipment for your specific needs.
Q5
Do you accept custom OEM/ODM orders?
Yes, we offer complete OEM/ODM services and can tailor the gas generator sets to meet your precise technical specifications.
Q6
What is the standard payment terms for orders?
We require a 30% TT payment in advance, with the remaining balance due before delivery, ensuring a secure transaction process.
